In a Single Sign-on environment a user will only have one username and one password to remember. Accessing Fisheye/Crucible is simpler and quicker – once they’re logged onto their machine they won’t have to re-log-in each individual application.
Fisheye/Crucible Single Sign On addon:
SAML Single Sign On (SSO) for Fisheye/Crucible allows users to sign in to the Fisheye/Crucible Server with your SAML 2.0 capable Identity Provider. We support all known IdPs - miniOrange, Google Apps, ADFS, Okta, OneLogin, Azure AD, Salesforce, Shibboleth, SimpleSAMLphp, OpenAM, Centrify, Ping, RSA, IBM, Oracle, Bitium, WSO2, NetIQ etc.SAML Single Sign on (SSO) acts as a SAML 2.0 Service Provider and securely authenticate users with your SAML 2.0 Identity Provider.
Features of Fisheye/Crucible Single Sign On addon:
- Unlimited Authentications via IDP
- Support for Multiple SAML IDPs
- Single Sign-On button on login page
- Advanced Attribute Mapping
- Advanced Role Mapping
- Auto-Redirect to IDP
- Force Authentication with IDP
- SAML Single Logout
- Datacenter support
In order to setup SSO for Fisheye/Crucible, you need to follow these steps:
Step 1: Download the plugin from marketplace and Install it in Fisheye/Crucible Server
- Login as administrator in Fisheye/Crucible.
- Click the administration and choose Add-ons.
- Click on the Manage add-ons.
- Locate SAML Single Sign On for Fisheye/Crucible via search.
- Results include add-on versions compatible with your Fisheye/Crucible instance.
- Click Install to download the add-on.
Step 2: Register/Login with miniOrange using addon
- Click on Configure button after installing the add-on.
- Register with miniOrange using a simple form in add-on.

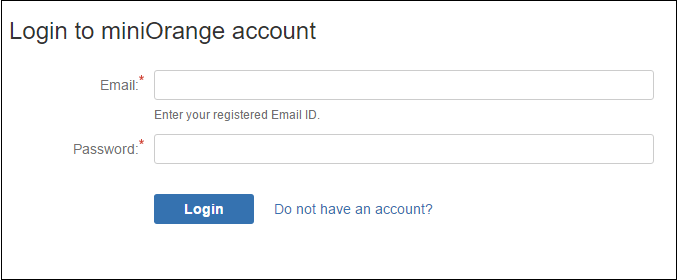

- If you are Already Registered with miniOrange, you can direclty login in to the plugin .
Step 3: Configuring the plugin

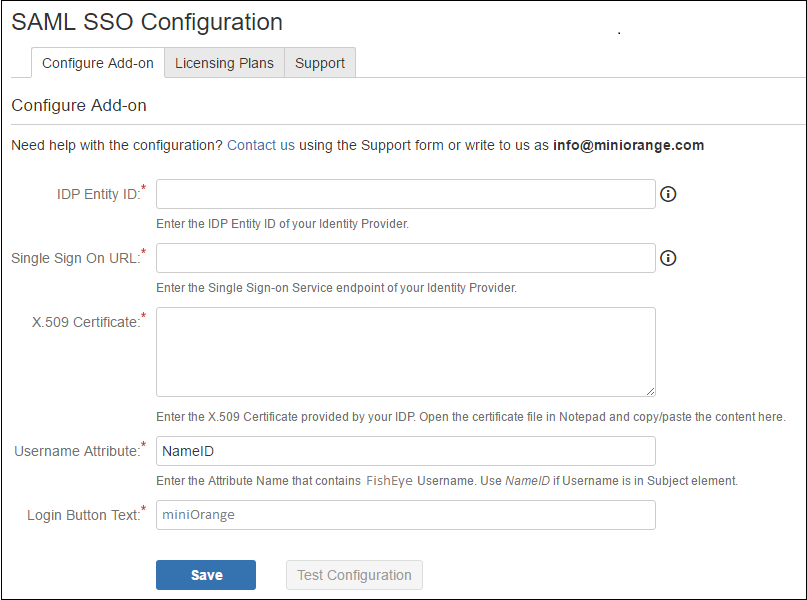

- Using IdP information user could add details in Configure SP.
- Provide the required settings (i.e. IdP Entity ID, IdP Single SignOn Service Url, X.509 certificate) in the plugin and save it.
|IdP Entity Id||https://auth.miniorange.com/moas|
|Single Sign On URL||https://auth.miniorange.com/moas/idp/samlsso|
|Identity Provider Certificate||Upload the certificate downloaded from miniOrange Admin Console|
|Username Attribute||FishEye Username|
|Login Button Text||miniOrange|
Any help needed related to configuring IdP contact us at firstname.lastname@example.org or call us at +1 978 658 9387.
Step 4: Test Configuration

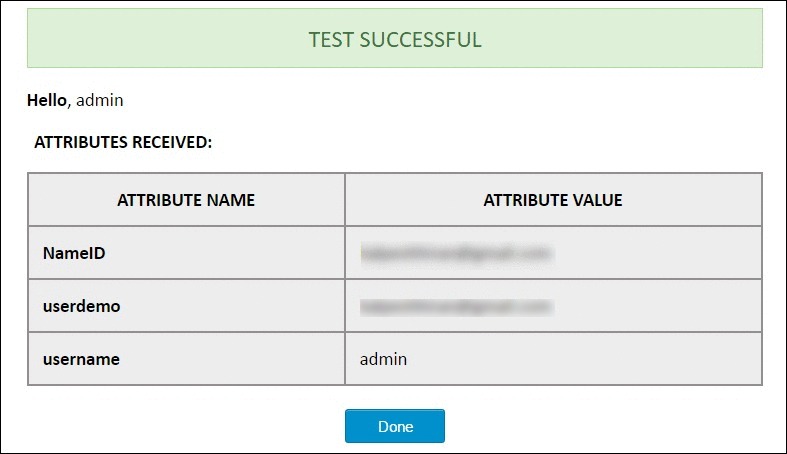

- The below screenshot shows the successful result.
- This screenshot shows the attributes that are received and are mapped by attribute mapping.
Step 5: Attribute Mapping
- Attribute Mapping is used by the Identity Provider(IdP) and the Fisheye/Crucible group(SP) to map user information from IdP to SP
- Attribute Mapping helps you to get user attributes from your IdP and map them to Fisheye/Crucible user attributes .
- Attributes received in successful Test congiguration are used for Attribute Mapping.
- In Attribute Mapping details like username and NameID as shown in step 4 of Test Successful are mapped to Username and Email respectively.
- Also Full Name or Separate Name(i.e First and Last Name)attributes are given as options according to Fisheye/Crucible user attributes
- While auto registering the users in your Fisheye/Crucible group these attributes will automatically get mapped to your Fisheye/Crucible user details.
Step 6: Group Mapping(optional)
- Fisheye/Crucible plugin assigns roles to groups which are mapped against those groups.
- Fisheye/Crucible uses a concept of Groups, designed to give the site owner the ability to control what groups can and cannot do within the site.
- In Group Attribute enter the Attribute Name given against role value of Test Configuration for the user.
- Clicking Create Users checkbox will allow user creation for only those roles whose role is mapped to Fisheye/Crucible groups in Group Mapping tab. If unchecked, users whose roles are not mapped to Fisheye/Crucible groups, their group will be set as Default Group.
- Group mapping helps you to assign specific roles to users of a Fisheye/Crucible group from your IdP.

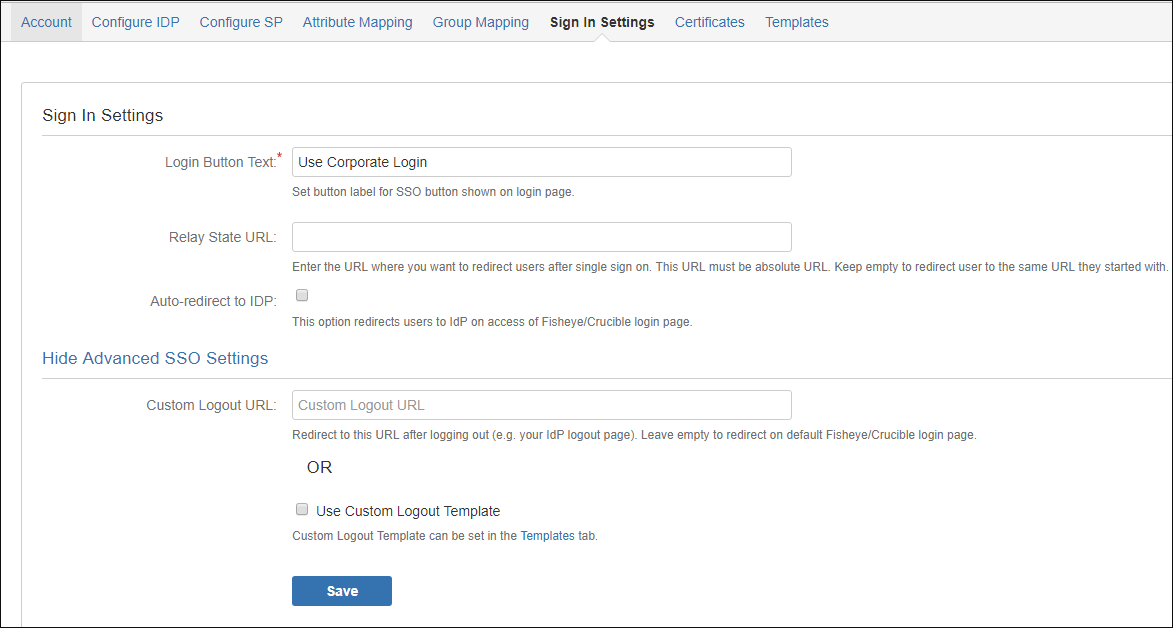

Step 7: SSO Sign In Settings
There are different ways to login to your Atlassian Fisheye/Crucible Website.
- Login Button Text make your organization's SSO easy for Fisheye/Crucible users to recognize.
- You also have option to disable your Fisheye/Crucible login by clicking Disable Fisheye/Crucible Login checkbox if you have enable a Single Sign-On plugin.
(If disable your Fisheye/Crucible Login all users will be redirected to IdP for login.)
- Enable backdoor checkbox allows Administrators to bypass external authentication and log in with a Fisheye/Crucible administrator using user name annd password.Note: that a logged-in user cannot access this page only an administrator could.
