Step-by-Step Guide for WordPress Single Sign On (SSO) using miniOrange OAuth Server.
STEP 1: Install and Activate miniOrange OAuth Server plugin and register.
STEP 2: Configuring Custom OAuth Server as OAuth Provider

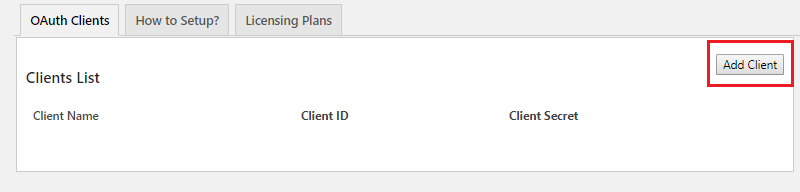

- Go to OAuth Client tab and add client by clicking on Add Client button.

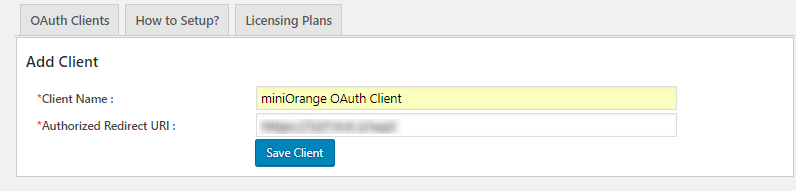

- Once clicked on Add Client, you will have to enter Client Name and Authorized Redirect URL.
- Go to STEP 3 to get Authorized Redirect URL.
- Once saved, you will get Client ID and Client Secret.

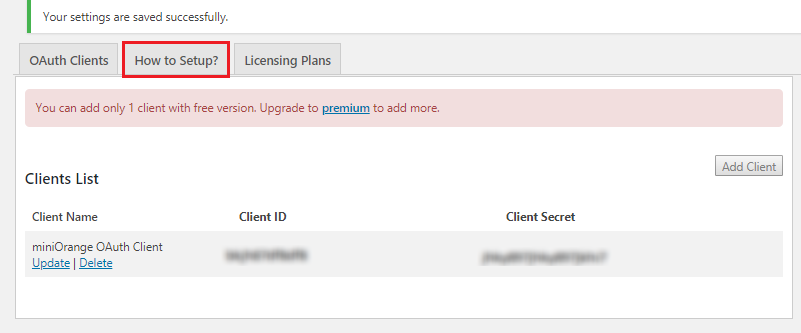

- Go to How to Setup? tab. You will get Endpoints and Scope there to configure OAuth Client plugin.
STEP 3: Configuring WordPress as OAuth Client

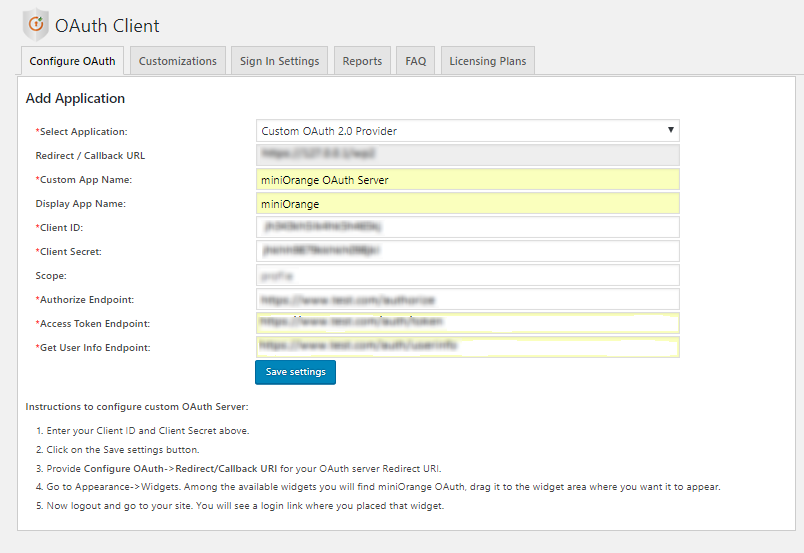

- In miniOrange OAuth Client plugin, go to Configure OAuth tab. Select Custom OAuth 2.0 Provider under Add Application.
- Enter the Custom App Name you want to see on OAuth Client Application list. Lets say, Custom OAuth Server. If you want a different application name to be displayed on Login Button then enter Display App Name, Ex. miniOrange.
- Enter Scope and Endpoints copied from OAuth Server and click on Save Settings.

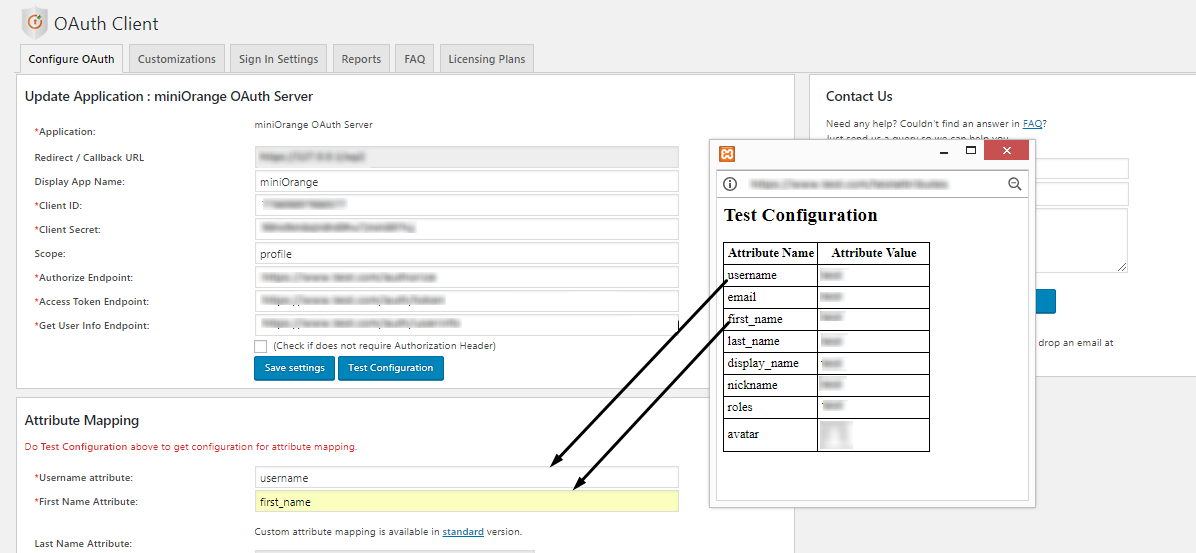

- Click on Test Configuration and you will get Attribute Names and Attribute Values there. Enter the Attributes Names under Attribute Mapping section and save it.
STEP 4: Add Login Widget

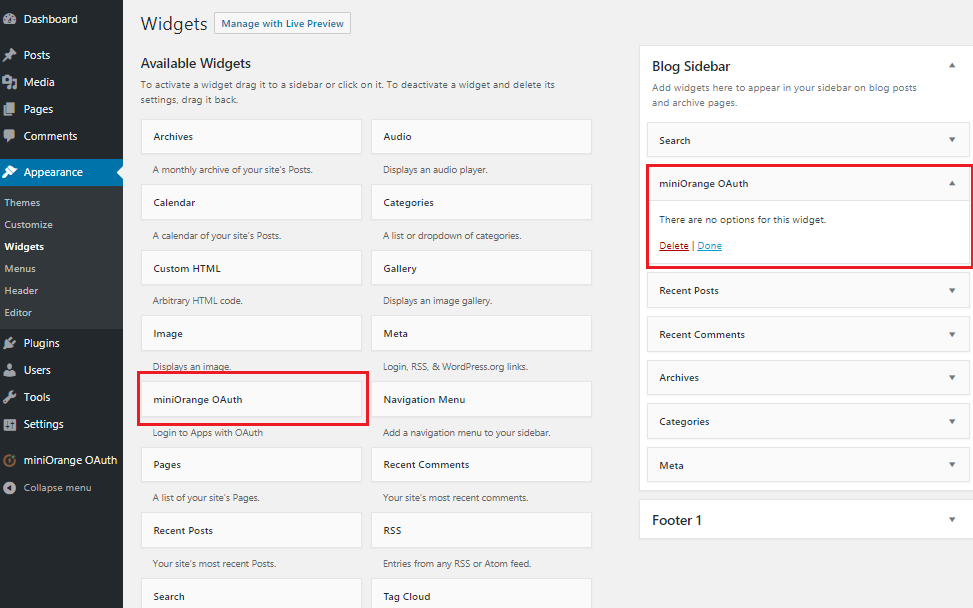

- Go to WordPress Menu -> Appearance, click on Widget. Drag miniOrange OAuth widget to a sidebar.

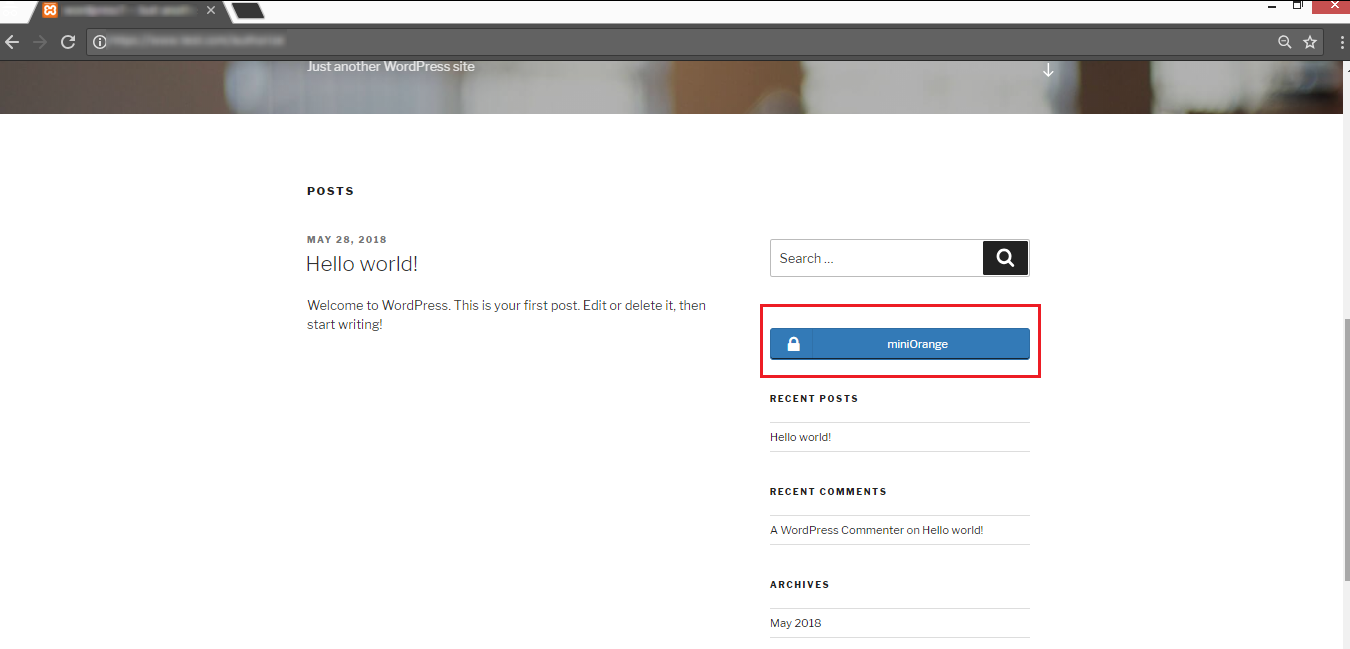

- Go to your Site to test the Widget. Click on Login button and login using the credentials of your OAuth Server. You will be able to log in.
