JSM SSO Architecture
- SAML/OAuth SSO for JSM Customers is hosted on AWS EU North 1(Stockholm) servers behind load balancers with two availability zones to ensure maximum uptime.
- Instances are added to auto-scaling groups, which allow for scale up and down as per the current load. This leads to high performance and uptime of the service.
- Amazon Relational Database Service (RDS) is used for persistent database storage. The system is fault-tolerant and is replicated as well as has configured automatic backups everyday, which can be used to get the service back up in case of a failure event.
- Amazon Simple Notification Service (SNS) is used for internal notifications about the health and performance of the service. Notifications have been set up on different metrics to determine the health of the service and the team is notified in case of an anomaly or status check failure. This allows for the smooth running of the service and high uptime.
- Regular snapshots of the server environment are taken regularly and databases are backed up on a daily basis. This allows for speedy recovery in case of any sort of failure.
- Amazon S3 has been used for storing backups and static contents.

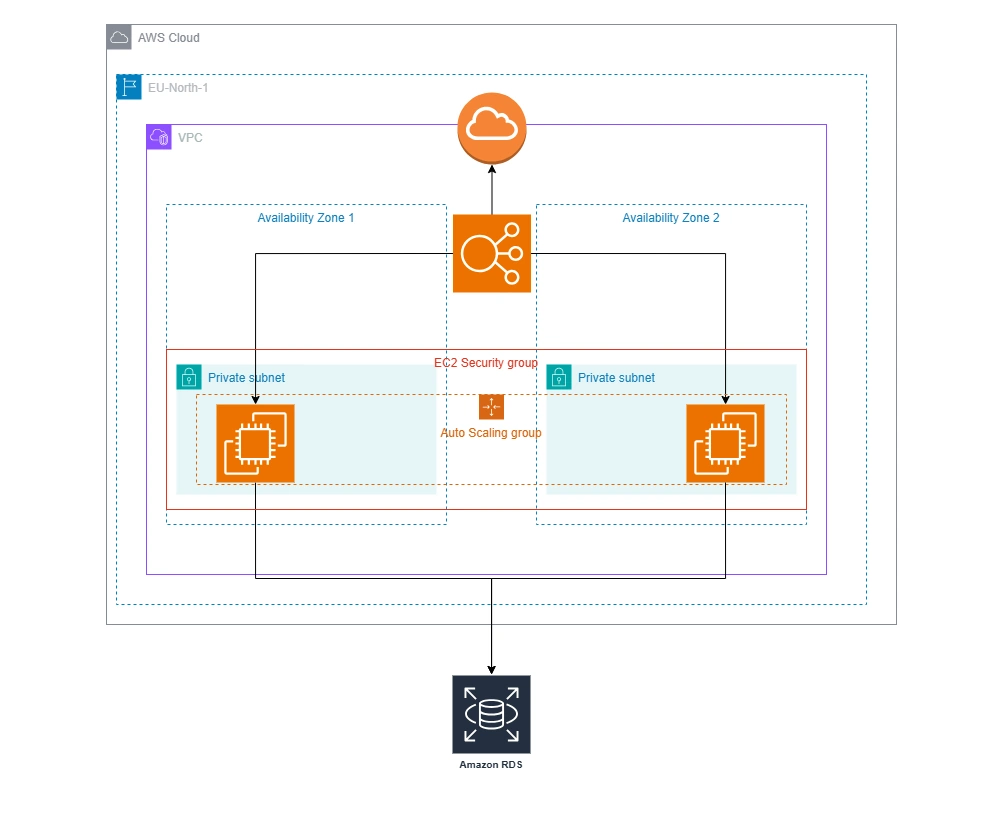

AWS Architecture of JSM SSO

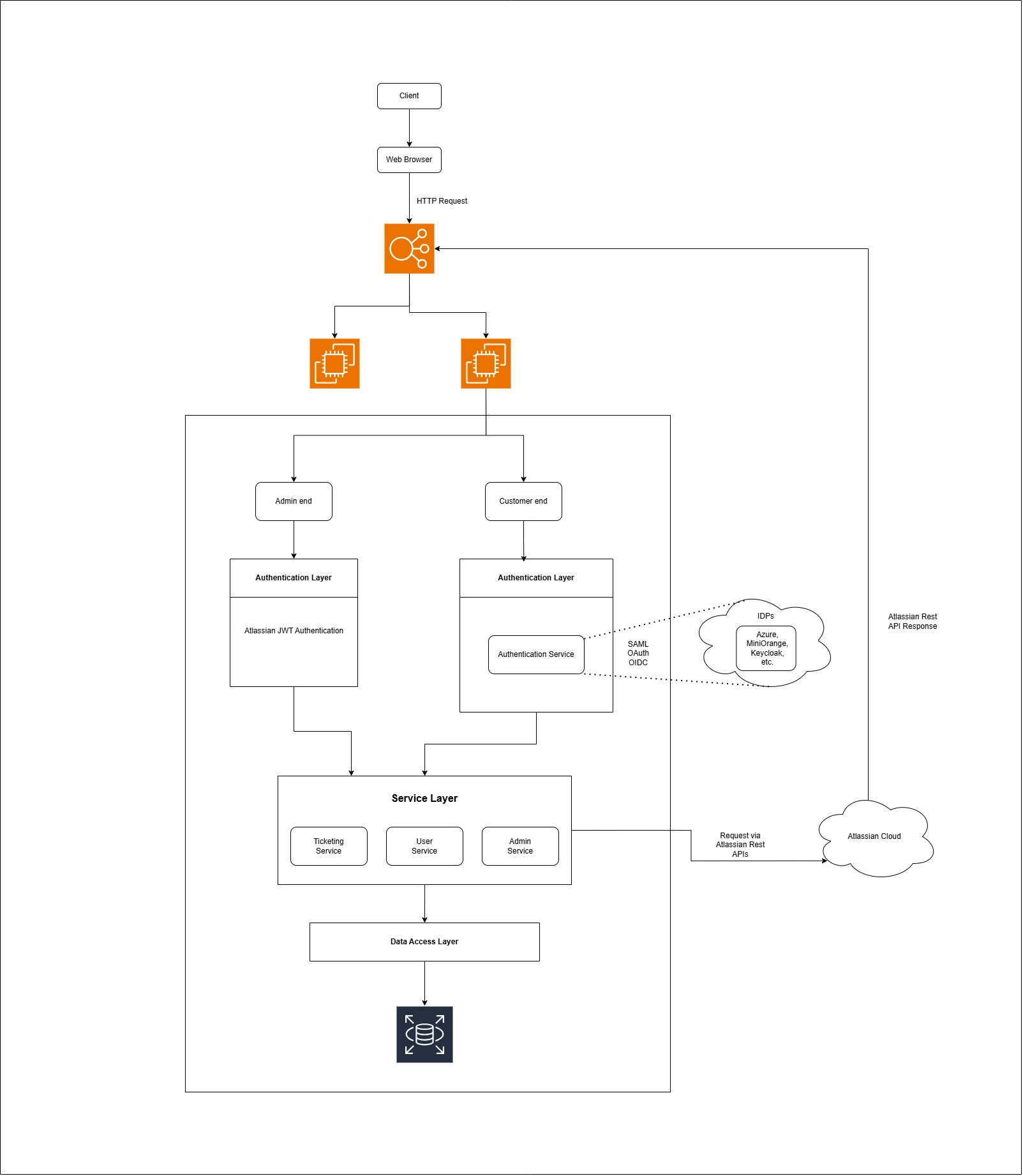

Application Architecture JSM SSO
