Atlassian Cloud SSO (Single Sign-On) for Google apps using OAuth Provider


Jira OAuth Single-Sign On(SSO) for Atlassian Cloud allows you to use a single set of login credentials for secure access using miniOrange SSO solution. Single Sign-on (SSO) into your Atlassian Access or Atlassian Jira Cloud Account with any of your existing OAuth Provider credentials for enhanced security using our module.

You can refer the steps to configure Multiple IDPs and Domain Mapping in Atlassian Access from the video or documentation given below


Pre-requisites

1. Atlassian Access Subscription

Atlassian Access is an additional subscription applied across the Atlassian cloud products like Jira Software, Jira Service Management, Jira Work Management, Confluence, Bitbucket, etc. So it is needed for Single Sign-On(SSO) or any Cloud Service which comes under Atlassian Access.

2. Domain Verification:

The first step of Atlassian Access starts with the Domain Verification Process to enforce SAML SSO on the managed user accounts. This process verifies that you own a valid domain for managing the user accounts and use the same domain name for the email addresses.

In this document, we will demonstrate the setup in two parts.

Part 1: Configure SAML SSO between Atlassian cloud as SP and miniOrange as IDP

Part 2: Configure SAML SSO between miniOrange as SP and Google Apps as IDP

Part 1 + Part 2 : Testing SSO between Atlassian cloud as SP and Google Apps as IDP using miniOrange Identity Broker.

Part 1: Setup miniOrange with Atlassian Access


Step 1. Setup miniOrange as an Identity Provider

  • Login into miniOrange Admin Console.
  • Go to Apps and click on the Add Application button.
  • Atlassian Access Cloud  Single Sign-On (SSO) add app
  • In Choose Application Type click on Create App button in SAML/WS-FED application type.
  • Atlassian Access Cloud Single Sign-On (SSO) choose app type
  • Search for Atlassian Cloud (SAML) in the list.
  • Atlassian Access Cloud Single Sign-On (SSO) miniOrange Create App
  • Enter the following values in the respective fields, you will receive these values after creating an app in Atlassian access. Refer this step.
  • Custom Application Name Any name would be fine
    SP Entity ID or Issuer You will receive after configuring Atlassian Access App
    ACS URL You will receive after configuring Atlassian Access App
  • Also make sure that Sign Response & Sign Assertion both options are turned ON. Then click on the Save button.
  • Once the App is successfully Created, Select that App and then click on Metadata option to get app’s Metadata.
  • Atlassian Access Cloud SSO (Single Sign-On) View metadata
  • Since we are using miniOrange as a Brokering Service in this solution, Go to Information required to authenticate via external idp section as highlighted, and Click on Show Metadata Details.
  • Atlassian Access Cloud SSO (Single Sign-On)
  • After clicking on the Show Metadata Details button you can see the metadata details.
  • You will need these details while configuring an Atlassian Access app.
    Atlassian Access Cloud SSO (Single Sign-On) View Metadata Details
  • In the left sidebar hover on Users then click on Users List
  • Atlassian Access Cloud SSO (Single Sign-On) miniOrange Add User
  • Click on Add User and enter details to enforce Single Sign On(SSO) on that user.
  • Atlassian Access Cloud SSO (Single Sign-On) miniOrange Add New User
    Make sure that the user created here will also exist in the Atlassian Cloud.

Step 2. Setup Atlassian Cloud

  • Now login to Atlassian Cloud Admin Console.
  • Select your organization and then select the Security tab. Click on SAML Single Sign-On from the left sidebar.
  • Atlassian Access Cloud SSO (Single Sign-On) Security tab
  • You can click on Instructions for different Identity Providers. It provides a help page for specific IDP and Attribute Names for Attribute Mapping.
  • Atlassian Access Cloud SSO (Single Sign-On) Cloud Instructions
  • Here you will get the SAML Configuration Instructions for different identity providers as listed. Click on Got it.
  • Atlassian Access Cloud SSO (Single Sign-On) Attribute Mapping
  • Click on Add SAML Configuration.
  • Atlassian Access Cloud SSO (Single Sign-On) Add Configuration
  • You will be redirected to the Add SAML Configuration window. Enter IDP Entity ID, SSO URL and the public certificate. Click on the Save Configuration button.
  • You will get these details in the metadata details section after configuring the miniorange app. Refer this step
    Atlassian Access Cloud SSO (Single Sign-On) Save Configuration
  • Now you will be shown SP Entity ID & SP ACS URL as shown below. These details will be needed in miniOrange app configuration. Now set up the Authentication Policies by clicking on the View Authentication Policies.
  • Atlassian Access Cloud SSO (Single Sign-On) View Policies
  • Click on Add Policy.
  • Atlassian Access Cloud SSO (Single Sign-On) Add policy
  • Enter the policy name and add the policy.
  • Now under Single Sign-On, click on Enable Single Sign-On.
  • Atlassian Access Cloud SSO (Single Sign-On) Atlassian Enable SSO
  • Then click on the Members tab besides the settings tab and click on Add Members.
  • The Single Sign On(SSO) will work only for Added Members.
    Atlassian Access Cloud SSO (Single Sign-On) Add Member
  • Enter details and click on Add Members.
  • The user must be present in both Atlassian and miniOrange.
    Atlassian Access Cloud SSO (Single Sign-On) Add User

Step 3. Test Atlassian Cloud - miniOrange Configuration

  • Go to Atlassian Login Page.
  • Enter email and click on Continue. Then you will be redirected to miniOrange Login Page
  • After logging into miniOrange, you will be successfully logged into Atlassian Cloud Dashboard
Now, you will be able to Login to your Atlassian Dashboard using miniOrange Credentials.

If you do not have any IDP, you can always go with miniOrange IDP.

Part 2: Setup miniOrange with Google Apps


Step 1. Setup Google Apps as IDP

  • Login to Google Console:Visit the Google's Developer Console and login to your account.

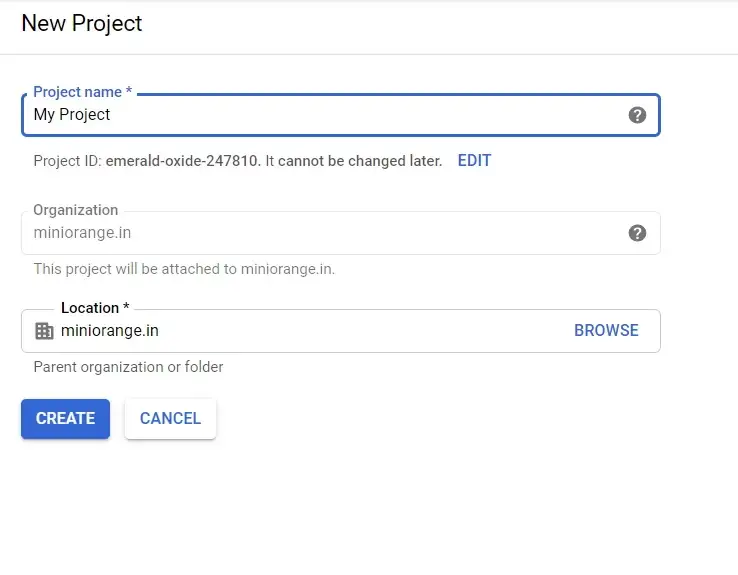

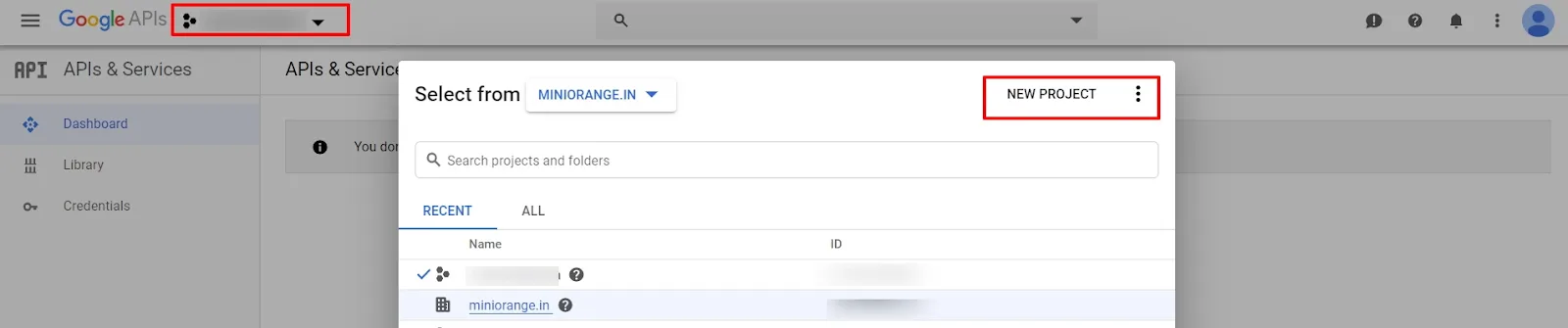

  • Click Select a project, then NEW PROJECT, and enter a name for the project, and optionally, edit the provided project ID. Then click on Create button.
  • OAuth/OpenID/OIDC Single Sign On (SSO), Google Apps SSO Login Setup Google app OAuth/OpenID/OIDC Single Sign On (SSO), Google Apps SSO Login NEW PROJECT
  • Select your project, click on APIs & Services and select OAuth consent screen option.
  • OAuth/OpenID/OIDC Single Sign On (SSO), Google Apps SSO Login OAuth Consent Screen
  • On the Consent screen page, select the User Type and click on Create. In the next screen, provide Application name and save the changes.

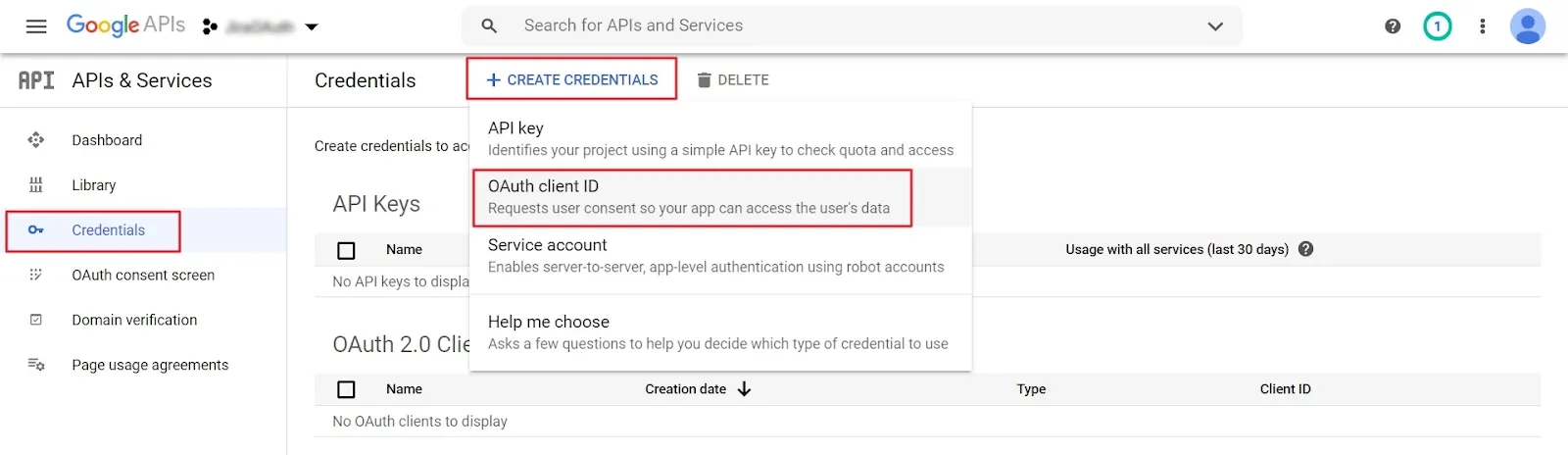

  • Now go to Credentials, click on Create Credentials and select OAuth Client ID.
  • OAuth/OpenID/OIDC Single Sign On (SSO), Google Apps SSO Login Create credentials

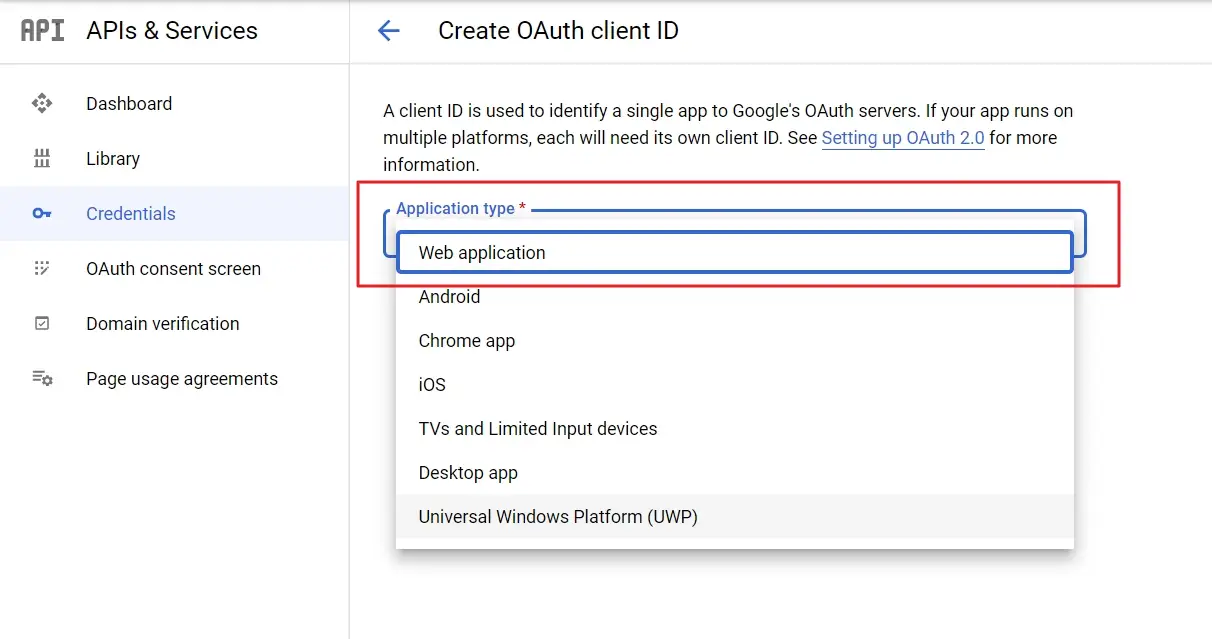

  • Select Web Application as application type.
  • OAuth/OpenID/OIDC Single Sign On (SSO), Google Apps SSO Login Application type

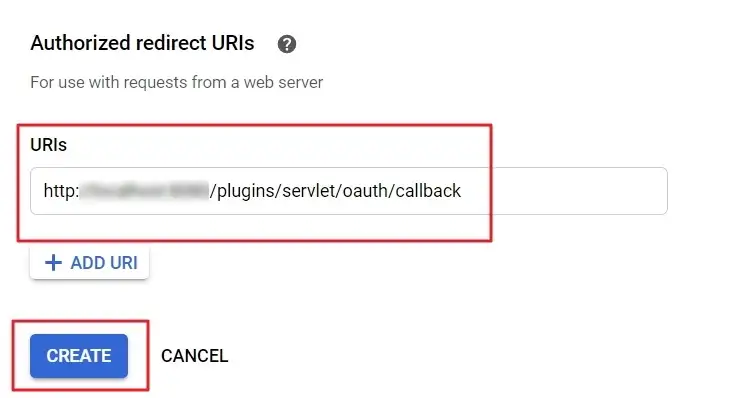

  • Click on the Add URI button in Authorized redirect URIs section. Collect the callback URL provided in the miniOrange plugin and enter it here. Click on Create.
    The callback URL would be {oauth_client_base_url}/plugins/servlet/oauth/callback
  • OAuth/OpenID/OIDC Single Sign On (SSO), Google Apps SSO Login Redirect URI

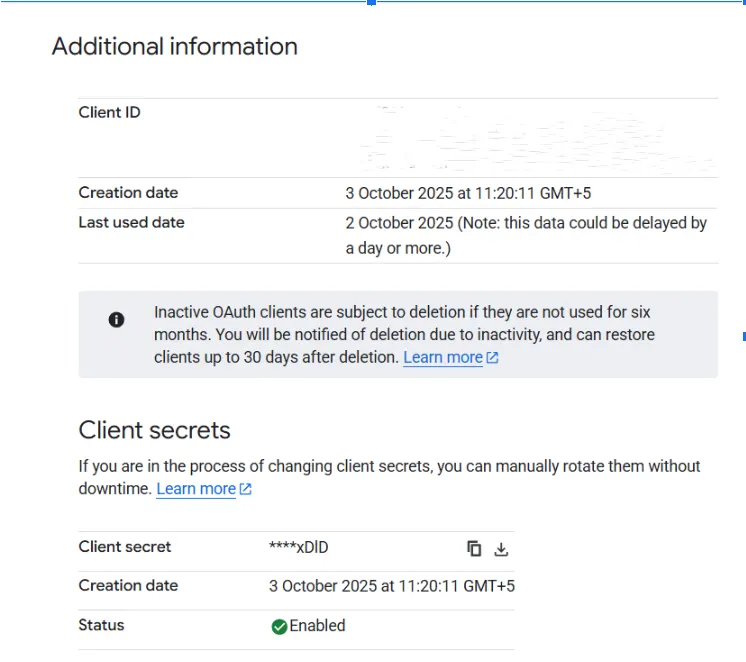

  • Get Client ID and Client Secret: Copy the client ID and client secret to your clipboard, as you will need them when you configure miniOrange plugin.
  • OAuth/OpenID/OIDC Single Sign On (SSO), Google Apps SSO Login Get Client ID
  • To send user's group to the client application, you need to enable Admin SDK and API access. For Admin SDK, navigate to the Dashboard and click on ENABLE APIS AND SERVICES.
  • OAuth/OpenID/OIDC Single Sign On (SSO), Google Apps SSO Login Enable APIS and Services
  • Now search for Admin SDK, select it from the list and then click on ENABLE button.
  • OAuth/OpenID/OIDC Single Sign On (SSO), Google Apps SSO Login Admin SDK
  • To enable API Access you need to login into Google Admin console. In Google Admin Console, go to Security ->Settings.
  • OAuth/OpenID/OIDC Single Sign On (SSO), Google Apps SSO Login Security ->Settings
  • Look for API Permissions -> Enable API access
  • OAuth/OpenID/OIDC Single Sign On (SSO), Google Apps SSO Login API reference

    Step 2. Setup miniOrange as Service Provider

  • Go to miniOrange Admin Console.
  • From the left navigation bar select Identity Provider.
  • wso2 sso
  • Select OAuth tab.
  • wso2 sso
  • Enter the following values.
  • IdP Name Custom Provider
    IdP Display Name Choose appropriate Name
    OAuth Authorize Endpoint https://<wso2-app-domain>/oauth2/authorize
    OAuth Access Token Endpoint https://<wso2-app-domain>/oauth2/token
    OAuth Get User Info Endpoint (optional) https://<wso2-app-domain>/oauth2/userinfo
    Client ID From step 1
    Client secret From step 1
    Scope openid

Step 3. Test connection between miniOrange and Google Apps

  • Go to the miniOrange Admin Dashboard.
  • Go to Identity Providers tab. Then click on select button under the app you just created. Then click on Test Connection.
  • A new popup login window will open. Enter your credentials and login.
  • Atlassian Access Cloud SSO (Single Sign-On) Add Member
  • Now you will see TEST SUCCESSFUL in a new popup window. If not, then check if you have missed any of the above step.

Part 3: Test Atlassian - Google Apps Configuration


  • Go to Atlassian Login Portal.
  • Enter email and click on Continue. Then you will be redirected to Google Apps Login Page.
  • After logging into Google Apps Login Page, you will be successfully logged into Atlassian Cloud Dashboard.
If you encounter any difficulties configuring miniOrange add-ons, please contact us at atlassiansupport@xecurify.com or raise a support ticket here.
