Atlassian Cloud OAuth Single Sign-On (SSO) Github

Jira OAuth Single-Sign On(SSO) for Atlassian Cloud allows you to securely login using Github credentials. Single Sign-on (SSO) into your Atlassian Access or Atlassian Jira Cloud Account with any of your existing OAuth Provider credentials for enhanced security using our module.

You can refer the steps to configure Multiple IDPs and Domain Mapping in Atlassian Access from the video or documentation given below

Pre-requisites

1. Atlassian Guard (Atlassian Access) Subscription:

Atlassian Guard is an additional subscription applied across the Atlassian Cloud products like Jira Software, Jira Service Management, Jira Work Management, Confluence, and Bitbucket. It is needed for Single Sign-On (SSO) or any Cloud Service that comes under Atlassian Guard.

2. Domain Verification:

The first step of Atlassian Guard starts with the Domain Verification process to enforce SSO on the managed user accounts. This process verifies that you own a valid domain for managing the user accounts and use the same domain name for the email addresses.

Download And Installation

Log into your Jira instance as an admin.
Navigate to Apps → Explore more apps from the header menu.
Next, search for the miniOrange OAuth/OpenID SSO app.
Click on Try it free to begin a new trial of the app.

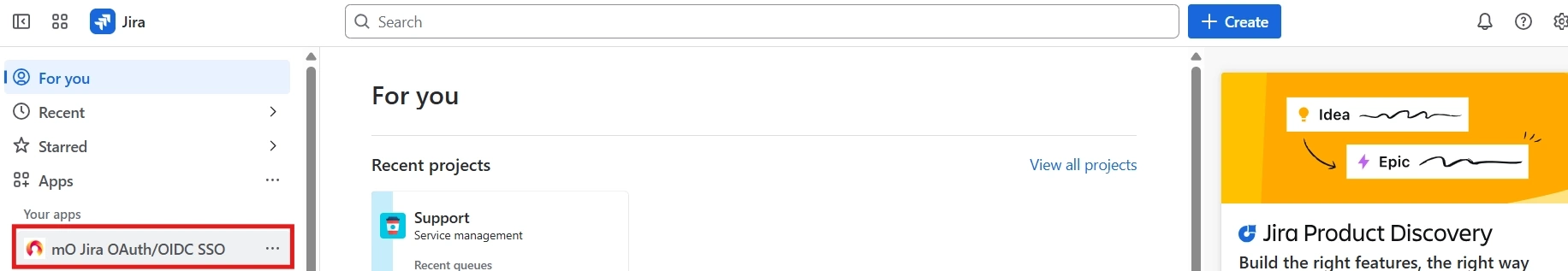

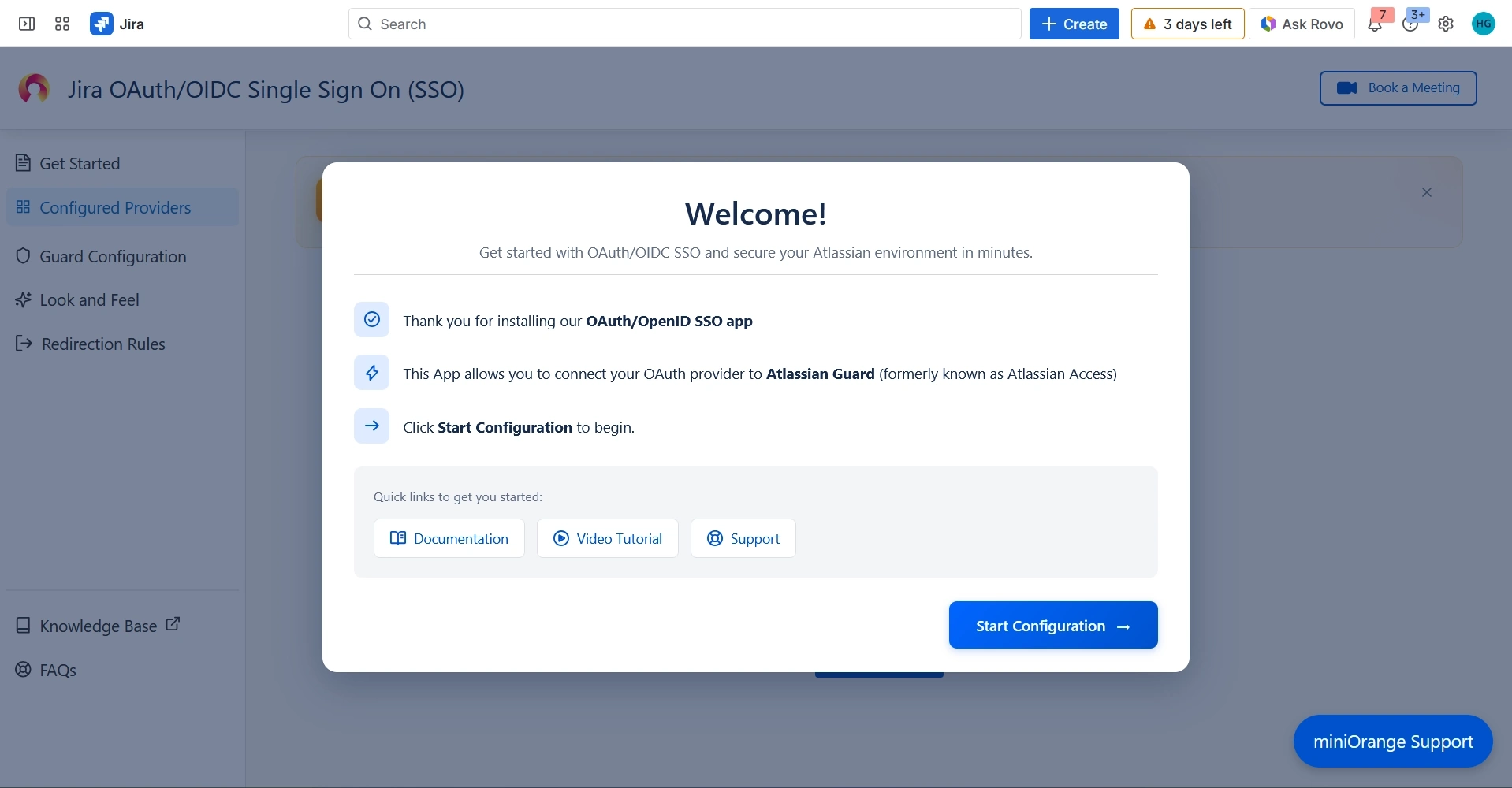

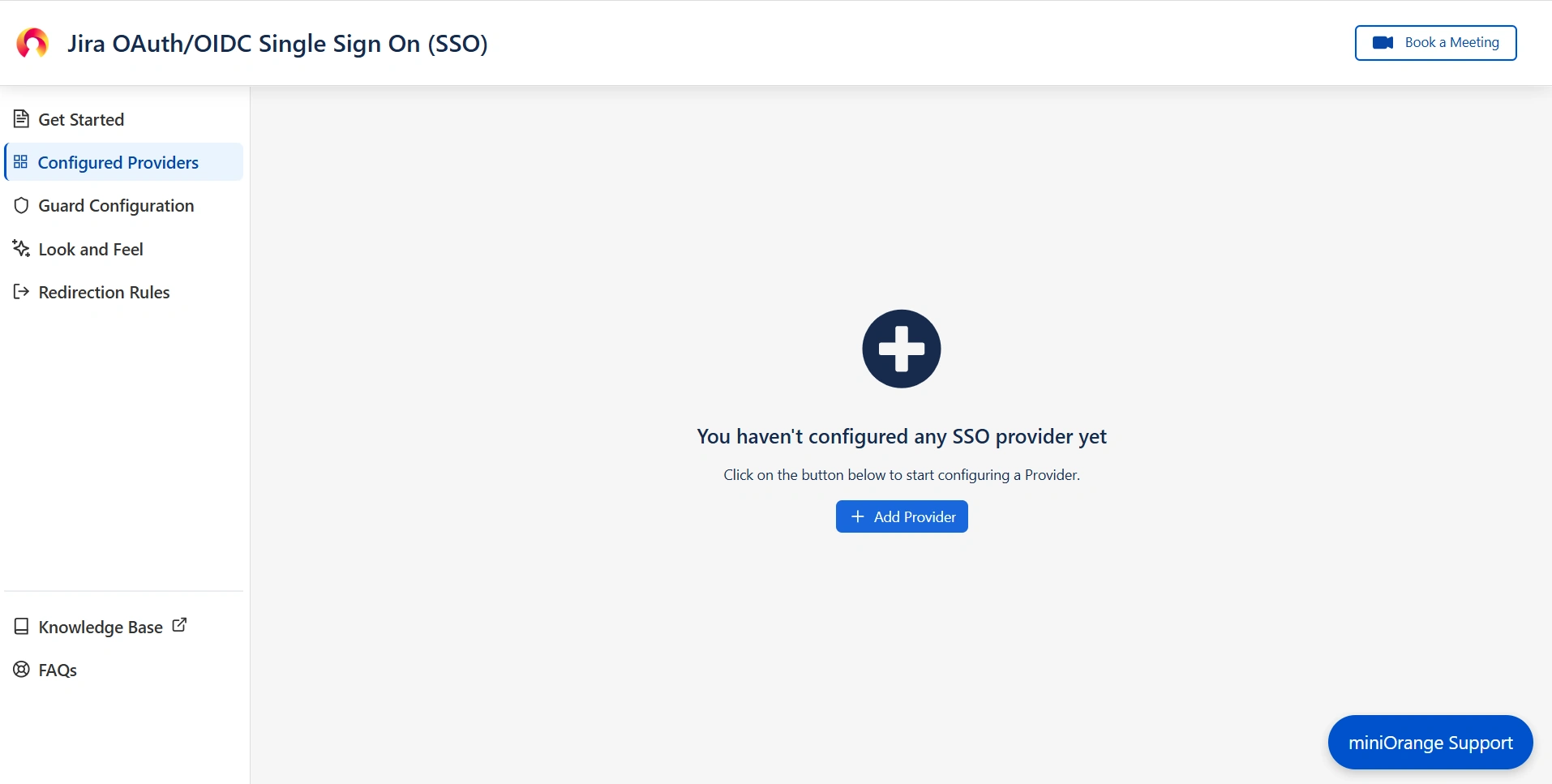

On the menu bar click on Apps and locate the OAuth/OpenID SSO app and click .

In this document, we will demonstrate the setup in two parts.

Part 1: Configure SAML SSO between Atlassian cloud as SP and miniOrange as IDP

Part 2: Configure SAML SSO between miniOrange as SP and Github as IDP

Part 1 + Part 2 : Testing SSO between Atlassian cloud as SP and Github as IDP using miniOrange Identity Broker.

Part 1: Setup miniOrange with Atlassian Access

Step 1. Setup miniOrange as an Identity Provider

Login into miniOrange Admin Console.
Go to Apps and click on the Add Application button.

Atlassian Access Cloud Single Sign-On (SSO) add app

In Choose Application Type click on All Apps dropdown and select SAML/WS-FED application type.

Atlassian Access Cloud Single Sign-On (SSO) choose app type

Search for Atlassian Cloud (SAML) in the list.

Atlassian Access Cloud Single Sign-On (SSO) miniOrange Create App

Enter the following values in the respective fields, you will receive these values after creating an app in Atlassian access. Refer this step.

Custom Application Name	Any name would be fine
SP Entity ID or Issuer	You will receive after configuring Atlassian Access App
ACS URL	You will receive after configuring Atlassian Access App

Also make sure that Sign Response & Sign Assertion both options are turned ON. Then click on the Save button.
Once the App is successfully Created, Select that App and then click on Metadata option to get app’s Metadata.

Atlassian Access Cloud SSO (Single Sign-On) View metadata

Since we are using miniOrange as a Brokering Service in this solution, Go to Information required to authenticate via external idp section as highlighted, and Click on Show Metadata Details.

Atlassian Access Cloud SSO (Single Sign-On)

After clicking on the Show Metadata Details button you can see the metadata details.

You will need these details while configuring an Atlassian Access app.

Atlassian Access Cloud SSO (Single Sign-On) View Metadata Details

In the left sidebar hover on Users then click on Users List

Atlassian Access Cloud SSO (Single Sign-On) miniOrange Add User

Click on Add User and enter details to enforce Single Sign On(SSO) on that user.

Atlassian Access Cloud SSO (Single Sign-On) miniOrange Add New User

Make sure that the user created here will also exist in the Atlassian Cloud.

Step 2. Setup Atlassian Cloud

Now login to Atlassian Cloud Admin Console.

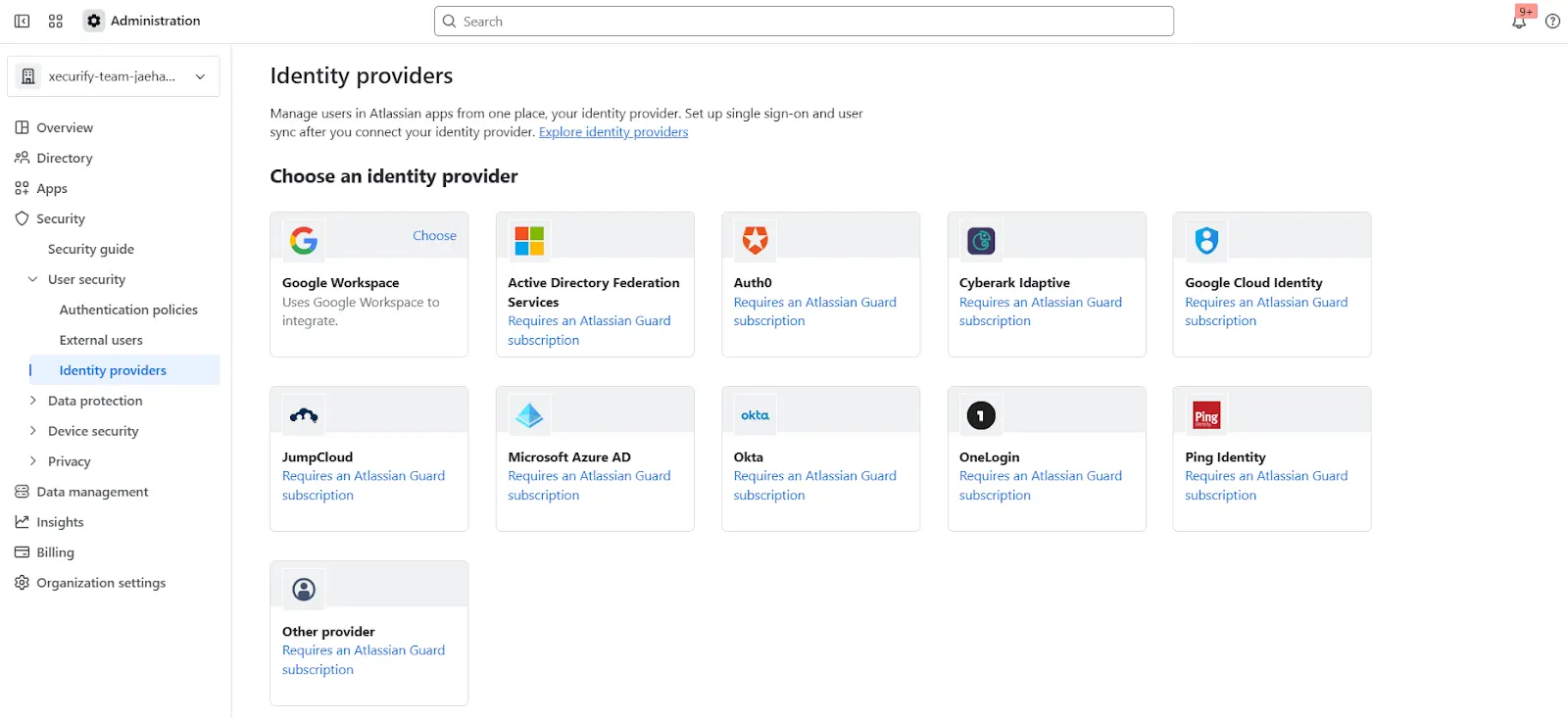

Select your organization and then select the Security tab. Click on SAML Single Sign-On from the left sidebar.

Atlassian Access Cloud SSO (Single Sign-On) Security tab

You can click on Instructions for different Identity Providers. It provides a help page for specific IDP and Attribute Names for Attribute Mapping.

Atlassian Access Cloud SSO (Single Sign-On) Cloud Instructions

Here you will get the SAML Configuration Instructions for different identity providers as listed. Click on Got it.

Atlassian Access Cloud SSO (Single Sign-On) Attribute Mapping

Click on Add SAML Configuration.

Atlassian Access Cloud SSO (Single Sign-On) Add Configuration

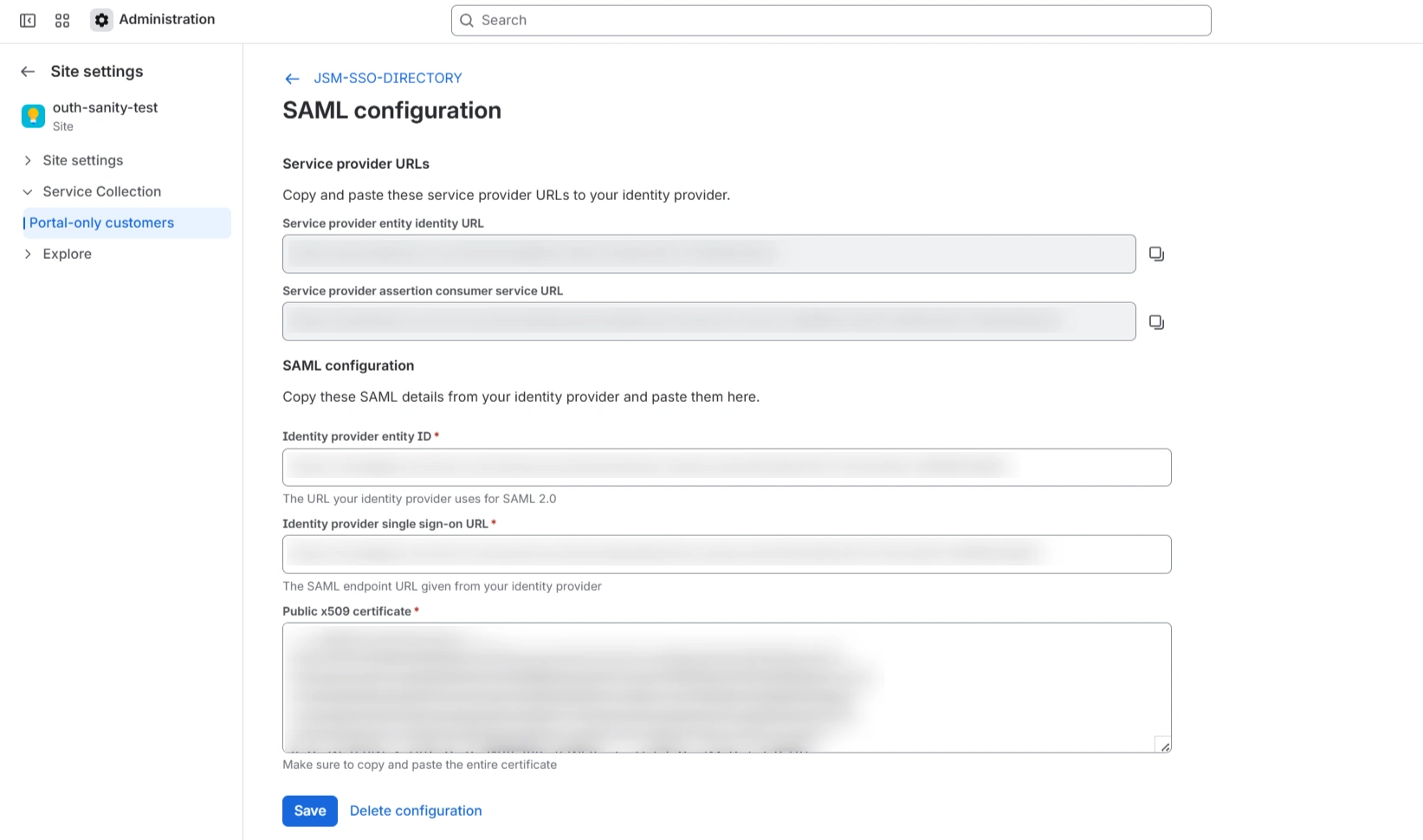

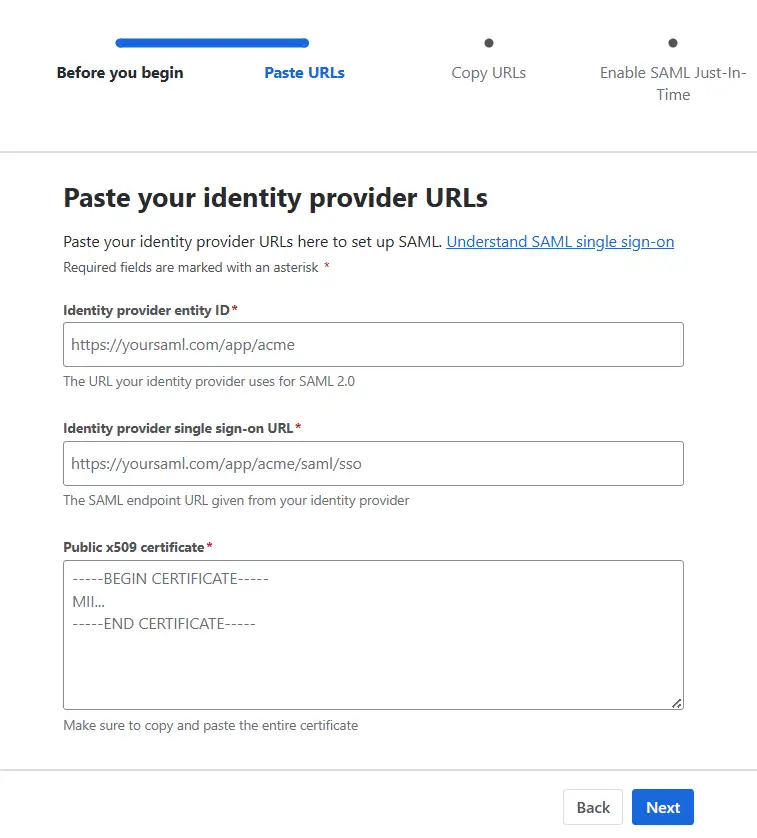

You will be redirected to the Add SAML Configuration window. Enter IDP Entity ID, SSO URL and the public certificate. Click on the Save Configuration button.

You will get these details in the metadata details section after configuring the miniorange app. Refer this step

Atlassian Access Cloud SSO (Single Sign-On) Save Configuration

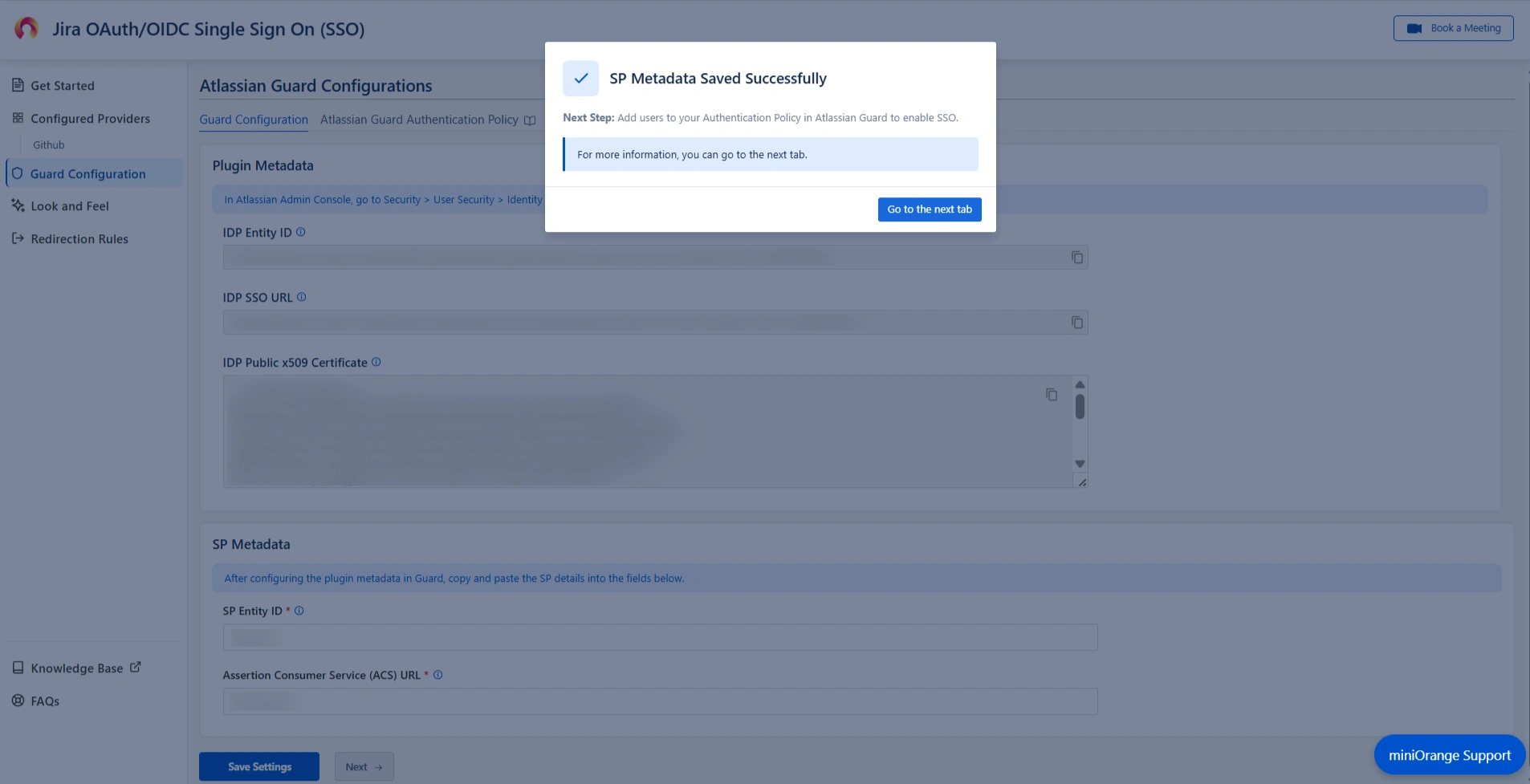

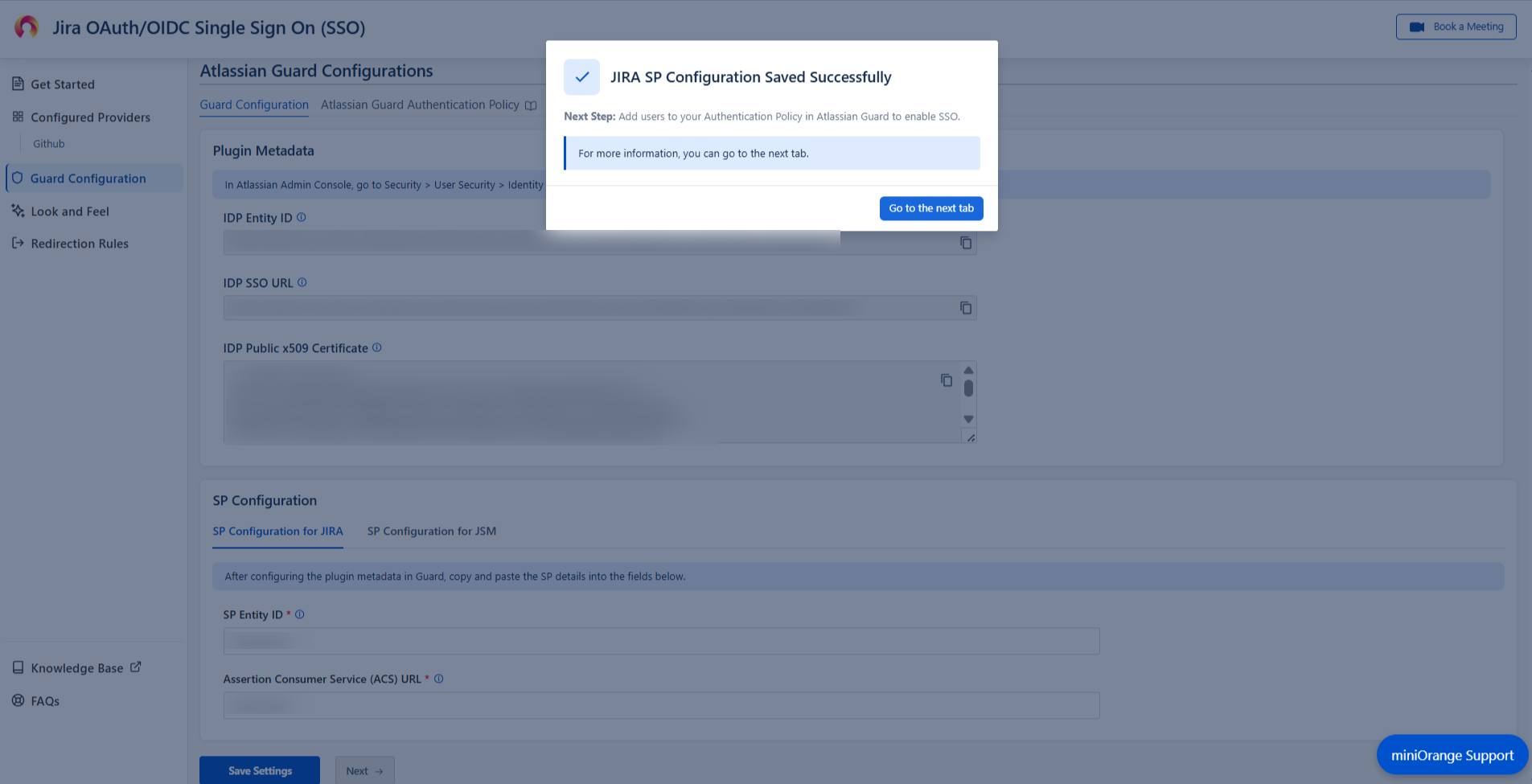

Now you will be shown SP Entity ID & SP ACS URL as shown below. These details will be needed in miniOrange app configuration. Now set up the Authentication Policies by clicking on the View Authentication Policies.

Atlassian Access Cloud SSO (Single Sign-On) View Policies

Click on Add Policy.

Atlassian Access Cloud SSO (Single Sign-On) Add policy

Enter the policy name and add the policy.

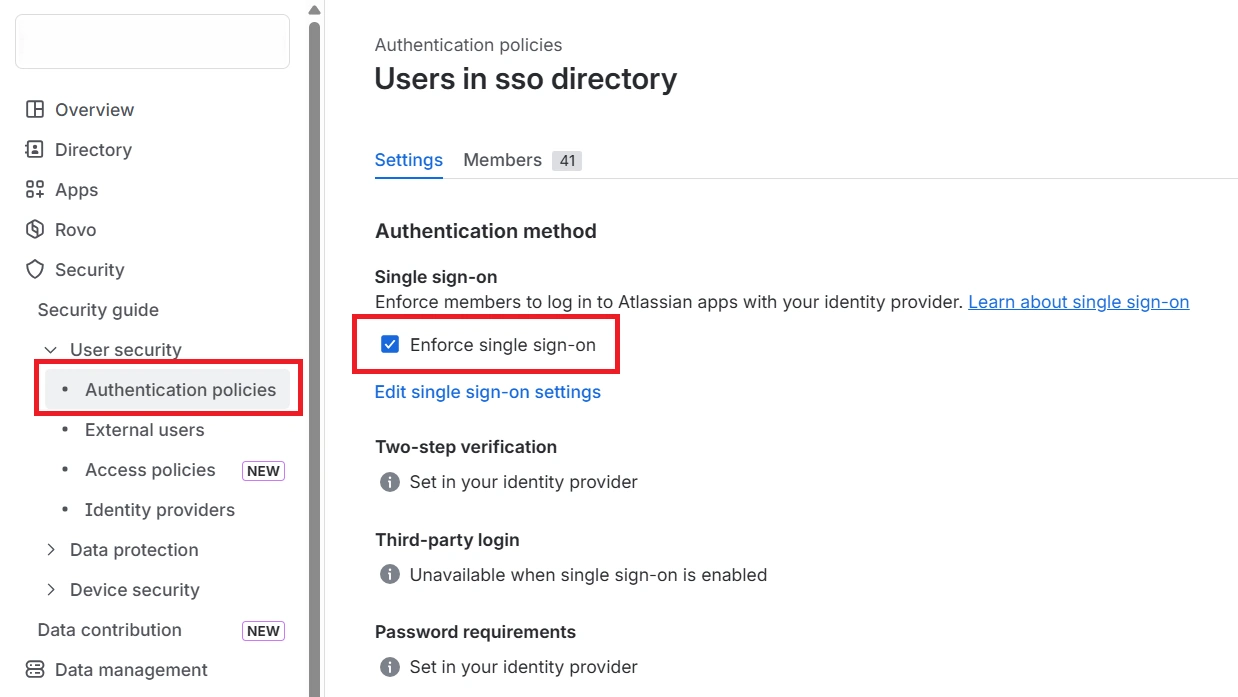

Now under Single Sign-On, click on Enable Single Sign-On.

Atlassian Access Cloud SSO (Single Sign-On) Atlassian Enable SSO

Then click on the Members tab besides the settings tab and click on Add Members.

The Single Sign On(SSO) will work only for Added Members.

Atlassian Access Cloud SSO (Single Sign-On) Add Member

Enter details and click on Add Members.

The user must be present in both Atlassian and miniOrange.

Atlassian Access Cloud SSO (Single Sign-On) Add User

Step 3. Test Atlassian Cloud - miniOrange Configuration

Go to Atlassian Login Page.
Enter email and click on Continue. Then you will be redirected to miniOrange Login Page
After logging into miniOrange, you will be successfully logged into Atlassian Cloud Dashboard

Now, you will be able to Login to your Atlassian Dashboard using miniOrange Credentials.

If you do not have any IDP, you can always go with miniOrange IDP.

Part 2: Setup miniOrange with Github

Step 1. Configure miniOrange as SP in Github

Obtain the following steps to get callback url.

Go to miniOrange Admin Console.
From the left navigation bar, select Identity Provider.

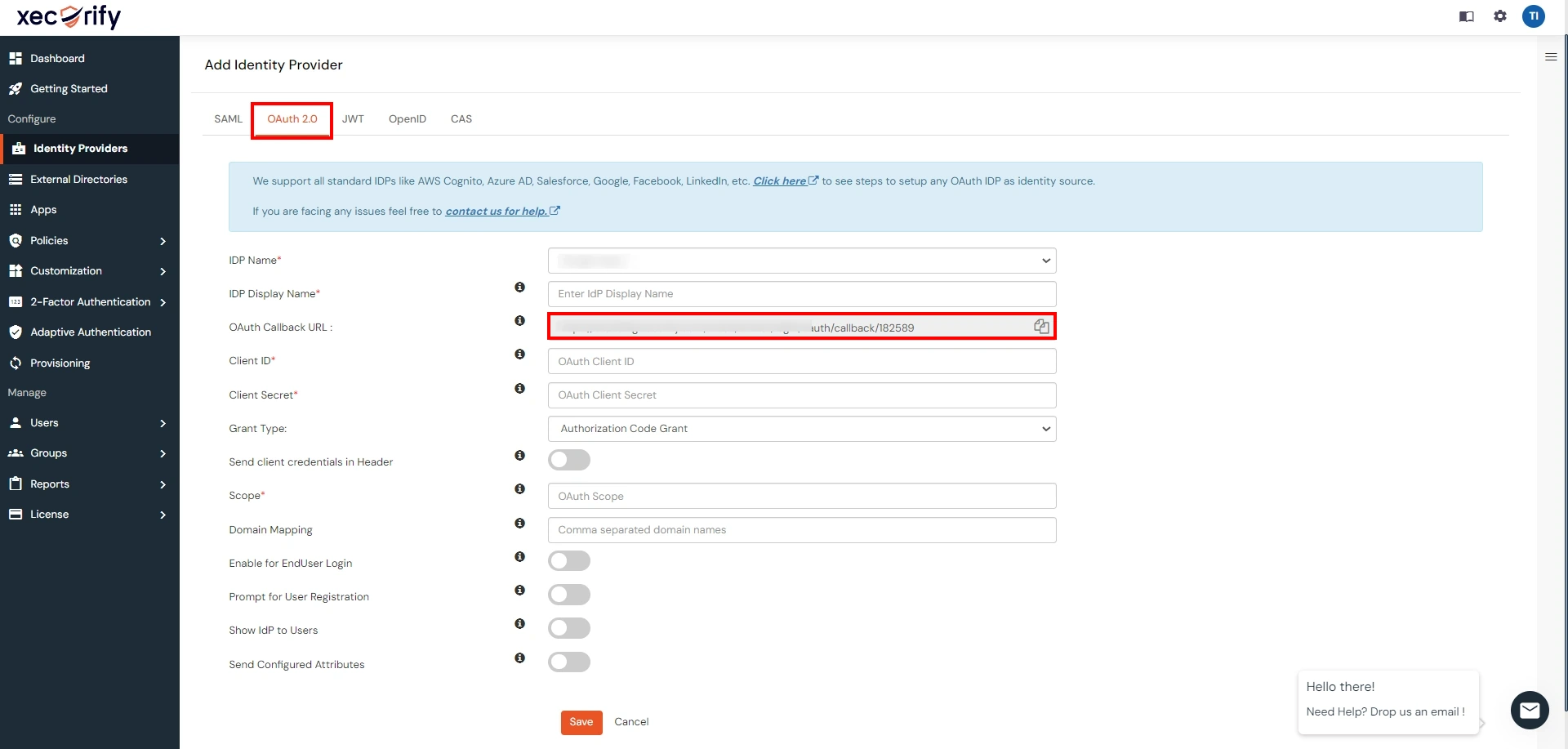

Click on the Add Identity Provider button.

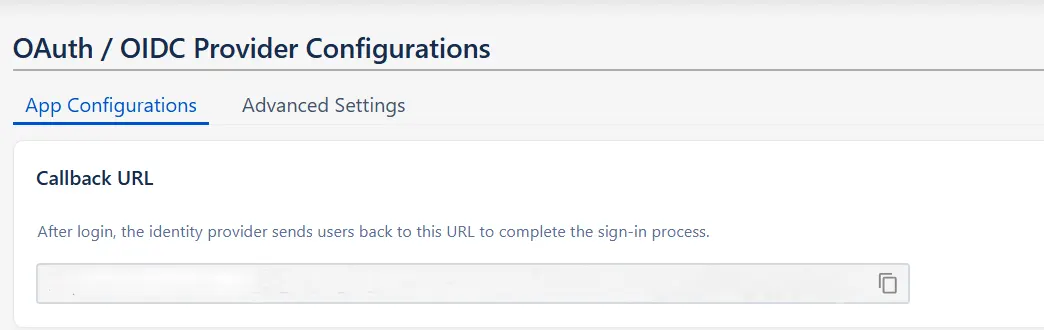

You will get the callback URL here, keep it handy this would be required in next steps.

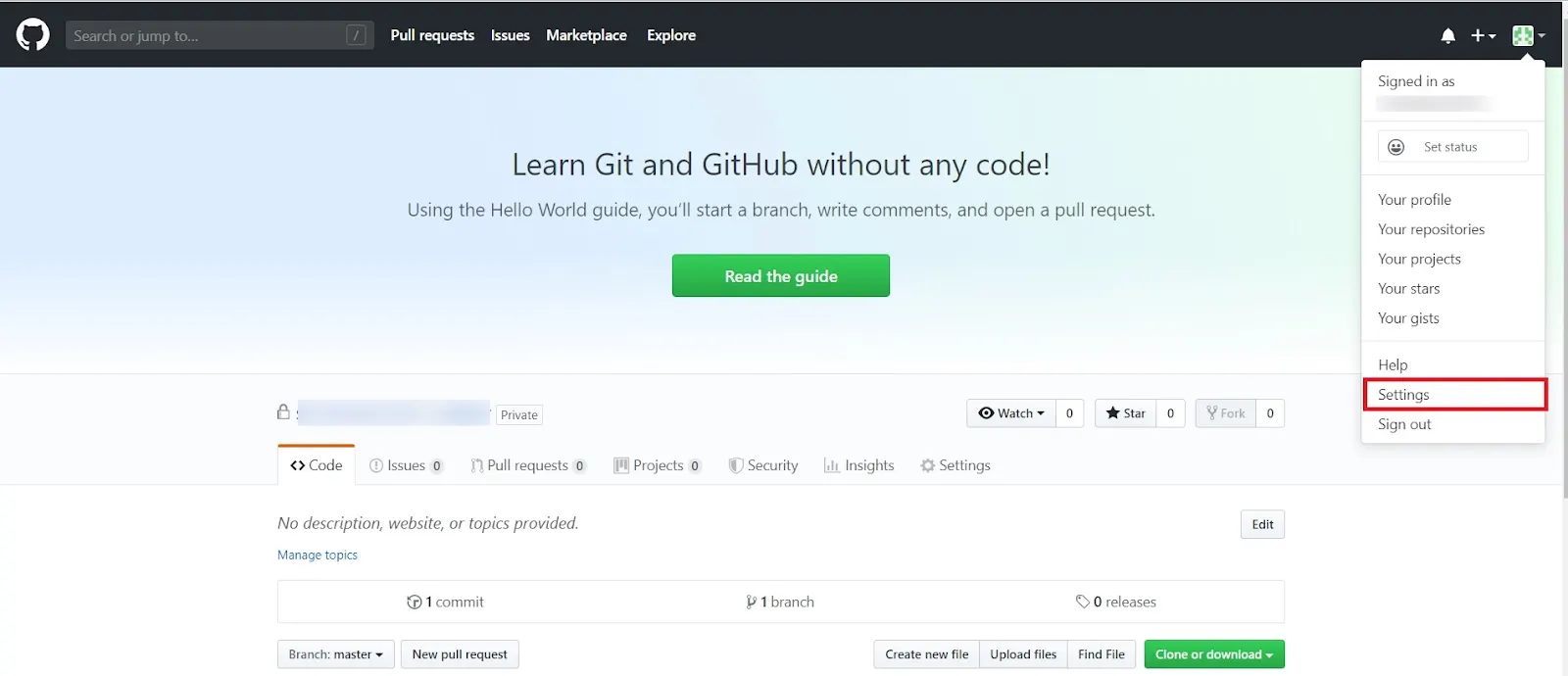

Login to GitHub : Go to Github Developer and login with your account. Click on settings.

OAuth/OpenID/OIDC Single Sign On (SSO), GitHub SSO Login Setup GitHub

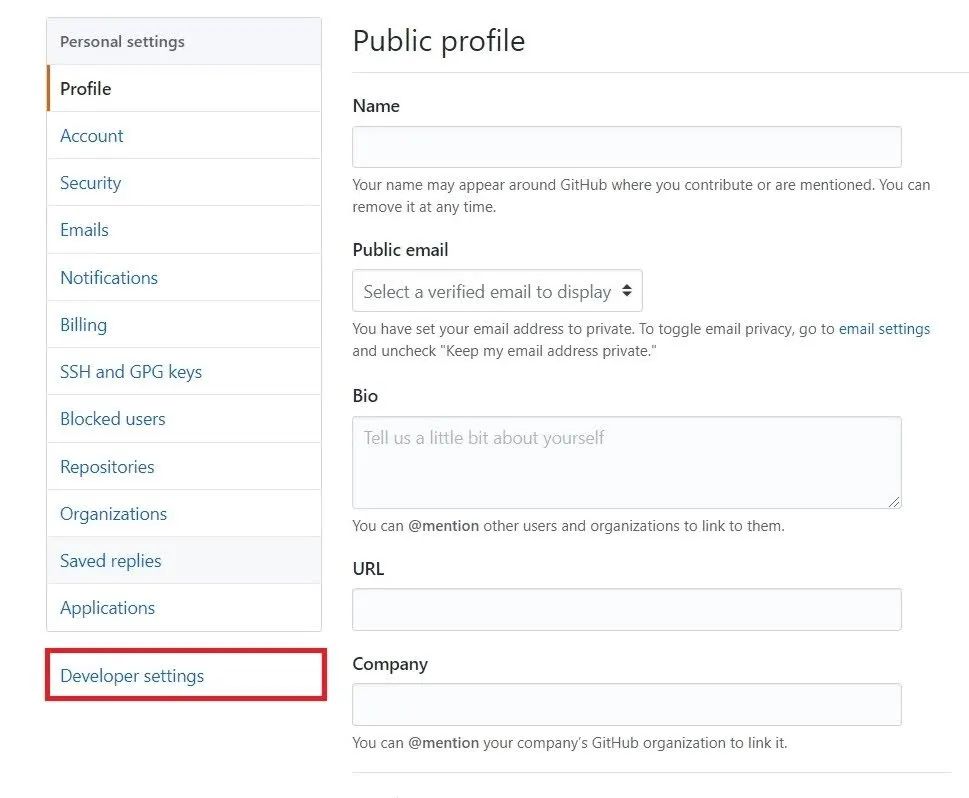

Select Developer settings.

OAuth/OpenID/OIDC Single Sign On (SSO), GitHub SSO Login Developer settings

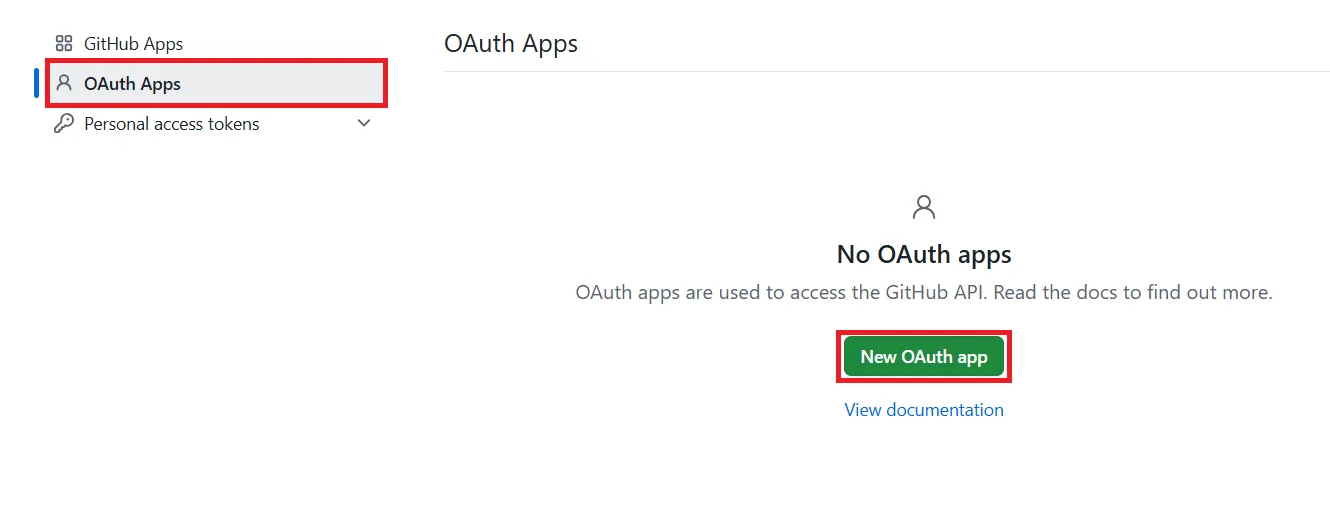

Create App : Select OAuth Apps and click on Register a new application button.

OAuth/OpenID/OIDC Single Sign On (SSO), GitHub SSO Login Create App

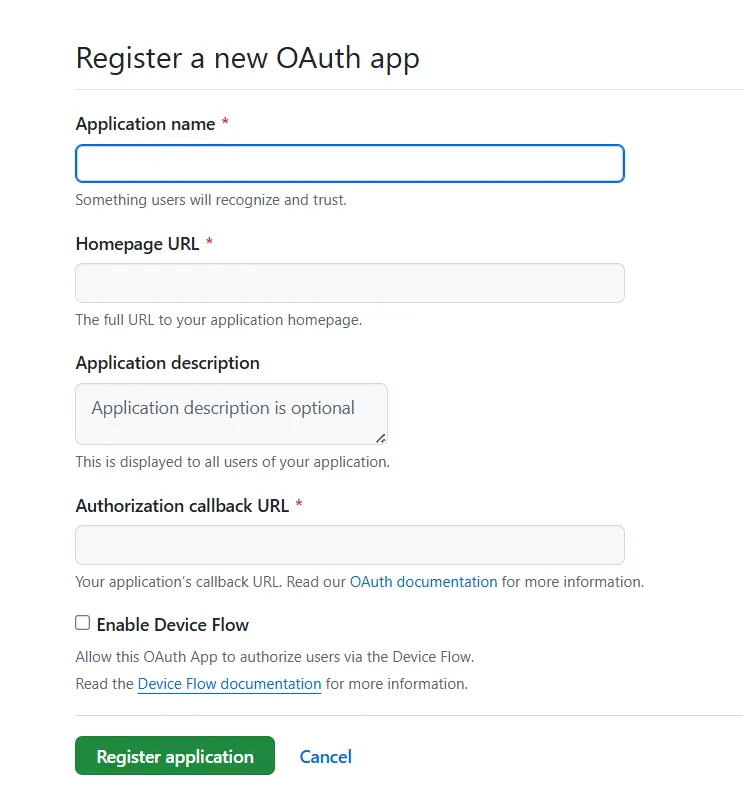

Enter app credentials : Enter app name, plugin homepage URL. Copy callback URL from the plugin and paste it under Authorized callback URL field.

OAuth/OpenID/OIDC Single Sign On (SSO), GitHub SSO Login Enter app credentials

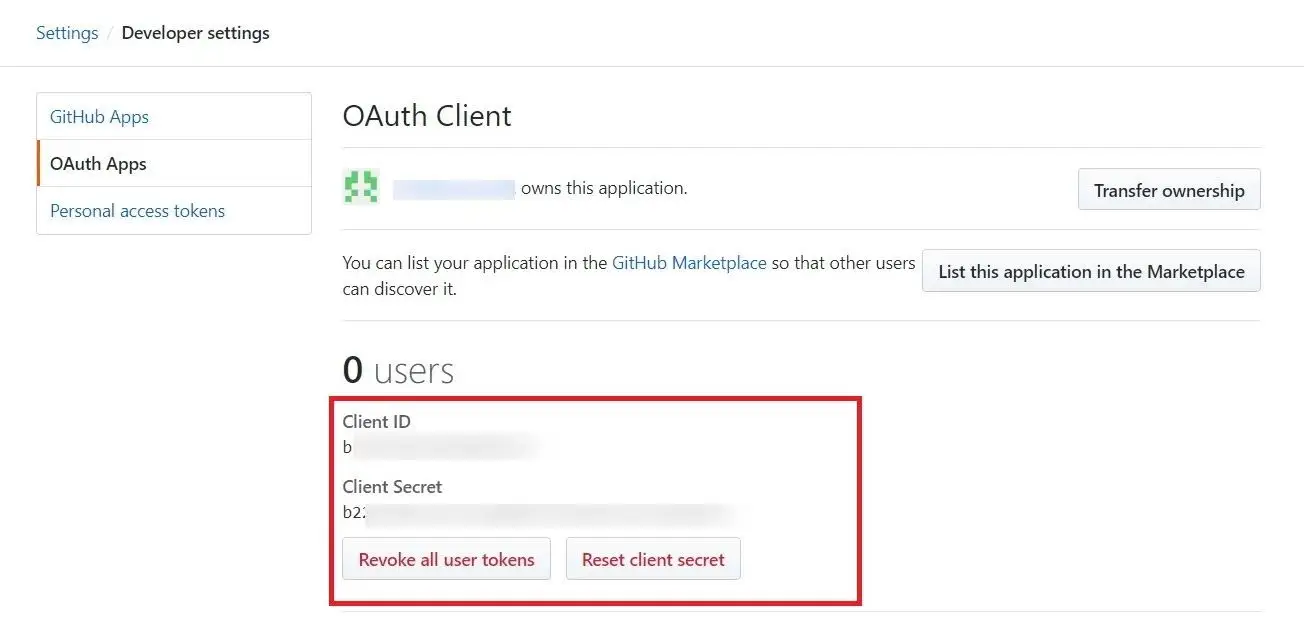

Copy Client ID and Client Secret.

OAuth/OpenID/OIDC Single Sign On (SSO), GitHub SSO Login Client ID

This step is optional. Follow this step if the email is returned as null while further configuring the plugin. Go to profile and set public email.
If Public Email field is disabled, go to Emails and uncheck the option Keep my email addresses private.

Step 2. Configure Github in miniOrange.

Go to miniOrange Admin Console.
From the left navigation bar select Identity Provider.

Select OAuth

Enter the following values.

IdP Name	Custom Provider
IdP Display Name	Choose appropriate Name
OAuth Authorize Endpoint	https://{Github-app-domain}/oauth2/authorize
OAuth Access Token Endpoint	https://{Github-app-domain}/oauth2/token
OAuth Get User Info Endpoint (optional)	https://{Github-app-domain}/oauth2/userInfo
Client ID	This value can be obtained from the above steps
Client secret	This value can be obtained from the above steps
Scope	openid

Now you can click on Save.

Step 3. Test connection between miniOrange and Github

Go to the miniOrange Admin Dashboard.
Go to Identity Providers tab. Then click on select button under the app you just created. Then click on Test Connection.
A new popup login window will open. Enter your credentials and login.

Now you will see TEST SUCCESSFUL in a new popup window. If not, then check if you have missed any of the above step.

Part 3: Test Atlassian - Github Configuration

Go to Atlassian Login Portal.
Enter email and click on Continue. Then you will be redirected to Github Login Page.
After logging into Github Login Page, you will be successfully logged into Atlassian Cloud Dashboard.
