Complete Guide to OAuth/OpenID SSO Integration with Jira Using Entra AD
Jira OAuth/OpenID app gives the ability to enable OAuth/OpenID Single Sign On for Jira Software and Jira Service Desk. Jira Software and Jira Service Desk are compatible with all OAuth/OpenID Providers. Here we will go through a guide to configure SSO between Jira and your OAuth/OpenID Provider. By the end of this guide, users from your OAuth/OpenID Provider should be able to login and register to Jira Software and Service Desk.
You can refer the steps to configure Microsoft Entra ID (Previously known as Azure AD) as OAuth Provider with the Jira OAuth Client from the video or documentation given below
Prerequisites for Configuration
Before proceeding with the integration of your OAuth/OpenID Provider and Jira, ensure that the following
prerequisites are met:
Ensure that Jira has been installed and configured appropriately.
Enable HTTPS on the Jira Server (optional, but recommended).
Establish admin credentials for Jira.
Obtain a valid Jira Server and Data Center License.
Download And Installation
Log into your Jira instance as an admin.
Navigate to the Settings Menu and click on Manage Apps.
Next, click on Find new apps option on the left-hand menu of the page.
In the left-hand navigation pane, click the App registrations service, and click New registration.
When the Create page appears, enter your application's registration information.
In the Redirect URI enter the Callback URL from the plugin. eg: [application-base-url]/plugins/servlet/oauth/callback
When finished, click Register. Microsoft Entra ID (Previously known as Azure AD) assigns a unique Application ID to your application. Copy Application ID and the Directory ID , this will be your Client ID and Tenent ID respectively.
Go to Certificates and Secrets from the left navigaton pane and click on New Client Secret. Enter description and expiration time and click on Add option.
Copy Value. This will be your Client Secret.
Step 2: Setup JIRA as OAuth Client

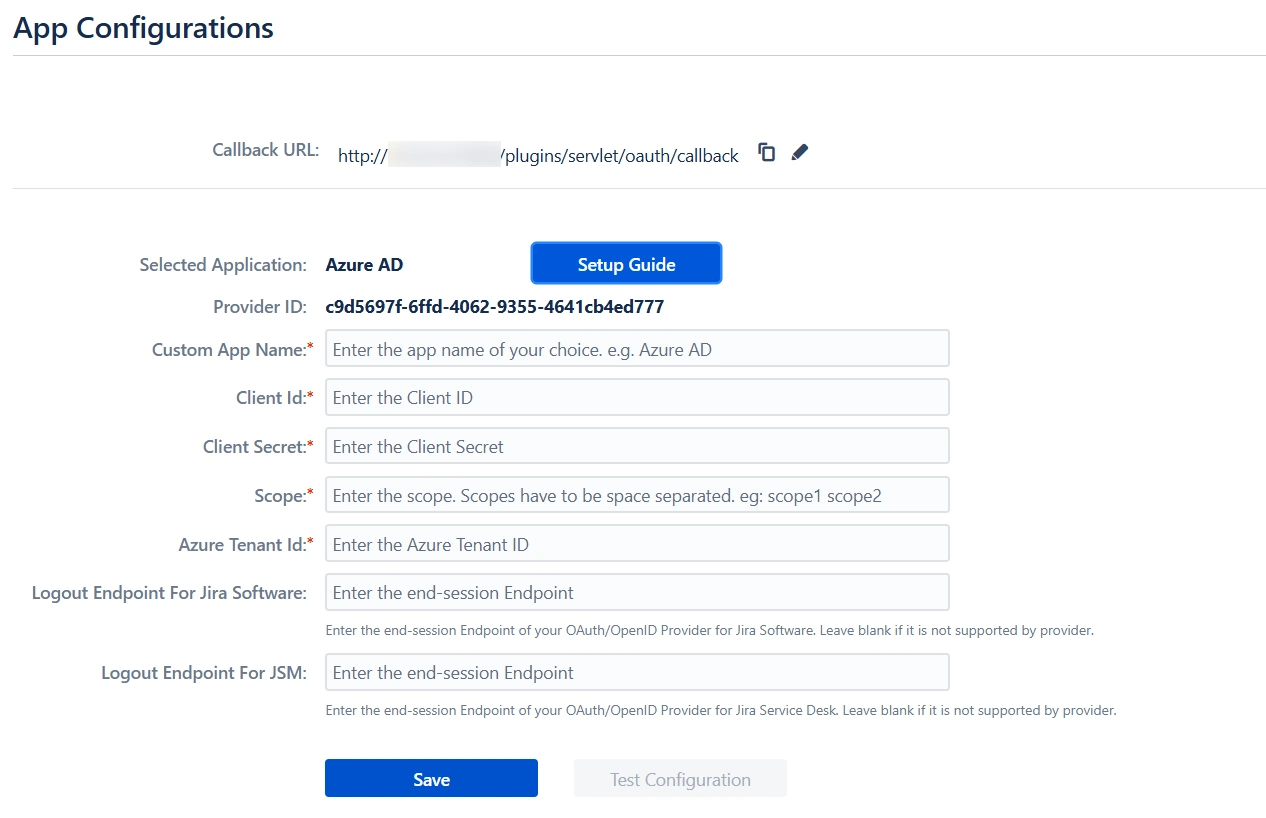

Go to Jira Manage Apps -> click Configure under OAuth/OpenID Connect (OIDC) for Jira SSO. Then click on Add New Provider button. Select your preferred IDP. If an IDP is not present, select custom IDP.

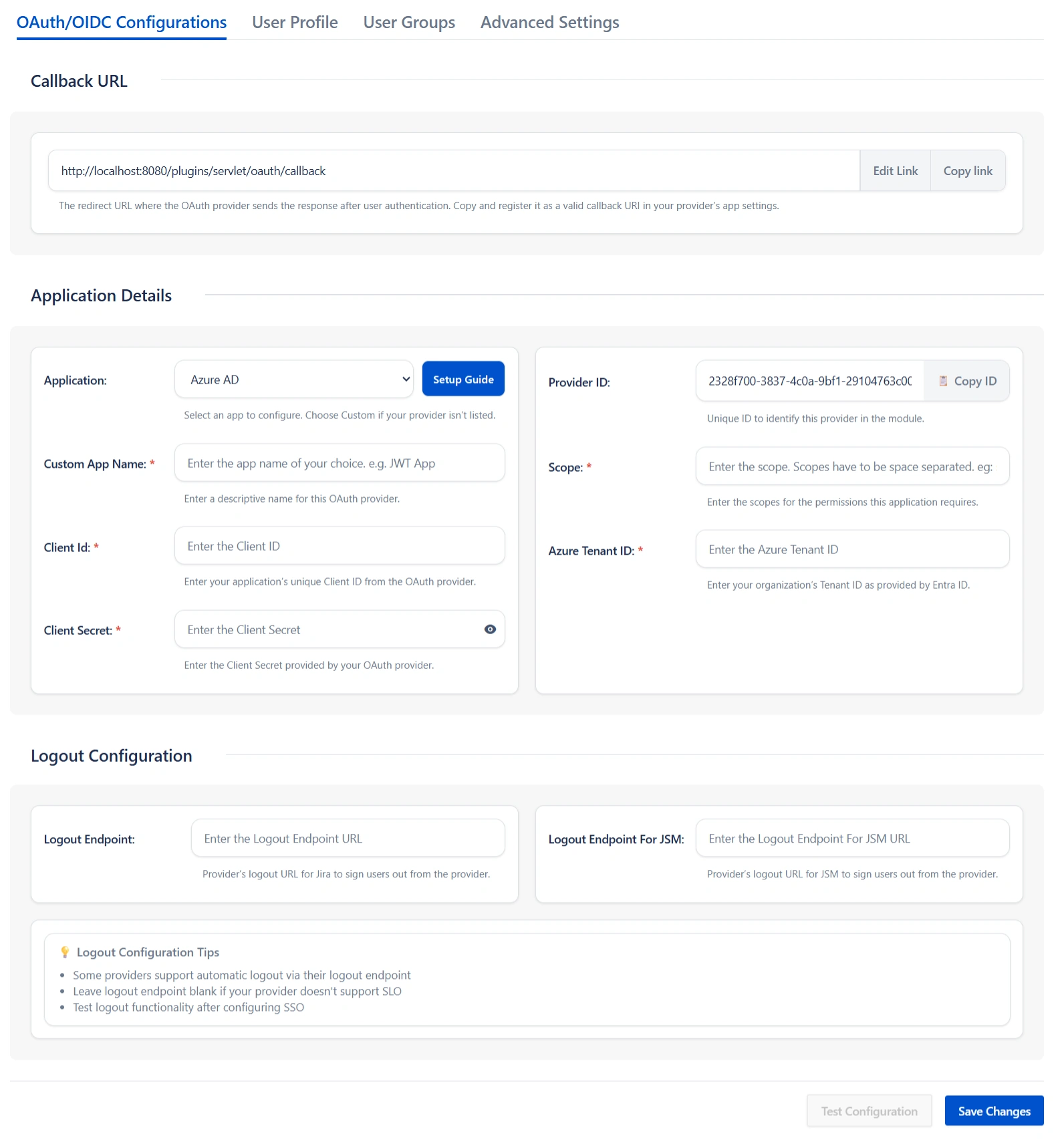

Go to Configure OAuth tab and configure Client ID, Client Secret, Tenant ID
scope as User.Read and for fetching group info use scope Directory.read.all.
Click on Test Configuration.
Step 3: User Profile Mapping
Navigate to the User Profile section in the left sidebar to set up user profile attributes
for Jira. If your user directory is read-only, disable the User Profile Mapping option in
this tab and
proceed directly to the Matching a User step.
3.1 Identifying Correct Attributes
Access the SSO Endpoints tab and click on Test Configuration.
In the pop-up that appears, review the table displaying all values returned by your OAuth/OpenID Provider to
Jira. If essential attributes like First Name, Last Name, Email, or
Username are missing, adjust the settings in your OAuth/OpenID Provider accordingly.
Once you've confirmed all values in the Test Configurationpopup window, proceed to the
User
Profile tab.
3.2 Configuring Profile Attributes
In the User Profile tab, populate the fields by matching attribute names. For instance,
if the Attribute Name in the Test Configuration window is NameID, enter
NameID as Username.
It's essential to set up both Username and Email if you allow user
registration. Alternatively, you can restrict login to existing users by deselecting the Allow User
Creation option in the Advanced SSO Options tab.
3.3 User Attribute Matching
When a user logs into Jira, data or attributes from the OAuth/OpenID provider are used to search for that
user in Jira and facilitate login. To match the attributes:
Navigate to the User Profile tab.
Choose either Username or Email as the login for the Jira user account.
Enter the attribute name from the OAuth/OpenID Provider that corresponds to the Username or
Email as identified in the Identifying Correct Attributes step.
3.4 Custom Attribute Mapping
You can configure custom attributes received in the OAuth/OpenID response using the
Configure User Properties(Extended Attributes) section.
Click on Add Attribute Mapping.
Enter the attribute name( E.g. department) as User Property Key in the Select Jira
Attribute to Map field.
For each attribute, input the corresponding value retrieved from the Attributes from IDP
tab in the Test Configuration window. For example, if the attribute name in the Test
Configuration window
is Department,
enter Department as the Attribute Value.
Additional attributes, such as location, can be added by selecting the Add Attribute
Mapping option.
Step 4: User Group Mapping
As we proceed to configure user group attributes for Jira, you have the option to enable group mapping.
If you wish to do so, please ensure to select Enable Group Mapping in the User Groups tab.
Alternatively, you
can proceed directly to setting the default group.
4.1 Setting the Default Group
In the User Groups tab, select the default group for users. If no group is mapped, users
are automatically added to this group.
Using the Assign Default Group To option, you can assign default groups to all users or new users. Choose
None if you prefer not to assign any default group to SSO users.
4.2 Finding Group Attribute
To identify group attributes, go to the Configure OAuth tab and click on Test
Configuration. Review the values returned by your OAuth/OpenID provider to Jira in the table.
If group values are missing, adjust the
settings in your OAuth provider to include group names.
After reviewing all values in Test Configuration, proceed to the User Groups tab. Enter the
Attribute Name of the group under Group Attribute.
Check Disable Group Mapping option if you don't want to update groups of existing users.
4.3 Group Mapping
Group mapping can be done manually or on the fly:
Manual group mapping: If the names of groups in Jira are different than the corresponding
groups in OAuth/OpenID Provider, then you should use Manual group mapping.
On-The-Fly group mapping: If the names of groups in Jira and OAuth/OpenID Provider are
same, you should use On-The-Fly group mapping.
4.3.1 Manual Group Mapping
Check the Allow User Creation based on Group Mapping option if you want new users
to be created only
if at least one of the user's OAuth/OpenID Provider groups is mapped to a group in the application.
Select a Jira group from the dropdown list and enter the name of the OAuth/OpenID Provider group to
be mapped in the Groups from Applications textbox.
For instance, if you want all users in the 'dev' group of OAuth/OpenID providers to
be added to jira-software-users, you will need to select jira-software-users from the dropdown and
enter
'dev' against jira-software-users.
You can use the '+' and '+10' buttons to add extra mapping fields,
and the '-' button to delete mappings.
4.3.2 On-The Fly Group Mapping
If the group names in both Jira and the OAuth/OpenID provider match, opt for On-The-Fly group
mapping.
Check the Create New Groups option to create new groups from the OAuth/OpenID
Provider if not found in Jira.
Preserve existing user groups by selecting the Keep Existing User Groups option.
Unticking this option will remove the user from a Jira group if it's not present in the OAuth/OpenID
response.
Deselect the Keep Existing User Groups option to prevent On-The-Fly group mapping
from affecting locally managed Jira groups. Add those groups to the Exclude Groups
field.
Step 5: SSO Setting
The configurations within the SSO Settings tab are pivotal in shaping the user experience for Single Sign-On.
5.1 Sign In Settings
Enable Auto Redirect to Application to redirect users to the OAuth/OIDC provider when
accessing the Jira login page. You can set a delay before redirection.
Next, toggle the Enable Backdoor Login option for emergency access using a backdoor URL.
Restrict access to this URL for specific groups if needed.
You can use Domain Restriction to allow login for specific user domains and configure
multiple allowed domains (semicolon-separated).
The Secure Admin Login option ensures the re-authentication of admin users before accessing
pages with administrative permissions.
5.2 Redirection Rules
Redirection rules allow you to redirect users to login pages/providers based on their email domains. This
functionality is especially useful with multiple configured providers.
To create a new rule, go to the Redirection Rules tab and click Add Rule.
Next, give the rule a name and set the conditions for redirection. Click Save once you’re
done.
You can also set a default rule if no other rule conditions are met.
Once you set a redirection rule, users who fulfill its conditions will be shown a login form, prompting them
to input their username/email address. You can set domain-based rules for directing users to specific
providers as well.
5.3 Global SSO Settings
You can enable/disable SSO for Jira Software and Service Desk from the Global SSO Settings tab.
If enforcing SSO for Service Desk Agents only, select Enable SSO Only For Service Desk Agents.
You have the option to activate SSO for both Jira software and service desk by selecting Enable SSO for Jira Software and Enable SSO for Jira Service Desk respectively.
The app also gives you options to adjust additional settings like Allow Users to Change Password, Restrict Access to Plugin APIs, and Auto Activate Users on SSO.
To keep users logged in until explicitly logged out, you can enable Remember Me-Cookie in the Session Management tab.
5.4 Look and Feel
You can customize the appearance of your login page and error messages from the Look and Feel tab.
The plugin has provisions for modifying the default login button text and designing the login page using customisable templates.
You can also set a Custom Logout URL from the Post Logout Configuration tab to redirect users to a specific screen after they logout.
The SSO Error Message section allows you to customize the error message displayed to users.
Configure SCIM with OAuth
Set up SCIM with OAuth for your chosen IDP by following the step-by-step guide provided in this guide.
