How to import an AD password policy into miniOrange IAM

[This will be released soon]

---

Configuration Steps

Step 1: Access Active Directory Machine

• Connect to your AD server using Remote Desktop (RDP).
• Open Active Directory Users and Computers.
• Locate your Domain Name (for example, xecurify.com, miniorange.com).

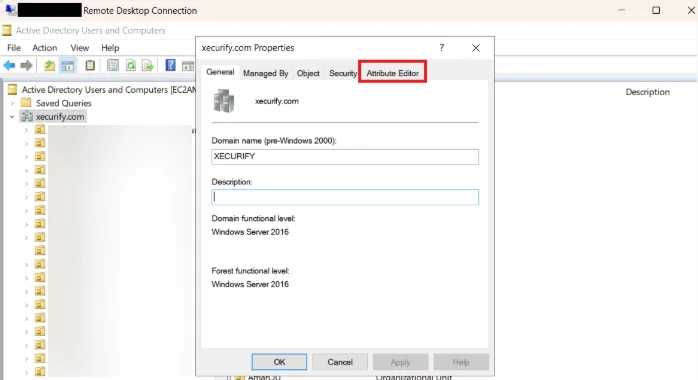

• Right-click on the domain and go to Properties → Attribute Editor.

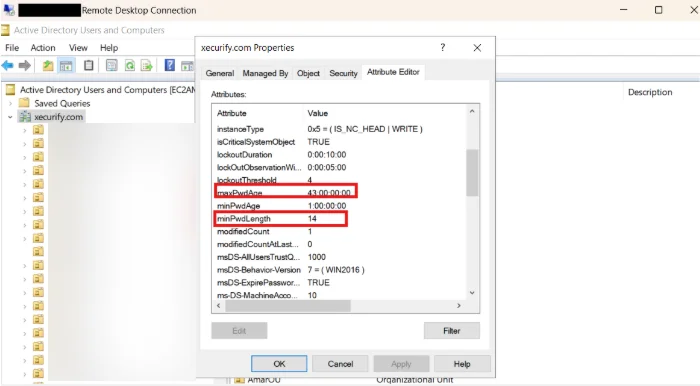

Step 2: Locate Password Policy Attributes

In the Attribute Editor, you will see a list of attributes. Look for the following password policy settings:

Attribute Name	Description	Allowed Values
minPwdLength	Minimum password length	6 – 128
maxPwdAge	Maximum password age	> 0 (in days)
pwdHistoryLength	Password history count	0 – 10
lockoutThreshold	Failed login attempts limit	1 – 10
lockoutDuration	Account lockout duration	5 – 5,256,000 minutes

Note: Ensure values remain within the allowed limits.

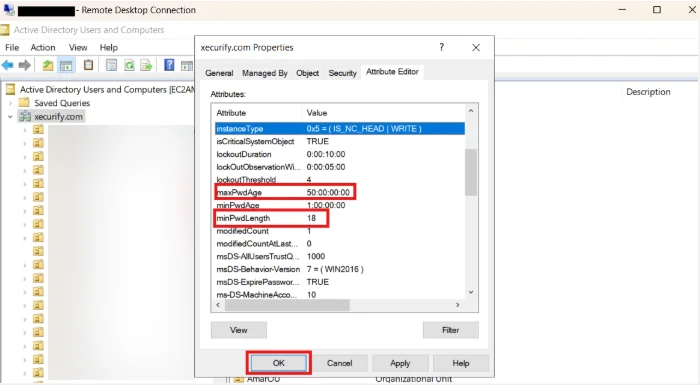

Step 3: Update Password Policy in AD

• Modify the required attribute values as needed.
• Example:
  • minPwdLength = 18
  • maxPwdAge = 50
• Click OK to save the changes.

Step 4: Import Password Policy into miniOrange IAM

• Log in to the miniOrange IAM dashboard.

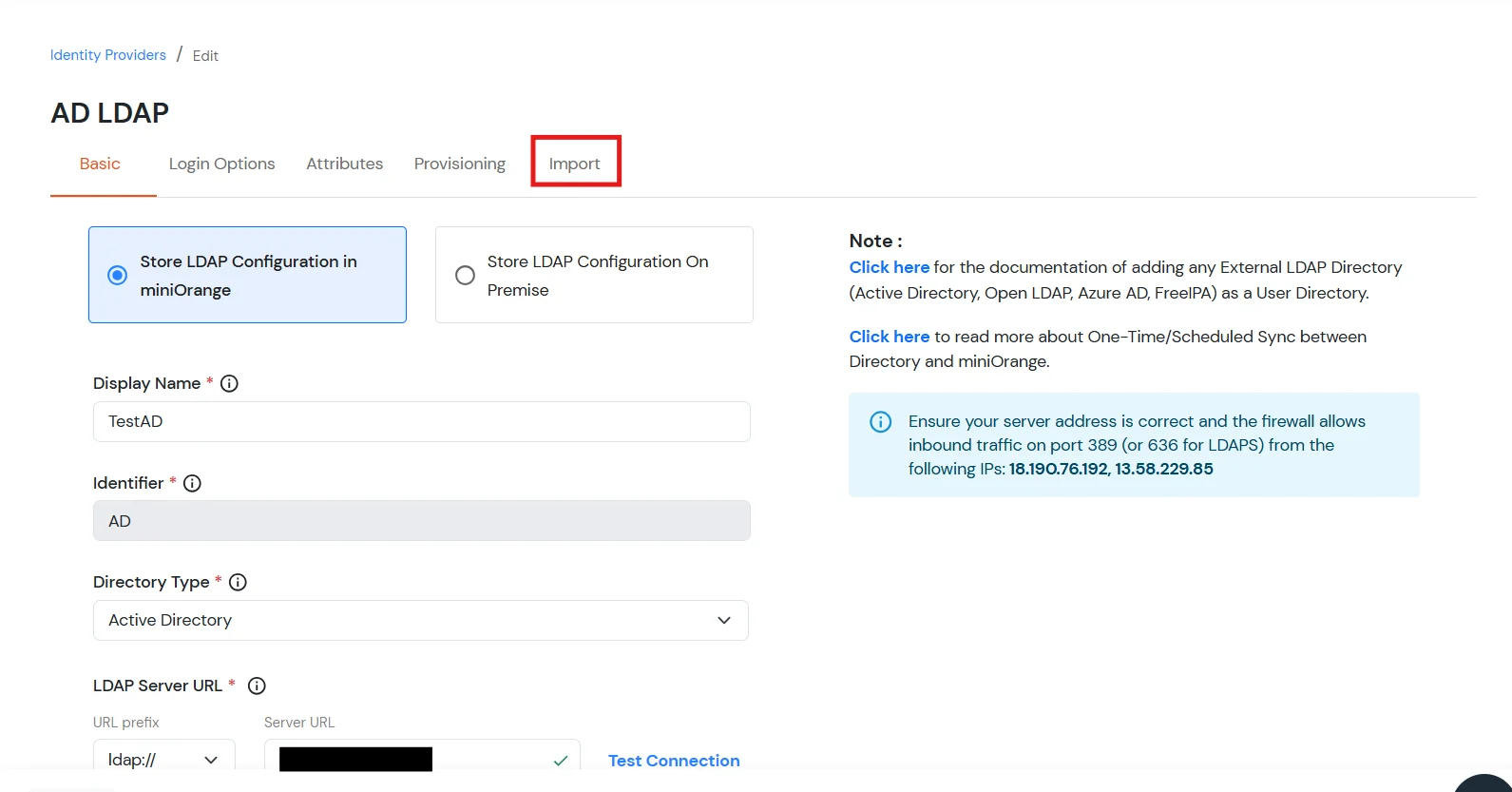

• Open your configured Active Directory identity provider / user store.
• Go to the Import tab.

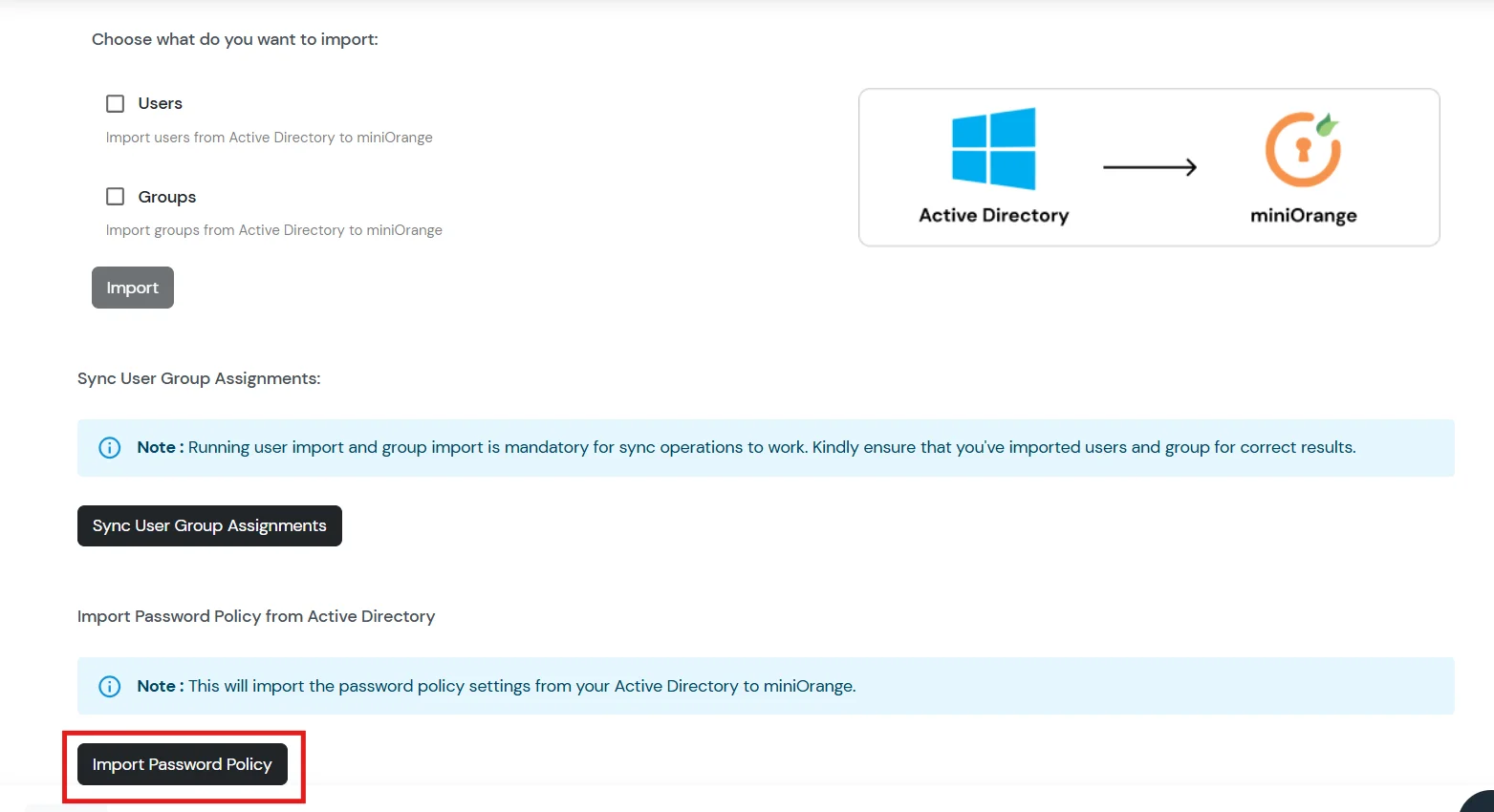

• Scroll down and click Import Password Policy.

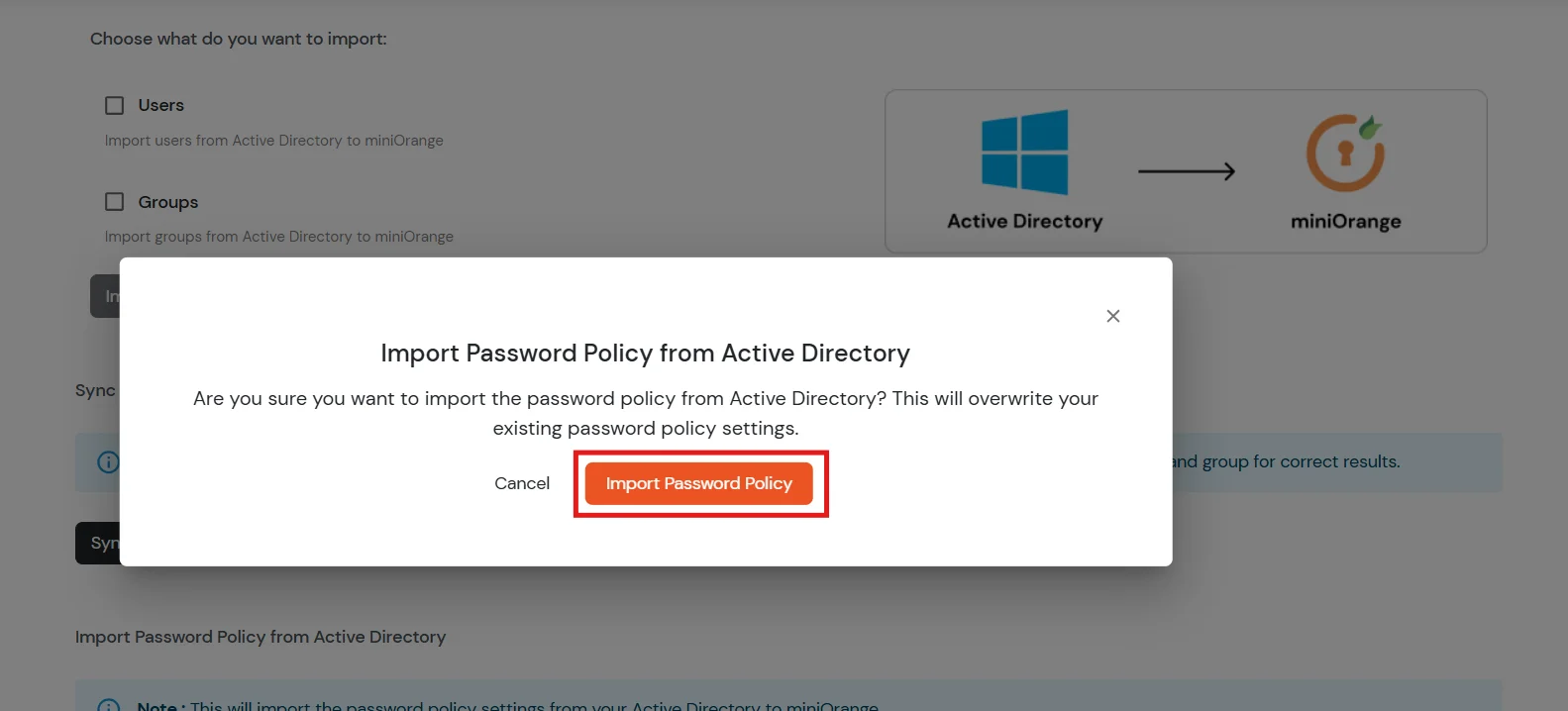

Step 5: Confirm Import

• A confirmation popup appears:
  “Are you sure you want to import the password policy from Active Directory? This will overwrite your existing password policy settings.”
• Click Import Password Policy to proceed.

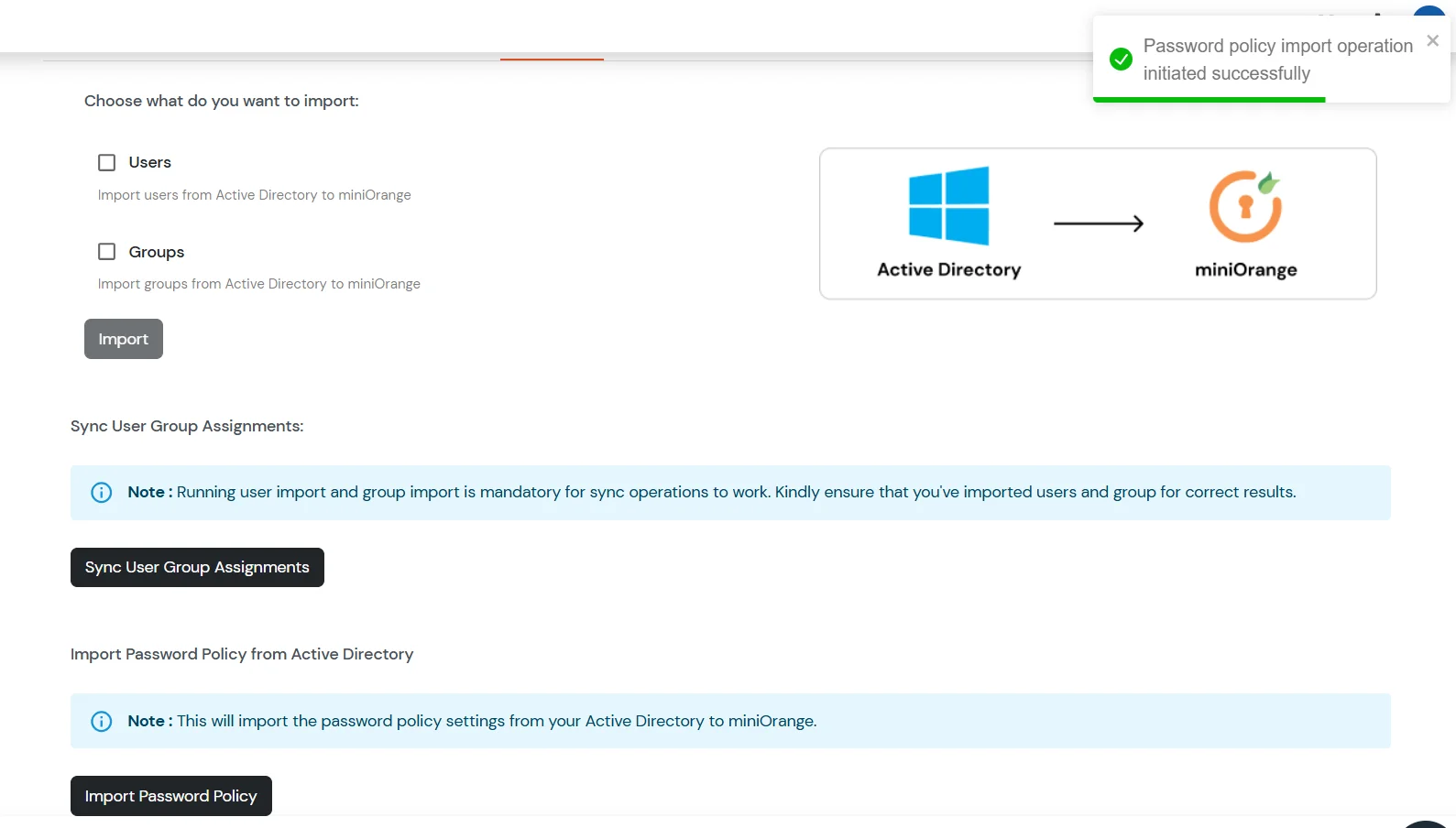

• After the action completes, you should see:
  “Password Policy import operation initiated successfully.”

Step 6: Verify Imported Policy in IAM

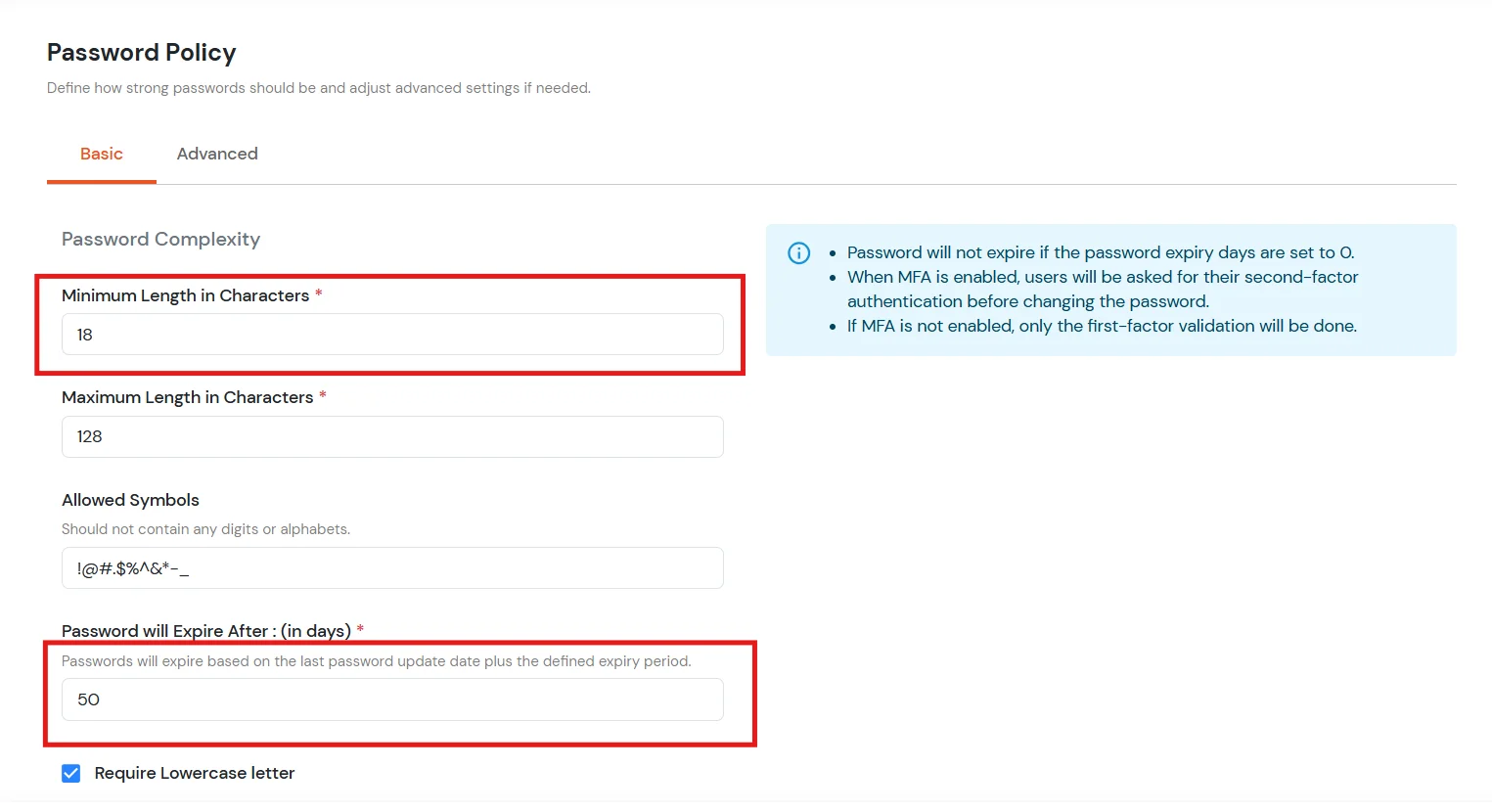

• In the miniOrange IAM dashboard, go to Policies → Password Policy.



• On the Basic tab, confirm:
  • Minimum Length in Characters → minPwdLength
  • Password Expiry (in days) → maxPwdAge
• On the Advanced tab, confirm:
  • Password History → pwdHistoryLength
  • Maximum Login Attempts → lockoutThreshold
  • Account Lockout Duration → lockoutDuration

Example: If you set minPwdLength = 18 and maxPwdAge = 50 in AD, those values should appear correctly in miniOrange.

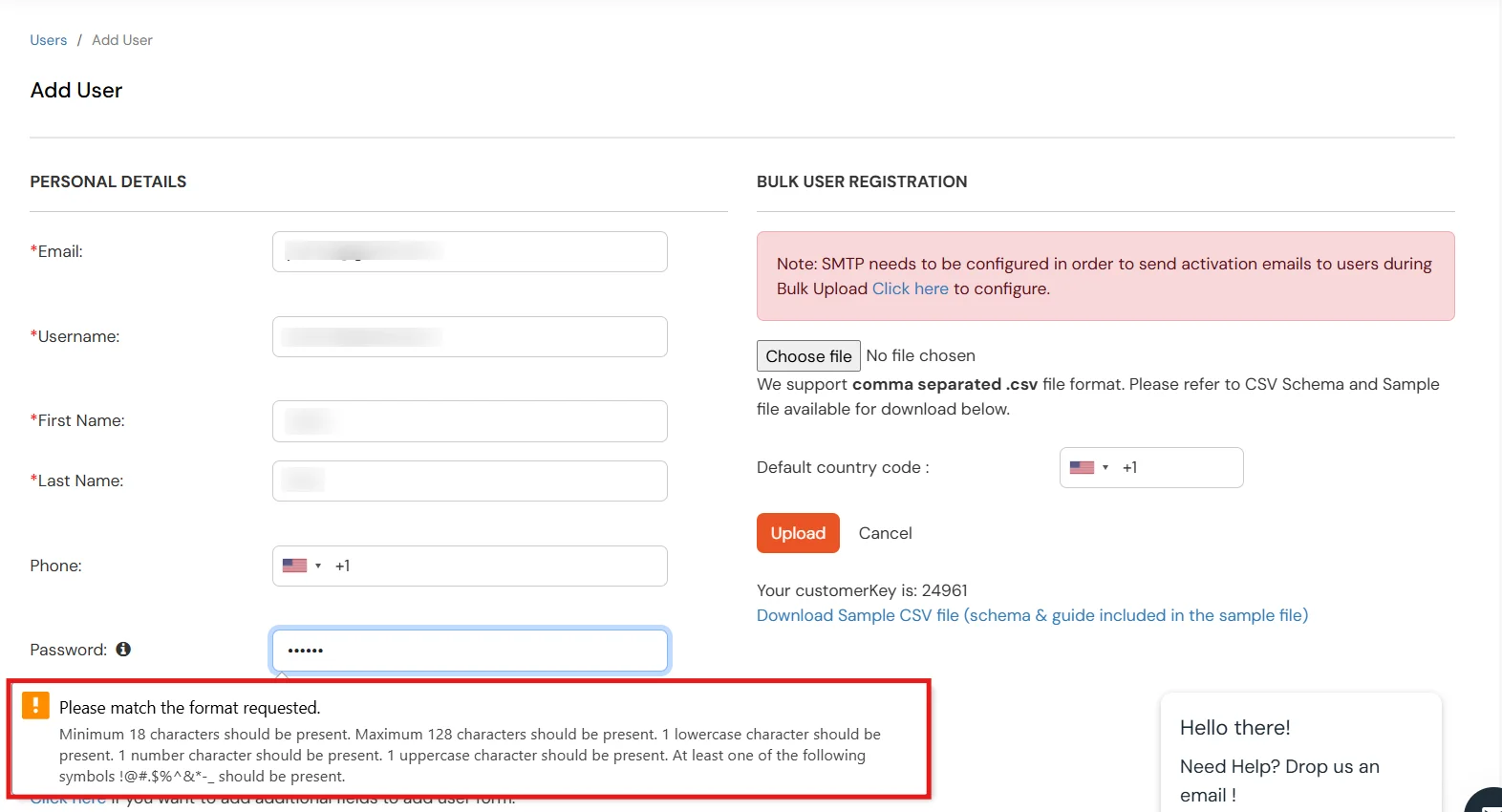

Step 7: Test the Password Policy

• Go to Users → User List.
• Click Add User.



• Try creating a user with a weak password (for example, abc@123).

Expected result: A validation error such as “Please match the format requested.” This indicates the password policy from Active Directory is applied in miniOrange.

Conclusion

By following these steps, you can successfully import password policy from Active Directory into miniOrange IAM, ensuring that your organization's password policies are enforced consistently across both systems.
