Apache Single Sign-On SSO


Apache JWT Single Sign-On (SSO) solution by miniOrange provides secure Single Sign-On access into Apache application using a single set of login credentials. This is done using JSON Web Token (JWT) tokens and it can be easily integrated with Apache built in any framework or language. You can enable social login for your users to get secure access to applications using any of their existing social providers such as Facebook, Twitter, Google, or LinkedIn.

With miniOrange Apache SSO, you get:

  • Seamless user login experience.
  • Endless customizations to your login forms and pages.
  • Simplified customer or user on-boarding.


Connect with External Source of Users


miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Azure AD, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Shibboleth, Ping, Okta, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more.



Follow the step-by-step guide given below for Apache Single Sign-On (SSO):

1. Configure Apache in miniOrange

  • Go to Apps >> Add Application from the side menu.
  • Apache SSO: Configure and Add JWT application

  • Click on the JWT under Choose Application Type.
  • Apache SSO: Configure JWT app type

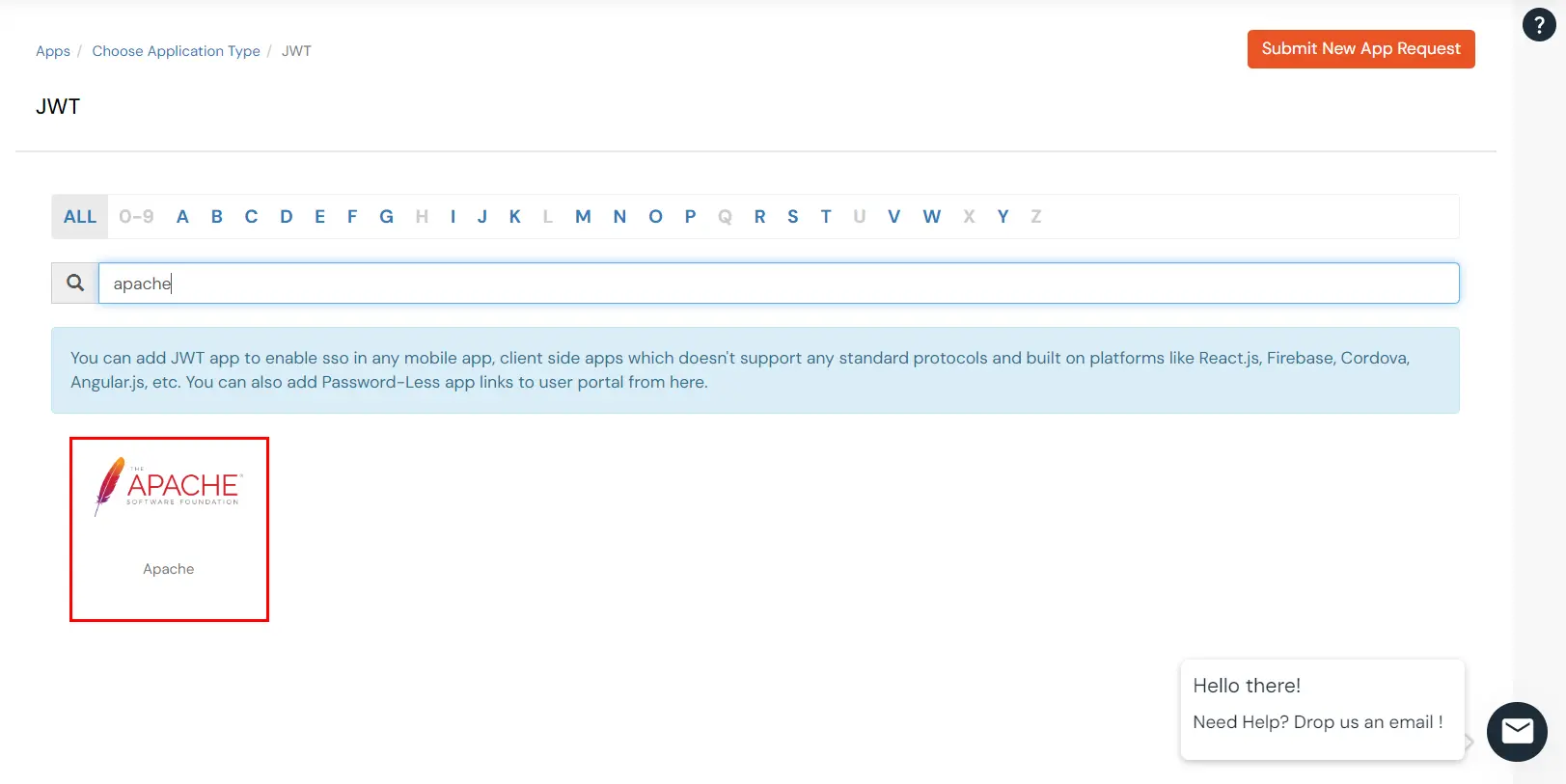

  • In the next step, search for Apache application from the list. If your application is not found, search for External / JWT App and you can set up your Application.
  • Configure JWT application: Search Apache JWT application

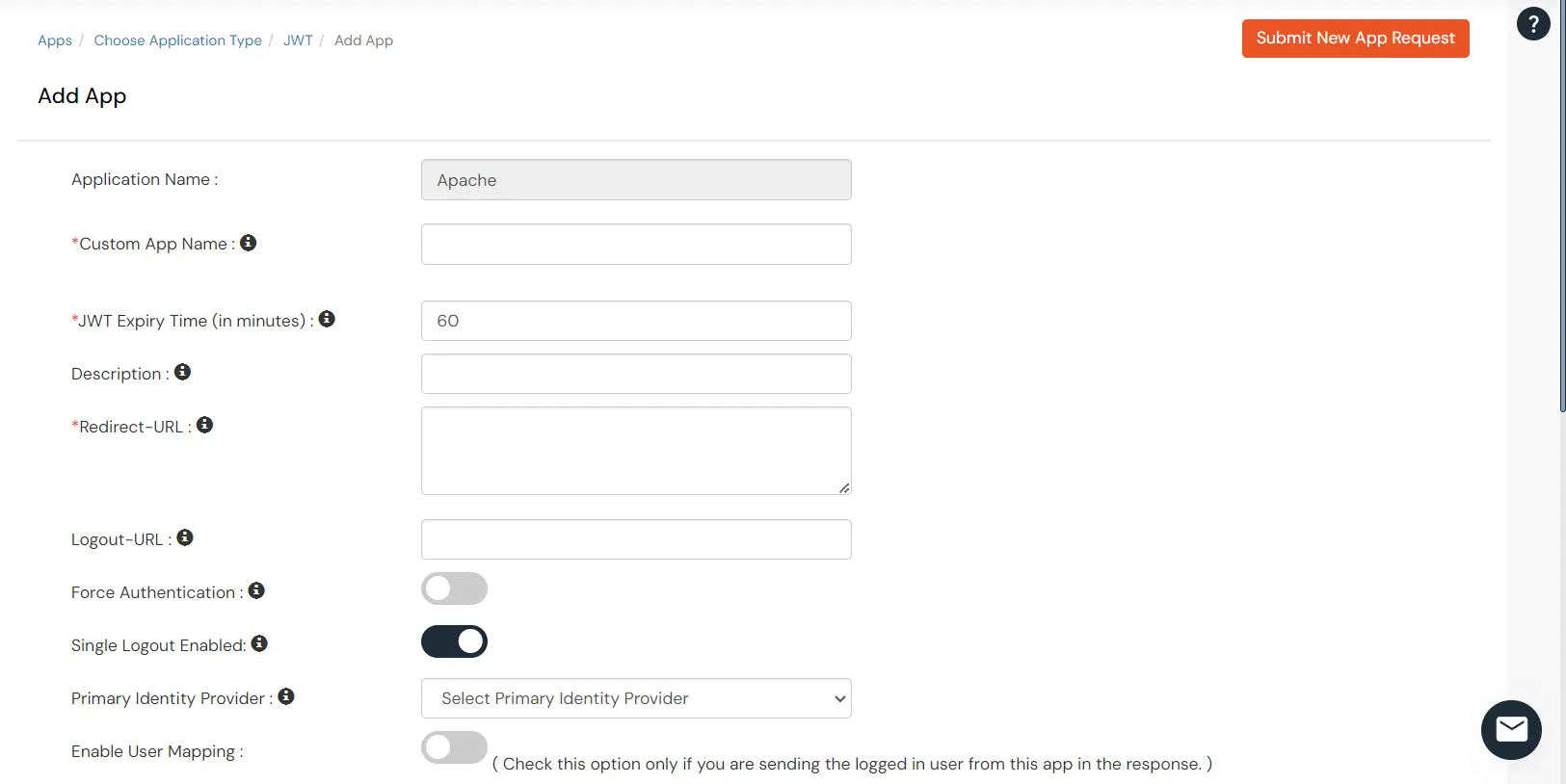

  • You can configure the following details in the application:
  • Custom App Name Enter the Application Name of your choice, and add a description if required.
    Redirect-URL Enter the Redirect-URL (i.e. the endpoint where you want to send/post your JWT token). You can add multiple redirect URLs by separating them with a ‘;’. E.g. abc.com;xyz.com
    Primary Identity Provider (optional) Select your Identity Source from the dropdown. You can select miniOrange here as default IDP.
    Apache SSO: JWT app details

  • Click on Save to complete the configuration.

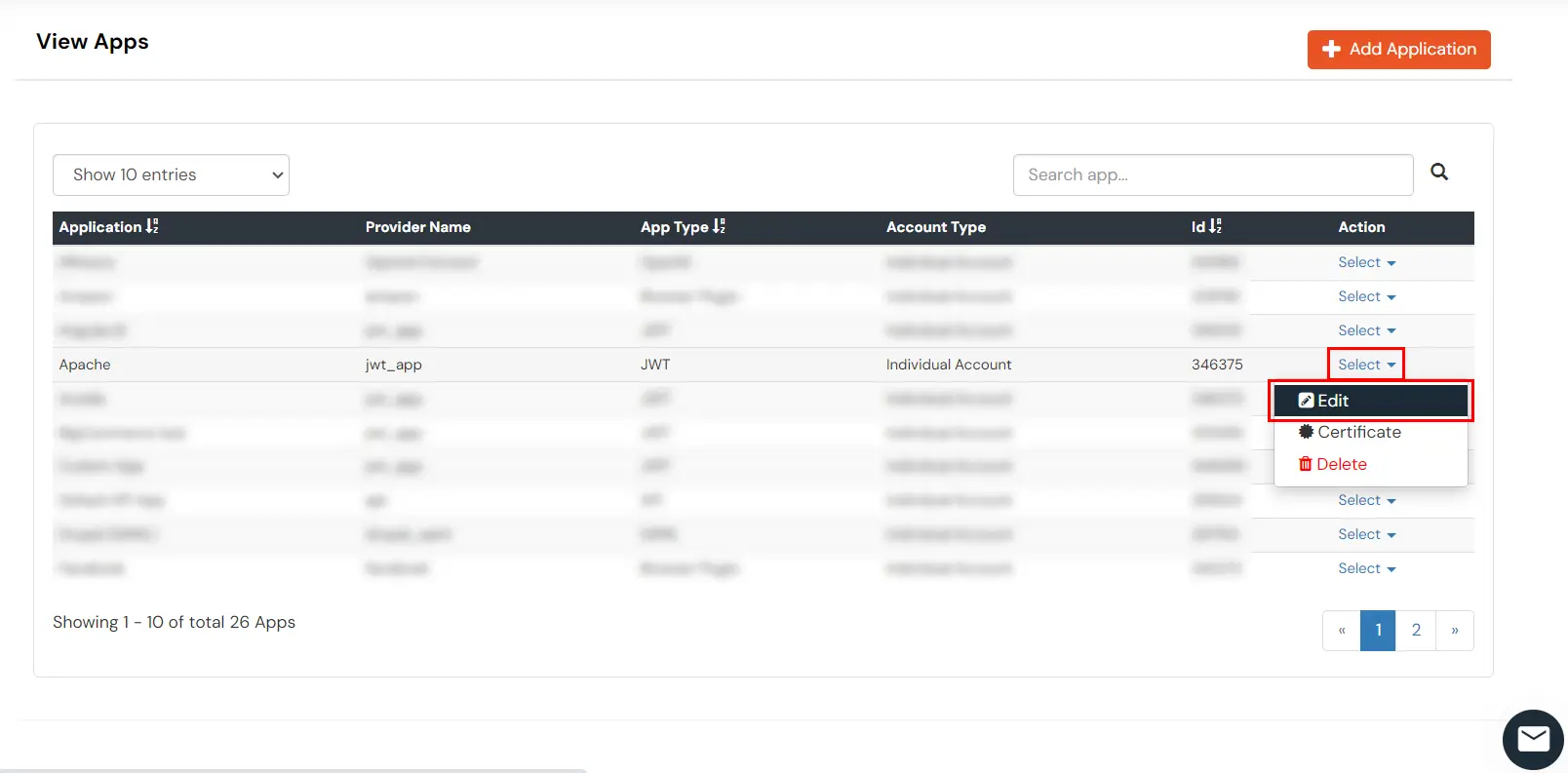

  • Click on Edit in the select menu against your app.
  • Apache SSO: Edit app

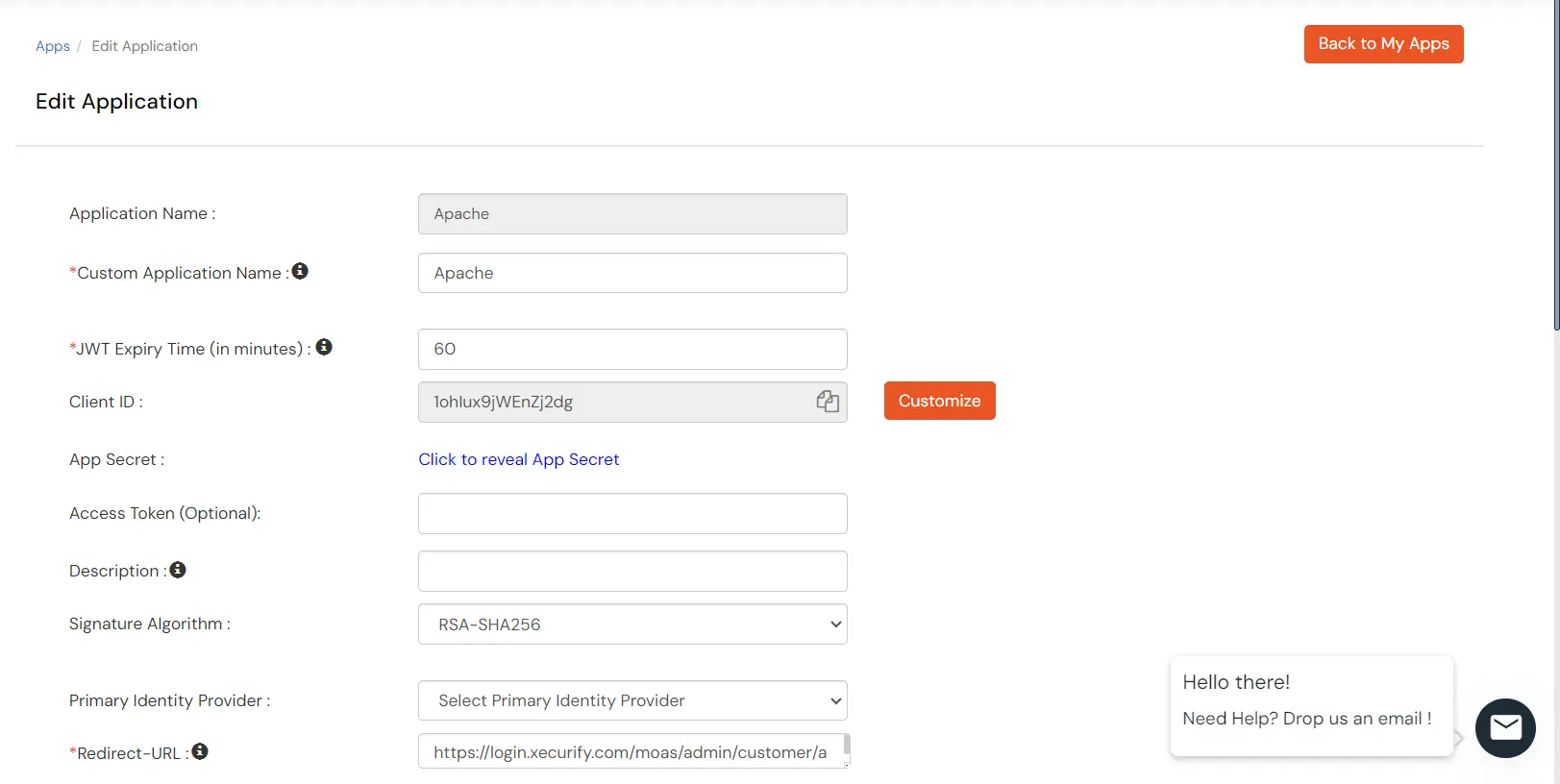

  • You can get further details about your recently added JWT application:
  • Client ID If your application provides its own client ID, you can configure it by clicking on the Customize button.
    App Secret You can find App Secret by clicking on the copy icon. This is used in the HS265 Signature algorithm for generating the signature.
    Signature Algorithm Select your signature algorithm from the dropdown.
    Primary Identity Provider Select the default Identity Provider from the dropdown for the application. If not selected, users will see the default login screen and can choose their own IDP. [Choose miniOrange in this case.]
    Redirect URL Given below is your app URL where you will receive your token. RSA 256 : <your_app-login-url> (Here token will be added by the system) HS256 : <app-login-url/?id_token=>
    Apache SSO: Search JWT application

  • Scroll down to Endpoints >> Single Sign-On URL. Save this URL as you will need this in the following configuration.
  • Apache SSO: React Single Sign-On SSO endpoints url

  • click on Save to save the configuration.

2. Adding Script on Apache's End

  • To enable SSO on Apache's end, all you need to do is add a Single Sign-On URL and Customized Script to retrieve the required attributes from the JWT token.
  • Please click here to contact us for the script which is to be added.

3. Test SSO Configuration

Test SSO login to your Apache account with miniOrange IdP:

    Using IDP Initiated Login

    • Login to miniOrange IdP using your credentials.
    • Apache Single Sign-On (SSO) login

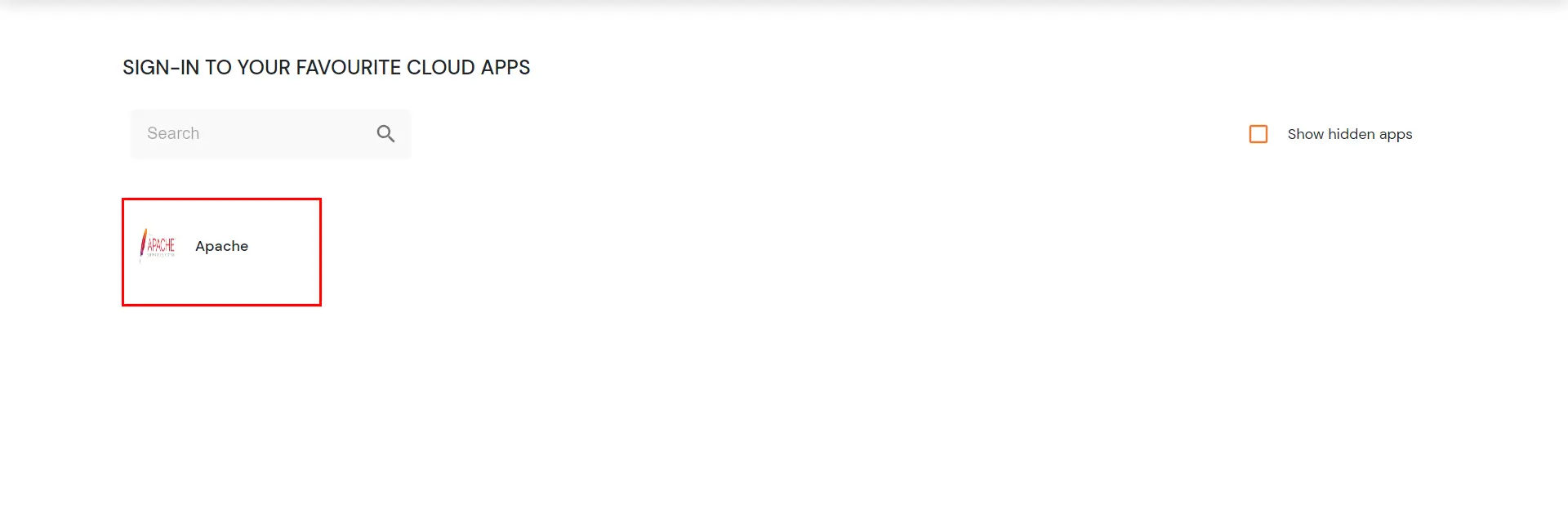

    • On the Dashboard, click on Apache application which you have added, to verify SSO configuration.
    • Apache Single Sign-On (SSO) verify configuration


    Not able to configure or test SSO?


    Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.



4. Login Using Social Provider (Optional)

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Azure AD, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Okta, Shibboleth, Ping, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more. You can configure your existing directory/user store or add users in miniOrange.
