Remote Desktop Thick Client SSO

Remote Desktop is a software that lets you view and control another computer’s desktop over a network as if you were sitting in front of it. It uses a client-server model.

The Remote Desktop client is a thick client that runs on the user’s machine. It talks to the RDP service on a Windows Server or remote PC, sending keyboard and mouse input to the server and receiving the graphical desktop back as compressed display updates.

In an enterprise environment, Remote Desktop Thick Client SSO means enabling users to open RDP sessions without repeatedly typing credentials, by reusing the identity they already used to sign in to Windows or to a central identity provider.

Let’s look at how to set up Remote Desktop thick client SSO.

Follow the step-by-step Guide below to set up Remote Desktop thick client SSO.

1. How to Set Up Remote Desktop Thick Client SSO

Thick Client SSO: Dashboard applications

Click on Apps. It shows a list of all configured applications and option to modify them. Click on Add Application.

Under Choose Application, select Browser Extension from the All Apps dropdown.

Search for custom and click on Add Custom App.

Configure your application by filling in the following details:

App Field	Description
Application Name	Enter your application name
App Type	For this Remote Desktop thick client setup, the application type does not affect the integration. Select SIMPLE_LOGIN (the simple login / default option in the dropdown) and continue.
Login Page URL	mo://rdc

Toggle Auto Click Submit: When this option is enabled, the extension will automatically click the login button after filling in the credentials. If disabled, the extension will only fill in the credentials without clicking the login button. Disabling this is useful in cases where the user needs to manually enter additional information, such as a CAPTCHA or security question.
Choose a file to upload app logo.
Click on Save.

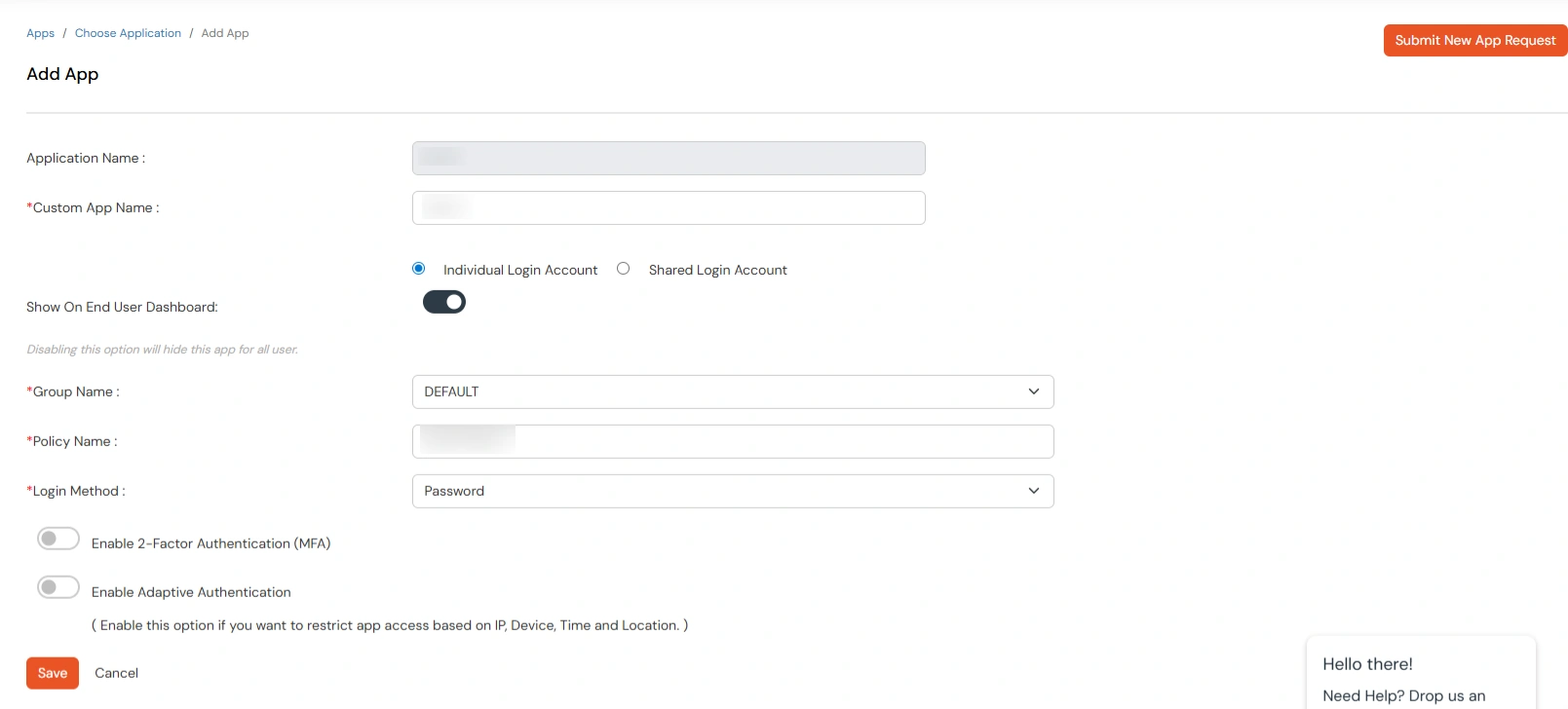

2. Complete the app configuration

After clicking on Save, you will be redirected to the below configuration.

Thick Client SSO: app configuration details

Fill the below details in the fields.

App details	Description
Individual Login	If each user has a different username and password for the app, admin should choose an Individual Login Account option, so that users can save their username and password from the user portal themselves.
Shared Login	If multiple users are allowed to access the app via the same credentials assigned by admin, admin should choose share Login Account option.
Group Name	Select Group name as default.(This will allow all your added groups to access this service)
Policy Name	Select Policy Name the same as your application name.
Login Method	The authentication method for Users.
Enable 2-Factor Authentication (MFA)	Enable this option if you want to enable MFA on top of the user authentication. Note: Can be only used with Password as the login method.
Enable Adaptive Authentication	Enable this option if you want to enable Adaptive Authentication on top of the user authentication. The type of Adaptive Authentication and the Adaptive Authentication Policy has to be configured in this case. Note. Either MFA or Adaptive Authentication can be enabled in a policy and not both.

Click on the Save button.

Note: Extension: install the browser extension and miniOrange Agent MSI on user machines.

3. Configure Login Credentials

Note: Click here to proceed with the configuration steps. Select Individual Login for user-level credentials, or Shared Login for centrally managed credentials.

4. Access your app with SSO from the Dashboard

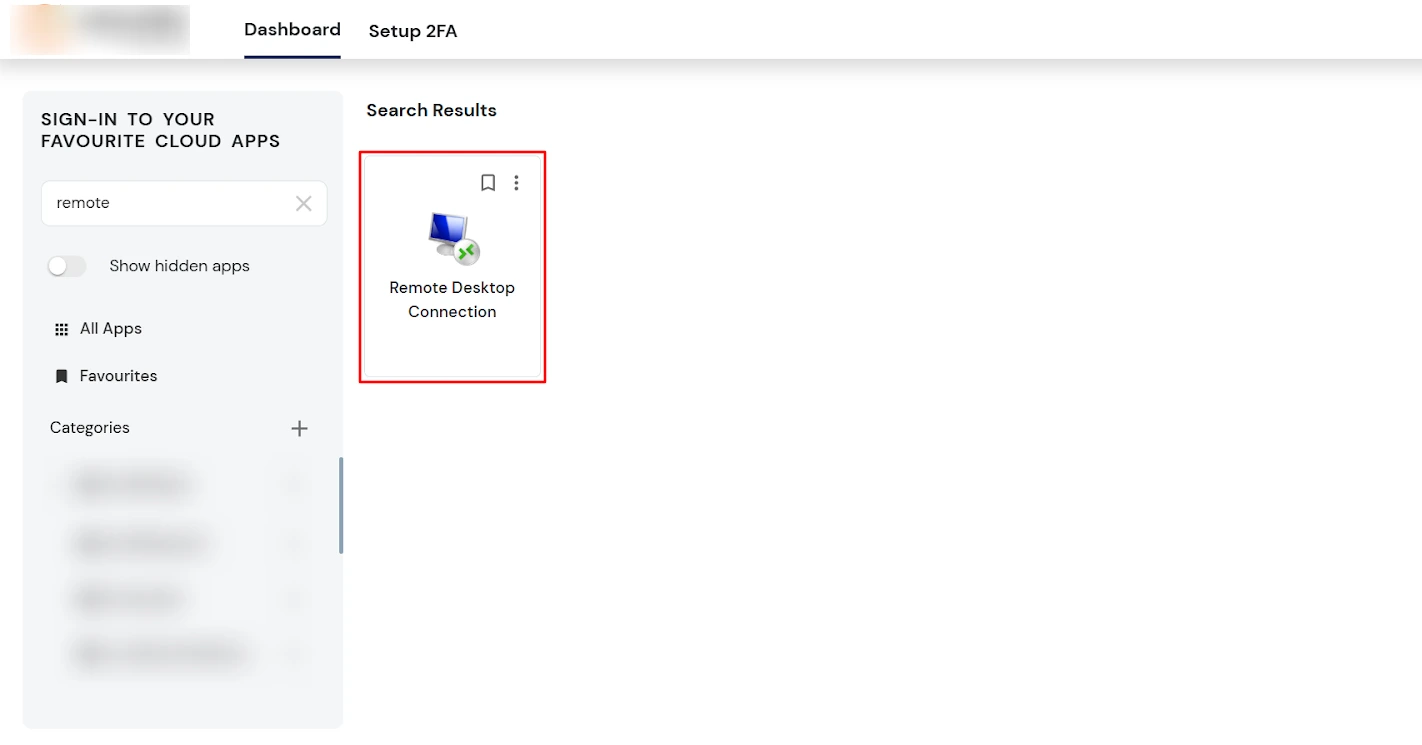

On the Dashboard, under SIGN-IN TO YOUR FAVOURITE CLOUD APPS, search for remote (or your app name) and confirm Remote Desktop Connection appears in Search Results.
