PHP Single Sign-On SSO

This solution allows you to setup Single Sign-On into PHP. It allows setting up JWT SSO.You can allow your users to Single Sign-On into PHP by verifying Identity with your existing compliant Identity Provider. This is done using JSON Web Token (JWT) tokens and it can be easily integrated with PHP built in any framework or language.

In case you need our help with below integration or sample code for JWT for your language, feel free to reach out at info@xecurify.com.


  • Add an Identity Provider. You can add any external IDP or directories (In case you don’t have IdP, you can use miniOrange as an Identity Provider)
  • Customizations support in PHP mobile app to integrate sample code for enabling SSO.

Connect with External Source of Users

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Azure AD, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Shibboleth, Ping, Okta, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more.

Follow the Step-by-Step Guide given below for PHP Single Sign-On (SSO)

1. Set up your Identity Provider in miniOrange

We are using ADFS to show the setup.

You can directly move to Step 3 if you have already configured an IDP.

  • Login to your miniOrange dashboard. If you don’t have an IDP you can use miniOrange as your IDP.
  • Go to the Identity Provider tab and click on Add Identity Provider button.
  • Select the SAML tab.
  • PHP adfs sso select saml tab

  • Add configuration details of your IdP with minimum required configuration parameters below:

  • IDP Name Enter Your IDP Name
    IDP Entity ID http://<YOUR_ADFS_DOMAIN>/adfs/services/trust
    SAML SSO Login URL http://<YOUR_ADFS_DOMAIN>/adfs/ls/
    X.509 Certificate Provide the ADFS signing certificate

2. Configure miniOrange settings in your Identity Provider

  • Add configuration details below which will be required by your IdP:
  • A. Service Provider Entity ID / Issuer: https://login.xecurify.com/moas

    B. Assertion Consumption Service (ACS) URL: Find SAML ACS URL option in added Identity Source.

    • Choose ACS URL For SP-Initiated SSO.
    • PHP adfs sso sp initiated

    C. Download Metadata: This is required if you want to Download metadata.Download metadata to avoid putting the values manually.

    • Go to Identity Providers tab and find your configured IdP.
    • Click the Metadata link to view the metadata.
    • PHP adfs single sign on metadata

    • A new page will get opened having metadata.

    • PHP adfs single sign on download metadata

    • Click on the Download Metadata link to download the metadata. mo-sp-metadata.xml file will be downloaded.

    D. Signing Certificate (Optional): This is required if you want to enable signed SAML Auth request. so than IdP can verify that the contents have not been altered in transit. Download the signing certificate with the steps below.

    • Go to Identity Providers tab and find your configured IdP.
    • Click he Certificate link to download the certificate.
    • PHP adfs single sign on download certificate

    E. Configure miniOrange as a relying party in ADFS:

    • Open ADFS Management console.
    • Go to Trust Relationships > Relying Party Trusts. Click Start.
    • Click on Add Relying Party Trust. Select Enter about the relying party manually. Click Next.
    • Enter Display Name. Click Next.
    • Select ADFS Profile. Click Next. Click Next again.
    • Select Enable support for the SAML 2.0 WebSSO protocol.
    • Enter the URL as https://login.xecurify.com/moas/login/broker/login/saml/acs/{YOUR_CUSTOMER_KEY} in the Relying Party URL textbox and click Next the button.
    • Enter the Relying party trust identifier as https://login.xecurify.com/moas/login
    • Click on Add. Click on Next until the last screen.
    • Check Open the Edit Claim Rules. Checkbox and click Close.
    • Click on Add Rule and select Send LDAP Attributes as Claims and Click Next.
    • Enter Claim Rule name and select Attribute Store.
    • Select Email Addresses as LDAP Attribute and Name ID as Outgoing Claim Type. Click Finish.
    • PHP adfs sso configure miniorange as relying party

3. Configure PHP in miniOrange

A. Add PHP app in miniOrange:

In miniOrange dashboard, you can add JWT application with steps below:

  • Login into miniOrange Admin Console.
  • Go to Apps >> Manage Apps.
  •  Single Sign-On (sso) manage apps

  • Click on Add Applicaton button.
  •  Single Sign-On(sso) add app

  • In Choose Application Type click on Create App button in JWT application type.
  •  Single Sign-On(sso) choose app type

  • In the next step, search for your application from the list, if your application is not found. Search for External / JWT App and you can set up your Application.
  •  adfs sso external app

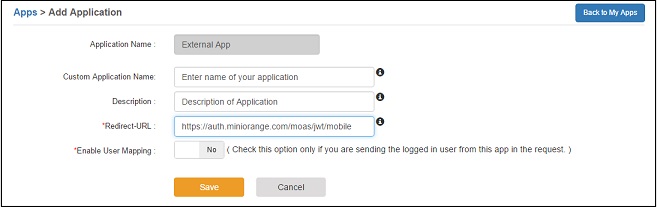

  • Configure the name for PHP and configure Redirect-URL which tells where to send JWT response. Redirect-URL should be an endpoint on PHP where you want to achieve SSO.
  • In case you are setting up SSO with Mobile Applications where you can’t create an endpoint for Redirect or Callback URL, use below URL. https://login.xecurify.com/moas/jwt/mobile

B. Add SSO link in PHP:

  • Now, create a new file named callback.php with the code mentioned in next step. This file will act as an endpoint i.e response to the jwt token which is received.

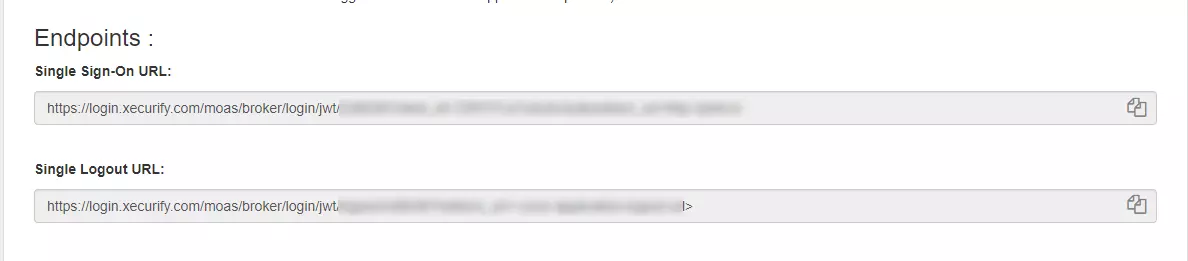

  • Endpoint

C. Verify JWT token and parse user details for SSO:

  • On your Callback endpoint, you can read and parse the JWT token.

  • callback.php
    	if(isset($_GET['id_token'])) {
    	  $id_token = $_GET['id_token'];
    	  $id_array = explode(".", $id_token);
    	  if(sizeof($id_array)==3) {
    		$id_body = base64_decode($id_array[1]);
    		$user_attributes = json_decode($id_body, true);
    		if(isset($user_attributes['NameID'])) {
    		  $expiry = $user_attributes['exp'];
    		  if($expiry > time()) {
    			$username = $email = $user_attributes['NameID'];
    			echo $username;
    			// Login user with email $email or $username
    		  else {
    			echo "Response expired. Try login again.";
  • Structure of JSON Web Token (JWT): JSON Web Tokens consist of three parts separated by dots (.), which are:
    • Header: Contains the signature algorithm name used to sign the payload.
    • Payload: Contains user attributes.
    • Signature: Signature value of the payload. eg. xxxx.yyyyyyyyyyyy.zzzzzz
  • You will need to download a certificate from App > Manage Apps and click Certificate link against your configured application. This certificate will be used for signature validation of the JWT response.
  • PHP adfs sso certificate link

  • Verify JSON web token: Click here to verify your JSON token.

D. Perform SSO:

  • Once you have added the link above on PHP, you can verify the SSO setup by clicking a link.
  • On successful authentication, you will be redirected to configured Redirect or Callback URL with JWT token

4. Single Logout (SLO)

This is an optional step. If you want to ensure that all sessions (SP and IDP) for a user are properly closed, you can configure Single Logout with the steps below.

A. Configure miniOrange with IdP SLO endpoint:

  • Go to the Identity Provider tab and edit the configured Identity Provider.
  • Find the option Single Logout URL and configure the SLO URL provided by your IdP.
  • PHP adfs sso single logout url

B. Configure IdP with miniOrange SLO endpoint:

  • Configure your Identity Provider with below Single logout endpoint.
  • You can find the SSO Binding option to configure the logout binding type to either REDIRECT or POST.

C. Configure your JWT application with SLO endpoint:

  • Configure your JWT application with below Single logout endpoint.
