PHP Single Sign On with SAML IDP using JWT

Follow the Step-by-Step Guide given below to integrate your PHP app with SAML IDP using JWT.

Step 1: Set up an Identity Source in miniOrange

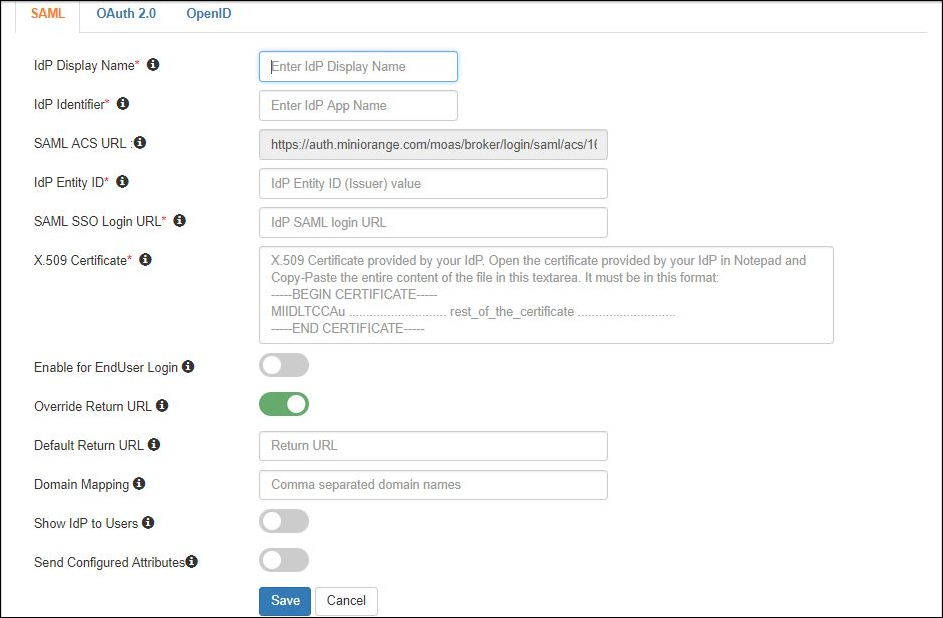

• Login as a customer from Admin Console of miniOrange's Administrator Console, now go to Identity Sources Tab from menu and click Add Identity Source. Make sure SAML tab is selected.
• Enter the following:

  IDP Name	<Your IDP Display Name>
  IDP Identifier	<Your IDP App Name>
  IdP Entity ID	https://<YOUR_SAML_IDP_DOMAIN>
  SAML SSO Login URL	https://<YOUR_SAML_IDP_DOMAIN>
  X.509 Certificate	Provide the SAML IDP signing certificate
  Override Return URL	Yes
  Return URL	Leave blank

• Click on Save

Step 2: Configure miniOrange as relying party in your SAML IDP

• In your IDP enter the following URL in the Relying Party URL textbox: https://login.xecurify.com/moas/broker/login/saml/acs/{YOUR_CUSTOMER_KEY}
• Enter the following in Relying Party trust identifier textbox: https://login.xecurify.com/moas/

Step 3: Creating an external app in miniOrange

• Login to miniOrange Admin console and go to Apps > Manage Apps
• Click on the Add Applications button on the right upper corner.

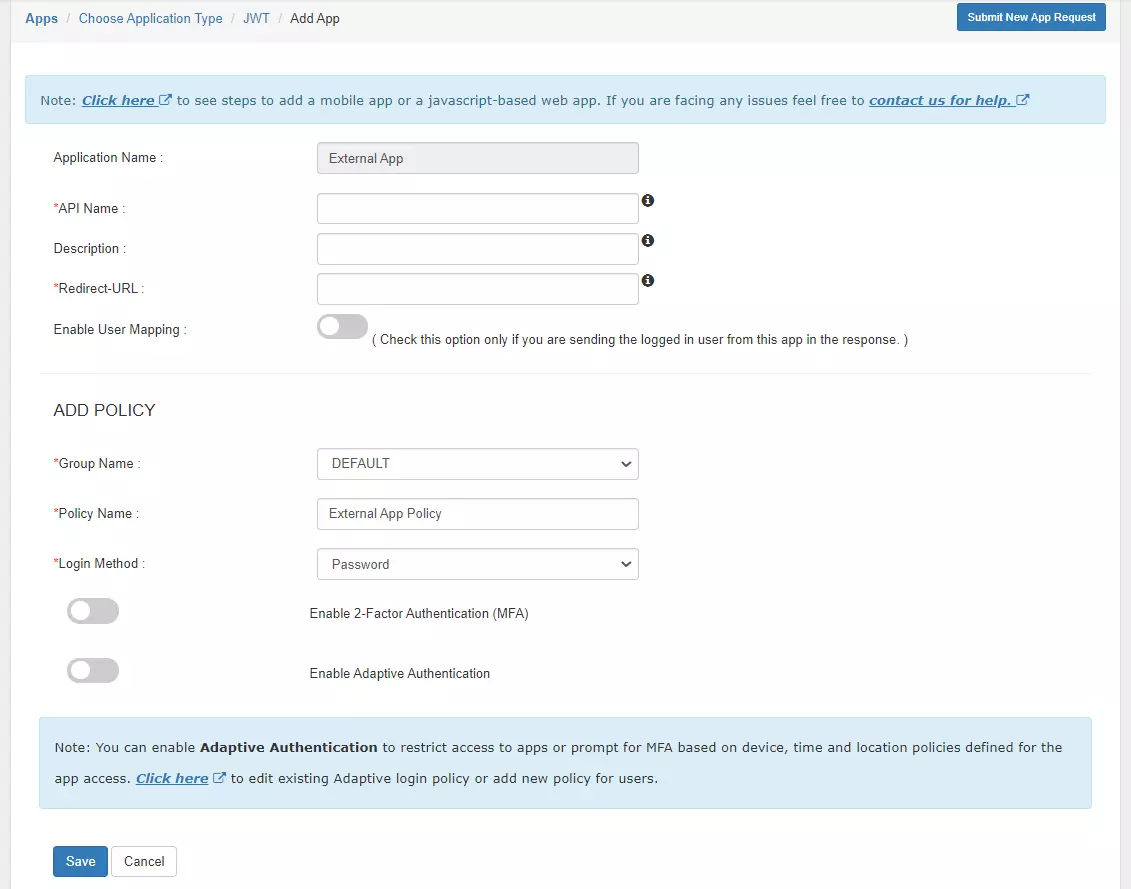

• Choose Application type as a JWT and click on Create App button. Select External App.
• Enter the Custom Application Name and Description. Enter Redirect-URL as this: http://<file-path>/callback.php.
  For details regarding the callback.php file refer to Step 4.




• Click on Save.
• Select Certificate dropdown option against the application you just added.You will need the content of this to validate the JWT Token signature later.

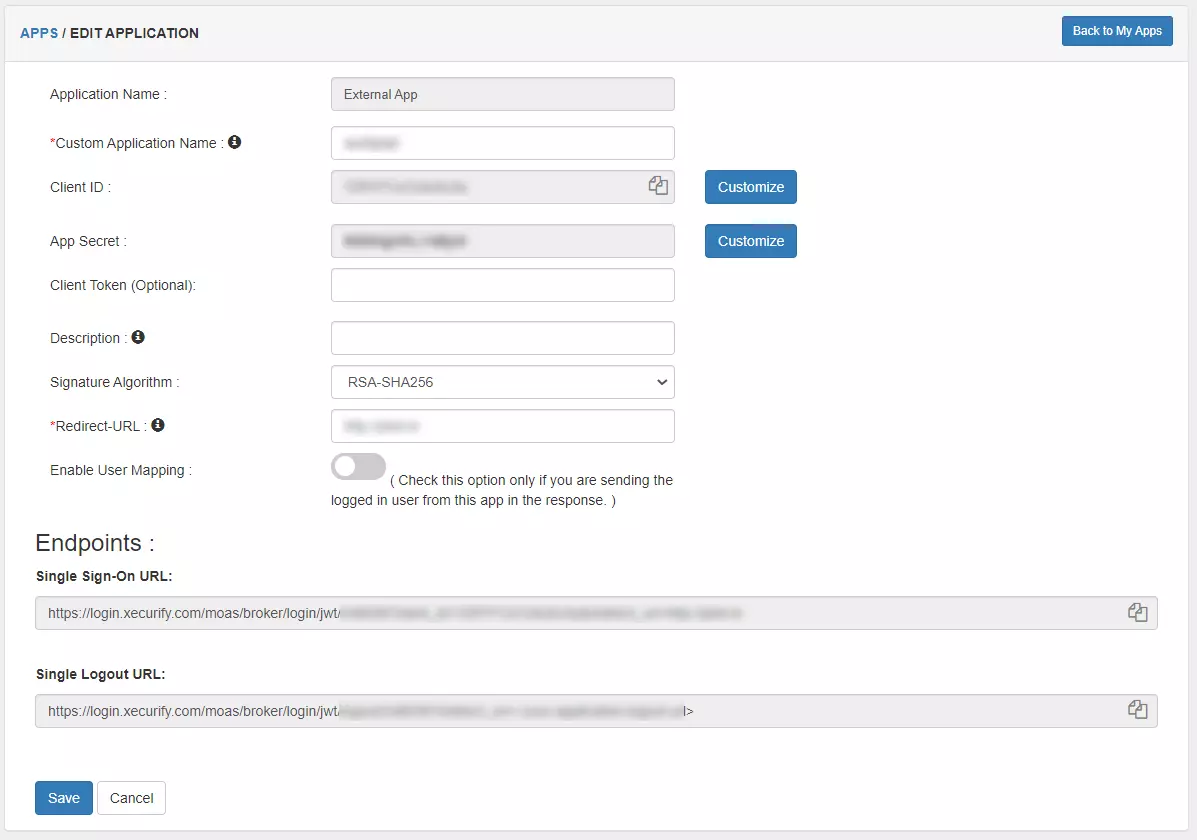

• Select Edit option from dropdown against the App you just created. Save/Note down the App Secret. This will be required for generating the Encrypted Token.



Step 4: Adding the response page

• Now, create a new file named callback.php with the following code given below. This file will act as an endpoint i.e response to the jwt token which is received.

	if(isset($_GET['id_token'])) {
	  $id_token = $_GET['id_token'];
	  $id_array = explode(".", $id_token);
	  if(sizeof($id_array)==3) {
		$id_body = base64_decode($id_array[1]);
		$user_attributes = json_decode($id_body, true);
		if(isset($user_attributes['NameID'])) {
		  $expiry = $user_attributes['exp'];
		  if($expiry > time()) {
			$username = $email = $user_attributes['NameID'];
			echo $username;
			// Login user with email $email or $username
			}
		  else {
			echo "Response expired. Try login again.";
			}
		}
	  }
	}
	exit;

• For generating authentication request token hit the Single Sign On URL .




• Receiving and Verifying the JWT token

The JWT token can be found in Query String Parameter id_token.
For Example, in Java you can get the JWT token like this:
String jwtToken = request.getParameter("id_token");

For verifying the JWT token, you will need the Certificate you downloaded from miniOrange. You can use the open source libraries available on http://jwt.io/ If you are using the library for Java, you can use jose4j library https://bitbucket.org/b_c/jose4j/wiki/Home
You can follow this example of jose4j to verify the JWT token received: https://bitbucket.org/b_c/jose4j/wiki/JWT%20Examples
