Setup Google Workspace as SMTP

---

An SMTP Server is an application that allows your device or server to receive and send Electronic Mails (e-mail) to various email receivers and senders. SMTP stands for Simple Mail Transfer Protocol and it is a standard for sending emails. They use a wireless carrier to route text/push messages to the inbox of email applications.

By default, miniOrange provides and uses its own SMTP Server to send OTPs to users. If you have a custom SMTP Server configured, you can use the same to send Emails from your miniOrange account. Check out our list of Supported SMTP Servers.

miniOrange IDP allows you to configure Google Workspace as SMTP email provider hence giving you freedom to manage, monitor, and troubleshoot your email communications.

Prerequisites

• For Cloud Version - If your SMTP/Email servers are behind a firewall, make sure to open the right ports and allow inbound connections from our IP Addresses.

  You can whitelist the below IPs and open the given ports to make the request:

Region	IP
US	52.55.147.107, 52.86.38.163, 54.165.245.227
EU	13.51.230.230
AU	13.236.243.147

• For On-Premise Version - If your SMTP/Email servers are behind a firewall, make sure to open the right ports and allow inbound connections from your server's IP Addresses.

Follow the guide below to configure a custom SMTP server in your account:

1. SMTP Configuration for Google Workspace

• Go to your Google admin dashboard [https://admin.google.com].

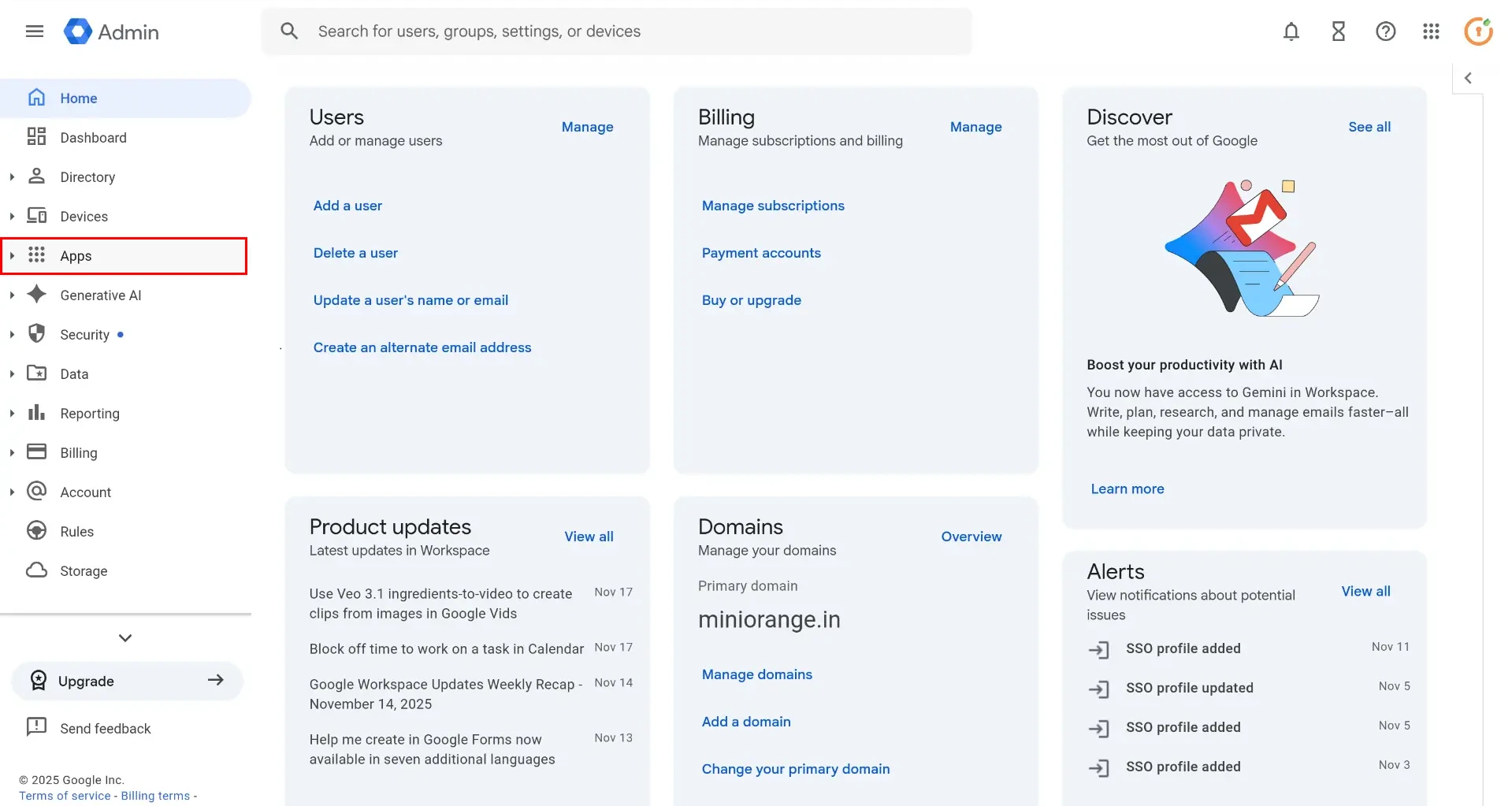

• In the left-hand navigation menu, click Apps to view your available Google services.

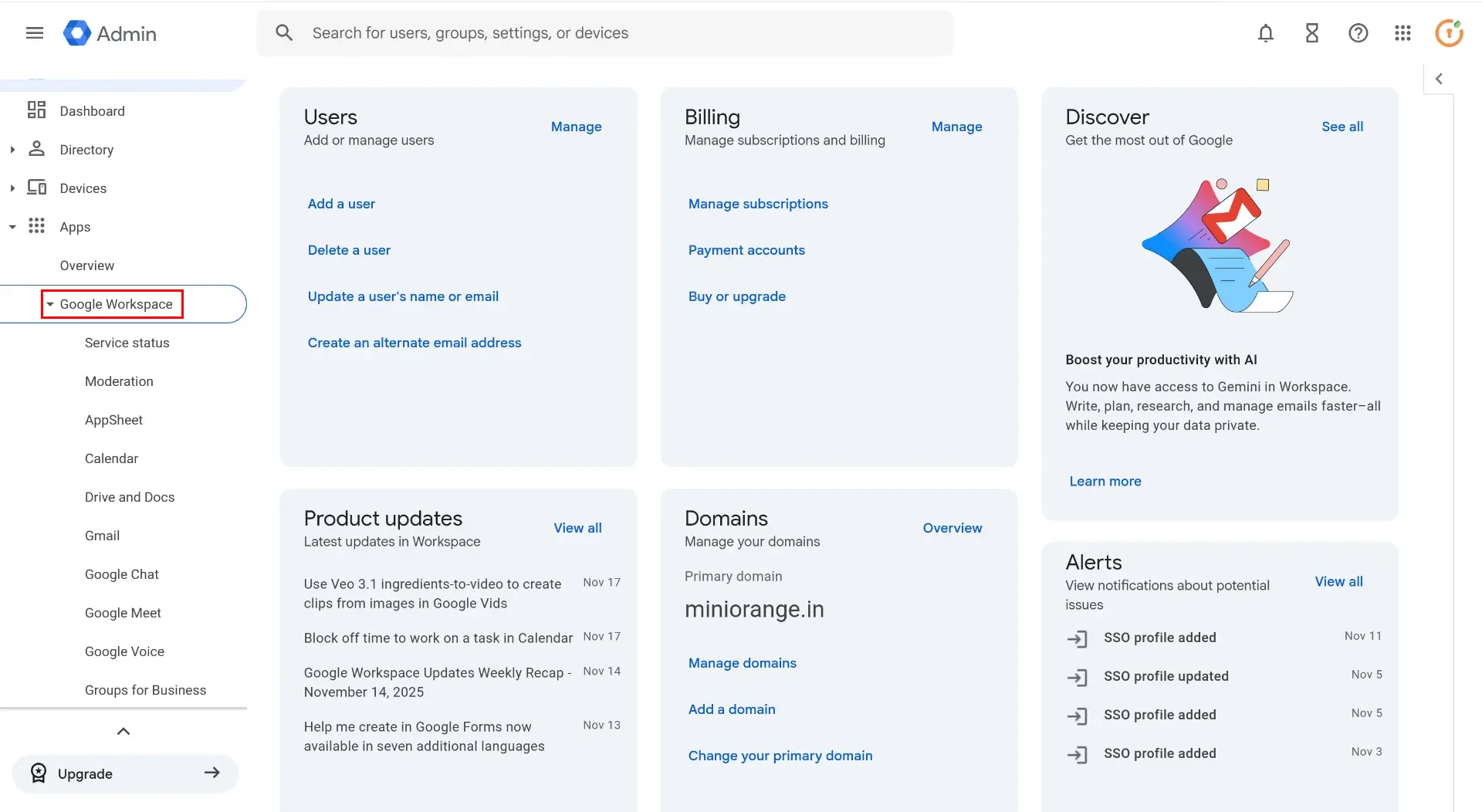

• Under the Apps section, click on Google Workspace dropdown to access configuration options.



• Click on Gmail. This will open the Gmail settings page for your organization.

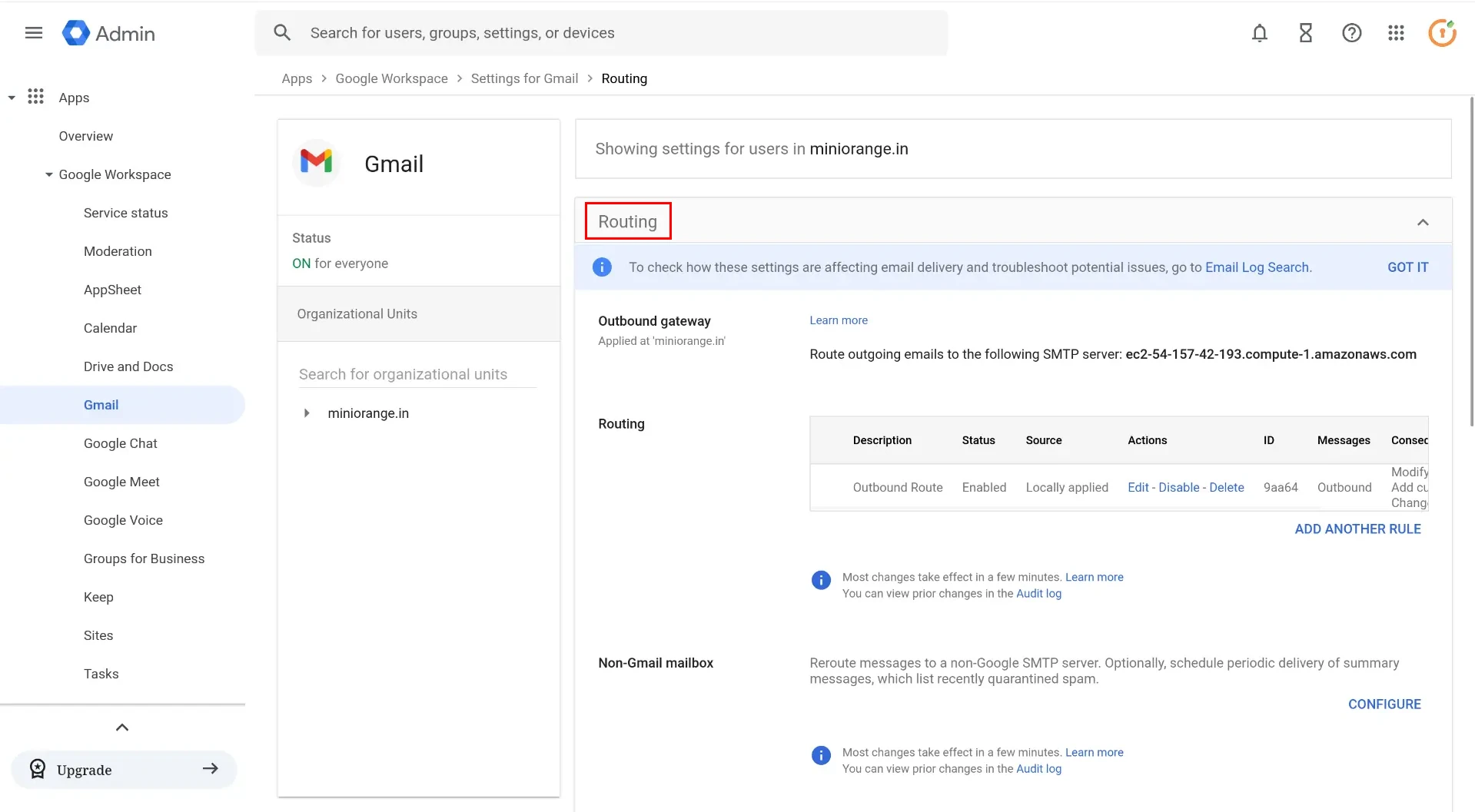

• Scroll to the bottom of the Gmail settings page and find the Routing section.

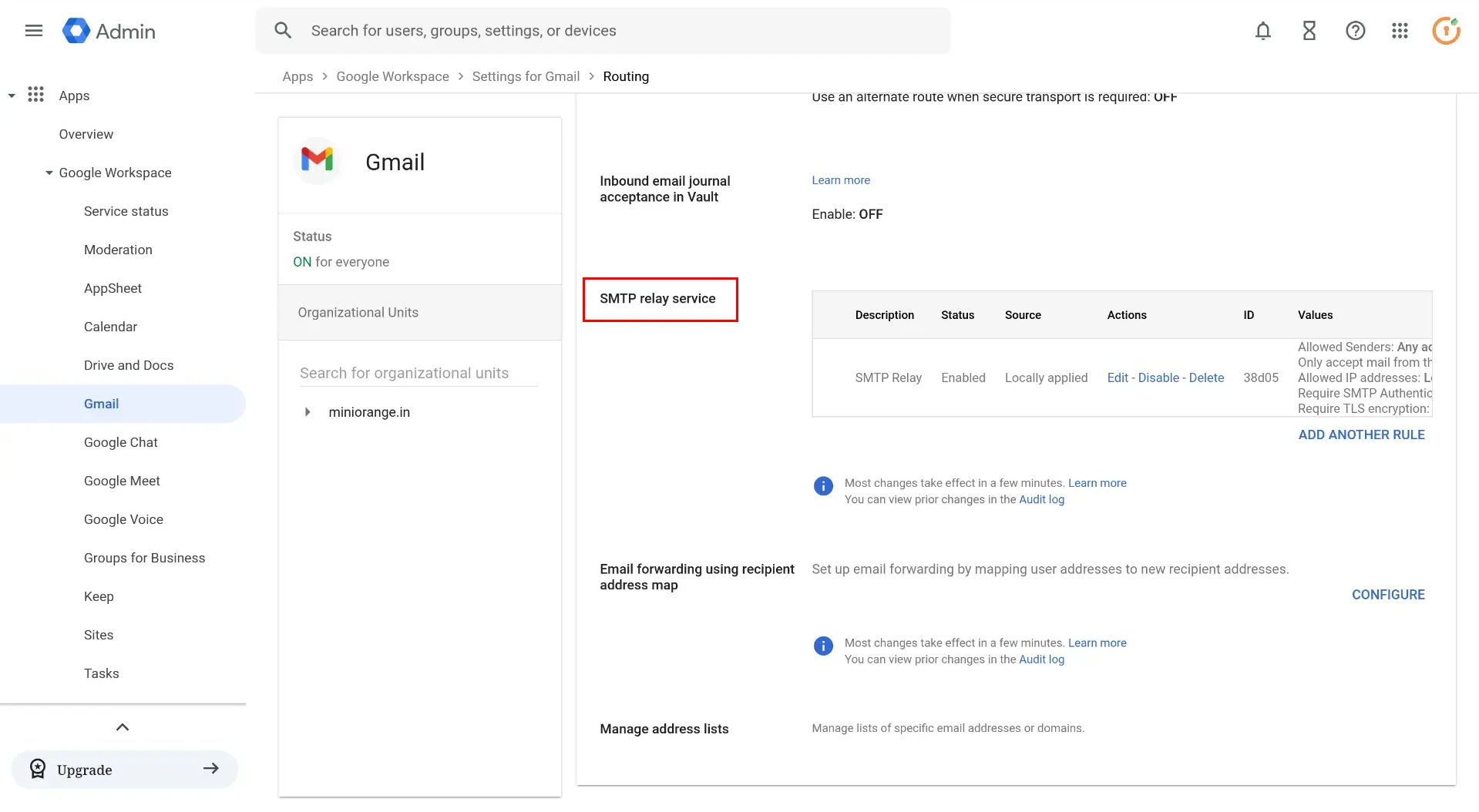

• Inside the Routing section, click on SMTP relay service to configure relay settings.



• Add the necessary rules here to enable your system to send emails through Gmail.:
  • Allowed Senders: Choose who is permitted to send emails through the relay.

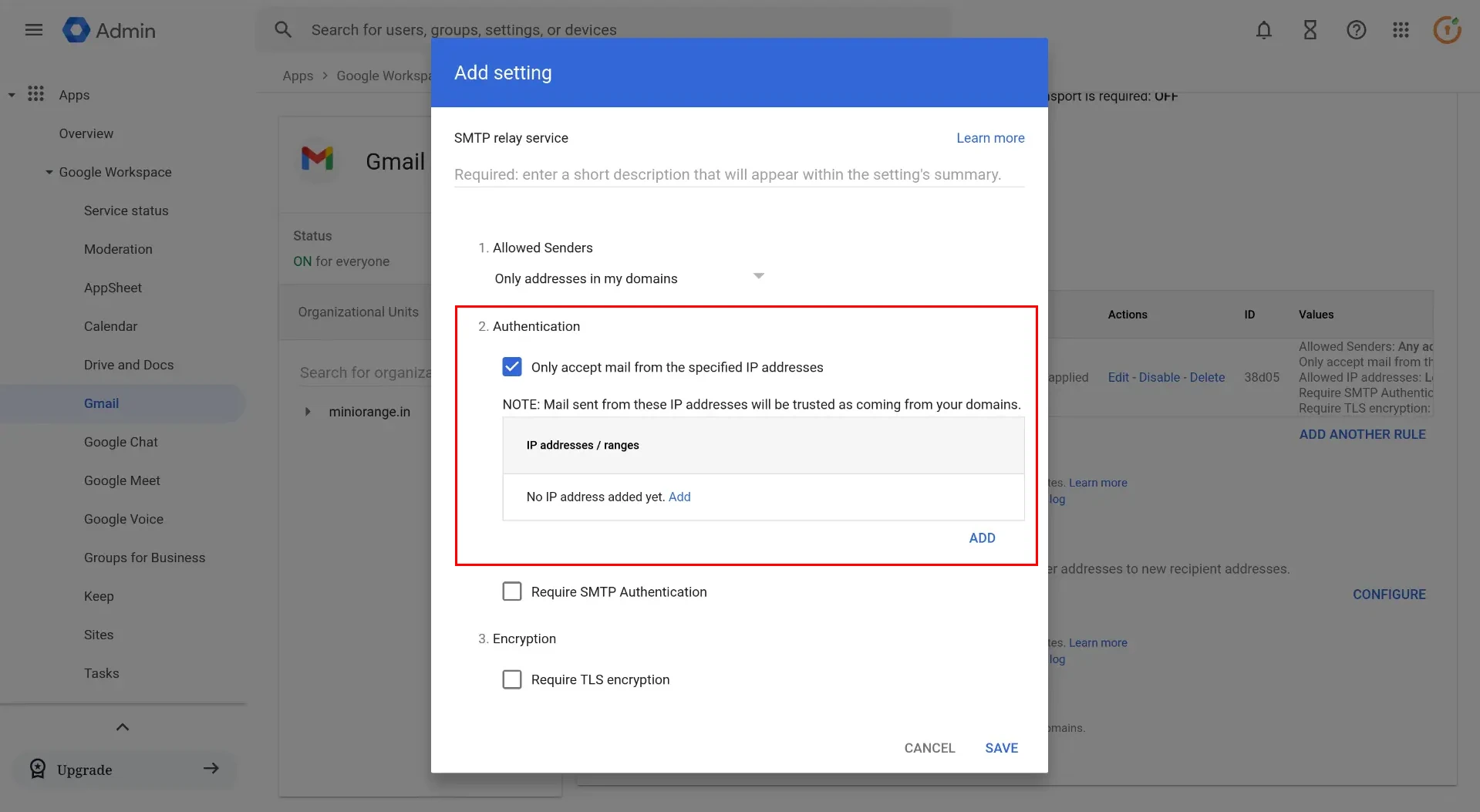

  • Authentication: Enable the "Only accept mail from the specified IP addresses". Specify the IP addresses that are allowed to relay messages (ensure you add all required IPs).
    [You need to whitelist the above provided IPs of miniorange server.]



• Click on Save.
Note: Please login with your on-premise IDP credentials if you are using an on-premise IDP.


• Go to Customization -> Custom Email Provider and add the details which are available on the SMTP server side.



• Enter smtp-relay.gmail.com as your host.
• Input 465 (SSL) or 587 (TLS) as SMTP port.
• The Username and Password is your Gmail account credentials.



• Click on Save and follow the below steps to test the custom Email Provider.

2. Test SMTP

• Once the SMTP is set, you can enter a test email and click on Test Configuration to be able to verfy if the SMTP flow is working or not.
