Configure Duo as SAML IDP for SSO

---

miniOrange Identity Broker service solution enables cross protocol authentication. You can configure Duo as an IDP for Single Sign-On (SSO) into your applications/websites. Here, Duo will act as an Identity Provider (IDP) and miniOrange will act as a broker.

We offer a pre-built solution for integrating with Duo, making it easier and quick to implement. Our team can also help you set up Duo as SAML IDP to login into your applications.

Follow the Step-by-Step Guide given below for Duo Single Sign On

1. Configure miniOrange as Service Provider in Duo

• Go to miniOrange Admin console and navigate to Identity Providers in the left navigation menu. Then, click on Add Identity Provider button.



• In Choose Identity Provider, select SAML from the dropdown.



• Search for Duo in the list. If you don't find it, search for SAML Provider and set up your application there.



• Now click on the Click here link to get miniOrange metadata as shown in Screen below.



• For SP - Initiated SSO section, select Show Metadata Details.



• Copy Entity ID or Issuer and ACS URL (For SP-Initiated SSO) values and keep them handy. We'll use these to configure miniOrange as a Service Provider in Duo next.



• Now log in to your Duo Administration Console.



• Select Applications tab from left menu pane, then click on Protect an Application.



• Search for Generic Service Provider .
• Then, select Single Sign-On application and click on Protect button.




• Select Single Sign-On tab from the left menu pane and click on Add Source button.




• Select Authentication Source as SAML Identity Provider and click on Add SAML Identity Provider button.



• To Configure SAML Identity Provider navigate to Configure Single Sign-On tab and provide the following values:

  Display Name	Provide a Service Provider name
  Entity ID	Enter IDP Entity ID from miniOrange metadata above
  Single Sign-On URL	Enter ACS (Assertion Consumer Service) URL from miniOrange metadata above
  Existing Certificate	Upload the Certificate from miniOrange metadata

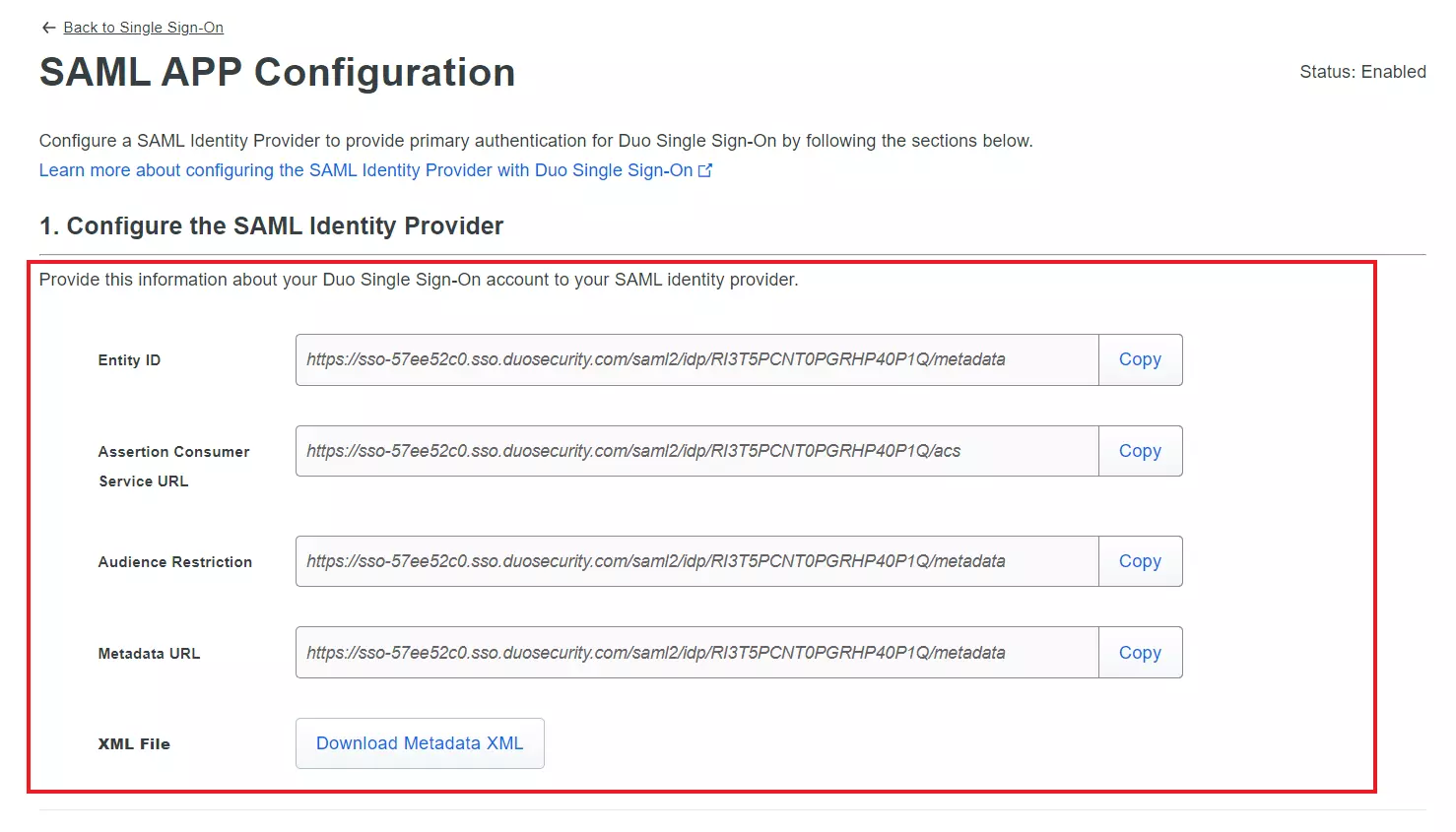

• Click on Save to save your configuration. Save the SAML IDP details displayed (Entity ID, SSO URL, Certificate). We'll need them to complete the miniOrange setup below.




You have successfully configured miniOrange as Service Provider in Duo. Now we'll complete the IDP configuration in miniOrange.

2. Configure Duo as Identity Provider in miniOrange

• Return to the miniOrange Admin Console tab you kept open from Step 1.

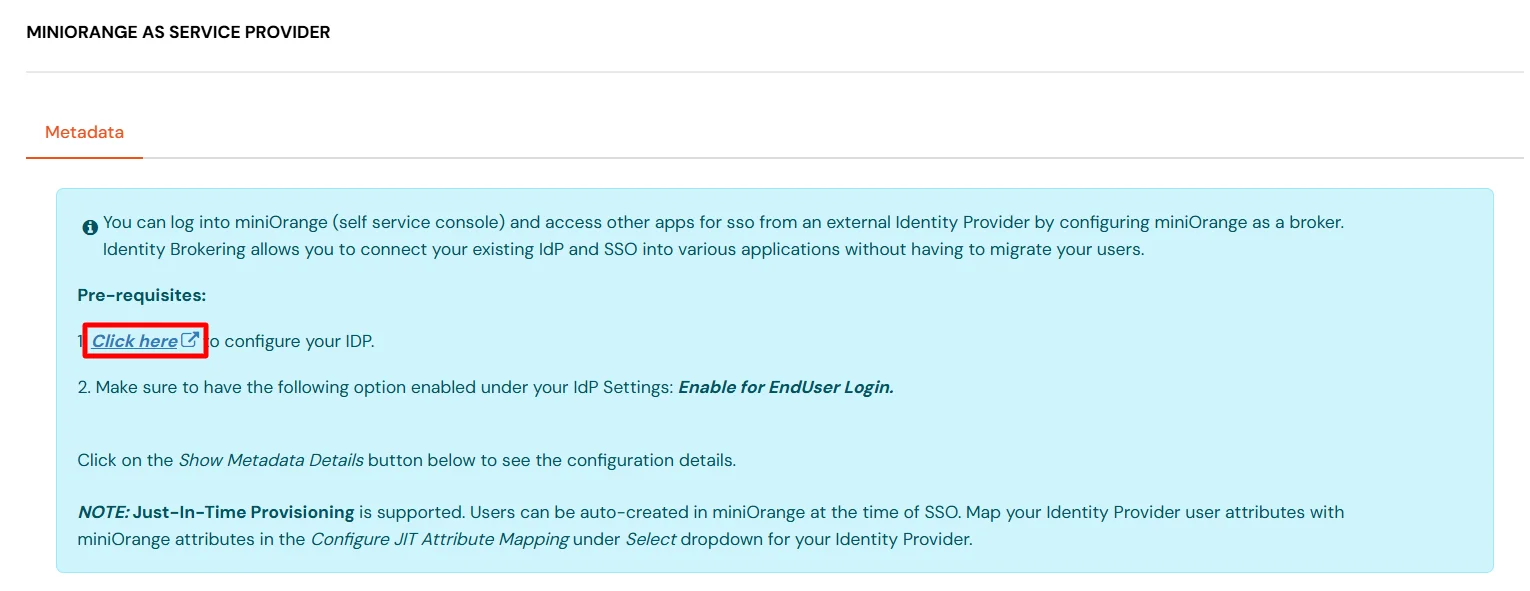

• Click the Click here link to configure your IDP and provide the following details from the Duo configuration in Step 1:




IDP Name	Enter appropriate IdP name (e.g., Duo IDP)
IDP Entity ID	Identity Provider Issuer from Duo configuration in Step 1
SAML SSO Login URL	Identity Provider Single Sign-On URL from Duo configuration in Step 1
Single Logout URL [Optional]	Single Logout URL from Duo configuration in Step 1
X.509 Certificate	X.509 Certificate from Duo configuration in Step 1




• Few other optional features that can be added to the Identity Provider(IDP) are listed in the table below:

  Domain Mapping	Can be used to redirect specific domain user to specific IDP
  Show IdP to Users	Enable this if you want to show this IDP to all users during Login
  Send Configured Attributes	Enabling this would allow you to add attributes to be sent from IDP




• Click on Save to complete the Duo IDP configuration.

3. Test Connection

• Visit your Login Page URL.
• Go to Identity Providers tab.
• Search for your app, click the three dots in the Actions menu, and select Test Connection against the Identity Provider (IDP) you configured.



• On entering valid Duo credentials (credentials of user assigned to app created in Duo), you will see a pop-up window which is shown in the below screen.



• Hence your configuration of Duo as IDP in miniOrange is successfully completed.

Configure Attribute Mapping

• Go to Identity Providers.
• Click the three dots in the Actions menu, and select Attribute Mapping against the Identity Provider (IDP) you configured.

• Attribute Type - USER
• Attribute Type - EXTERNAL

Maps information, such as email and username, during Just-In-Time (JIT) user creation. Email and Username attributes are necessary to create the user profile.

• Click on the + Add Attribute button to add the attribute fields.



• Check the attributes in the Test Connection window from the previous step. Choose any attribute names you want to send to your application under Attribute Name sent to SP.
• Enter the values of the attributes coming from IdP into the Attribute Name from IdP field on the Xecurify side.

EXTERNAL mappings help alter incoming attribute names before sending them to apps, ensuring that the data is in the correct format.

• Click on the + Add Attribute button to add the attribute fields.



• Check attributes in test connection window from last step. Enter the attribute names (any name) that you want to send to your application under Attribute Name sent to SP.
• Enter the value of attributes that are coming from IdP into the Attribute Name from IdP field on the Xecurify side.
