Bubble.io Single Sign-On (SSO)


Bubble.io is a no-code app development platform. It is used to develop software and application without coding or can say Bubble.io offers a way to build an application without having knowledge of core programming languages.

Challenge faced by Bubble.io Users

Bubble.io users want continuous and seamless access to their portal through their existing accounts. They don't wish for their users to have a separate set of credentials for logging in to Bubble.io. They provide a way to allow their users to log in to the platform seamlessly. But, an interface needs to be created which would allow this.

miniOrange provides SSO solution for Bubble.io

miniOrange provides an integrated SSO solution where a logged-in user's existing session can be used to log the users into Bubble.io by creating a valid JSON Web Token (JWT). Bubble.io user is relieved from maintaining separate user credentials for their users.

As a result, miniOrange Single Sign-On (SSO) solution is implemented. Bubble.io users can now login into their platform using their existing credentials.


Connect with External Source of Users


miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Azure AD, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Shibboleth, Ping, Okta, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more.



Follow the Step-by-Step Guide given below for Bubble.io Single Sign-On (SSO)

1. Configure miniOrange in Bubble.io

Create a new app and install miniOrange SSO plugin:
  • First, login to your Bubble.io admin dashboard.
  • Click on the New app button on the Bubble home page.
  • Bubble Single sign-on (SSO) Admin dashboard

  • Enter the relevant details and click on the Create a new app
  • Bubble Single sign-on (SSO) Create a new App

  • Install the miniOrange SSO plugin.
  • Bubble Single sign-on (SSO) Install Plugin

    Bubble Single sign-on (SSO) Install Plugin

  • Create a new page ( let’s call it SSO page)
  • On the SSO page, add the following two elements provided by the miniOrange SSO plugin:
    • SSO Starter
    • SSO Profile
  • Bubble Single sign-on (SSO) Create SSO page

  • Let’s add a header and a text field on the index page:
    • A text field popup will appear. First, click on the text field and then click on the Insert dynamic data
    • . Bubble Single sign-on (SSO) Add Header and Text field

    • Then select Current user from the dropdown and then again select email.
    • Bubble Single sign-on (SSO) Add Header and Text field

  • Now let’s add the Workflow.
    • Workflow to redirect the user to SSO page from index page when the user is not logged in.
    • Bubble Single sign-on (SSO) Add Header and Text field

    • Workflow to Initialize SSO when the SSO page is loaded.
      Search for the action SSO initialize and add it when the SSO page is loaded.
    • Bubble Single sign-on (SSO) Add Header and Text field

    • Add the workflow on the SSO page, to sign-up , login and redirect the user to the index page.
      Make sure that the password is same in both the signup and the login workflow.
    • Note: When you Sign the user up, make sure you follow the Bubble's password standard - Password must be at
      least 7 characters long and contain Capital letter and a number.

      Bubble Single sign-on (SSO) Add Header and Text field

      Bubble Single sign-on (SSO) Add Header and Text field

      Bubble Single sign-on (SSO) Add Header and Text field

2. Configure Bubble.io in miniOrange

  • Login to miniOrange Admin Console.

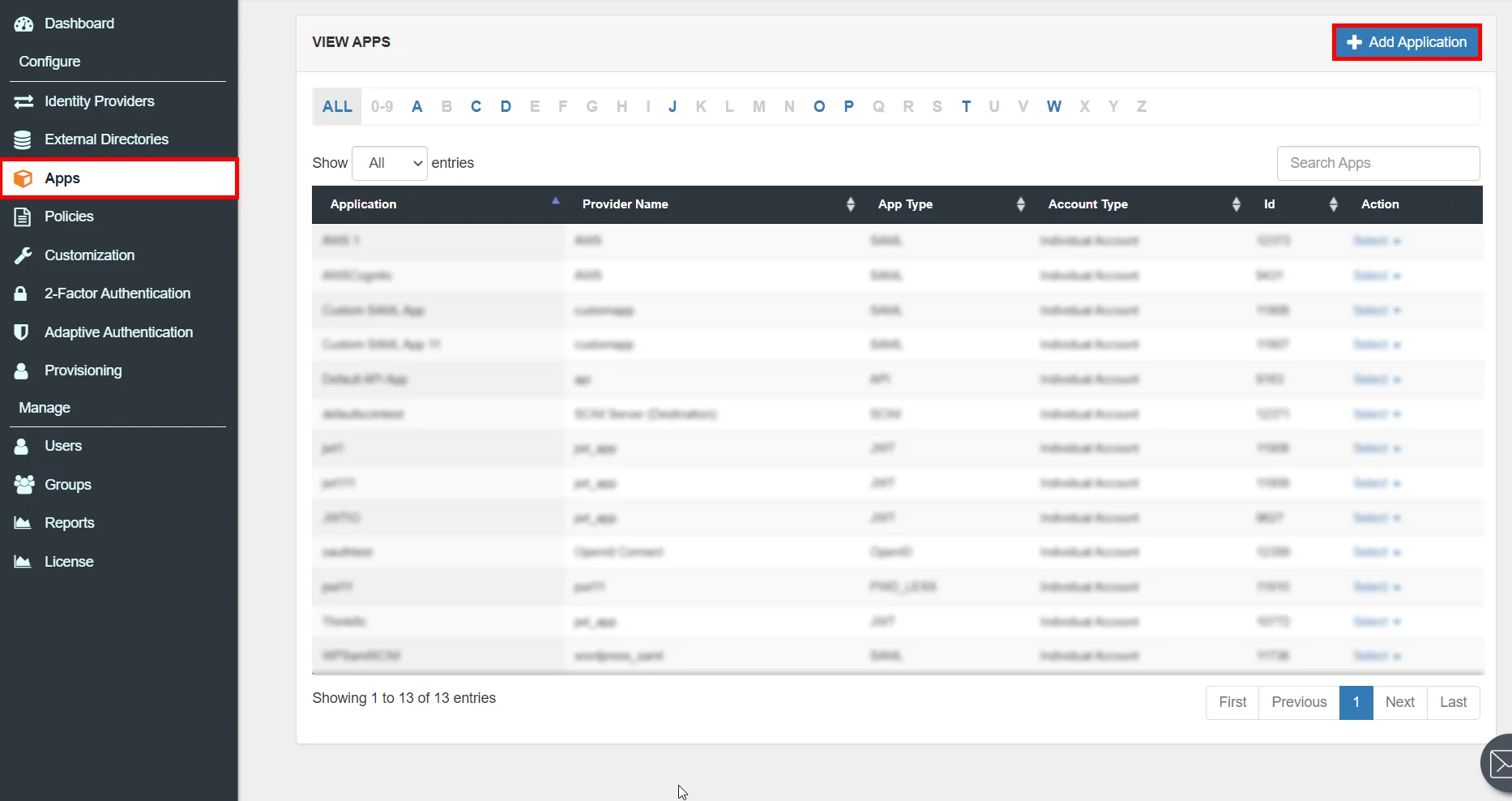

  • Go to Apps Click on the Add Application button.
  • Bubble.io Single Sign-On (SSO) add app

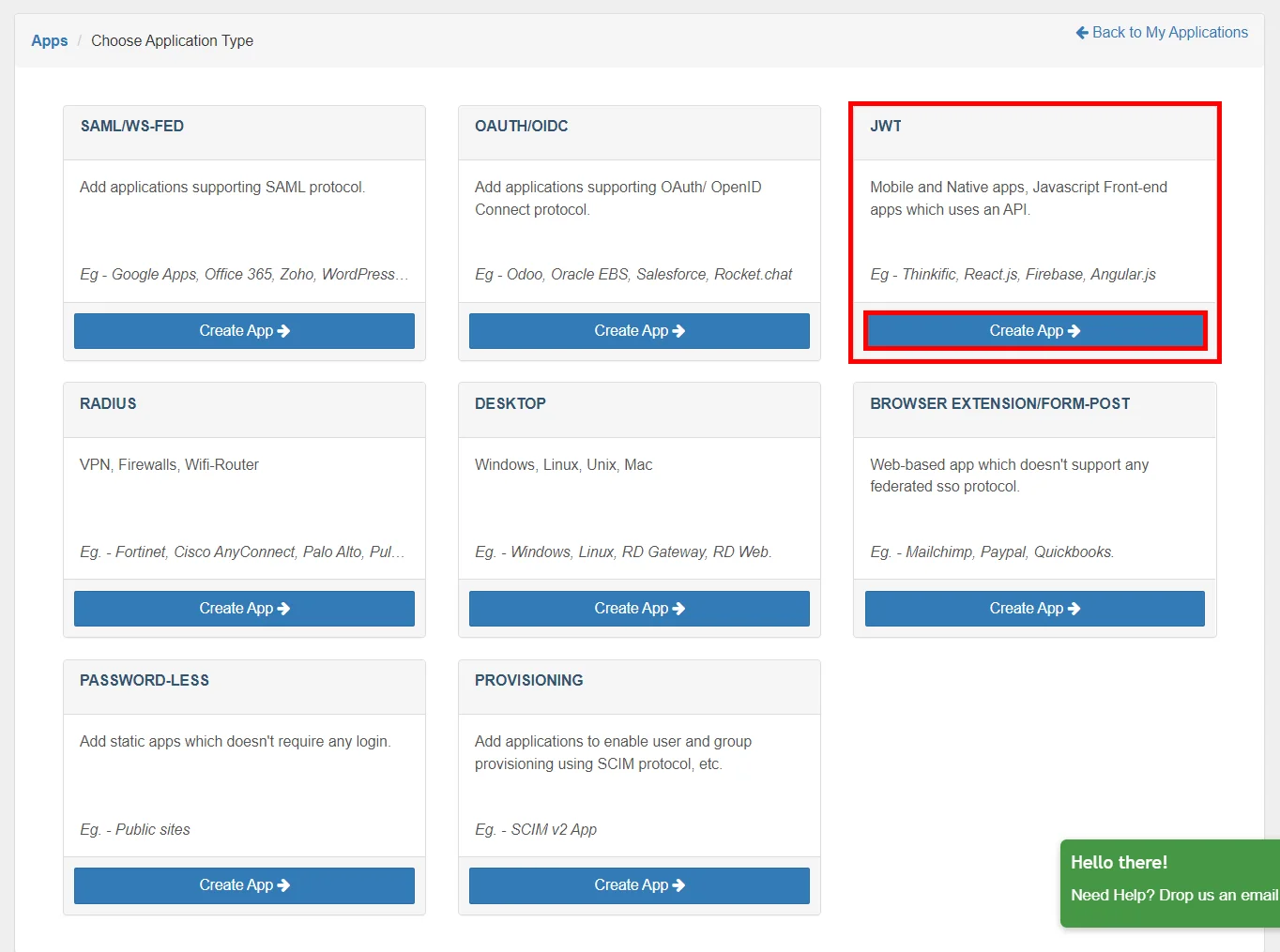

  • Under the Choose Application Type, click on the JWT.
  • Wix Single Sign On SSO add app

  • Search for the application and select Bubble from the list.
  • Bubble Single sign-on (SSO) Select Custom WT App

  • Fill in the required fields. Enter the Custom App name of your choice.
  • .
  • In Redirect URL field, paste the Bubbles's SSO page URL that we created in the Step 1 and click on “Save”.
  • Bubble Single sign-on (SSO) Fill required fields

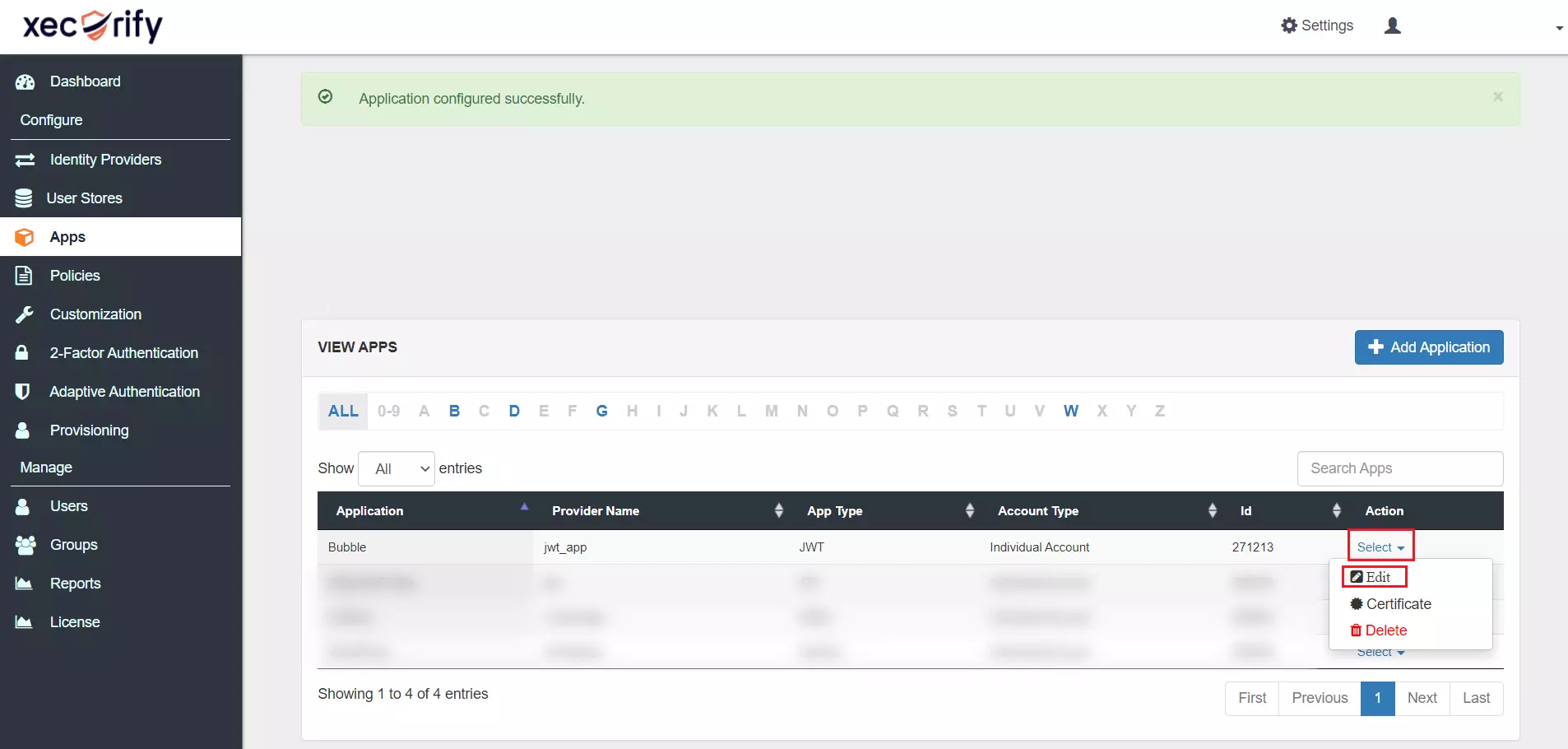

  • Your app is configured successfully. Now to complete the configuration in Bubble, download the Certificate by clicking on the “Certificate” and get the Bubble Endpoints by clicking on the “Edit” from the dropdown as shown in the images below.
  • Bubble Single sign-on (SSO) Bubble Endpoints

    Bubble Single sign-on (SSO) Edit bubble app

  • Keep the Single Sign-On URL.
  • Bubble Single sign-on (SSO) Bubble Endpoints

  • Go back to the Bubble dashboard >> Plugins.
  • Paste the Single Sign-OnURL from miniOrange in the sso-url field and Certificate in the public-key field.
  • Bubble Single sign-on (SSO) Enter Bubble Endpoints

  • Save the settings.

3. Bubble.io SSO Login

  • Lets say you have configured miniOrange as userstore.
  • After accessing the SSO page or Index page of the Bubble app, you will be asked for miniOrange credentials.
  • Bubble Single Sign-On (SSO) miniOrange-login

  • Once you have entered the valid credentials, click on “Login” and you will be redirected to Bubble.io
  • Bubble Single Sign-On (SSO) Bubble Login

4. Configure Your User Directory (Optional)

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Azure AD, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Okta, Shibboleth, Ping, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more. You can configure your existing directory/user store or add users in miniOrange.



  • To add your users in miniOrange there are 2 ways:
  • 1. Create User in miniOrange

    • Click on Users >> User List >> Add User.
    • Bubble.io VPN 2FA : Add user in miniOrange

    • Here, fill the user details without the password and then click on the Create User button.
    • Bubble.io MFA: Add user details

    • After successful user creation a notification message "An end user is added successfully" will be displayed at the top of the dashboard.
    • Bubble.io Two-Factor Authentication: Add user details

    • Click on On Boarding Status tab. Check the email, with the registered e-mail id and select action Send Activation Mail with Password Reset Link from Select Action dropdown list and then click on Apply button.
    • Bubble.io 2FA: Select email action

    • Now, Open your email id. Open the mail you get from miniOrange and then click on the link to set your account password.
    • On the next screen, enter the password and confirm password and then click on the Single Sign-On (SSO) reset password button.
    • Bubble.io Multi-Factor Authentication: Reset user password
    • Now, you can log in into miniOrange account by entering your credentials.

    2. Bulk Upload Users in miniOrange via Uploading CSV File.

    • Navigate to Users >> User List. Click on Add User button.
    • Bubble.io 2FA: Add users via bulk upload

    • In Bulk User Registration Download sample csv format from our console and edit this csv file according to the instructions.
    • Bubble.io Two-Factor authentication: Download sample csv file

    • To bulk upload users, choose the file make sure it is in comma separated .csv file format then click on Upload.
    • Bubble.io 2FA : Bulk upload user

    • After uploading the csv file successfully, you will see a success message with a link.
    • Click on that link you will see list of users to send activation mail. Select users to send activation mail and click on Send Activation Mail. An activation mail will be sent to the selected users.
  • Click on External Directories >> Add Directory in the left menu of the dashboard.
  • Bubble.io 2FA: Configure User Store

  • Select Directory type as AD/LDAP.
  • Bubble.io 2FA: Select AD/LDAP as user store

    1. STORE LDAP CONFIGURATION IN MINIORANGE: Choose this option if you want to keep your configuration in miniOrange. If active directory is behind a firewall, you will need to open the firewall to allow incoming requests to your AD.
    2. STORE LDAP CONFIGURATION ON PREMISE: Choose this option if you want to keep your configuration in your premise and only allow access to AD inside premises. You will have to download and install miniOrange gateway in your premise.
    3. Bubble.io Two-Factor Authentication : Select ad/ldap user store type

  • Enter LDAP Display Name and LDAP Identifier name.
  • Select Directory Type as Active Directory.
  • Enter the LDAP Server URL or IP Address against LDAP Server URL field.
  • Click on Test Connection button to verify if you have made a successful connection with your LDAP server.
  • Bubble.io MFA/2FA: Configure LDAP server URL Connection

  • In Active Directory, go to the properties of user containers/OU's and search for Distinguished Name attribute.
  • Bubble.io MFA: Configure user bind account domain name

  • Enter the valid Bind account Password.
  • Click on Test Bind Account Credentials button to verify your LDAP Bind credentials for LDAP connection.
  • Bubble.io MFA: Check bind account credentials

  • Search Base is the location in the directory where the search for a user begins. You will get this from the same place you got your Distinguished name.
  • Bubble.io 2FA : Configure user search base

  • Select a suitable Search filter from the drop down menu. To use custom Search Filter select "Write your Custom Filter" option and customize it accordingly.
  • Bubble.io MFA/2FA : Select user search filter

  • You can also configure following options while setting up AD. Enable Activate LDAP in order to authenticate users from AD/LDAP. Click on the Save button to add user store.
  • Bubble.io MFA : Activate LDAP options

    Here's the list of the attributes and what it does when we enable it. You can enable/disable accordingly.

    Attribute Description
    Activate LDAP All user authentications will be done with LDAP credentials if you Activate it
    Sync users in miniOrange Users will be created in miniOrange after authentication with LDAP
    Fallback Authentication If LDAP credentials fail then user will be authenticated through miniOrange
    Allow users to change password This allows your users to change their password. It updates the new credentials in your LDAP server
    Enable administrator login On enabling this, your miniOrange Administrator login authenticates using your LDAP server
    Show IdP to users If you enable this option, this IdP will be visible to users
    Send Configured Attributes If you enable this option, then only the attributes configured below will be sent in attributes at the time of login

  • Click on Save. After this, it will show you the list of User stores. Click on Test Connection to check whether you have enter valid details. For that, it will ask for username and password.
  • Bubble.io 2FA: Test AD/Ldap connection

  • On Successful connection with LDAP Server, a success message is shown.
  • Click on Test Attribute Mapping.
  • Bubble.io LDAP successful connection

  • Enter a valid Username. Then, click on Test. Mapped Attributes corresponding to the user are fetched.
  • Bubble.io MFA: Fetch mapped attributes for user

  • After successful Attribute Mapping Configuration, go back to the ldap configuration and enable Activate LDAP in order to authenticate users from AD/LDAP.
  • Refer our guide to setup LDAPS on windows server.

User Import and Provisioning from AD

  • Go to Settings >> Product Settings in the Customer Admin Account.
  • MFA/Two-Factor Authentication(2FA) for   miniOrange dashboard

  • Enable the "Enable User Auto Registration" option and click Save.
  • MFA/Two-Factor Authentication(2FA) for   Enable User Auto Registration

  • (Optional) To send a welcome email to all the end users that will be imported, enable the "Enable sending Welcome Emails after user registration" option and click Save.
  • MFA/Two-Factor Authentication(2FA) for   Enable sending Welcome Emails after user registration

  • From the Left-Side menu of the dashboard select Provisioning.
  • MFA/Two-Factor Authentication(2FA) for   User Sync/Provisioning

  • In Setup Provisioning tab select Active Directory in the Select Application Drop Down.
  • Toggle the Import Users tab, click on Save button.
  • MFA/Two-Factor Authentication(2FA) for   User Sync Active Directory Configuration

  • On the same section, switch to Import Users section.
  • Select Active Directory from the dropdown and click on the Import Users tab, to import all the users from Active Directory to miniOrange.
  • MFA/Two-Factor Authentication(2FA) for   User Sync Import Operation

  • You can view all the Users you have imports by selecting Users >> User List from Left Panel.
  • MFA/Two-Factor Authentication(2FA) for   User List

  • All the imported users will be auto registered.
  • These groups will be helpful in adding multiple 2FA policies on the applications.

miniOrange integrates with various external user sources such as directories, identity providers, and etc.

Not able to find your IdP or Need help setting it up?


Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.
