GitHub Single Sign-On (SSO)
miniOrange provides secure access to GitHub and full control over access to GitHub applications. SAML Single Sign-on (SSO) into GitHub Account with one set of login credentials.

GitHub

Github SAML Single Sign-On (SSO) solution is a cloud based service. With this service you need only one password for all your web & SaaS apps including GitHub. miniOrange provides secure access and full control to GitHub for enterprises and applications.
Using SAML Single Sign-On (SSO) for Github you can provide users secure & seamless access to their organization and Github Account with a single set of credentials. You do not have to provide separate login credentials for Github. The authentication of the user is done by any SAML provider you configure on your side and user attributes like Email addresses are sent back to Github. With the help of the given guide you can configure SSO for GitHub accounts easily.


miniOrange Identity Management Features

miniOrange supports both IdP (Identity Provider) and SP (Service Provider) initiated Single Sign On (SSO)

We can connect with any External IDP/Directory

miniOrange provides user authentication from external directories like ADFS, Microsoft Active Directory, Azure AD, OpenLDAP, Google, AWS Cognito etc. It also provides user authentication with other IDPs like Shibboleth, PING, Okta, OneLogin, KeyCloak and many more.

Can't find your IDP ? Contact us on idpsupport@xecurify.com. We'll help you set it up in no time.


Follow the Step-by-Step Guide given below to enable GitHub SAML Single Sign-on (SSO)

Step 1: Configure Github in miniOrange

  • Login to miniOrange Admin Console.
  • Go to Apps >> Manage Apps. Click Configure Apps button.
  • Github Single Sign-on (SSO) Manage app

  • Click on SAML tab. Select Custom App. Put the name Github and click Add App button.
  • Github Single Sign-on (SSO) add app

  • Make sure to enter the temporary SP Entity ID.
  • Make sure to enter the temporary ACS URL.
  • Select the Email ID from the Name ID dropdown.
  • Leave the Attributes section empty.
  • Github Single Sign-on (SSO) configure apps

  • Go to the Add Policy and select DEFAULT from the Group Name dropdown.
  • Now enter the Github in the Policy Name field.
  • Select PASSWORD from the First Factor Type dropdown.
  • Click on Save to configure Github.
  • Github Single Sign-on (SSO) configure Github

  • Click on Metadata link to download the metadata which will be required later. Click on Link to see the IDP initiated SSO link for Github.
  • Github Single Sign-on (SSO) download metadata

  • Hit on the Download Metadata XML button to download the metadata.xml file.
  • Github Single Sign-on (SSO) download metadata

Step 2: Choose Your User Directory

2.1: Setup AD as User Directory

  1. Login to miniOrange dashboard from the Admin Console.
  2. From the left side menu, click on User Stores >> Add User Store.
  3. GitHub Single Sign-On (SSO) configure user store

  4. Select User Store type as AD/LDAP.
  5. GitHubSingle Sign-On (SSO)Select AD/LDAP as user store

    1. STORE LDAP CONFIGURATION IN MINIORANGE: Choose this option if you want to keep your configuration in miniOrange. If active directory is behind a firewall, you will need to open the firewall to allow incoming requests to your AD.
    2. STORE LDAP CONFIGURATION ON PREMISE: Choose this option if you want to keep your configuration in your premise and only allow access to AD inside premises. You will have to download and install miniOrange gateway in your premise.
    3. GitHub Single Sign-On (SSO) select ad/ldap user store type

  6. Enter LDAP Display Name and LDAP Identifier name.
  7. Select Directory Type as Active Directory.
  8. Enter the LDAP Server URL or IP Address against LDAP Server URL field.
  9. Click on Test Connection button to verify if you have made a successful connection with your LDAP server.
  10. GitHub  Single Sign-On (SSO)configure LDAP server URL Connection

  11. In Active Directory, go to the properties of user containers/OU's and search for Distinguished Name attribute.
  12. GitHub  Single Sign-On (SS0)configure user bind account domain name

  13. Enter the valid Bind account Password.
  14. Click on Test Bind Account Credentials button to verify your LDAP Bind credentials for LDAP connection.
  15. GitHub  Single Sign-On (SS0)check bind account credentials

  16. Search Base is the location in the directory where the search for a user begins. You will get this from the same place you got your Distinguished name.
  17. GitHub  Single Sign-On (SSO) configure user search base

  18. Select a suitable Search filter from the drop down menu. To use custom Search Filter select "Custom Search Filter" option and customize it accordingly.
  19. GitHub Single Sign-On (SSO)select user search filter

  20. You can also configure following options while setting up AD. Enable Activate LDAP in order to authenticate users from AD/LDAP. Click on the Save button to add user store.
  21. GitHub Single Sign-On (SSO) Activate ldap options

    Here's the list of the attributes and what it does when we enable it. You can enable/disable accordingly.

    Attribute Description
    Activate LDAP All user authentications will be done with LDAP credentials if you Activate it
    Sync users in miniOrange Users will be created in miniOrange after authentication with LDAP
    Backup Authentication If LDAP credentials fail then user will be authenticated through miniOrange
    Allow users to change password This allows your users to change their password. It updates the new credentials in your LDAP server
    Enable administrator login On enabling this, your miniOrange Administrator login authenticates using your LDAP server
    Show IdP to users If you enable this option, this IdP will be visible to users
    Send Configured Attributes If you enable this option, then only the attributes configured below will be sent in attributes at the time of login

  22. Click on Save. After this, it will show you the list of User stores. Click on Test Configuration to check whether you have enter valid details. For that, it will ask for username and password.
  23. GitHub Single Sign-On (SSO)test AD/Ldap connection

  24. On Successful connection with LDAP Server, a success message is shown.
  25. Click on Test Attribute Mapping.
  26. GitHub Single Sign-On (SSO) LDAP successful connection

  27. Enter a valid Username. Then, click on Test. Mapped Attributes corresponding to the user are fetched.
  28. GitHub Single Sign-On (SSO)Fetch mapped attributes for user

  29. After successful Attribute Mapping Configuration, go back to the ldap configuration and enable Activate LDAP in order to authenticate users from AD/LDAP.
  30. Refer our guide to setup LDAPS on windows server.


2.2: Setup miniOrange as a User Store

  1. Log in to miniOrange Admin Console.
  2. There are 3 ways to setup miniOrange as an Identity Source

    2.2.1 Create User in miniOrange

    • Click on Users >> Add User.
    • GitHub Single Sign-On (SSO)add user in miniOrange

    • Here, fill the user details without the password and then click on the Create User button.
    • GitHubSingle Sign-On (SSO) add user details

    • After successful user creation a notification message "An end user is added successfully" will be displayed at the top of the dashboard.
    • GitHubSingle Sign-On (SSO) add user details

    • Click on On Boarding Status tab. Check the email, with the registered e-mail id and select action Send Activation Mail with Password Reset Link from Select Action dropdown list and then click on Apply button.
    • GitHub Single Sign-On (SSO) email action

    • Now, Open your email id. Open the mail you get from miniOrange and then click on the link to set your account password.
    • On the next screen, enter the password and confirm password and then click on the Single Sign-On (SSO) reset password button.
    • GitHub reset user password
    • Now, you can log in into miniOrange account by entering your credentials.

    2.2.2 Bulk Upload Users in miniOrange via Uploading CSV File.

    • Navigate to Users >> User List. Click on Add User button.
    • GitHub Single Sign-On (SSO)add user via bulk upload

    • In Bulk User Registration Download sample csv format from our console and edit this csv file according to the instructions.
    • GitHub Single Sign-On (SSO) download sample csv file

    • To bulk upload users, choose the file make sure it is in comma separated .csv file format then click on Upload.
    • GitHub Single Sign-On (SSO) bulk upload user

    • After uploading the csv file successfully, you will see a success message with a link.
    • Click on that link you will see list of users to send activation mail. Select users to send activation mail and click on Send Activation Mail. An activation mail will be sent to the selected users.

    2.2.3 Self User Registration

    • miniOrange self user registration allows end users to register themselves using customized registration form. miniOrange admin users can customize the registration form by adding more custom fields according to their choice. Follow the miniOrange guide to customize user self registration page.

Step 3: Setup SSO in Github Domain

  • In the top right corner of GitHub, click your profile photo, then click Your profile.
  • On the left side of your profile page, under "Organizations", click the icon for your organization.
  • Under your organization name, click Settings.

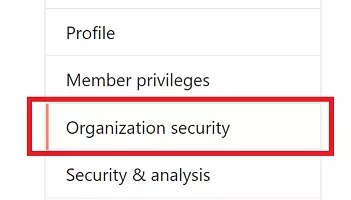

  • In the organization settings sidebar, click Organization Security.
  • Github Single Sign-on (SSO) settings

  • Under "SAML single sign-on", select Enable SAML authentication.
  • Github Single Sign-on (SSO) enable sso

  • In the "Sign on URL" field, type the HTTPS endpoint of your IdP for single sign-on requests. This value is available in your IdP configuration.
  • Optionally, in the "Issuer" field, type your SAML issuer's name. This verifies the authenticity of sent messages.
  • Under "Public Certificate," paste a x509 certificate to verify SAML responses.
  • Click Edit icon and then in the Signature Method and Digest Method drop-downs, choose the hashing algorithm used by your SAML issuer to verify the integrity of the requests.
  • Before enabling SAML SSO for your organization, click Test SAML configuration to ensure that the information you've entered is correct.
  • Github Single Sign-on (SSO) test configuration

  • To enforce SAML SSO and remove all organization members who haven't authenticated via your IdP, select Require SAML SSO authentication for all members of the organization name organization.
  • Github Single Sign-on (SSO) require sso

  • Click Save.

Step 4: Login to your GitHub account with miniOrange IdP by either of the two steps:

    Using SP Initiated Login

    1. Go to your GitHub URL, here you will be either asked to enter the username or click on the SSO link which will redirect you to miniOrange IdP Sign On Page.
    2. GitHub Single Sign-On (SSO) login

    3. Enter your miniOrange login credential and click on Login. You will be automatically logged in to your GitHub account.

    Using IDP Initiated Login

    1. Login to miniOrange IdP using admin credentials and select the User Dashboard from the right side menu.
    2. GitHub Single Sign-On (SSO) user dashboard

    3. Click on GitHub application which you added, to verify your SSO configuration.
    4. GitHub Single Sign-On (SSO) verify configuration

Step 5: Adaptive Authentication with GitHub

5.1: Restricting access to GitHub with IP Blocking

    You can use adaptive authentication with GitHub Single Sign-On (SSO) to improve the security and functionality of Single Sign-On. You can allow a IP Address in certain range for SSO or you can deny it based your requirements and you can also challenge the user to verify his authenticity. Adaptive authentication manages the user authentication bases on different factors such as Device ID, Location, Time of Access, IP Address and many more.

    You can configure Adaptive Authentication with IP Blocking in following way:
  • Login to Self Service Console >> Adaptive Authentication.
  • Add a Policy Name for your Adaptive Authentication Policy.
  • GitHub Single Sign-On (SSO) Restrict Access adaptive authnetication policy

  • Select your Action for behaviour Change and Challenge Type for user from the Action for behaviour Change Section.
  • GitHub Single Sign-On (SSO) Restrict Access adaptive authentication behaviour change


    Action for behaviour Change Options :


    Attribute Description
    Allow Allow user to authenticate and use services if Adaptive authentication condition is true.
    Challenge Challenege users with one of the three methods mentioned below for verifying user authenticity.
    Deny Deny user authentications and access to services if Adaptive authentication condition is true.

    Challenge Type Options :

    Attribute Description
    User second Factor The User needs to authenticate using the second factor he has opted or assigned for such as
  • OTP over SMS
  • PUSH Notofication
  • OTP over Email
  • And 12 more methods.
  • KBA (Knowledge-based authentication) The System will ask user for 2 of 3 questions he has configured in his Self Service Console. Only after right answer to both questions user is allowed to proceed further.
    OTP over Alternate Email User will recieve a OTP on the alternate email he has configured threw Self Service Conolse. Once user provides the correct OTP he is allowed to proceed further.

  • Now Enable Enable IP Restriction option from the IP RESTRICTION CONFIGURATION section to configure custom IP range.
  • GitHub Single Sign-On (SSO) Restrict Access adaptive authentication ip blocking

  • Select the Action you want to perform if the IP address is out of the range. i.e Allow, Challenge & Deny.
  • Specify the IP Address range for which you want above setting to reflect. You can add more than one IP Address ranges by clicking on following button +.
  • Scroll to the end and click on save.


5.2: Adaptive Authentication with Limiting number of devices.

    Using Adaptive Authentication you can also restrict the number of devices the end user can access the Services on. You can allow end users to access services on a fixed no. of devices. The end users wii be able to access services provided by us on this fixed no. of devices.

    You can cofigure Adaptive Authentication with Device Restriction in follwing way

  • Login to Self Service Console >> Adaptive Authentication.
  • Add a Policy Name for your Adaptive Authentication Policy.
  • Select your Action for behaviour Change and Challenge Type for user from the Action for behaviour Change Section.
  • GitHub Single Sign-On (SSO) Restrict Access adaptive authentication behaviour and challenge type


  • Scroll down to Device Configuration section and enable Allow User to Register Device option to allow users to register their devices.
  • Enter the Number of Devices which are allowed to register in field next to Number of Device Registrations Allowed
  • Choose Action if number of devices exceeded (This will override your setting for Action for Behaviour Change.)
    1. Challenge: The user needs to verify himself using any of the three methods mentioned in table in step 5.1
    2. Deny : Deny users access to the system
  • Enable option Send email alerts to Users if number of Device registrations exceeded allowed count if you want to alert the user about no of devices exceeding the limit. Save the configuration.
  • GitHub Single Sign-On (SSO) Restrict Access adaptive authentication enable device restriction


5.3: Add Adaptive Authentication policy to GitHub.

  • Login to Self Service Console >> Policies.
  • Click on Edit option for predefined SAML app policy.
  • GitHub Single Sign-On (sso) edit device restriction policy

  • Set your application name in the Application and select password as Login Method.
  • Enable Adaptive Authentication on Policy page and select the required restriction method as an option.
  • From Select Login Policy dropdown select the policy we created in last step and click on save.
  • GitHub Single Sign-On (SSO) Restrict Access save device restriction policy

    How to add a trusted Device
    1. When End-user log in to the self service console after the policy for device restriction is on, he is provided the option to add the current device as a trusted device.

More Secure authentication with Two-Factor Authentication

The most practical way to strengthen authentication is to require a second factor after the username/password stage. Since a password is something that a user knows, ensuring that the user also has something or using biometrics thwarts attackers that steal or gain access to passwords.

Traditional two-factor authentication solutions use hardware tokens (or "fobs") that users carry on their keychains. These tokens generate one-time passwords for the second stage of the login process. However, hardware tokens can cost up to $40 each. It takes time and effort to distribute them, tracks who has which one, and replace them when they break. They're easy to lose, hard to use, and users consistently report high levels of frustration with token-based systems.


Your choice of the second factor

miniOrange authentication service has 15+ authentication methods.

You can choose from any of the above authentication methods to augment your password based authentication. miniOrange authentication service works with all phone types, from landlines to smart-phone platforms. In the simplest case, users just answer a phone call and press a button to authenticate. miniOrange authentication service works internationally and has customers authenticating from many countries around the world.


For Further Details Refer:

About Github
Guide For Single Sign-On (SSO)
Solution for 5000+ Pre-Integrated Apps
Two-Factor Authentication for Apps

Why Our Customers choose miniOrange Secure Identity Solutions ?


24/7 Support

miniOrange provides 24/7 support for all the Secure Identity Solutions. We ensure high quality support to meet your satisfaction.

Try Now

Affordable Pricing

miniorange provides most affordable Secure Identity Solutions for all type of use cases and offers different packages based on customer's requirement.

Request A Quote


We offer Secure Identity Solutions for Single Sign-On, Two Factor Authentication, Adaptive MFA, Provisioning, and much more. Please contact us at -

   +1 978 658 9387 (US)   ,   +91 97178 45846 (India)    |       info@xecurify.com
