Interfacing EPC Single Sign-On SSO

---

miniOrange provides secure access to Interfacing EPC for enterprises and full control over access of Interfacing EPC application. Single Sign-on (SSO) into your Interfacing EPC Account with one set of login credentials.

Single Single Sign-on(SSO) solution for Interfacing EPC is a cloud based service. With this service you need only one password for all your web & SaaS apps including Interfacing EPC. miniOrange provides secure access and full control to Interfacing EPC for enterprises and applications. With the help of the given guide you can configure Interfacing EPC easily.

Follow the Step-by-Step Guide given below for Interfacing EPC Single Sign-On (SSO)

1. Configure Interfacing EPC in miniOrange

• Login into miniOrange Admin Console.
• Go to Apps and click on Add Application button.



• In Choose Application, select SAML/WS-FED from the application type dropdown.

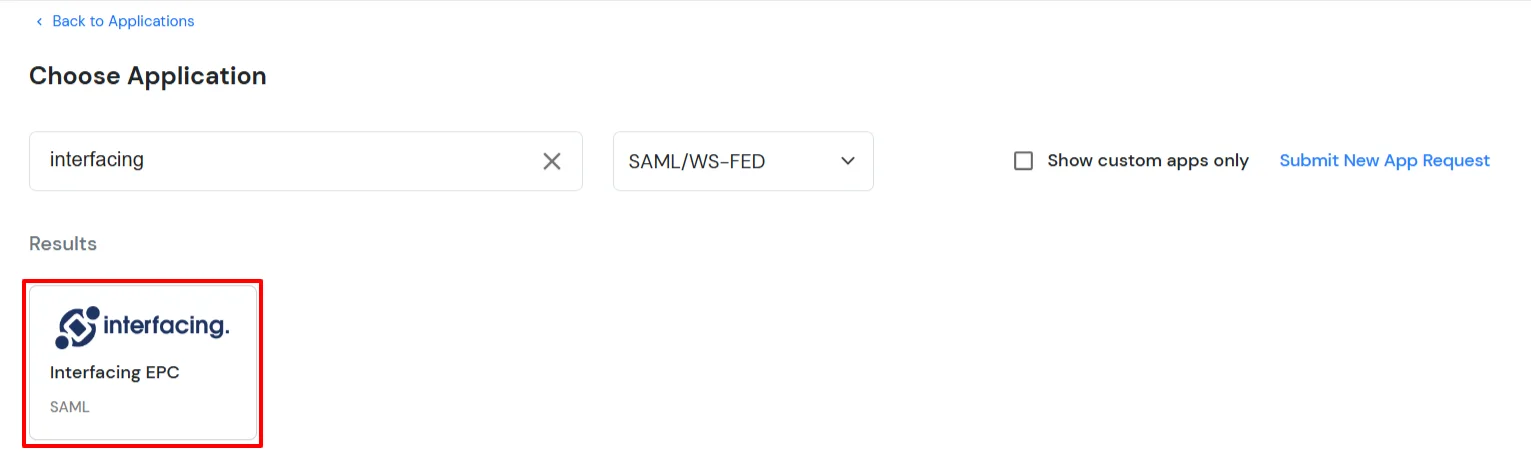

• Search for Interfacing EPC in the list, if you don't find Interfacing EPC in the list then, search for custom and you can set up your application in Custom SAML App.

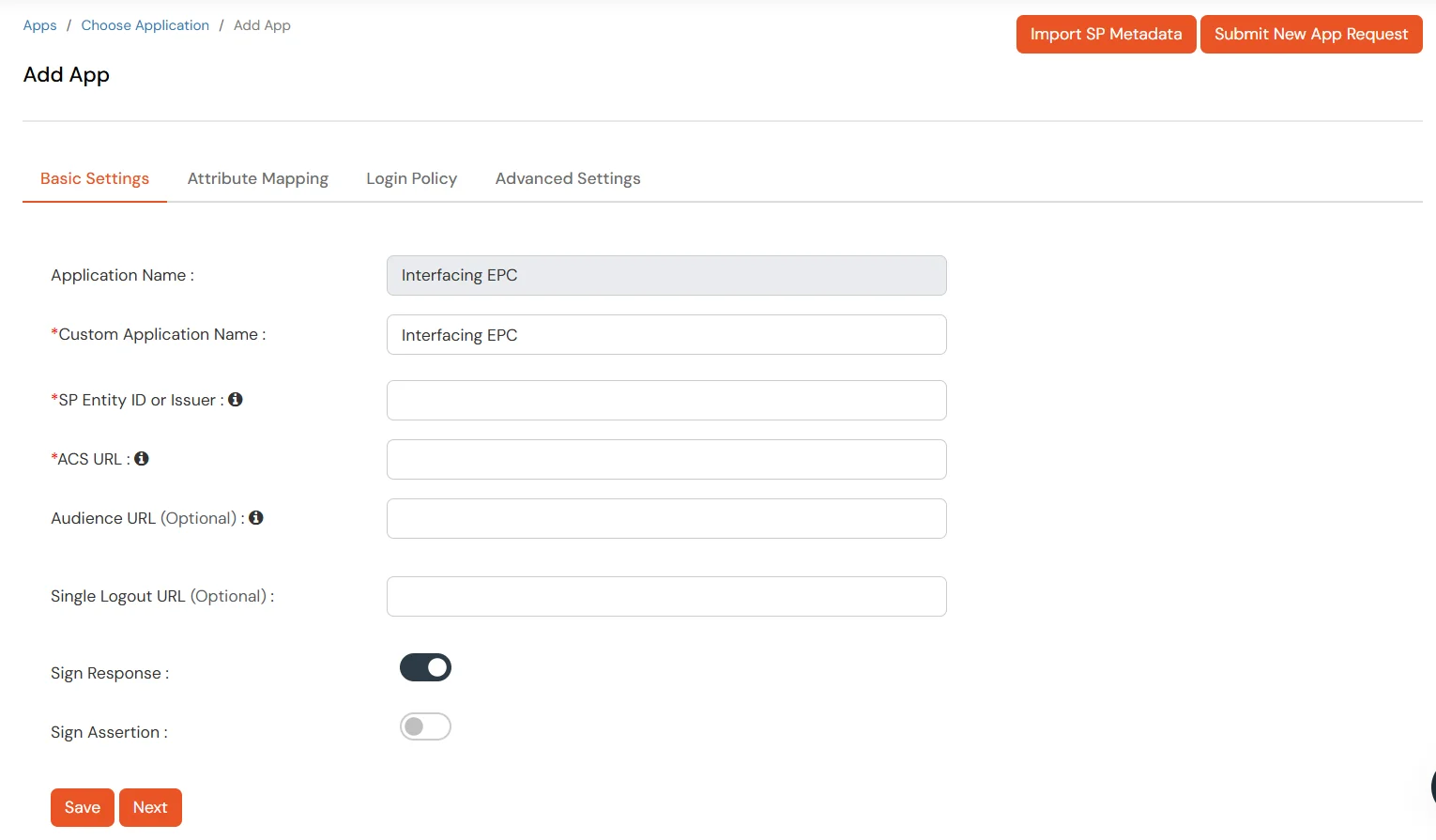

• Enter the following values in the respective fields.

  SP Entity ID or Issuer:	https://www.interfacing.com/a/your_samlname
  ACS URL:	https://www.interfacing.com/a/your_samlname




• Click on Save.

To get miniOrange metadata details in order to configure Interfacing EPC :

• Go to Apps >> Applications.
• Search for your app and click on the icon ' ' in Actions menu against your app.
• Click on Metadata to get metadata details, which will be required later. Click on Show SSO Link to see the IDP initiated SSO link for Interfacing EPC.



• Here you will see 2 options, if you are setting up miniOrange as IDP copy the metadata details related to miniOrange, if you required to be authenticated via external IDP's (Okta, Microsoft Entra ID, Active Directory, ADFS, OneLogin, Google Workspace) you can get metadata from the 2nd Section as shown below.



• Keep SAML Login URL, SAML Logout URL and click on the Download Certificate button to dowmload certificate which you will require in Step 2.

2. Configure SSO in Interfacing EPC Admin Account

• Now login to Interfacing EPC Admin Console and Select Security Tab from Admin Console.
• From listed options select Set Up Single Sign-On (SSO).

  Attribute	Description
  Sign-In Page URL	SAML Login URL from Step 1.
  Sign-Out Page URL	SAML Log Out URL from Step 1.
  Certificate/Fingerprint	Upload the certificate that was downloaded earlier in Step 1.

3. Test SSO Configuration

Test SSO login to your Interfacing EPC account with miniOrange IdP:

Using SP Initiated Login

• Go to your Interfacing EPC URL, here you will be either asked to enter the username or click on the SSO link which will redirect you to miniOrange IdP Sign On Page.



• Enter your miniOrange login credential and click on Login. You will be automatically logged in to your Interfacing EPC account.

Using IDP Initiated Login

• Login to miniOrange IdP using your credentials.



• On the Dashboard, click on Interfacing EPC application which you have added, to verify SSO configuration.





Not able to configure or test SSO?


Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.
