SSO for Apps Using Yahoo as IDP


Yahoo Single Sign On (SSO) for Your Application miniOrange provides a ready to use solution for Your application. This solution ensures that you are ready to roll out secure access to your application using Yahoo within minutes.

Get Free Installation Help


miniOrange offers free help through a consultation call with our System Engineers to configure SSO for different apps using Yahoo as IDP in your environment with 30-day free trial.

For this, you need to just send us an email at idpsupport@xecurify.com to book a slot and we'll help you in no time.



Follow the Step-by-Step Guide given below for Yahoo Single Sign-On (SSO)

1. Configure miniOrange as Service Provider (SP) in Yahoo

  • Login into Yahoo account.

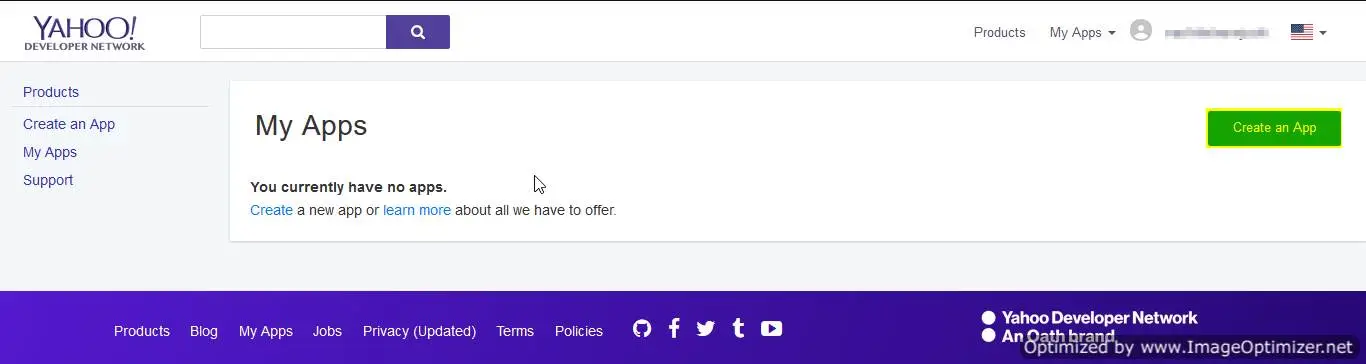

  • You will be brought to a Application Management Page. Click on Create an App.
  • yahoo sso

    • Go to miniOrange Admin Console.
    • From the left navigation bar select Identity Provider.
    • yahoo sso

    • Copy the Callback URL as Redirect URL required for next step.
    • yahoo sso

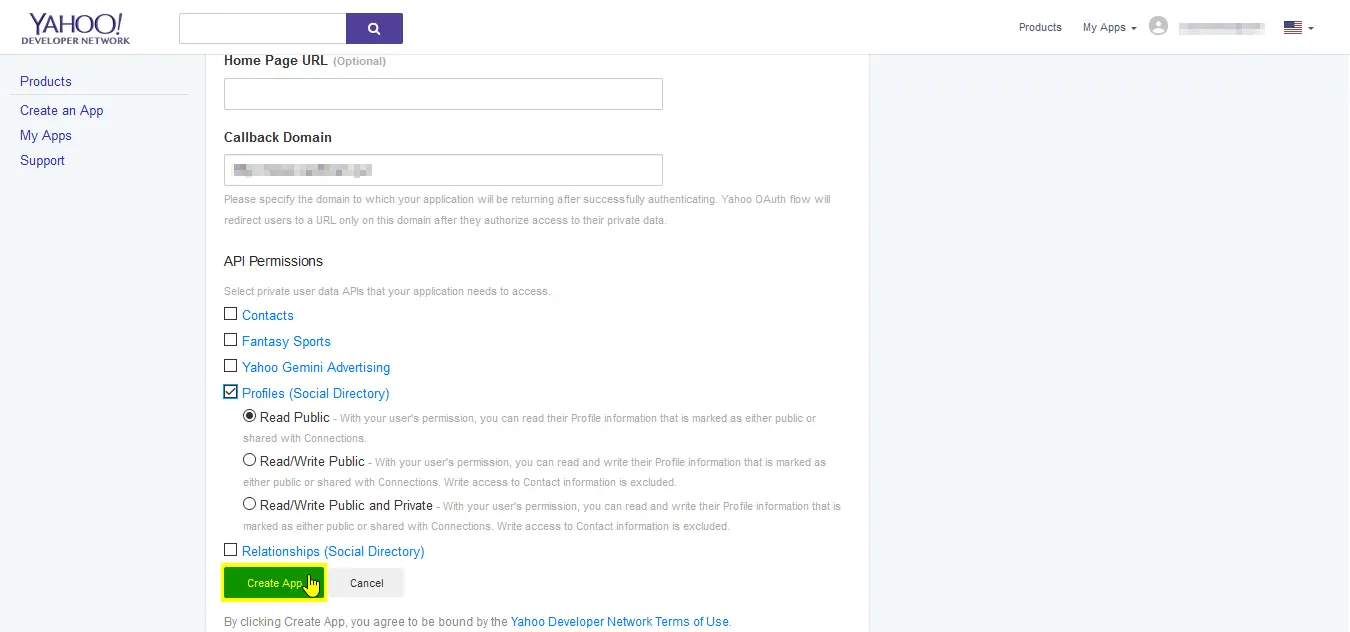

  • In Yahoo API, you will be shown a form where you have to enter Application Name and Callback URL (Redirect URL). Fill the form with appropriate information. Fill Callback/Redirect URI from MO OAuth identity-provider page. Then click on Create App.
  • yahoo sso

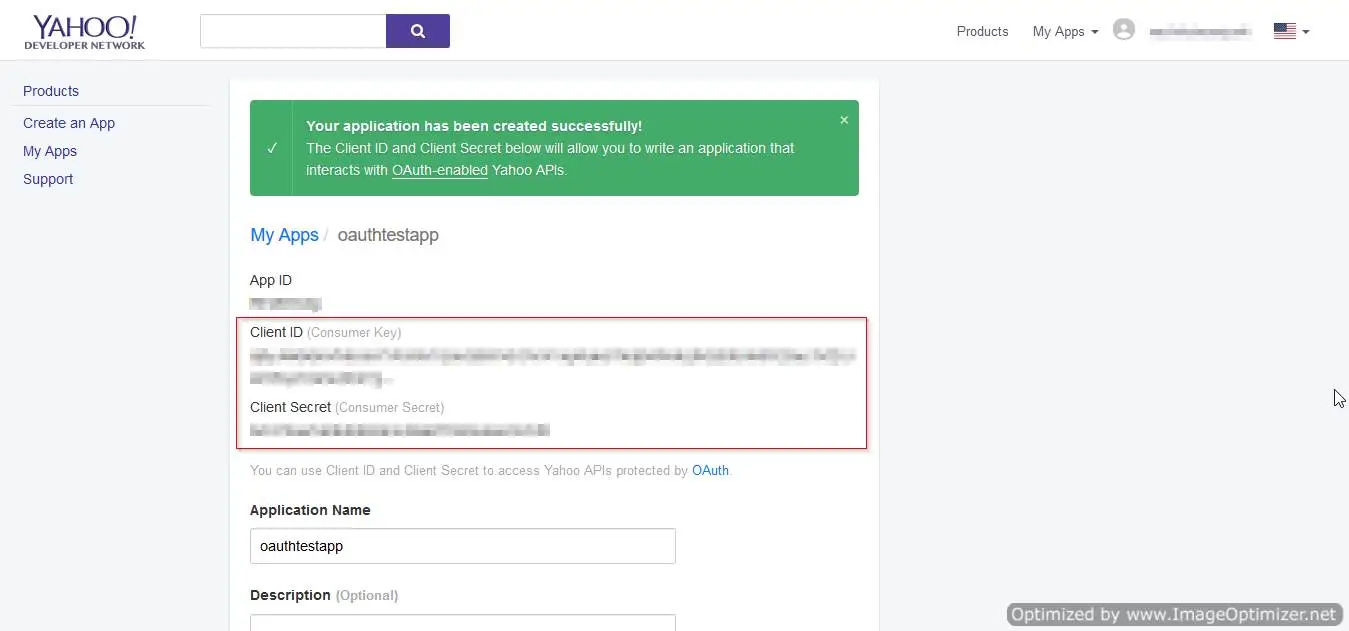

  • You will be brought back to Application Management page. Here you can find Client ID and Client Secret.
  • yahoo sso

  • Copy these credentials in MO OAuth App configuration on corresponding fields.

2. Configure Yahoo as OAuth 2.0 Provider in miniOrange.

  • Go to miniOrange Admin Console.
  • From the left navigation bar select Identity Provider. Select Oauth
  • Yahoo sso

    Yahoo sso

  • Enter the following values.
  • IdP Name Custom Provider
    IdP Display Name Choose appropriate Name
    OAuth Authorize Endpoint https://api.login.yahoo.com/oauth2/request_auth
    OAuth Access Token Endpoint https://api.login.yahoo.com/oauth2/get_token
    OAuth Get User Info Endpoint (optional)
    Client ID From step 1
    Client secret From step 1
    Scope auto

3. Configure your application in miniOrange


Note:

If you have already configured your application in miniOrange you can skip the following steps.





  • Click on Create App under SAML.
  • Click on Create SAML App

  • Search for your Application. In case you do not find your app, search for Custom SAML App.
  • Search for your SAML App

    Configure SAML Application

  • Get the ACS URL and SP Entity ID from your application.
  • Enter the following values OR click on Import SP Metadata:
  • Service Provider Name Choose appropriate name according to your choice
    SP Entity ID or Issuer Your Application Entity ID
    ACS URL X.509 Certificate (optional) Your Application Assertion Consumer Service URL
    NameID format  Select urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress
    Response Signed Unchecked
    Assertion Signed Checked
    Encrypted Assertion Unchecked
    Group policy Default
    Login Method
  • Click on Save to configure your application.
  • Now to get the IDP metadata of the app configured, Go to apps >> your_app >> select >> metadata tab.
  • Go to the metadata section

  • Click on the Show Metadata details in the Information required to Authenticate via External IDPs section. Download the metadata XML file by clicking on Download Metadata button or copy the Metadata URL link.
  • Downlaod metadata - URL

  • You need to Upload this metadata in your application.
  • Click on Create App under OAuth/OIDC. Click on Open ID Connect App .
  •  Add OAuth openIDConnect app

  • You can add any OAuth Client app here to enable miniOrange as OAuth Server. Few popular OAuth client apps for single sign-on are Salesforce, WordPress, Joomla, Atlassian, etc.
  • Select your OAuth openIDConnect app

    Configure OAth AddopenIDConnect app

  • Enter following Values:
  • Client Name Add appropriate Name
    Redirect URL Get the Redirect-URL from your OAuth Client
    Description Add if required
    Group Name Default
    Policy Name
    Login Method
  • Click on Save
  • Now to provide the required data to OAuth client go to the app configured i.e apps >> your_app >> select >> edit.
  • Edit OAuth editOpenidConnect app

    OAuth openidConnect app endpoints

    Note: Choose the Authorization Endpoint according to the identity source you configure.

  • When you want to use you want to use miniOrange as OAuth identity server use this endpoint: https://{mycompany.domainname.com}/moas/idp/openidsso
  • If you are configuring any Identity Provider in Identity Providers Menu and not using miniOrange as IDP use this endpoint: https://{mycompany.domainname.com}/broker/login/oauth{customerid}
  • Click on Create App under JWT.
  • Click n External JWT app

  • Select JWT App.
  • SelectJWT app

  • Configure the name for your application and configure Redirect-URL which tells where to send JWT response. Redirect-URL should be an endpoint on your application where you want to achieve SSO.
  • Configure JWT App

    In case you are setting up SSO with Mobile Applications where you can't create an endpoint for Redirect or Callback URL, use below URL.

    https://login.xecurify.com/moas/jwt/mobile

  • Click Save
  • To get the SSO link for your application, Go to Apps >> your_app >> select >> Edit.
  • Get SSO Link

  • Then, copy the Single Sign On Url and verify SSO setup by browsing that url.
  •  SSO URL

  • On successful authentication, you will be redirected to configured Redirect or Callback URL with JWT token
  • You will need to download a certificate from App > Manage Apps, and click Certificate link against your configured application. This certificate will be used for signature validation of JWT response.
  • Download certificate to proceed with SSO

4. Login using IDP selection page (Optional)

  • You can configure multiple IDPs (Identity Providers) and give users the option to select the IDP of their choice to authenticate with.
    For Example - It could be multiple AD domains belonging to different departments or multiple okta organizations.
  • Few usecases where customers configure multiple IDPs -

  • Suppose you have a product which many of your clients use and each client has their own unique IDP so you want them to SSO into your product as well using their existing IDP only. miniOrange provides a centralized way to connect with all IDPs in a very easy manner and integrate SSO into your application.
  • Suppose you are providing a course to many universities, each having a unique SAML, OAuth protocol supported IDP's like Shibboleth, ADFS, CAS, etc. You can provide Single Sign-On (SSO) into your course application to all these universities by integrating with all of them using a single platform provided by miniOrange.
  • This is the endpoint to call from your SAML application -
  • For Cloud IDP - https://login.xecurify.com/moas/discovery?customerId=<customer_id>
    For On-Premise IDP - https://yourdomain.com/discovery?customerId=<customer_id>

  • You should copy the Customer Key from admin console-> Settings -> and replace it with <customer_id> here. Once configured in SP, when you initiate the login from Service Provider, a user will be redirected to IDP Selection Page listing all IDPs configured for that account.
  • You can see the screenshot below of the IDP Selection Page with a list of IDPs.


    Note: To view the IDP in drop-down list, go to Identity Providers tab > against your configured IDP > Select >Edit , here Enable the Show IdP to Users option.

    Select your IDP (Identity Provider) to login

  • You also have the option to modify the appearance and design of this page. Login to miniOrange Admin console. Navigate to Customization -> Branding Configuration. See the below screenshot for reference-

  • Customize IDP selection login page

  • You can customize the title of this page.
  • Change the logo and favicon for this page.
  • Change the background and button color for this page from admin UI.
