Firebase Single Sign-On (SSO)


Firebase is the best platform for mobile application development which produces quality apps with features like app indexing, cloud messaging, remote configuration, hosting and In-app advertising. Firebase provides authentication options like backend services, easy-to-use SDKs, and ready-made UI libraries to authenticate users to your app. It supports authentication using passwords, phone numbers, popular federated identity providers like Google, Facebook and Twitter, and more. Firebase Authentication integrates tightly with other Firebase services, and it leverages industry standards like JWT, OAuth 2.0 and OpenID Connect, so it can be easily integrated with custom backend.

We will be demonstrating below how we can achieve Single Sign-On(SSO) into Firebase using one or multiple SAML 2.0 compliant Identity Provider. We will be using miniOrange cloud service to achieve this. We support all known IDPs like miniOrange, Google Apps, ADFS, Okta, OneLogin, Azure AD, Salesforce, Shibboleth, SimpleSAMLphp, OpenAM, Centrify, Ping, RSA, IBM, Oracle, Bitium, WSO2, NetIQ etc.


    Prerequisites

  • Login into miniOrange Admin Console.
  • Click on Customization in the left menu of the dashboard.
  • In Basic Settings, set your company domain in Organization Name textfield.
  • Click Save. Once that is set, the branded login URL would be of the format https://<company_domain>.xecurify.com/moas/login
  • 2FA Two-Factor authentication for Firebase : setting up branding

Connect with External Source of Users


miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Azure AD, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Shibboleth, Ping, Okta, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more.



Follow the Step-by-Step Guide given below for Firebase Single Sign-On (SSO)

1. Configure Firebase App with miniOrange

  • Login to miniOrange Admin Console.
  • Go to Apps >> Manage Apps. Click on Add Application button.
  • Firebase Single Sign-On (SSO): add app

  • Select JWT App.
  • Firebase Single Sign-On (SSO): saml jwt app

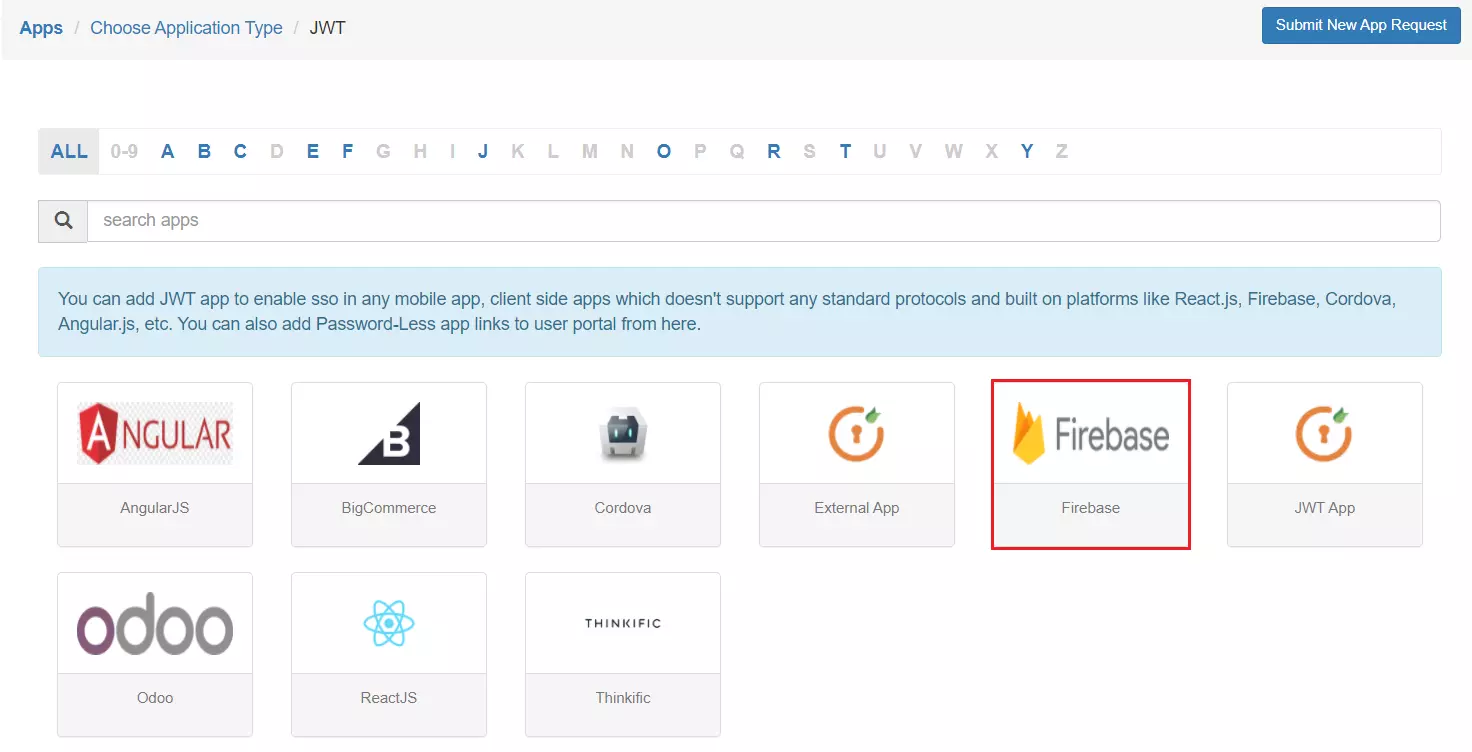

  • Click on Firebase.
  • Firebase Single Sign-On (SSO): select firebase app

    Firebase Single Sign-On (SSO): add jwt app

  • In Add Apps tab enter the values and click on Save.
    Custom Application Name Choose appropriate name according to your choice.
    Description Add appropriate description according to your choice.
    Redirect-URL JWT Endpoint fetched from JWT in the previous step.

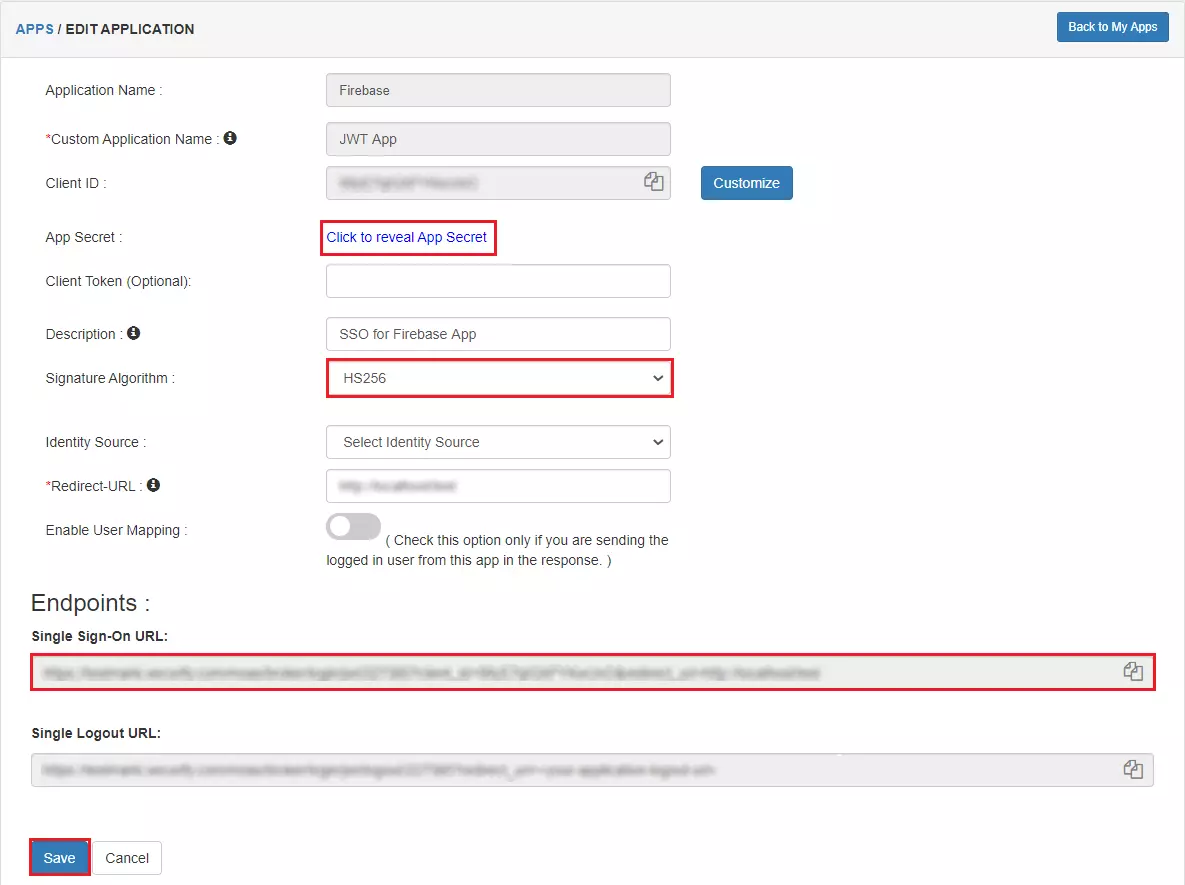

  • To configure App secret go to Edit against your configured app, Apps>>Select your app>>Edit
  • Firebase Single Sign-On (SSO): edit-jwt-app

    Firebase Single Sign-On (SSO): add app secret jwt

    App Secret The API Token fetched from Firebase dashboard
    Signature Algorithm Choose HS256
  • Click on Save.
  • Now, You can access Firebase Account Using IDP credentials through the Single-sign-on URL as shown in image above.

2. Configure miniOrange in your IDP

  • Copy SAML ACS URL value as given in the screenshot below. This is the login URL for miniOrange.
  • Set Entity ID/Issuer as https://login.xecurify.com/moas

3. Send Request to miniOrange

  • In order to send request to miniOrange, a custom token needs to be formed and sent from Firebase application. This will include the identifier (configured in Step 1) of Identity Provider (e.g.ADFS) against which authentication needs to be done.
  • For cryptographic purposes, use the CryptoJS library.
  • To get the Customer ID and Token Key, the following steps need to be performed:
    1. 1) Navigate to the miniOrange Admin Console.
      2) Login with the miniOrange Account credentials.
      3) Navigate to the Settings.
      4) Note down the Customer ID and Token Key.

  • The below code accepts IdPName (String) as a parameter. This parameter is the same value as configured in Step 1 which is used to distinguish different IDPs.
  • For testing purpose, create a sample html file & call the following functions on document load.
  • NOTE: You need to replace the Token Key, Customer ID and Response URL for your miniOrange account and added application. Sample Javascript Code for Sending Request to miniOrange.
  • Add the following crypto JS files in your code:
  •
    <script src="/crypto-js/3.1.2/components/core-min.js"></script>
    <script src="/components/sha256.js"></script>
    <script src="/components/enc-base64.js"></script>
    <script src="/rollups/aes.js"></script>
    <script src="/components/mode-ecb.js"></script>
    <script src="/components/pbkdf2.js"></script>
    <script src="/components/pas-nopadding.js"></script>
    <script>
    function sendRequest(idpName)
    {
      var appSecret = "";    //miniOrange App Secret
      var tokenKey = "";     //miniOrange Token Key of Customer
      var customerId = "";   //miniOrange Customer ID
      var responseUrl = "";  //Response URL (configured in Step 2)
      var date = new Date();
      var currentTimestamp = date.getTime();
      var inputString = currentTimestamp + ":" + appSecret;
      var keyHex = CryptoJS.enc.Utf8.parse(tokenKey);
      var cipherText = CryptoJS.enc.Base64.stringify(CryptoJS.AES.encrypt(inputString, keyHex, {mode:CryptoJS.mode.ECB}).ciphertext);
    var redirectUrl = "https://login.xecurify.com/moas/broker/login/jwt/" + customerId + "/" + idpName + "?token=" + cipherText + "&returnUrl=" + responseUrl;
    window.location = redirectUrl; } </script>

4. Modify JWT Response

  • At this point authentication with IDP should work but the user will not be logged into Firebase. When IDP sends a SUCCESS, miniOrange will send a JWT response to the Response URL(Firebase URL which will process the response). The Response URL needs to modify the JWT Response so that it is compatible with Firebase standards.
  • NOTE: You need to replace iss, sub and aud values based on your Firebase project.
  • Sample Javascript Code for modifying JWT Response :
  •
    function modifyJwtResponse(token)
    {
      //CONFIGURATION PARAMETERS
      var iss = "";        //Project's Service Account Email Address
      var sub = "";        //Project's Service Account Email Address
      var aud = "https://identitytoolkit.googleapis.com/google.identity.identitytoolkit.v1.IdentityToolkit"; //Required audience value
      var base64Url = token.split('.')[1];
      var base64 = base64Url.replace('-', '+').replace('_', '/');
      var decodedToken = JSON.parse(window.atob(base64));
      //MODIFY JWT VALUES BELOW
      decodedToken['iss'] = iss;
      decodedToken['sub'] = sub;
      decodedToken['aud'] = aud;
      //Base64 Encode Token
      var encodedToken = btoa(JSON.stringify(decodedToken));
      //CREATE NEW JWT TOKEN
      var newToken =  token.split('.');
      var newJwtToken = newToken[0] + "." + encodedToken + "." + newToken[2];
      return newJwtToken;
    }

  • The new token can be used to authenticate the user in Firebase using the signInWithCustomToken() function.

  •

    firebase.auth().signInWithCustomToken(token).catch(function(error)
    {
    	// Handle Errors here.
    	var errorCode = error.code;
    	var errorMessage = error.message;
    	// ...
    });

5. Configure Your User Directory

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Azure AD, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Okta, Shibboleth, Ping, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more. You can configure your existing directory/user store or add users in miniOrange.



  • To add your users in miniOrange there are 2 ways:
  • 1. Create User in miniOrange

    • Click on Users >> Add User.
    • Firebase VPN 2FA : Add user in miniOrange

    • Here, fill the user details without the password and then click on the Create User button.
    • Firebase MFA: Add user details

    • After successful user creation a notification message "An end user is added successfully" will be displayed at the top of the dashboard.
    • Firebase Two-Factor Authentication: Add user details

    • Click on On Boarding Status tab. Check the email, with the registered e-mail id and select action Send Activation Mail with Password Reset Link from Select Action dropdown list and then click on Apply button.
    • Firebase 2FA: Select email action

    • Now, Open your email id. Open the mail you get from miniOrange and then click on the link to set your account password.
    • On the next screen, enter the password and confirm password and then click on the Single Sign-On (SSO) reset password button.
    • Firebase Multi-Factor Authentication: Reset user password
    • Now, you can log in into miniOrange account by entering your credentials.

    2. Bulk Upload Users in miniOrange via Uploading CSV File.

    • Navigate to Users >> User List. Click on Add User button.
    • Firebase 2FA: Add users via bulk upload

    • In Bulk User Registration Download sample csv format from our console and edit this csv file according to the instructions.
    • Firebase Two-Factor authentication: Download sample csv file

    • To bulk upload users, choose the file make sure it is in comma separated .csv file format then click on Upload.
    • Firebase 2FA : Bulk upload user

    • After uploading the csv file successfully, you will see a success message with a link.
    • Click on that link you will see list of users to send activation mail. Select users to send activation mail and click on Send Activation Mail. An activation mail will be sent to the selected users.
  • Click on User Stores >> Add User Store in the left menu of the dashboard.
  • Firebase 2FA: Configure User Store

  • Select User Store type as AD/LDAP.
  • Firebase 2FA: Select AD/LDAP as user store

    1. STORE LDAP CONFIGURATION IN MINIORANGE: Choose this option if you want to keep your configuration in miniOrange. If active directory is behind a firewall, you will need to open the firewall to allow incoming requests to your AD.
    2. STORE LDAP CONFIGURATION ON PREMISE: Choose this option if you want to keep your configuration in your premise and only allow access to AD inside premises. You will have to download and install miniOrange gateway in your premise.
    3. Firebase Two-Factor Authentication : Select ad/ldap user store type

  • Enter LDAP Display Name and LDAP Identifier name.
  • Select Directory Type as Active Directory.
  • Enter the LDAP Server URL or IP Address against LDAP Server URL field.
  • Click on Test Connection button to verify if you have made a successful connection with your LDAP server.
  • Firebase MFA/2FA: Configure LDAP server URL Connection

  • In Active Directory, go to the properties of user containers/OU's and search for Distinguished Name attribute.
  • Firebase MFA: Configure user bind account domain name

  • Enter the valid Bind account Password.
  • Click on Test Bind Account Credentials button to verify your LDAP Bind credentials for LDAP connection.
  • Firebase MFA: Check bind account credentials

  • Search Base is the location in the directory where the search for a user begins. You will get this from the same place you got your Distinguished name.
  • Firebase 2FA : Configure user search base

  • Select a suitable Search filter from the drop down menu. To use custom Search Filter select "Custom Search Filter" option and customize it accordingly.
  • Firebase MFA/2FA : Select user search filter

  • You can also configure following options while setting up AD. Enable Activate LDAP in order to authenticate users from AD/LDAP. Click on the Save button to add user store.
  • Firebase MFA : Activate LDAP options

    Here's the list of the attributes and what it does when we enable it. You can enable/disable accordingly.

    Attribute Description
    Activate LDAP All user authentications will be done with LDAP credentials if you Activate it
    Sync users in miniOrange Users will be created in miniOrange after authentication with LDAP
    Backup Authentication If LDAP credentials fail then user will be authenticated through miniOrange
    Allow users to change password This allows your users to change their password. It updates the new credentials in your LDAP server
    Enable administrator login On enabling this, your miniOrange Administrator login authenticates using your LDAP server
    Show IdP to users If you enable this option, this IdP will be visible to users
    Send Configured Attributes If you enable this option, then only the attributes configured below will be sent in attributes at the time of login

  • Click on Save. After this, it will show you the list of User stores. Click on Test Configuration to check whether you have enter valid details. For that, it will ask for username and password.
  • Firebase 2FA: Test AD/Ldap connection

  • On Successful connection with LDAP Server, a success message is shown.
  • Click on Test Attribute Mapping.
  • Firebase LDAP successful connection

  • Enter a valid Username. Then, click on Test. Mapped Attributes corresponding to the user are fetched.
  • Firebase MFA: Fetch mapped attributes for user

  • After successful Attribute Mapping Configuration, go back to the ldap configuration and enable Activate LDAP in order to authenticate users from AD/LDAP.
  • Refer our guide to setup LDAPS on windows server.

User Import and Provisioning from AD

  • Go to Settings in the Customer Admin Account.
  • MFA/Two-Factor Authentication(2FA) for   miniOrange dashboard

  • Enable the "Enable User Auto Registration" option and click Save.
  • MFA/Two-Factor Authentication(2FA) for   Enable User Auto Registration

  • (Optional) To send a welcome email to all the end users that will be imported, enable the "Enable sending Welcome Emails after user registration" option and click Save.
  • MFA/Two-Factor Authentication(2FA) for   Enable sending Welcome Emails after user registration

  • From the Left-Side menu of the dashboard select Provisioning.
  • MFA/Two-Factor Authentication(2FA) for   User Sync/Provisioning

  • In Setup Provisioning tab select Active Directory in the Select Application Drop Down.
  • Toggle the Import Users tab, click on Save button.
  • MFA/Two-Factor Authentication(2FA) for   User Sync Active Directory Configuration

  • On the same section, switch to Import Users section.
  • Select Active Directory from the dropdown and click on the Import Users tab, to import all the users from Active Directory to miniOrange.
  • MFA/Two-Factor Authentication(2FA) for   User Sync Import Operation

  • You can view all the Users you have imports by selecting Users >> User List from Left Panel.
  • MFA/Two-Factor Authentication(2FA) for   User List

  • All the imported users will be auto registered.
  • These groups will be helpful in adding multiple 2FA policies on the applications.

miniOrange integrates with various external user sources such as directories, identity providers, and etc.

Not able to find your IdP or Need help setting it up?


Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.
