Two-Factor Authentication (2FA) for Dropbox


Two-Factor Authentication (2FA) or Multi-factor Authentication is the process of the authentication in which you have to provide two factors to gain the access into a particular application. First Factor is the one that you know username and password and Second factor is what you might have as unique, like a phone (For OTP) or Fingerprint. This additional layer of security prevents the unauthorized person from accessing the resources even if they know your username and password. miniOrange provides 15+ authentication methods and solutions to secure your applications.


Connect with External Source of Users


miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Azure AD, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Shibboleth, Ping, Okta, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more.



Apps supported by miniOrange



two factor authentication (2FA) miniOrange authenticator app

miniOrange
Authenticator App


two factor authentication (2FA) google authenticator app

Google
Authenticator App


two factor authentication (2FA) authy authenticator app

Authy 2-Factor
Authentication App


two factor authentication (2FA) Microsoft authenticator app

Microsoft
Authenticator App



Follow the Step-by-Step Guide given below to enable Two-Factor Authentication (2FA) for dropbox

1. Configure Dropbox in miniOrange

  • Login into miniOrange Admin Console.
  • Go to Apps and click on Add Application button.
  • Dropbox Single Sign-On (SSO) add app

  • In Choose Application Type click on Create App button in SAML/WS-FED application type.
  • Dropbox Single Sign-On (SSO) choose app type

  • Search for Dropbox in the list, if you don't find Dropbox in the list then, search for custom and you can set up your application via Custom SAML App.
  • Dropbox Single Sign-On (SSO) manage apps

  • Enter the SP Entity ID or Issuer.
  • Enter the SP Entity ID as https://ww.dropbox.com/saml_login.
  • Enter the ACS URL as https://www.dropbox.com/saml_login.
  • You can add additional attributes using add attribute option.
  • Dropbox two-factor authentication (2FA) : configuration steps

  • Go to the Add Policy and select DEFAULT from the Group Name dropdown.
  • Now enter the Dropbox in the Policy Name field.
  • Select PASSWORD from the First Factor Type dropdown.
  • Click on Save to configure Dropbox.
  • Dropbox two-factor authentication (2FA) : add policy

  • Click on Metadata link to download the metadata which will be required later. Click on Link to see the IDP initiated SSO link for Dropbox.
  • Dropbox two-factor authentication (2FA) : download metadata

  • keep SAML Login URL and click on Download Certificate to download the certificate which you will require in Step 2.
  • Dropbox two-factor authentication (2FA) : keep values for configuration


2. Configure SSO in Dropbox

  • Sign in to Dropbox with your admin account.
  • Go to Admin Console in the left-hand sidebar on the Dropbox page.
  • Dropbox two-factor authentication (2FA) : admin console

  • Navigate to Settings >> Authentication >> Single sign-on
  • Dropbox two-factor authentication (2FA) : select authentication

  • Under Single sign-on, select the Enable single sign-on checkbox. You will see the option to configure single sign-on.
  • You can make single sign on Optional or Required.
  • Enter Sign in URL as SP Initiated Redirect Endpoint that you got from Step 1.
  • Dropbox two-factor authentication (2FA) : sp initiated steps

  • Upload your miniOrange Certificate as X.509 certificate that was downloaded in Step 1.
    Note: The certificate should be in .pem format.
  • Save the settings.

3. Configure 2FA for Dropbox

3.1: Enable 2FA for Users of Dropbox app

  • To enable 2FA for Users of Dropbox application. Go to Policies >> App Authentication Policy
  • Click on Edit against the configured application.
  • Two factor-authentication for Dropbox | Two Factor Authentication configure 2fa of application

  • Enable the Enable 2-Factor Authentication (MFA) option.
  • Two factor-authentication for Dropbox | Two Factor Authentication enable 2fa

  • Click on Save.

3.2: Configure 2FA for your Endusers

  • To enable 2FA/MFA for endusers, go to 2-Factor Authentication >> 2FA Options For EndUsers.
  • Select default Two-Factor authentication method for end users. Also, you can select particular 2FA methods, which you want to show on the end users dashboard.
  • Once Done with the settings, click on Save to configure your 2FA settings.
  • MFA/Two-Factor Authentication(2FA) for   Configure 2FA Panel

3.3: Enduser 2FA Setup

  • Login to End-User Dashboard using end user login URL.
    • For Cloud Version: The login URL (branding url) which you have set.
    • For On-Premise version: The login URL will be the same as of Admin Login URL.
  • Select Setup 2FA from left panel. Then select any of the 2FA method available.
  • For now, we have selected the SMS >> OTP OVER SMS as our 2FA method. You can explore the guide to setup other 2FA methods here.
  • Enable the OTP over SMS if you have your phone number added under your profile section else click on Edit button.
  • MFA/Two-Factor Authentication(2FA) for   Configure 2FA Panel

  • Enter you Phone Number along with the necessary country code and click on the SAVE button.
  • MFA/Two-Factor Authentication(2FA) for   Configure Second Factor-SMS(Enter Mobile Number)

4. Test Dropbox 2FA

  • Go to your Dropbox Domain. It will redirect you to miniOrange Single Sign-On Service console.
  • zoom two factor authentication(2fa) user credentials

  • Enter your miniOrange login credentials and click on Login.
  • Since we have Two-factor authentication(2FA) enabled, you will be prompted to register for it. It's a one time process.
  • Configure your basic details.
  • zoom two factor authentication(2fa) user registration

  • Configure any authentication method of your choice.
  • zoom two factor authentication(2fa) add new security

  • After successful registration, you will be logged in to your Dropbox account.
  • Now we have Two-factor authentication enabled.
  • To verify your Two-factor authentication(2FA) configuration, go to your Dropbox Domain. You will be redirected to miniOrange login console.
  • zoom two factor authentication(2fa) verify user credentials

  • Enter your login credentials, and click on login. It will prompt to verify yourself against the configured 2fa method.
    e.g. If you have configured OTP over SMS, after login into Dropbox it will prompt for OTP.
  • zoom two factor authentication(2fa) otp prompt

  • Enter the OTP received in your phone, after successful 2fa verification, you will be redirected to the Dropbox dashboard.

  • Not able to configure or test MFA?


    Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.



5. Adaptive Authentication with Dropbox

A. Restricting access to Dropbox with IP Blocking

    You can use adaptive authentication with Dropbox Single Sign-On (SSO) to improve the security and functionality of Single Sign-On. You can allow a IP Address in certain range for SSO or you can deny it based your requirements and you can also challenge the user to verify his authenticity. Adaptive authentication manages the user authentication bases on different factors such as Device ID, Location, Time of Access, IP Address and many more.

    You can configure Adaptive Authentication with IP Blocking in following way:
  • Login to Self Service Console >> Adaptive Authentication.
  • Add a Policy Name for your Adaptive Authentication Policy.
  • Dropbox Single Sign-On (SSO) Restrict Access adaptive authnetication policy

  • Select your Action for behaviour Change and Challenge Type for user from the Action for behaviour Change Section.
  • Dropbox Single Sign-On (SSO) Restrict Access adaptive authentication behaviour change


    Action for behaviour Change Options :


    Attribute Description
    Allow Allow user to authenticate and use services if Adaptive authentication condition is true.
    Challenge Challenge users with one of the three methods mentioned below for verifying user authenticity.
    Deny Deny user authentications and access to services if Adaptive authentication condition is true.

    Challenge Type Options :

    Attribute Description
    User second Factor The User needs to authenticate using the second factor he has opted or assigned for such as
  • OTP over SMS
  • PUSH Notification
  • OTP over Email
  • And 12 more methods.
  • KBA (Knowledge-based authentication) The System will ask user for 2 of 3 questions he has configured in his Self Service Console. Only after right answer to both questions user is allowed to proceed further.
    OTP over Alternate Email User will receive a OTP on the alternate email he has configured threw Self Service Console. Once user provides the correct OTP he is allowed to proceed further.

  • Now Enable Enable IP Restriction option from the IP RESTRICTION CONFIGURATION section to configure custom IP range.
  • Dropbox Single Sign-On (SSO) Restrict Access adaptive authentication ip blocking

  • Select the Action you want to perform if the IP address is out of the range. i.e. Allow, Challenge & Deny.
  • Specify the IP Address range for which you want above setting to reflect. You can add more than one IP Address ranges by clicking on following button +.
  • Scroll to the end and click on save.


B. Adaptive Authentication with Limiting number of devices.

    Using Adaptive Authentication you can also restrict the number of devices the end user can access the Services on. You can allow end users to access services on a fixed no. of devices. The end users will be able to access services provided by us on this fixed no. of devices.

    You can configure Adaptive Authentication with Device Restriction in following way

  • Login to Self Service Console >> Adaptive Authentication.
  • Add a Policy Name for your Adaptive Authentication Policy.
  • Select your Action for behaviour Change and Challenge Type for user from the Action for behaviour Change Section.
  • Dropbox Single Sign-On (SSO) Restrict Access adaptive authentication behaviour and challenge type


  • Scroll down to Device Configuration section and enable Allow User to Register Device option to allow users to register their devices.
  • Enter the Number of Devices which are allowed to register in field next to Number of Device Registrations Allowed
  • Choose Action if number of devices exceeded (This will override your setting for Action for Behaviour Change.)
    1. Challenge: The user needs to verify himself using any of the three methods mentioned in table in step 5.1
    2. Deny : Deny users access to the system
  • Enable option Send email alerts to Users if number of Device registrations exceeded allowed count if you want to alert the user about no of devices exceeding the limit. Save the configuration.
  • Dropbox Single Sign-On (SSO) Restrict Access adaptive authentication enable device restriction

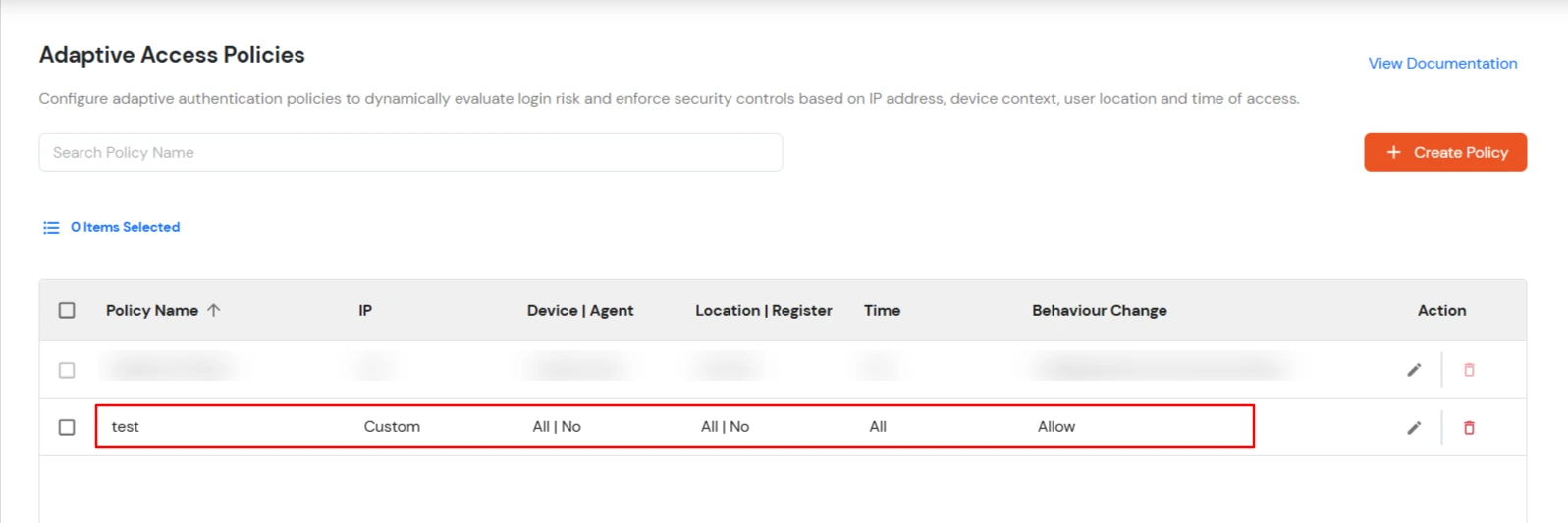

C. Add Adaptive Authentication policy to Dropbox.

  • Login to Self Service Console >> Policies.
  • Click on Edit option for predefined SAML app policy.
  • Dropbox Single Sign-On (sso) edit device restriction policy

  • Set your application name in the Application and select password as Login Method.
  • Enable Adaptive Authentication on Policy page and select the required restriction method as an option.
  • From Select Login Policy dropdown select the policy we created in last step and click on save.
  • Dropbox Single Sign-On (SSO) Restrict Access save device restriction policy

    How to add a trusted Device
    1. When End-user log in to the self service console after the policy for device restriction is on, he is provided the option to add the current device as a trusted device.
