Enable Two-Factor Authentication (2FA)/MFA for Nokia Routers and Switches Client to extend security level.

1. Add the TACACS Client in miniOrange

  • Login into miniOrange Admin Console.
  • Click on Customization in the left menu of the dashboard.
  • In Basic Settings, set the Organization Name as the custom_domain name.
  • Click Save. Once that is set, the branded login URL would be of the format https://<custom_domain>.xecurify.com/moas/login
  • 2FA Two-Factor authentication for Nokia Routers and Switches  : setting up branding

  • Go to Apps Click on Add Application button.

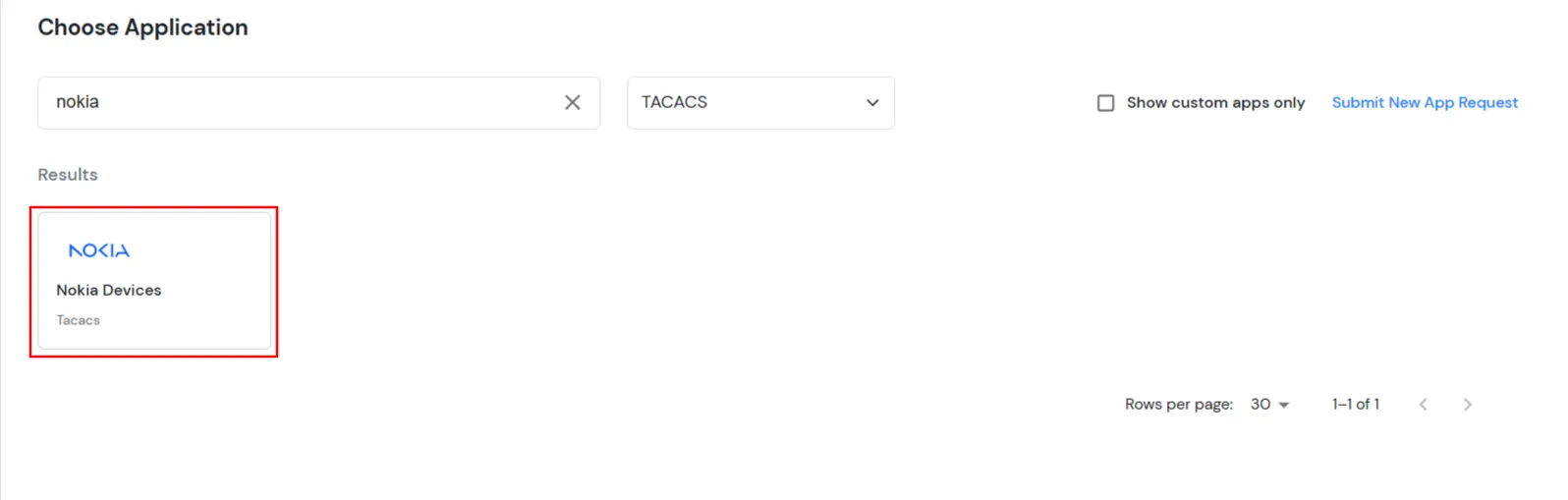

  • Add Nokia Routers and Switches  TACACS Application

  • Choose TACACS as Application type and click on Create App button.
  • 2FA Two-Factor authentication for Nokia Routers and Switches  : Create TACACS Application

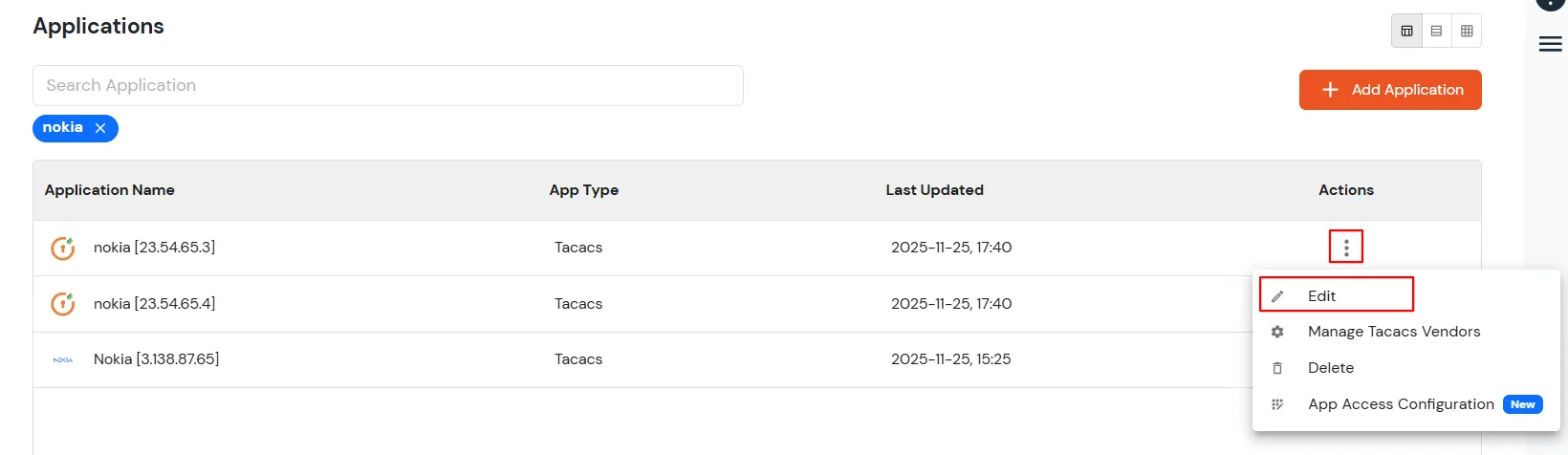

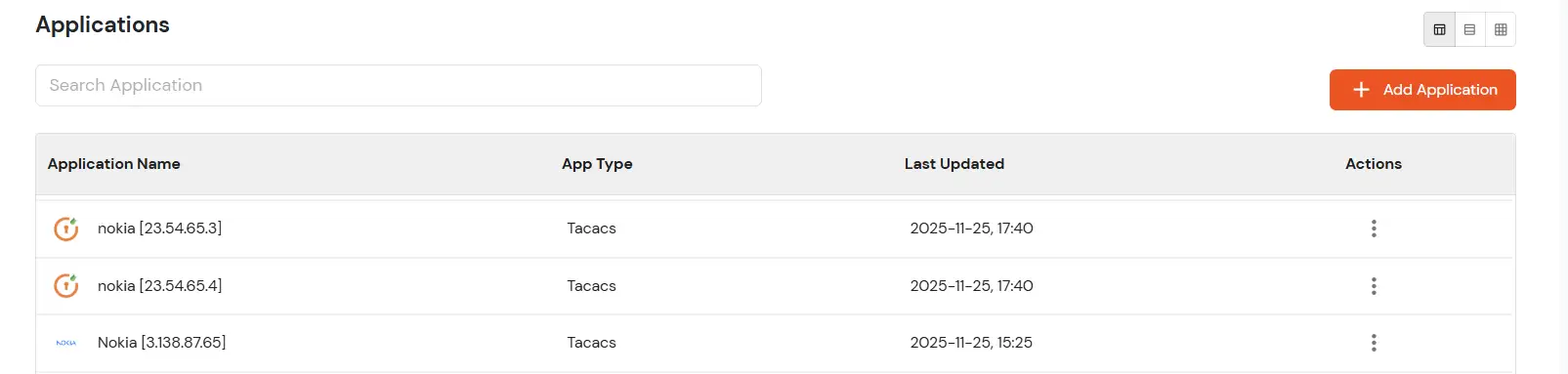

  • Click on Nokia Routers and Switches application tab. If you don't find your application click on Custom TACACS Client application tab.

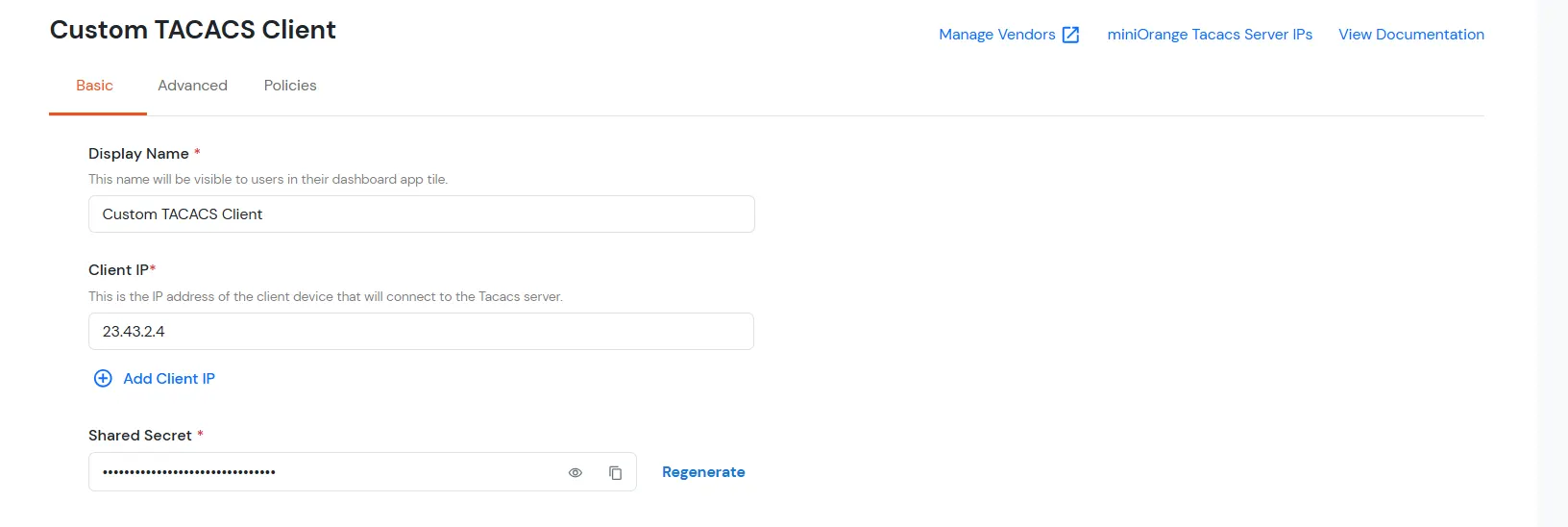

  • 2FA Two-Factor radauthentication for Nokia Routers and Switches  : Select your TACACS Client

    Client Name: Any name for your reference.
    Client IP: IP address of network device which will send TACACS authentication request.
    Shared Secret: Security key.
    For Eg. "sharedsecret"
    (Keep this with you, you will need to configure same on TACACS client).
  • Click Next.

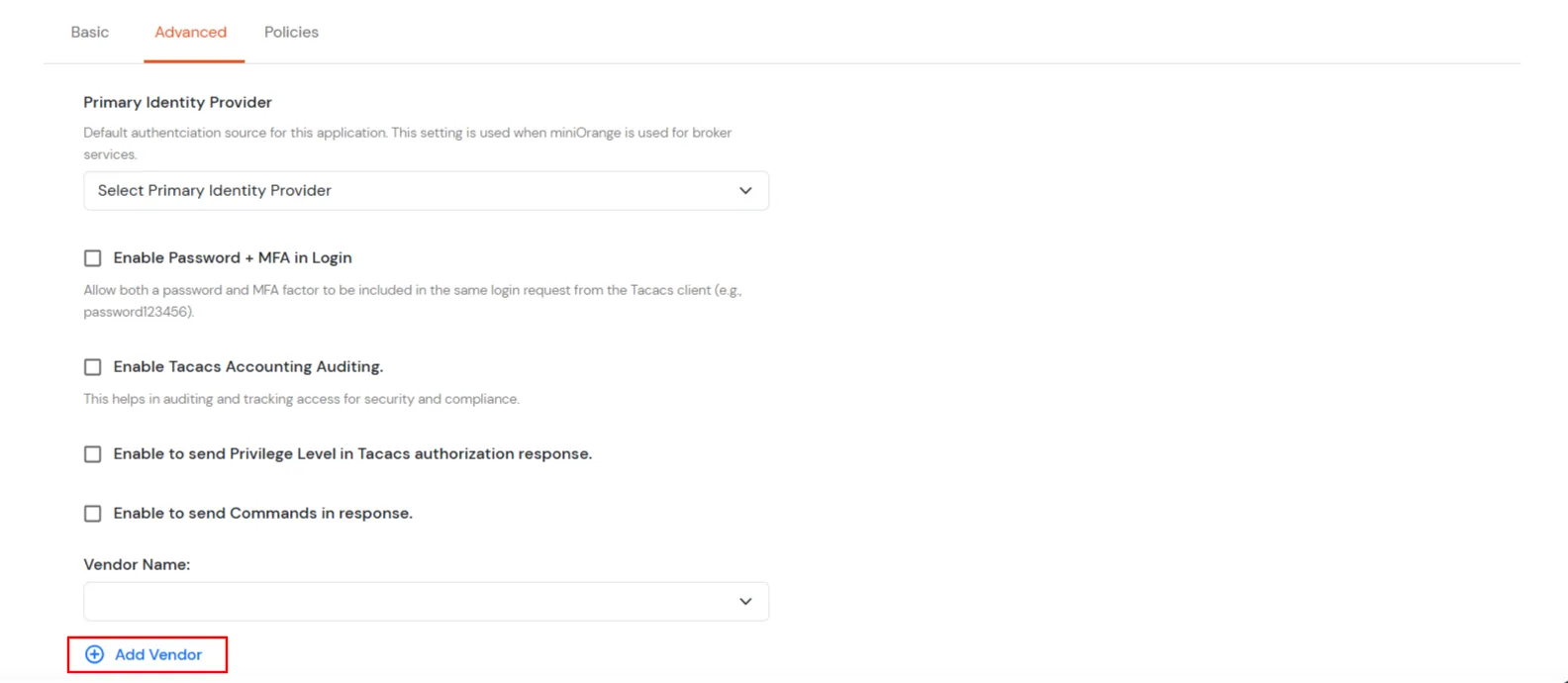

  • If you want to authenticate your users from Identity Provider other than the default Identity Provider, navigate to Advanced Settings tab. Select your preferred Identity Provider under Primary Identity Provider section. To add your identity providers in miniOrange IDP, follow this guide.
  • 2FA Two-Factor radauthentication for Nokia Routers and Switches  : advanced settings

  • Click on Save button.
  • 2FA Two-Factor radauthentication for Nokia Routers and Switches  : save settings

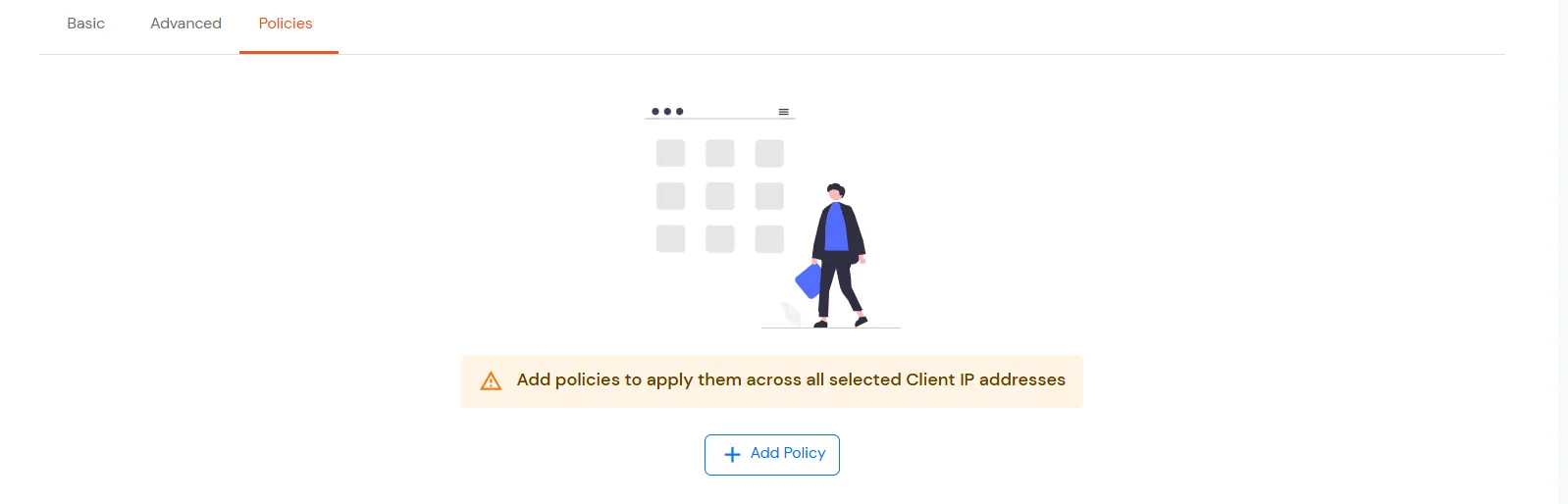

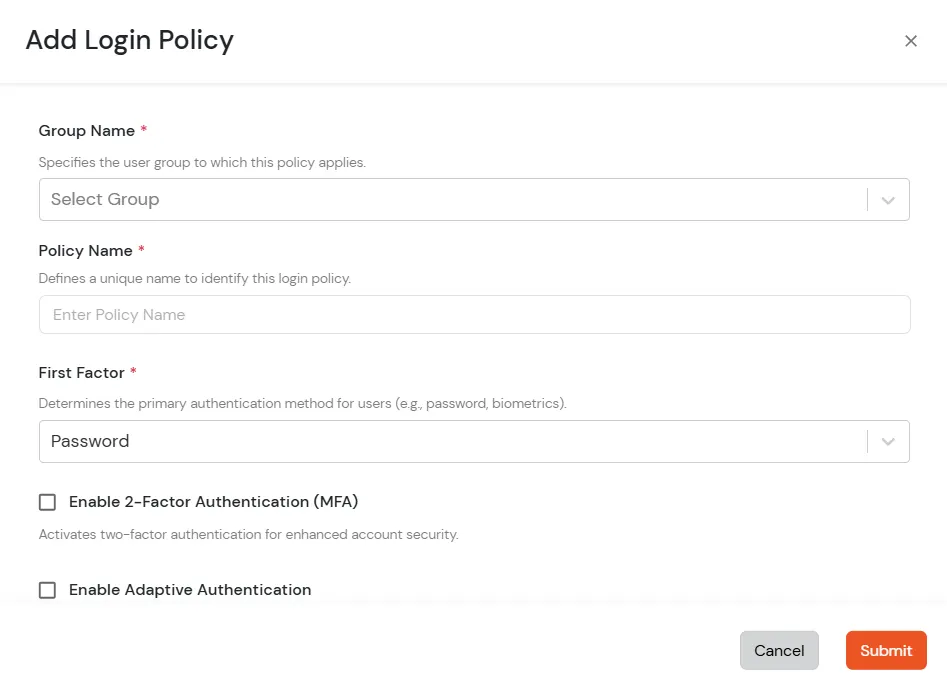

  • Configure the following Policy details for the TACACS Client.
  • Group Name: Group for which the policy will apply.
    Policy Name: Any Identifier that specifies policy name.
    Login Method Login Method for the users associated with this policy.
    Enable 2-Factor Authentication Enables Second Factor during Login for users associated with this policy.
    Enable Adaptive Authentication Enables Adaptive Authentication for Login of users associated with this policy.

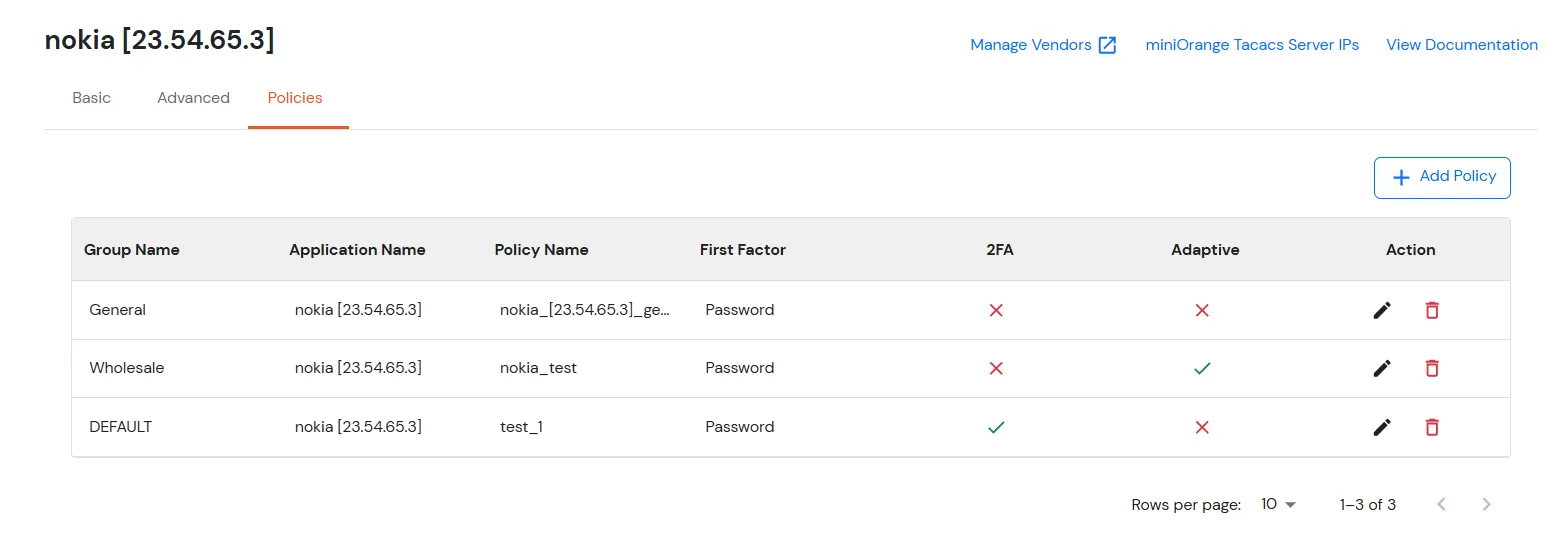

  • After configuring the given above details, Click on Save button.
  • Copy and save the TACACS server IPs which will be required to configure your TACACS client.
  • NOTE: For On-Premise version follow the below steps before testing the connectivity.

    Only For On-Premise Version

    Open Firewall Ports.

  • In order to receive the TACACS request, it is necessary to open TCP traffic on port 49 for the machine where On-Premise IdP is deployed.
  • If the hosting machine is a Windows Machine then you can follow this document.
  • If the hosting machine is a Linux Machine then you can follow this document.

  • NOTE: If your machine is hosted on AWS, then enable the ports from the AWS panel.

2. Configure Authentication for Nokia via TACACS

    configure system security tacplus
    timeout 20
    server 1 address <server-ip> secret <secret>

3 . Configure Authorization for Nokia via TACACS

    configure system security tacplus
    accounting
    authorization
    timeout 20
    server 1 address <server-ip> secret <secret>


4. Configure Your User Directory

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Microsoft Entra ID, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Okta, Shibboleth, Ping, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more. You can configure your existing directory/user store or add users in miniOrange.

Note: You can follow this guide, if you want to configure Radius MFA with your users stored in Microsoft Entra ID using OAuth Password Grant.



Configure your existing directories such as Microsoft Active Directory, Microsoft Entra ID, OpenLDAP, etc.

  • Click on External Directories >> Add Directory in the left menu of the dashboard.
  •  2FA: Configure User Store

  • Select Directory type as AD/LDAP.
  •  2FA: Select AD/LDAP as user store

    1. STORE LDAP CONFIGURATION IN MINIORANGE: Choose this option if you want to keep your configuration in miniOrange. If active directory is behind a firewall, you will need to open the firewall to allow incoming requests to your AD.
    2. STORE LDAP CONFIGURATION ON PREMISE: Choose this option if you want to keep your configuration in your premise and only allow access to AD inside premises. You will have to download and install miniOrange gateway in your premise.
    3.  Two-Factor Authentication : Select ad/ldap user store type

  • Enter LDAP Display Name and LDAP Identifier name.
  • Select Directory Type as Active Directory.
  • Enter the LDAP Server URL or IP Address against LDAP Server URL field.
  • Click on Test Connection button to verify if you have made a successful connection with your LDAP server.
  •  MFA/2FA: Configure LDAP server URL Connection

  • In Active Directory, go to the properties of user containers/OU's and search for Distinguished Name attribute.
  •  MFA: Configure user bind account domain name

  • Enter the valid Bind account Password.
  • Click on Test Bind Account Credentials button to verify your LDAP Bind credentials for LDAP connection.
  •  MFA: Check bind account credentials

  • Search Base is the location in the directory where the search for a user begins. You will get this from the same place you got your Distinguished name.
  •  2FA : Configure user search base

  • Select a suitable Search filter from the drop-down menu. If you use User in Single Group Filter or User in Multiple Group Filter, replace the <group-dn> in the search filter with the distinguished name of the group in which your users are present. To use custom Search Filter select "Write your Custom Filter" option and customize it accordingly.
  •  MFA/2FA : Select user search filter

  • You can also configure following options while setting up AD. Enable Activate LDAP in order to authenticate users from AD/LDAP. Click on the Save button to add user store.
  •  MFA : Activate LDAP options

    Here's the list of the attributes and what it does when we enable it. You can enable/disable accordingly.

    Attribute Description
    Activate LDAP All user authentications will be done with LDAP credentials if you Activate it
    Sync users in miniOrange Users will be created in miniOrange after authentication with LDAP
    Fallback Authentication If LDAP credentials fail then user will be authenticated through miniOrange
    Allow users to change password This allows your users to change their password. It updates the new credentials in your LDAP server
    Enable administrator login On enabling this, your miniOrange Administrator login authenticates using your LDAP server
    Show IdP to users If you enable this option, this IdP will be visible to users
    Send Configured Attributes If you enable this option, then only the attributes configured below will be sent in attributes at the time of login

  • Click on Save. After this, it will show you the list of User stores. Click on Test Connection to check whether you have enter valid details. For that, it will ask for username and password.
  •  2FA: Test AD/Ldap connection

  • On Successful connection with LDAP Server, a success message is shown.
  • Click on Test Attribute Mapping.
  •  LDAP successful connection

  • Enter a valid Username. Then, click on Test. Mapped Attributes corresponding to the user are fetched.
  •  MFA: Fetch mapped attributes for user

  • After successful Attribute Mapping Configuration, go back to the ldap configuration and enable Activate LDAP in order to authenticate users from AD/LDAP.
  • Refer our guide to setup LDAPS on windows server.

User Import and Provisioning from AD



Note: Below steps are used to enable one time or manual sync. To enable sync on scheduled basis, you should use LDAP gateway module. Read more and download the LDAP gateway module.


  • Go to Settings >> Product Settings in the Customer Admin Account.
  • MFA/Two-Factor Authentication(2FA) for Nokia Routers and Switches   miniOrange dashboard

  • Enable the "Enable User Auto Registration" option and click Save.
  • MFA/Two-Factor Authentication(2FA) for Nokia Routers and Switches   Enable User Auto Registration

  • (Optional) To send a welcome email to all the end users that will be imported, enable the "Enable sending Welcome Emails after user registration" option and click Save.
  • MFA/Two-Factor Authentication(2FA) for Nokia Routers and Switches   Enable sending Welcome Emails after user registration

  • From the Left-Side menu of the dashboard select Provisioning.
  • MFA/Two-Factor Authentication(2FA) for Nokia Routers and Switches   User Sync/Provisioning

  • In Setup Provisioning tab select Active Directory in the Select Application drop-down.
  • Toggle the Import Users tab, click on Save button.
  • MFA/Two-Factor Authentication(2FA) for Nokia Routers and Switches   User Sync Active Directory Configuration

  • On the same section, switch to Import Users section.
  • Select Active Directory from the dropdown and click on the Import Users tab, to import all the users from Active Directory to miniOrange.
  • MFA/Two-Factor Authentication(2FA) for Nokia Routers and Switches   User Sync Import Operation

  • You can view all the Users you have imports by selecting Users >> User List from Left Panel.
  • MFA/Two-Factor Authentication(2FA) for Nokia Routers and Switches   User List

  • All the imported users will be auto registered.
  • These groups will be helpful in adding multiple 2FA policies on the applications.
  • To add your users in miniOrange there are 2 ways:
  • 1. Create User in miniOrange

    • Click on Users >> User List >> Add User.
    •  VPN 2FA : Add user in miniOrange

    • Here, fill the user details without the password and then click on the Create User button.
    •  MFA: Add user details

    • After successful user creation a notification message "An end user is added successfully" will be displayed at the top of the dashboard.
    •  Two-Factor Authentication: Add user details

    • Click on Onboarding Status tab. Check the email, with the registered e-mail id and select action Send Activation Mail with Password Reset Link from Select Action dropdown list and then click on Apply button.
    •  2FA: Select email action

    • Now, Open your email id. Open the mail you get from miniOrange and then click on the link to set your account password.
    • On the next screen, enter the password and confirm password and then click on the Single Sign-On (SSO) reset password button.
    •  Multi-Factor Authentication: Reset user password
    • Now, you can log in into miniOrange account by entering your credentials.

    2. Bulk Upload Users in miniOrange via Uploading CSV File.

    • Navigate to Users >> User List. Click on Add User button.
    •  2FA: Add users via bulk upload

    • In Bulk User Registration Download sample csv format from our console and edit this csv file according to the instructions.
    •  Two-Factor authentication: Download sample csv file

    • To bulk upload users, choose the file make sure it is in comma separated .csv file format then click on Upload.
    •  2FA : Bulk upload user

    • After uploading the csv file successfully, you will see a success message with a link.
    • Click on that link you will see list of users to send activation mail. Select users to send activation mail and click on Send Activation Mail. An activation mail will be sent to the selected users.

Creating User Groups (Recommended)


  • This step involves Importing the user group from the Active Directory and Provisioning them.
  • Go to Provisioning. Switch to Setup Provisioning tab and select Active Directory from Dropdown menu.
  • MFA/Two-Factor Authentication(2FA) for Nokia Routers and Switches  : Select Active Directory (AD)

  • Select Group Provisioning/Deprovisioning tab, and toggle on Import Group option.
  • Enter the Base DN for group sync and click Save.
  • MFA/Two-Factor Authentication(2FA) for Nokia Routers and Switches  : Enter BaseDN

  • If you want to dynamically allocate users to the groups present in the miniOrange, then enable "Assign Users to groups"
  • MFA/Two-Factor Authentication(2FA) for Nokia Routers and Switches  : Switch on import Group

  • Now switch to Import Groups option and select Active Directory from which you want to import your users.
  • Finally, click on Import button. Your group will be imported.
  • MFA/Two-Factor Authentication(2FA) for Nokia Routers and Switches  : User group imported successfully

    (The Active Directory Group Provisioning (Sync) setup is done. Now, whenever a user is created or modified in LDAP server and if the Assign Users to groups is enabled, then user group attribute from the LDAP server will be automatically synced and the user group will be assigned or changed accordingly in miniOrange.)

  • Select Groups >> Manage Groups from left panel.
  • Click on the Create Group button on the top.
  • MFA/Two-Factor Authentication(2FA) for Nokia Routers and Switches   Manage Groups

  • Enter an appropriate Group Name and click on Create Group.
  • MFA/Two-Factor Authentication(2FA) for Nokia Routers and Switches   Create Groups

  • In this guide we have created a Group by name VPN_Group.
  • Assign various members to the group using the Assign User option associated with the group in the groups list.
  • MFA/Two-Factor Authentication(2FA) for Nokia Routers and Switches   User Assign

  • Select the Users that are required to be assigned to this group. Then Select Assign to Group in Select Action Dropdown and click on Apply button.
  • MFA/Two-Factor Authentication(2FA) for Nokia Routers and Switches   Assignment to Group

  • These groups will be helpful in adding multiple 2FA policies on the applications.


5. Setup MFA for Nokia Routers and Switches

Note: You can follow this guide, if you want to customize and enroll MFA for end users.


  • Here, we will configure a policy for the User Group that we created in this step and associate it with the Nokia Routers and Switches VPN Application.
  • Click on Policies tab >> App Login Policy.
  • MFA/Two-Factor Authentication(2FA) for Nokia Routers and Switches   App Authentication Policy

  • Click on Add Policy tab.
  • In Application section, select the TACACS App that we configured earlier in Step 1.
  • Select the required User Group in Group Name and enter the Policy name.
  • In this guide, we will configure a Password Only policy for "VPN_Group", so that only the VPN_Group members can access VPN Services without a Second Factor.
  • Once done with the policy settings, click on Save to Add Policy.
  • MFA/Two-Factor Authentication(2FA) for Nokia Routers and Switches   App Add Policy

6. Test miniOrange 2FA for Nokia Login

  • Connect to Nokia.
  • Enter Username and Password.
  • It will prompt you for second factor(if enabled from miniorange admin panel), Enter your 2FA code and you should be connected to Nokia.
