Configure SSO for Apps with Surfconext as IDP



Surfconext Single Sign-On login provides secure auto-login to your Surfconext app. Users can sign-in using any IDP of their choice which verifies the identity credentials of the users & grants access.

miniOrange SSO solution also acts as an identity broker for cross protocol authentication, which means Service Provider following a particular SSO protocol can connect to an Identity Provider following some different SSO protocol like SAML,OAuth etc. Once configured successfully you will be ready to securely access your website/application using SURFconext IDP.

Get Free Installation Help


miniOrange offers free help through a consultation call with our System Engineers to configure SSO for different apps using API authentication in your environment with 30-day free trial.

For this, you need to just send us an email at idpsupport@xecurify.com to book a slot and we'll help you in no time.



Steps to setup SURFconext as SAML IDP

Step 1: Configure SURFconext as IDP in miniOrange

  • Login to your miniOrange Admin Console.
  • From the left navigation bar select Identity Providers. Select SAML.


  • Configuring Surfconext as IdP : Identity Provider

    Bitium as SAML IDP for Single Sign On (SSO)
  • Enter appropriate IdP Name. Also add following details
  • IdP Entity ID Identity Provider Issuer from Bitium
    SAML SSO Login URL Identity Provider Single Sign-On URL from Bitium
    X.509 Certificate X.509 Certificate from Bitium
    Single Logout URL [Optional] Single Logout URL from Bitium
  • Few other optional features that can be added to the Identity Provider(IDP) are listed in the table below:
  • Domain Mapping Can be used to redirect specific domain user to specific IDP
    Show IdP to Users Enable this if you want to show this IDP to all users during Login
    Send Configured Attributes Enabling this would allow you to add attributes to be sent from IDP
  • Click on Save.


Step 2: Configure miniOrange as SP in SURFconext

  • Login into your SURFconext SP dashboard.

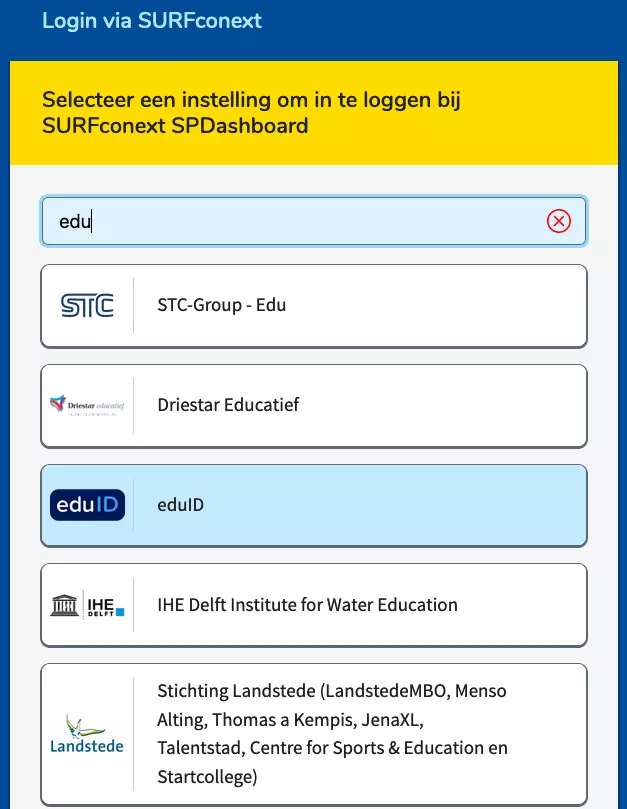

  • You will be presented with the WAYF (Were Are You From) screen. Select the Identity Provider that refers to the service you want to add ex: eduID.
  •  SURFconext SSO Login -Select IdP

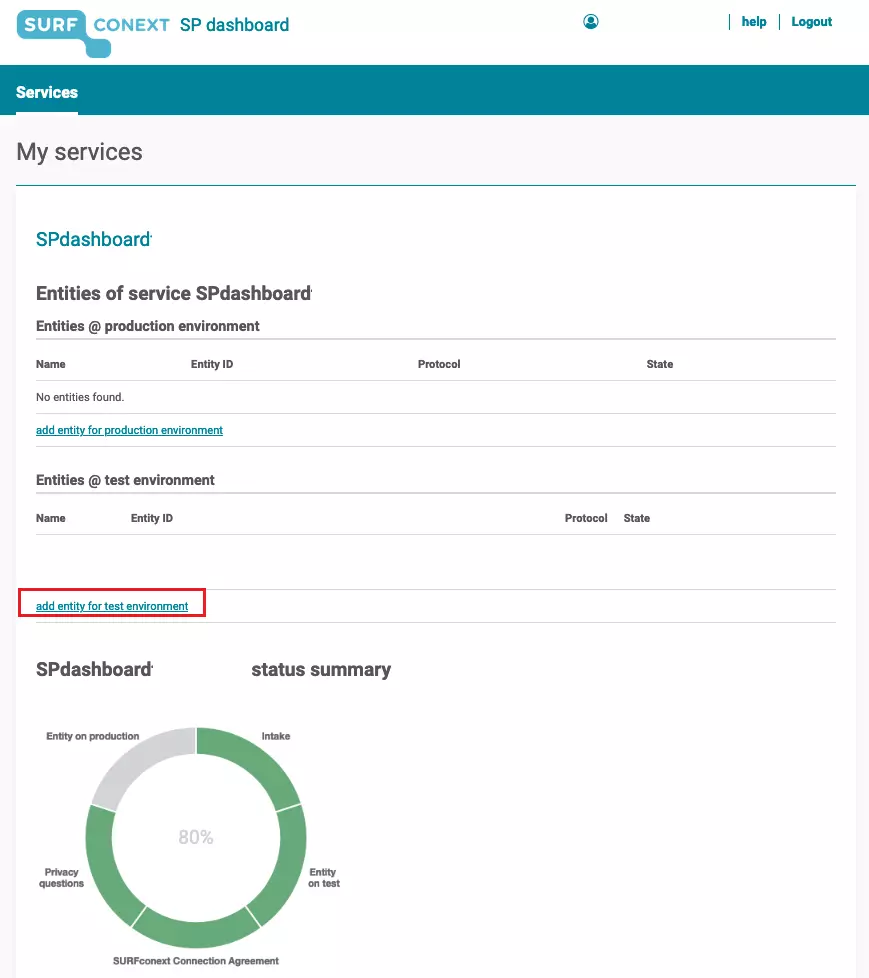

  • In the SP Dashboard window, click on add entity for test environment for Test Environment / add entity for production environment for Production Environment.
  •  SURFconext SSO Login - Select type of entity

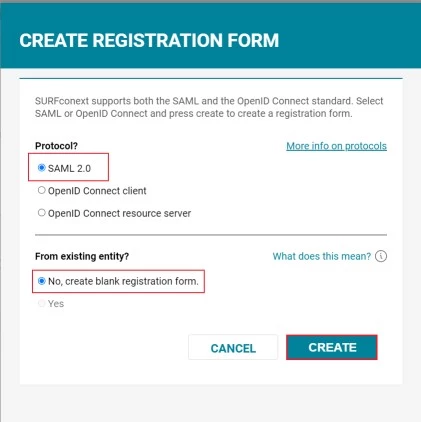

  • In CREATE REGISTRATION FORM select the following options and click on Create
  • Protocol SAML 2.0
    From existing entity No, create blank registration form
     SURFconext SSO Login - Enter Registration form Details
  • For the above SAML configuration you need to get the Entity ID and ACS URL from miniOrange
  • Go to miniOrange Dashboard in the left navigation menu. Click on Add External IdP.


  • Now click on the Click here link to get miniorange metadata as shown in Screen below.
  • For SP -INITIATED SSO section Select Show Metadata Details.
  • Surfconext as IDP : SP intiated Metadata

  • Enter the values in basic SAML configuration as shown in below screen
  • Single sign on URL ACS URL
    Audience URI (SP Entity ID) Entity ID or Issuer

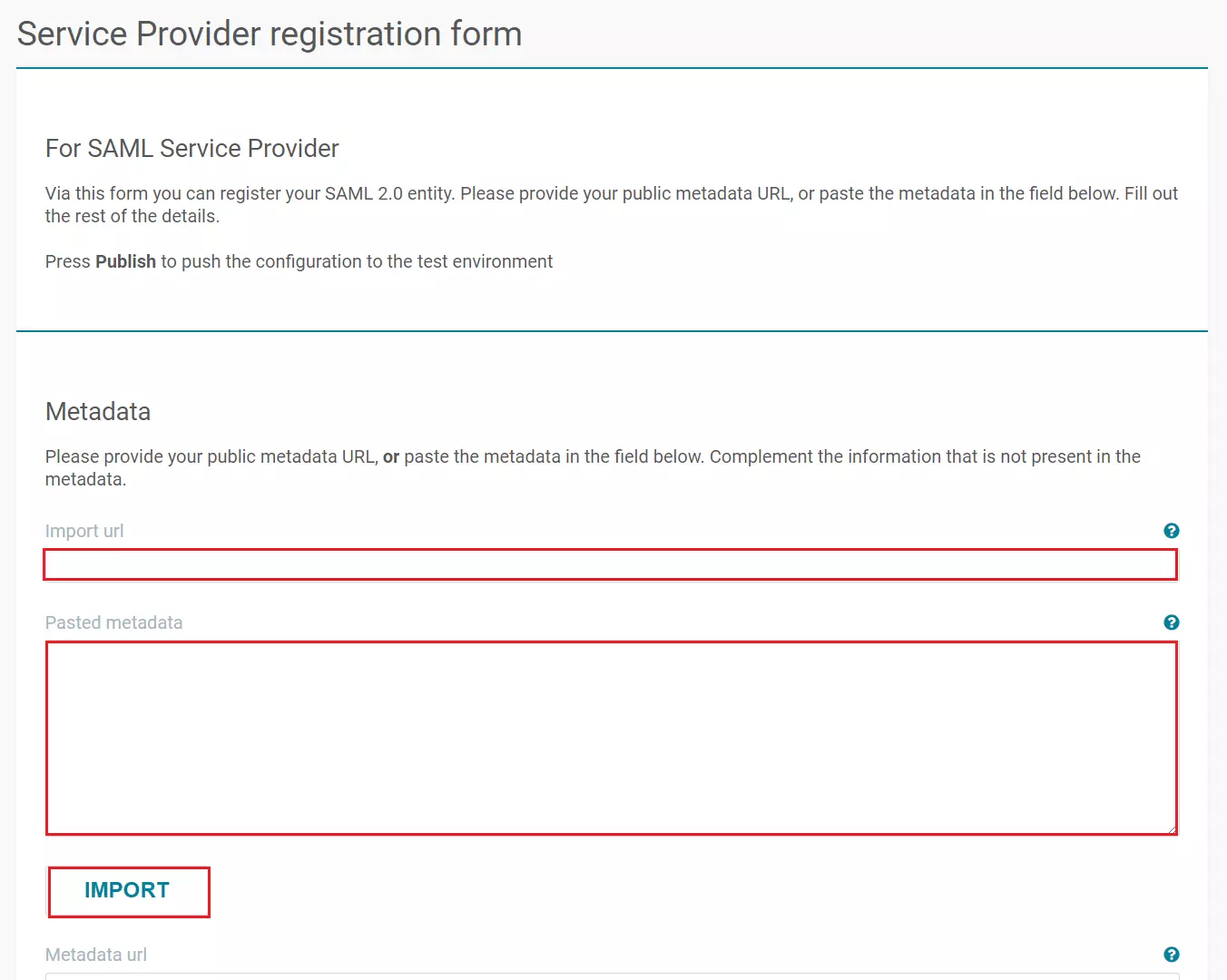

  • In the Service Provider registration form import the Metadata URL or paste Metadata from the plugin's Service Provider Metadata tab.
  •  SURFconext SSO Login - Import Metadata from plugin

  • Select the Name-ID format as required.
  • Enter the Logo url, Name and Description.
  •  SURFconext SSO Login - Enter required details

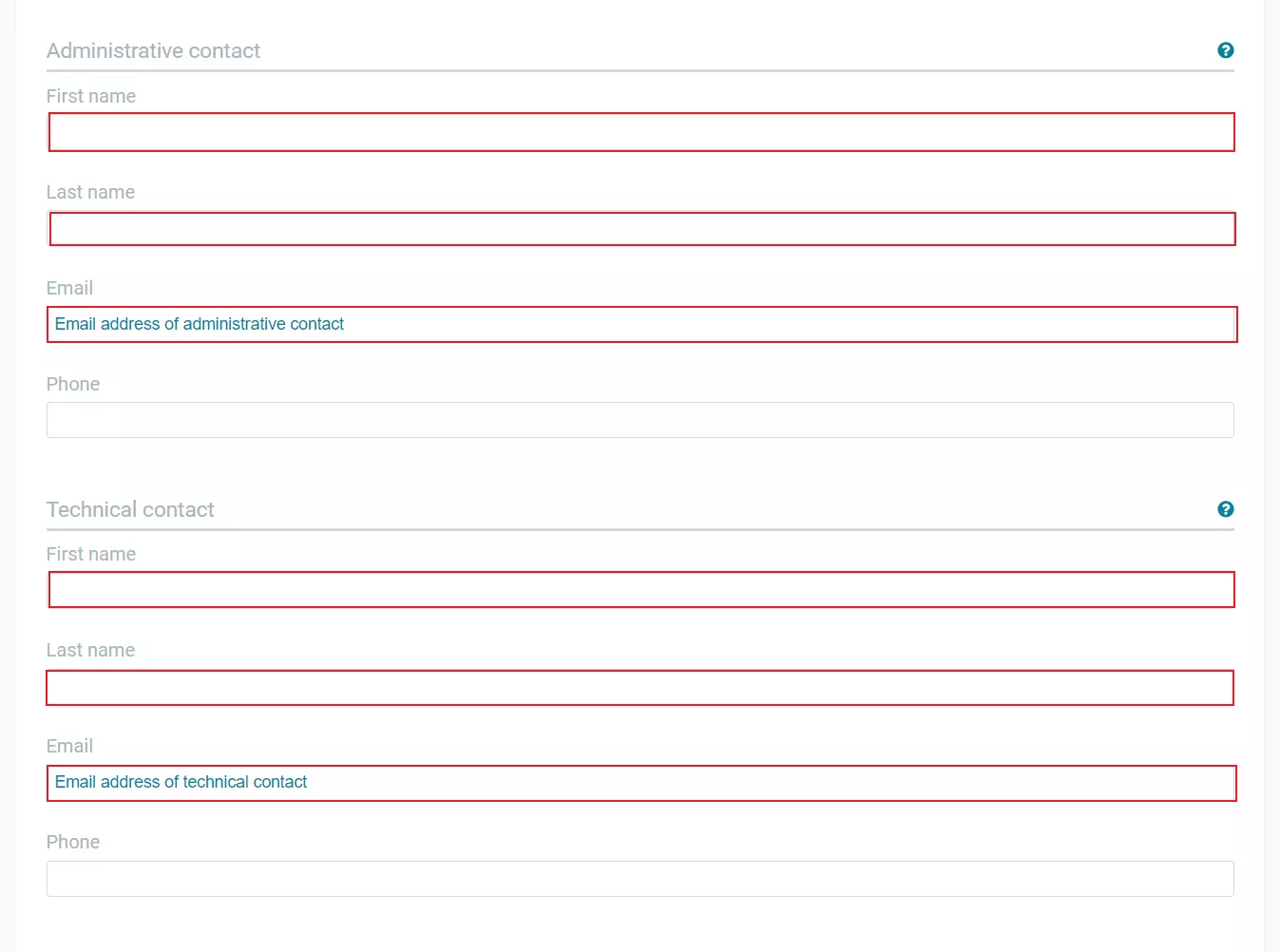

  • Enter the required data in Administrative contact and Technical contact section.
  •  SURFconext SSO Login -Enter contact details

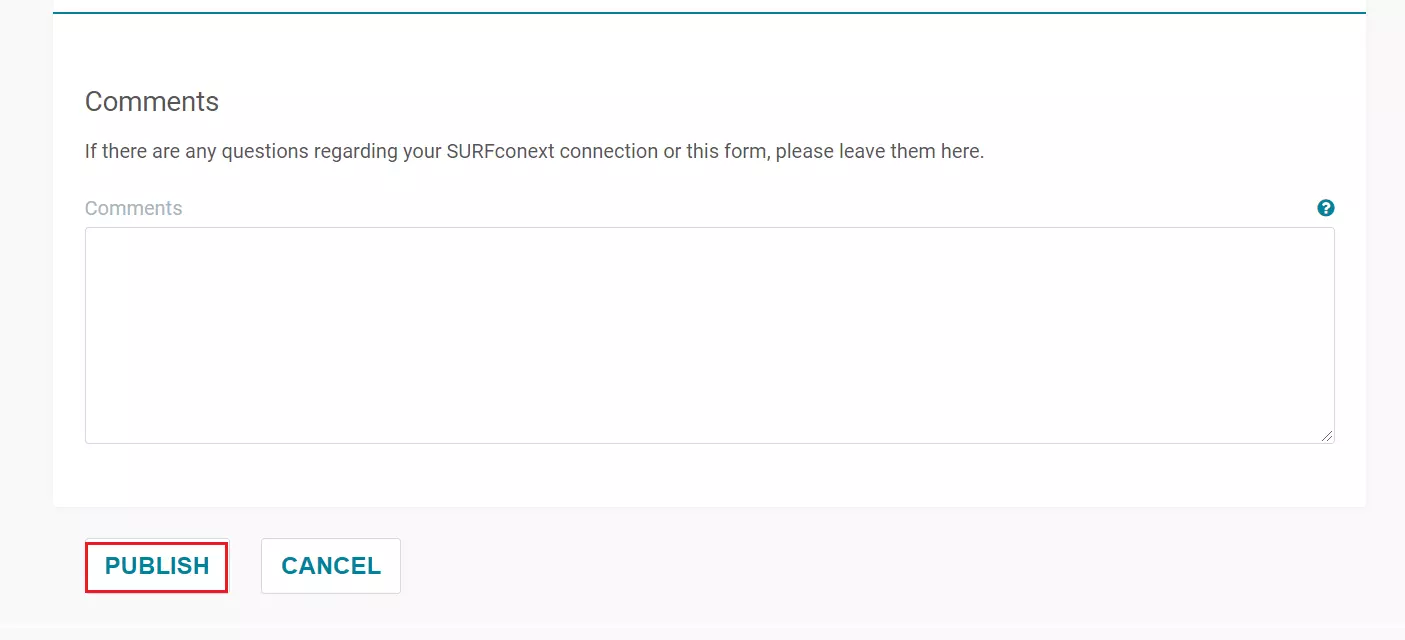

  • Once you have entered all the required data click on Publish.
  •  SURFconext SSO Login -Click on Publish

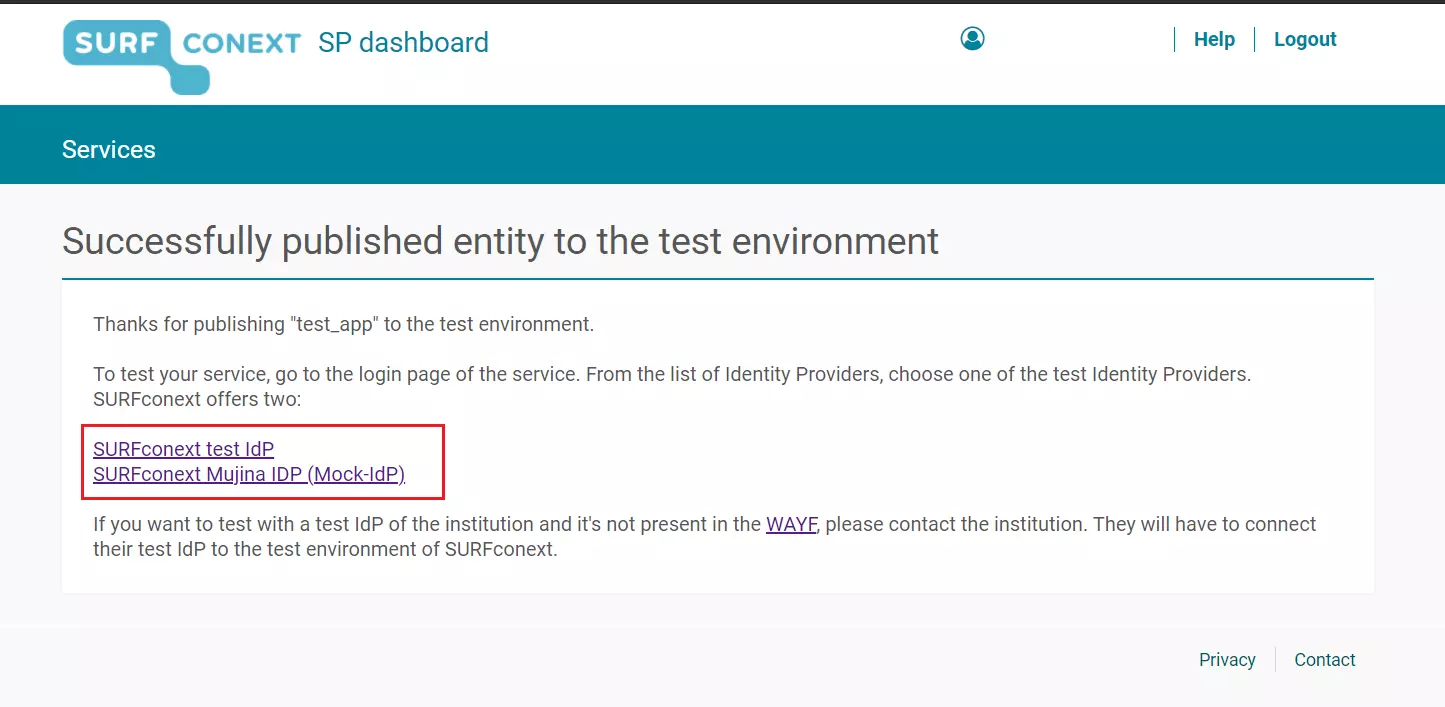

  • After the Test Environment / Production Environment is published, you will be presented with list of Identity Providers.
  • Select SURFconext test IdP / SURFconext Mujina IDP link to get the IdP metadata.
  •  SURFconext SSO Login -Test IdP

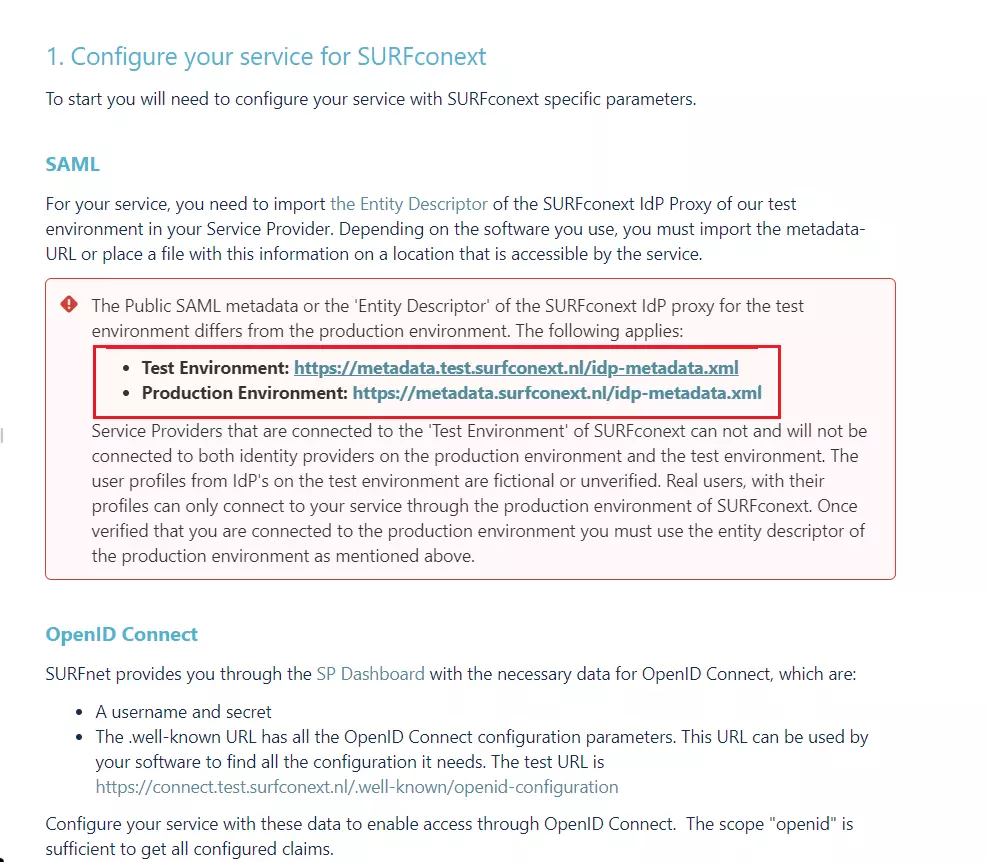

  • Copy the Test Environment / Production Environment link to fetch the IdP metadata for configuring the Service Provider.
  •  SURFconext SSO Login -To fetch IdP Metadata

    You have successfully configured SURFconext as SAML IdP (Identity Provider) for achieving Single Sign-On.

Step 3: Test Connection

  • Go to Identity Providers tab.
  • Click on Select>>Test Connection option against the Identity Provider you configured.
  • Bitium-IDP-TestConnection

    SucessTestConn-Bitium-IDP
  • Hence your configuration of SURFconext as IDP in miniOrange is successfully completed.

4. Configure your app in miniOrange


Note:

If you have already configured your application in miniOrange you can skip the following steps.





  • Click on Create App under SAML.
  • Click on Create SAML App

  • Search for your Application. In case you do not find your app, search for Custom SAML App.
  • Search for your SAML App

    Configure SAML Application

  • Get the ACS URL and SP Entity ID from your application.
  • Enter the following values OR click on Import SP Metadata:
  • Service Provider Name Choose appropriate name according to your choice
    SP Entity ID or Issuer Your Application Entity ID
    ACS URL X.509 Certificate (optional) Your Application Assertion Consumer Service URL
    NameID Format  Select urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress
    Response Signed Unchecked
    Assertion Signed Checked
    Encrypted Assertion Unchecked
    Group policy Default
    Login Method
  • Click on Save to configure your application.
  • Now to get the IDP metadata of the app configured, Go to apps >> your_app >> select >> metadata tab.
  • Go to the metadata section

  • Click on the Show Metadata details in the Information required to Authenticate via External IDPs section. Download the metadata XML file by clicking on Download Metadata button or copy the Metadata URL link.
  • Downlaod metadata - URL

  • You need to Upload this metadata in your application.
  • Click on Create App under OAuth/OIDC. Click on Open ID Connect App .
  •  Add OAuth openIDConnect app

  • You can add any OAuth Client app here to enable miniOrange as OAuth Server. Few popular OAuth client apps for single sign-on are Salesforce, WordPress, Joomla, Atlassian, etc.
  • Select your OAuth openIDConnect app

    Configure OAth AddopenIDConnect app

  • Enter following Values:
  • Client Name Add appropriate Name
    Redirect URL Get the Redirect-URL from your OAuth Client
    Description Add if required
    Group Name Default
    Policy Name
    Login Method
  • Click on Save
  • Now to provide the required data to OAuth client go to the app configured i.e apps >> your_app >> select >> edit.
  • Edit OAuth editOpenidConnect app

    OAuth openidConnect app endpoints

    Note: Choose the Authorization Endpoint according to the identity source you configure.

  • When you want to use you want to use miniOrange as OAuth identity server use this endpoint: https://{mycompany.domainname.com}/moas/idp/openidsso
  • If you are configuring any Identity Provider in Identity Providers Menu and not using miniOrange as IDP use this endpoint: https://{mycompany.domainname.com}/broker/login/oauth{customerid}
  • Click on Create App under JWT.
  • Click n External JWT app

  • Select JWT App.
  • SelectJWT app

  • Configure the name for your application and configure Redirect-URL which tells where to send JWT response. Redirect-URL should be an endpoint on your application where you want to achieve SSO.
  • Configure JWT App

    In case you are setting up SSO with Mobile Applications where you can't create an endpoint for Redirect or Callback URL, use below URL.

    https://login.xecurify.com/moas/jwt/mobile

  • Click Save
  • To get the SSO link for your application, Go to Apps >> your_app >> select >> Edit.
  • Get SSO Link

  • Then, copy the Single Sign On Url and verify SSO setup by browsing that url.
  •  SSO URL

  • On successful authentication, you will be redirected to configured Redirect or Callback URL with JWT token
  • You will need to download a certificate from App > Manage Apps, and click Certificate link against your configured application. This certificate will be used for signature validation of JWT response.
  • Download certificate to proceed with SSO

5. Setup Multiple IDPs (Optional)

  • You can configure multiple IDPs (Identity Providers) and give users the option to select the IDP of their choice to authenticate with.
    For Example - It could be multiple AD domains belonging to different departments or multiple okta organizations.
  • Few usecases where customers configure multiple IDPs -

  • Suppose you have a product which many of your clients use and each client has their own unique IDP so you want them to SSO into your product as well using their existing IDP only. miniOrange provides a centralized way to connect with all IDPs in a very easy manner and integrate SSO into your application.
  • Suppose you are providing a course to many universities, each having a unique SAML, OAuth protocol supported IDP's like Shibboleth, ADFS, CAS, etc. You can provide Single Sign-On (SSO) into your course application to all these universities by integrating with all of them using a single platform provided by miniOrange.
  • This is the endpoint to call from your SAML application -
  • For Cloud IDP - https://login.xecurify.com/moas/discovery?customerId=<customer_id>
    For On-Premise IDP - https://yourdomain.com/discovery?customerId=<customer_id>

  • You should copy the Customer Key from admin console-> Settings -> and replace it with <customer_id> here. Once configured in SP, when you initiate the login from Service Provider, a user will be redirected to IDP Selection Page listing all IDPs configured for that account.
  • You can see the screenshot below of the IDP Selection Page with a list of IDPs.


    Note: To view the IDP in drop-down list, go to Identity Providers tab > against your configured IDP > Select >Edit , here Enable the Show IdP to Users option.

    Select your IDP (Identity Provider) to login

  • You can also change the look and feel of this page. Login to miniOrange Admin console. Navigate to Customization -> Branding Configuration. See the below screenshot for reference-

  • Customize IDP selection login page

  • You can customize the title of this page.
  • Change the logo and favicon for this page.
  • Change the background and button color for this page from admin UI.
