Two-Factor Authentication (2FA/MFA) for WatchGuard XTM VPN


The WatchGuard with SSL client is a software application that is installed on a remote computer. The client makes a secure connection from the remote computer to your protected network through an unsecured network, such as the Internet. Enable two-factor authentication (2FA) for your WatchGuard XTM managed active directory to increase the security level. When you enable 2FA, your users enter their username and password (first factor) as usual, and they have to enter an authentication code (the second factor) which will share on your virtual or hardware 2FA solution to get access Watchguard XTM.


Types of 2FA Authentication with RADIUS

The 2-factor authentication can be of two types depending on the VPN clients.

  • VPN Clients that support RADIUS Challenge.
  • VPN Clients that do not support RADIUS Challenge.

miniOrange 2FA authentication for WatchGuard XTM Login

miniOrange accomplishes this by acting as a RADIUS server that accepts the username/password of the user entered as a RADIUS request and validates the user against the user store as Active Directory (AD). After the first level of authentication, miniOrange prompts the user with 2-factor authentication and either grants/revokes access based on the input by the user.


MFA 2FA Two-Factor authentication for Fortinet

  1. Primary authentication initiates with the user submitting his Username and Password for WatchGuard XTM.
  2. User request acts as an authentication request to RADIUS Server(miniOrange).
  3. miniOrange RADIUS server passes user credentials to validate against the credentials stored in AD (Active Directory) / Database.
  4. Once the user's first level of authentication gets validated AD sends the confirmation to RADIUS Server.
  5. Now miniOrange RADIUS Server asks for a 2-factor authentication challenge to the user.
  6. Here user submits the response/code which he receives on his hardware/phone.
  7. User response is checked at miniOrange’s RADIUS Server side.
  8. On successful 2nd factor authentication the user is granted access to login.

What are different 2FA/MFA methods for WatchGuard XTM supported by miniOrange?

miniOrange supports multiple 2FA/MFA authentication methods for WatchGuard XTM secure access such as, Push Notification, Soft Token, Microssoft / Google Authenticator etc.

Authentication TypeMethodSupported
miniOrange Authenticator Soft Token
miniOrange Push Notification
Mobile Token Google Authenticator
Microsoft Authenticator
Authy Authenticator
SMSOTP Over SMS
SMS with Link
EmailOTP Over Email
Email with Link
Call VerificationOTP Over Call
Hardware Token Yubikey Hardware Token
Display Hardware Token

You can opt for any of the 2FA methods to secure your WatchGuard XTM. To integrate 2FA, you can enable RADIUS authentication in WatchGuard XTM and configure policies in miniOrange to enable or disable 2FA for users.


Connect with any External Directories


miniOrange provides user authentication from various external directories such as miniOrange Directory, Microsoft AD, Azure Active Directory/LDAP, AWS Cognito and many more.

Can't find your Directory? Contact us on idpsupport@xecurify.com



Get Free Installation Help - Book a Slot


miniOrange offers free help through a consultation call with our System Engineers to Install or Setup Two-Factor Authentication for WatchGuard XTM solution in your environment with 30-day trial.

For this, you need to just send us an email at idpsupport@xecurify.com to book a slot and we'll help you setting it up in no time.



Enable Two-Factor Authentication (2FA)/MFA for WatchGuard XTM Client to extend security level.

1. Add the Radius Client in miniOrange

  • Login into miniOrange Admin Console.
  • Click on Customization in the left menu of the dashboard.
  • In Basic Settings, set the Organization Name as the custom_domain name.
  • Click Save. Once that is set, the branded login URL would be of the format https://<custom_domain>.xecurify.com/moas/login
  • 2FA Two-Factor authentication for WatchGuard XTM : setting up branding

  • Go to Apps Click on Add Application button.
  • Add WatchGuard XTM Radius Application

  • Choose RADIUS as Application type and click on Create App button.
  • 2FA Two-Factor authentication for WatchGuard XTM : Create Radius Application

  • Click on WatchGuard XTM application tab. If you don't find your application click on Radius Client application tab.
  • 2FA Two-Factor authentication for WatchGuard XTM : Select your Radius Client

  • Configure the below details to add Radius Client.
  • Client Name: Any name for your reference.
    Client IP: IP address of VPN server which will send Radius authentication request.
    Shared Secret: Security key.
    For Eg. "sharedsecret"
    (Keep this with you, you will need to configure same on VPN Server).
    Include Password & OTP in same Request Check this option for clients which takes password and the OTP in same request. Otherwise keep it unchecked.
    Send Groups in Response Enable this to send user groups as Vendor-Specific Group Attributes.
  • Configure the following Policy details for the Radius Client.
  • Group Name: Group for which the policy will apply.
    Policy Name: Any Identifier that specifies policy name.
    Login Method Login Method for the users associated with this policy.
    Enable 2-Factor Authentication Enables Second Factor during Login for users associated with this policy.
    Enable Adaptive Authentication Enables Adaptive Authentication for Login of users associated with this policy.
  • After configuring the given above details, Click on Save button.
  • Configure WatchGuard XTM App for 2FA Two-Factor Authentication



    NOTE: For On-Premise version follow the below steps before testing the connectivity.

    Only For On-Premise Version

    Open Firewall Ports.

  • In order to receive the RADIUS request, it is necessary to open UDP traffic on ports 1812 and 1813 for the machine where On-Premise IdP is deployed.
  • If the hosting machine is a Windows Machine then you can follow this document.
  • If the hosting machine is a Linux Machine then you can follow this document.

  • NOTE: If your machine is hosted on AWS, then enable the ports from the AWS panel.

2. Configure Radius Authentication

  • Log in to Fireware Web UI (https://<your firebox IP address>:8080).
  • Select Authentication > Servers.
  • Two-Factor Authentication 2FA / MFA for WatchGuard XTM : Login

  • From the Authentication Servers list, click RADIUS.
  • Click Add.

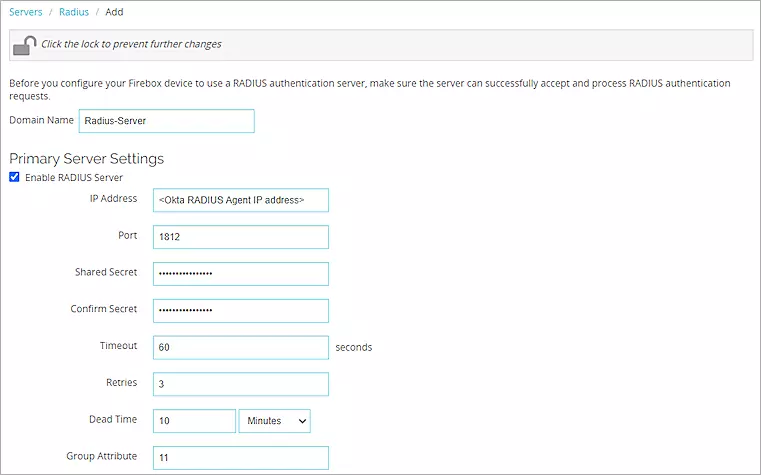

  • In the Domain Name text box, type the domain name for this RADIUS server. Users must specify this domain name on the user login page. You cannot change the domain name after you save the settings.
  • In the Primary Server Settings section, select the Enable RADIUS Server check box.
  • In the IP Address text box, type the IP address of the RADIUS server.
  • In the Port text box, keep the default port setting of 1812. This is the default port used for communication with the RADIUS server (the Okta RADIUS Server Agent).
  • In the Shared Secret and Confirm Secret text boxes, type a shared secret key. This key is used to communicate with the RADIUS server (the Okta RADIUS Server Agent).
  • In the Timeout text box, type 60.
  • Keep the default value for Group Attribute.

    Two-Factor Authentication 2FA / MFA for WatchGuard XTM : Login

  • Click Save.

3. Configure Mobile VPN


  • Select VPN > Mobile VPN.
  • In the SSL section, click Manually Configure.
  • Two-Factor Authentication (2fa) for WatchGuard XTM Manual Configuration

  • Select the Activate Mobile VPN with SSL check box.
  • In the Primary text box, type the external IP address or domain name of the Firebox. This is the IP address or domain name that Mobile VPN with SSL clients connect to by default.
  • Select the Authentication tab.
  • From the Authentication Server drop-down list, select the authentication server you created.
  • Click Add.
  • In the Authentication Server list, select your authentication server.
  • To make this authentication server the default server, click Move Up until the server appears at the top of the list.
  • In the Users and Groups section, from the Create new drop-down list, select the authentication server you created.
  • From the adjacent drop-down list, select Group.
  • Click Add to add a group to authenticate.
  • For Type, select Group.
  • In the Name text box, type a name for the group. The name of this group must match the name of the Okta group your users belong to. If you use the default SSLVPN-Users group name, you must add an SSLVPN-Users group to Okta.
  • From the Authentication Server drop-down list, select your authentication server.
  • Two-Factor Authentication (2fa) for WatchGuard XTM Save

  • Click Save.
  • Select VPN > Mobile VPN.
  • In the IPSec section, click Manually Configure.
  • Two-Factor Authentication (2fa) for WatchGuard XTM Manual Configuration

  • Click Add to add a new group.
  • In the Name text box, type a name for the group. The name of this group must match the name of the miniOrange group your users belong to. If you use the default SSLVPN-Users group name, you must add an SSLVPN-Users group to miniOrange.
  • From the Authentication Server drop-down list, select the authentication server you created.
  • In the Passphrase and Confirm text boxes, type a passphrase to encrypt the mobile VPN profile (.wgx file) that you distribute to users in this group. The passphrase can include only standard ASCII characters. If you use a certificate for authentication, this passphrase is also used to encrypt the exported certificate file you send to users.
  • In the Primary text box, type the external IP address of the Firebox that the VPN client connects to.
  • Two-Factor Authentication (2fa) for WatchGuard XTM Add IP Address

  • Click Save.
  • Select the Resources tab.
  • Select the Allow All Traffic Through Tunnel check box.
  • Two-Factor Authentication (2fa) for WatchGuard XTM Allow traffic

  • Click Save.
  • In the Virtual IP Address Pool section, click Add.
  • From the Choose Type drop-down list, select Host Range IPv4.
  • In the From and To text boxes, type a range for your virtual IP addresses. The range should be in your interface range. The IP addresses in the virtual IP address pool cannot be used for anything else on your network.
  • Two-Factor Authentication (2fa) for WatchGuard XTM Address Pool

  • Click OK.
  • In the Groups list, select the group.
  • From the Client drop-down list, select WatchGuard Mobile VPN.
  • Click Generate and save the .ini file.
  • Click Save.
  • Two-Factor Authentication (2fa) for WatchGuard XTM Save Group Name

4. Configure Your User Directory (Optional)

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Azure AD, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Okta, Shibboleth, Ping, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more. You can configure your existing directory/user store or add users in miniOrange.



  • To add your users in miniOrange there are 2 ways:
  • 1. Create User in miniOrange

    • Click on Users >> Add User.
    •  VPN 2FA : Add user in miniOrange

    • Here, fill the user details without the password and then click on the Create User button.
    •  MFA: Add user details

    • After successful user creation a notification message "An end user is added successfully" will be displayed at the top of the dashboard.
    •  Two-Factor Authentication: Add user details

    • Click on On Boarding Status tab. Check the email, with the registered e-mail id and select action Send Activation Mail with Password Reset Link from Select Action dropdown list and then click on Apply button.
    •  2FA: Select email action

    • Now, Open your email id. Open the mail you get from miniOrange and then click on the link to set your account password.
    • On the next screen, enter the password and confirm password and then click on the Single Sign-On (SSO) reset password button.
    •  Multi-Factor Authentication: Reset user password
    • Now, you can log in into miniOrange account by entering your credentials.

    2. Bulk Upload Users in miniOrange via Uploading CSV File.

    • Navigate to Users >> User List. Click on Add User button.
    •  2FA: Add users via bulk upload

    • In Bulk User Registration Download sample csv format from our console and edit this csv file according to the instructions.
    •  Two-Factor authentication: Download sample csv file

    • To bulk upload users, choose the file make sure it is in comma separated .csv file format then click on Upload.
    •  2FA : Bulk upload user

    • After uploading the csv file successfully, you will see a success message with a link.
    • Click on that link you will see list of users to send activation mail. Select users to send activation mail and click on Send Activation Mail. An activation mail will be sent to the selected users.
  • Click on User Stores >> Add User Store in the left menu of the dashboard.
  •  2FA: Configure User Store

  • Select User Store type as AD/LDAP.
  •  2FA: Select AD/LDAP as user store

    1. STORE LDAP CONFIGURATION IN MINIORANGE: Choose this option if you want to keep your configuration in miniOrange. If active directory is behind a firewall, you will need to open the firewall to allow incoming requests to your AD.
    2. STORE LDAP CONFIGURATION ON PREMISE: Choose this option if you want to keep your configuration in your premise and only allow access to AD inside premises. You will have to download and install miniOrange gateway in your premise.
    3.  Two-Factor Authentication : Select ad/ldap user store type

  • Enter LDAP Display Name and LDAP Identifier name.
  • Select Directory Type as Active Directory.
  • Enter the LDAP Server URL or IP Address against LDAP Server URL field.
  • Click on Test Connection button to verify if you have made a successful connection with your LDAP server.
  •  MFA/2FA: Configure LDAP server URL Connection

  • In Active Directory, go to the properties of user containers/OU's and search for Distinguished Name attribute.
  •  MFA: Configure user bind account domain name

  • Enter the valid Bind account Password.
  • Click on Test Bind Account Credentials button to verify your LDAP Bind credentials for LDAP connection.
  •  MFA: Check bind account credentials

  • Search Base is the location in the directory where the search for a user begins. You will get this from the same place you got your Distinguished name.
  •  2FA : Configure user search base

  • Select a suitable Search filter from the drop down menu. To use custom Search Filter select "Custom Search Filter" option and customize it accordingly.
  •  MFA/2FA : Select user search filter

  • You can also configure following options while setting up AD. Enable Activate LDAP in order to authenticate users from AD/LDAP. Click on the Save button to add user store.
  •  MFA : Activate LDAP options

    Here's the list of the attributes and what it does when we enable it. You can enable/disable accordingly.

    Attribute Description
    Activate LDAP All user authentications will be done with LDAP credentials if you Activate it
    Sync users in miniOrange Users will be created in miniOrange after authentication with LDAP
    Backup Authentication If LDAP credentials fail then user will be authenticated through miniOrange
    Allow users to change password This allows your users to change their password. It updates the new credentials in your LDAP server
    Enable administrator login On enabling this, your miniOrange Administrator login authenticates using your LDAP server
    Show IdP to users If you enable this option, this IdP will be visible to users
    Send Configured Attributes If you enable this option, then only the attributes configured below will be sent in attributes at the time of login

  • Click on Save. After this, it will show you the list of User stores. Click on Test Configuration to check whether you have enter valid details. For that, it will ask for username and password.
  •  2FA: Test AD/Ldap connection

  • On Successful connection with LDAP Server, a success message is shown.
  • Click on Test Attribute Mapping.
  •  LDAP successful connection

  • Enter a valid Username. Then, click on Test. Mapped Attributes corresponding to the user are fetched.
  •  MFA: Fetch mapped attributes for user

  • After successful Attribute Mapping Configuration, go back to the ldap configuration and enable Activate LDAP in order to authenticate users from AD/LDAP.
  • Refer our guide to setup LDAPS on windows server.

User Import and Provisioning from AD

  • Go to Settings in the Customer Admin Account.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM  miniOrange dashboard

  • Enable the "Enable User Auto Registration" option and click Save.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM  Enable User Auto Registration

  • (Optional) To send a welcome email to all the end users that will be imported, enable the "Enable sending Welcome Emails after user registration" option and click Save.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM  Enable sending Welcome Emails after user registration

  • From the Left-Side menu of the dashboard select Provisioning.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM  User Sync/Provisioning

  • In Setup Provisioning tab select Active Directory in the Select Application Drop Down.
  • Toggle the Import Users tab, click on Save button.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM  User Sync Active Directory Configuration

  • On the same section, switch to Import Users section.
  • Select Active Directory from the dropdown and click on the Import Users tab, to import all the users from Active Directory to miniOrange.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM  User Sync Import Operation

  • You can view all the Users you have imports by selecting Users >> User List from Left Panel.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM  User List

  • All the imported users will be auto registered.
  • These groups will be helpful in adding multiple 2FA policies on the applications.

miniOrange integrates with various external user sources such as directories, identity providers, and etc.

Not able to find your IdP or Need help setting it up?


Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.



5. Creating User Groups (Recommended)


  • This step involves Importing the user group from the Active Directory and Provisioning them.
  • Go to Provisioning. Switch to Setup Provisioning tab and select Active Directory from Dropdown menu.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM : Select Active Directory (AD)

  • Select Group Provisioning/Deprovisioning tab, and toggle on Import Group option.
  • If you want to dynamically allocate users to the groups present in the miniOrange, then enable "Assign Users to groups"
  • Enter the Base DN for group sync and click Save.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM : Switch on import Group

  • Now switch to Import Groups option and select Active Directory from which you want to import your users.
  • Finally, click on Import button. Your group will be imported.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM : User group imported successfully

    (The Active Directory Group Provisioning (Sync) setup is done. Now, whenever a user is created or modified in LDAP server and if the Assign Users to groups is enabled, then user group attribute from the LDAP server will be automatically synced and the user group will be assigned or changed accordingly in miniOrange.)

  • Select Groups >> Manage Groups from left panel.
  • Click on the Create Group button on the top.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM  Manage Groups

  • Enter an appropriate Group Name and click on Create Group.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM  Create Groups

  • In this guide we have created a Group by name VPN_Group.
  • Assign various members to the group using the Assign User option associated with the group in the groups list.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM  User Assign

  • Select the Users that are required to be assigned to this group. Then Select Assign to Group in Select Action Dropdown and click on Apply button.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM  Assignment to Group

  • These groups will be helpful in adding multiple 2FA policies on the applications.

6. Configure 2FA/MFA for End-Users

  • To enable 2FA/MFA for WatchGuard XTM endusers, go to 2-Factor Authentication >> 2FA for end users.
  • Select default Two-Factor authentication method for end users. You can select particular 2FA methods, which you want to show on the end users dashboard.
  • Once Done with the settings, click on Save to configure your 2FA settings.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM  Configure 2FA Panel

  • Login into your End-User Dashboard using end user login URL.
  • For Cloud Version: The Login URL for end users will be available after setting up Organisation name.
  • (You can follow these steps and use the login URL present in the Branding section.)

    MFA/Two-Factor Authentication(2FA) for WatchGuard XTM Cloud and On-Premise end-users Login URL

  • For On-Premise version: The Login URL will be the same as of Admin Login URL.
  • Select Configure 2FA from left panel.
  • Browse through the Second factor options and choose an appropriate method to be used by the particular End-User during login.
  • For now, we have selected the "OTP OVER SMS"as our 2FA method. You can explore the guide to setup other 2FA methods here.
  • Click on Configure/Reconfigure "OTP OVER SMS".
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM  Configure 2FA Panel

  • Enter you Phone Number along with the necessary country code and click on the SAVE below.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM  Configure Second Factor-SMS(Enter Mobile Number)

  • After the Phone details are saved successfully, click on the Save button on the top bar to set this as your 2FA method.
  • Currently used method is represented by green color.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM  Configure Second Factor-SMS(Enter Mobile Number)

  • To use a particular method of 2FA, we configure that method first and then select the method and click on SAVE.
  • Admin can change the second factor of the End user from the User List.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM: User list in miniOrange

  • Under Action Click on Select and then select Reset Second Factor.
  • MFA/2FA Two-Factor authentication for WatchGuard XTM: User list(Reset second factor)

7. Add Another Policy (Optional)

  • Here, we will configure a policy for the User Group that we created in the Step 5 and associate it with the WatchGuard XTM VPN Application.
  • Click on Policies tab >> App Login Policy.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM  App Authentication Policy

  • Click on Add Policy tab.
  • In Application section, select the RADIUS App that we configured earlier in Step 1.
  • Select the required User Group in Group Name and enter the Policy name.
  • In this guide, we will configure a Password Only policy for "VPN_Group", so that only the VPN_Group members can access VPN Services without a Second Factor.
  • Once done with the policy settings, click on Save to Add Policy.
  • MFA/Two-Factor Authentication(2FA) for WatchGuard XTM  App Add Policy

8. Test miniOrange 2FA for WatchGuard XTM Login

  • Navigate to your WatchGuard clientless VPN portal or use a WatchGuard client and attempt access.
  • It will prompt you for 2 Factor code if you have enabled two-factor authentication in miniOrange policy.
  • Enter your 2 Factor code and you should be connected to Watchguard VPN.
To authenticate with a TOTP:
  • Open your Mobile VPN with SSL/IPsec client.
  • Type your miniOrange user name and password.
  • Click Connect.
  • Two-Factor Authentication (2fa) for WatchGuard XTM Test Integration

9. Troubleshooting

  • Login to miniOrange Admin Dashboard.
  • Click on Reports >> Radius User Authentication Report.
  • MFA 2FA two-factor authentication for WatchGuard XTM : Authentication Reports

  • Enter Enduser Identifier and Date range.
  • Click on Search.
  • MFA 2FA two-factor authentication for WatchGuard XTM : Enduser Authentication Logs

Further References

Our Other Identity & Access Management Products
