Two-Factor Authentication (2FA/MFA) for Barracuda CloudGen Firewall
Barracuda is used to provide security to site-to-site connections. Also, it secures a point-to-point connection. You can enable two-factor authentication (2FA) for your Barracuda CloudGen Firewall managed active directory to increase security level. When you enable 2FA, your users enter their username and password (first factor) as usual, and as a second factor they have to enter an authentication code which will be shared virtually on their device or in the form of a hardware token. This 2FA/MFA solution adds an additional security measure to prevent unwanted users getting access to your Barracuda CloudGen Firewall.
miniOrange MFA/2FA authentication for Barracuda CloudGen Firewall Login
miniOrange accomplishes this by acting as a RADIUS server that accepts the username/password of the user entered as a RADIUS request and validates the user against the user store as Active Directory (AD). After the first level of authentication, miniOrange prompts the user with 2-factor authentication and either grants/revokes access based on the input by the user.
- Primary authentication initiates with the user submitting his Username and Password for Barracuda CloudGen Firewall.
- User request acts as an authentication request to RADIUS Server(miniOrange).
- miniOrange RADIUS server passes user credentials to validate against the credentials stored in AD (Active Directory) / Database.
- Once the user's first level of authentication gets validated AD sends the confirmation to RADIUS Server.
- Now miniOrange RADIUS Server asks for a 2-factor authentication challenge to the user.
- Here user submits the response/code which he receives on his hardware/phone.
- User response is checked at miniOrange’s RADIUS Server side.
- On successful 2nd factor authentication the user is granted access to login.
Connect with any External Directories
miniOrange provides user authentication from various external directories such as miniOrange Directory, Microsoft AD, Microsoft Entra ID/LDAP, AWS Cognito and many more.
Can't find your Directory? Contact us on idpsupport@xecurify.com
Get Free POC - Book a Slot
miniOrange offers free POC and help through a consultation call with our System Engineers to Setup Multi-Factor Authentication for Barracuda CloudGen Firewall in your environment with 30-day trial.
For this, you need to just send us an email at idpsupport@xecurify.com to get free POC and we'll help you setting up our solution in no time.
Get Free POC
Enable Multi Factor Authentication MFA/2FA for Barracuda CloudGen Firewall
1. Configure Barracuda CloudGen Firewall in miniOrange
- Login into miniOrange Admin Console.
- Click on Customization in the left menu of the dashboard.
- In Basic Settings, set the Organization Name as the custom_domain name.
- Click Save. Once that is set, the branded login URL would be of the format https://<custom_domain>.xecurify.com/moas/login
- Go to Apps Click on Add Application button.
- In Choose Application, select RADIUS (VPN) from the application type dropdown.
- Click on Barracuda CloudGen Firewall application tab. If you don't find your application click on Radius Client application tab.
- Click on "Click here" to get the Radius server IPs.
- Copy and save the Radius server IP which will be required to configure your Radius client.
- Configure the below details to add Radius Client.
Client Name: |
Any name for your reference. |
Client IP: |
IP address of VPN server which will send Radius authentication request. |
Shared Secret: |
Security key. For Eg. "sharedsecret" (Keep this with you, you will need to configure same on VPN Server). |
- Click Next.
- Under the Attribute Mappings tab, enable the toggle if you want to Send Custom Attributes in response.
- To send groups in response, you can refer the below table for Vendor group attributes id.
Vendor Name |
Vendor Attribute |
Value Type |
Attribute |
Cisco ASA |
ASA-Group_policy |
User |
Groups |
Fortinet |
Fortinet-Group-Name |
User |
Groups |
Palo Alto |
PaloAlto-user-Group |
User |
Groups |
SonicWall |
Sonicwall-user-group |
User |
Groups |
Citrix |
Citrix-user-groups |
User |
Groups |
Default(Can be used if your vendor is not in the list) |
Filter-Id |
User |
Groups |
- Value Type and Attribute can be changed based on the requirement.
- Click on Next to proceed.

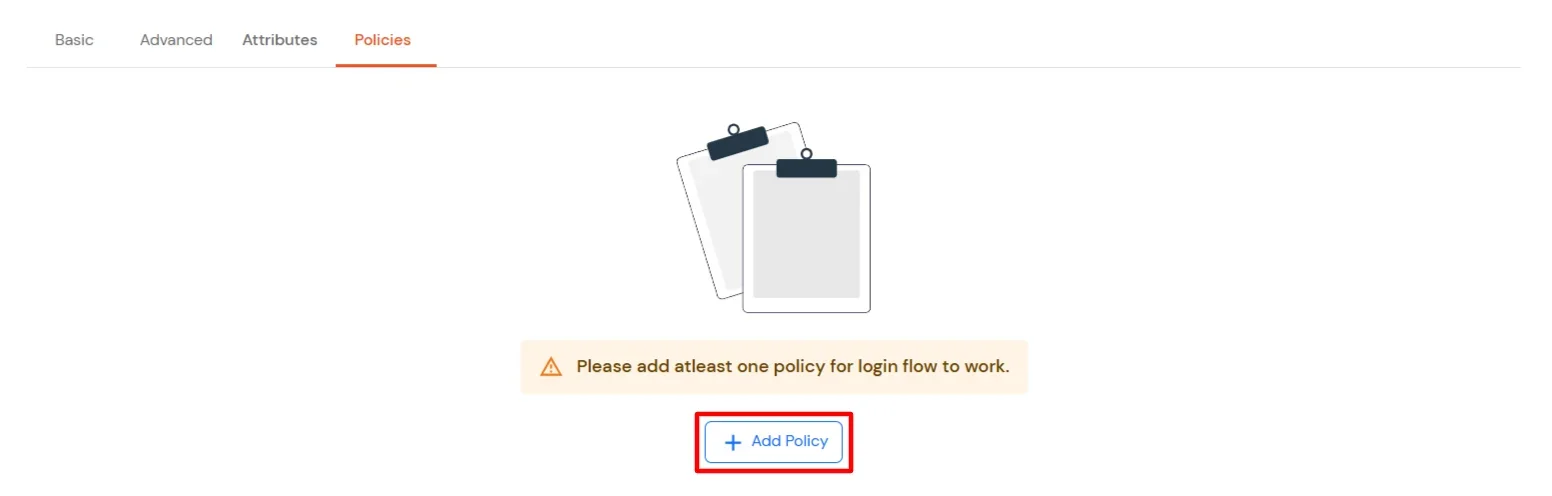

- Configure the following Policy details for the Radius Client.
Group Name: |
Group for which the policy will apply. |
Policy Name: |
Any Identifier that specifies policy name. |
Login Method |
Login Method for the users associated with this policy. |
Enable 2-Factor Authentication |
Enables Second Factor during Login for users associated with this policy. |
Enable Adaptive Authentication |
Enables Adaptive Authentication for Login of users associated with this policy. |
- After configuring the given above details, Click on Save button.
Note: You can follow
this guide, if you want to configure Radius MFA using MSCHAPv2 protocol.
NOTE: For On-Premise version follow the below steps before testing the connectivity.
Only For On-Premise Version
Open Firewall Ports.
- In order to receive the RADIUS request, it is necessary to open UDP traffic on ports 1812 and 1813 for the machine where On-Premise IdP is deployed.
- If the hosting machine is a Windows Machine then you can follow this document.
- If the hosting machine is a Linux Machine then you can follow this document.
NOTE: If your machine is hosted on AWS, then enable the ports from the AWS panel.
2. Configure RADIUS in Barracuda CloudGen Firewall
- Go to CONFIGURATION > Configuration Tree > Box > Infrastructure Services > Authentication Service.
- In the left navigation pane, select RADIUS Authentication.
- Click Lock.
- From the Configuration Mode menu on the left, select Advanced View.
- Enable RADIUS as external directory service.
- In the Radius Server Address / Port fields, enter the Radius IP address i.e. 54.88.205.67 and port of the RADIUS server (default: port 1812).
- In the Radius Server Key section, define the pre-shared secret to authorize requests. The pre-shared secret can consist of small and capital characters, numbers, and non alpha-numeric symbols, except backslashes and the hash sign (#).
- From the Group Attribute Delimiter list, you can select how groups are delimited in a list. To explicitly specify a delimiter character, select the Other checkbox and enter the character in the Group Attribute Delimiter field.
- From the Group Attribute Usage list, you can select the group information that is used (e.g.: CN=…, OU=…, DC=…). You can select:
- All (default) – Complete string
- First – Only the first group
- Last – Only the last group
- If group information is queried from a different authentication scheme, select the scheme from the User Info Helper Scheme list.
- When using RADIUS for Multi Factor Authentication (MFA), increase the Timeout for the RADIUS server to respond to 60.
- Click Send Changes and Activate.
RADIUS Authentication Through the Remote Management Tunnel
To allow remote CloudGen Firewalls to connect to the authentication server through the remote management tunnel, you must activate the outbound BOX-AUTH-MGMT-NAT Host Firewall rule. By default, this rule is disabled.
Using RADIUS with Multi-Factor Authentication (MFA)
- When using RADIUS for MFA, you must increase the Request Timeout in Timeouts and Logging from 10 to 60 for the firewall to wait for the RADIUS server MFA response.
- For VPN client-to-site setup with RADIUS MFA, you must also increase the Handshake Timeout in the VPN Settings from 10 to 60.
3. Configure Your User Directory
miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Microsoft Entra ID, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Okta, Shibboleth, Ping, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more. You can configure your existing directory/user store or add users in miniOrange.
Note: You can follow this guide, if you want to configure Radius MFA with your users stored in Microsoft Entra ID using OAuth Password Grant.
Configure your existing directories such as Microsoft Active Directory, Microsoft Entra ID, OpenLDAP, etc.
- Click on External Directories >> Add Directory in the left menu of the dashboard.
- Select Directory type as AD/LDAP.
- STORE LDAP CONFIGURATION IN MINIORANGE: Choose this option if you want to keep your configuration in miniOrange. If active directory is behind a firewall, you will need to open the firewall to allow incoming requests to your AD.
- STORE LDAP CONFIGURATION ON PREMISE: Choose this option if you want to keep your configuration in your premise and only allow access to AD inside premises. You will have to download and install miniOrange gateway in your premise.
- Enter LDAP Display Name and LDAP Identifier name.
- Select Directory Type as Active Directory.
- Enter the LDAP Server URL or IP Address against LDAP Server URL field.
- Click on Test Connection button to verify if you have made a successful connection with your LDAP server.
- In Active Directory, go to the properties of user containers/OU's and search for Distinguished Name attribute.
- Enter the valid Bind account Password.
- Click on Test Bind Account Credentials button to verify your LDAP Bind credentials for LDAP connection.
- Search Base is the location in the directory where the search for a user begins. You will get this from the same place you got your Distinguished name.
- Select a suitable Search filter from the drop-down menu. If you use User in Single Group Filter or User in Multiple Group Filter, replace the <group-dn> in the search filter with the distinguished name of the group in which your users are present. To use custom Search Filter select "Write your Custom Filter" option and customize it accordingly.
- You can also configure following options while setting up AD. Enable Activate LDAP in order to authenticate users from AD/LDAP. Click on the Save button to add user store.
Here's the list of the attributes and what it does when we enable it. You can enable/disable accordingly.
Attribute |
Description |
Activate LDAP |
All user authentications will be done with LDAP credentials if you Activate it |
Sync users in miniOrange |
Users will be created in miniOrange after authentication with LDAP |
Fallback Authentication |
If LDAP credentials fail then user will be authenticated through miniOrange |
Allow users to change password |
This allows your users to change their password. It updates the new credentials in your LDAP server |
Enable administrator login |
On enabling this, your miniOrange Administrator login authenticates using your LDAP server |
Show IdP to users |
If you enable this option, this IdP will be visible to users |
Send Configured Attributes |
If you enable this option, then only the attributes configured below will be sent in attributes at the time of login |
- Click on Save. After this, it will show you the list of User stores. Click on Test Connection to check whether you have enter valid details. For that, it will ask for username and password.
- On Successful connection with LDAP Server, a success message is shown.
- Click on Test Attribute Mapping.
- Enter a valid Username. Then, click on Test. Mapped Attributes corresponding to the user are fetched.
- After successful Attribute Mapping Configuration, go back to the ldap configuration and enable Activate LDAP in order to authenticate users from AD/LDAP.
Refer our guide to setup LDAPS on windows server.
User Import and Provisioning from AD
Note: Below steps are used to enable one time or manual sync. To enable sync on scheduled basis, you should use LDAP gateway module. Read more and download the LDAP gateway module.
- Go to Settings >> Product Settings in the Customer Admin Account.
- Enable the "Enable User Auto Registration" option and click Save.
- (Optional) To send a welcome email to all the end users that will be imported, enable the "Enable sending Welcome Emails after user registration" option and click Save.
- From the Left-Side menu of the dashboard select Provisioning.
- In Setup Provisioning tab select Active Directory in the Select Application drop-down.
- Toggle the Import Users tab, click on Save button.
- On the same section, switch to Import Users section.
- Select Active Directory from the dropdown and click on the Import Users tab, to import all the users from Active Directory to miniOrange.
- You can view all the Users you have imports by selecting Users >> User List from Left Panel.
- All the imported users will be auto registered.
- These groups will be helpful in adding multiple 2FA policies on the applications.
Creating User Groups (Recommended)
- Select Groups >> Manage Groups from left panel.
- Click on the Create Group button on the top.
- Enter an appropriate Group Name and click on Create Group.
- In this guide we have created a Group by name VPN_Group.
- Assign various members to the group using the Assign User option associated with the group in the groups list.
- Select the Users that are required to be assigned to this group. Then Select Assign to Group in Select Action Dropdown and click on Apply button.
- These groups will be helpful in adding multiple 2FA policies on the applications.
4. Setup MFA for Barracuda CloudGen Firewall
Note: You can follow this guide, if you want to customize and enroll MFA for end users.
- Here, we will configure a policy for the User Group that we created in this step and associate it with the Barracuda CloudGen Firewall VPN Application.
- Click on Policies tab >> App Login Policy.
- Click on Add Policy tab.
- In Application section, select the RADIUS App that we configured earlier in Step 1.
- Select the required User Group in Group Name and enter the Policy name.
- In this guide, we will configure a Password Only policy for "VPN_Group", so that only the VPN_Group members can access VPN Services without a Second Factor.
- Once done with the policy settings, click on Save to Add Policy.
5. Test Barracuda CloudGen Firewall MFA
- Connect to the URL you normally use to log in to your Barracuda CloudGen Firewall.
- Enter your AD username & password and click on Connect.
- Now, you will be prompted for the 2-factor authentication code. Enter the code and click on Continue.
- After successful validation, you will be connected to Barracuda CloudGen Firewall.
Troubleshooting
How can I check RADIUS User audit logs in miniOrange admin dashboard?
- Login to miniOrange Admin Dashboard.
- Click on Reports >> Radius User Authentication Report.
- Enter Enduser Identifier and Date range.
- Click on Search.
Frequently Asked Questions (FAQs)
What is Multi-Factor Authentication (MFA)?
Multi-Factor Authentication (MFA) is an authentication method that requires the user to authenticate themselves for two or more factors, in order to gain access to company resources, applications, or a VPN (Barracuda CloudGen Firewall in this case). Enabling Multi-Factor Authentication (MFA) means that users need to provide additional verification factors apart from their username and passwords thus increasing the security of the organization's resources. Checkout more about Multi-Factor Authentication (MFA) here.
Three common authentication methods for MFA security are:
- Knowledge: Something that the user knows.
- Possession: Something that the user possesses or has.
- Inherence: Usually referred to a biometric factor.
Types of 2FA Authentication with RADIUS:
Depending on the VPN client, 2-factor authentication can take two forms..
- VPN Clients that support RADIUS Challenge.
- VPN Clients that do not support RADIUS Challenge.
What are different 2FA/MFA methods for Barracuda CloudGen Firewall supported by miniOrange?
miniOrange supports multiple 2FA/MFA authentication methods for Barracuda CloudGen Firewall secure access such as, Push Notification, Soft Token, Microsoft / Google Authenticator etc.
Authentication Type | Method | Supported |
miniOrange Authenticator | Soft Token | |
miniOrange Push Notification | |
Mobile Token | Google Authenticator | |
Microsoft Authenticator | |
Authy Authenticator | |
SMS | OTP Over SMS | |
SMS with Link | |
Email | OTP Over Email | |
Email with Link | |
Call Verification | OTP Over Call | |
Hardware Token | YubiKey Hardware Token | |
Display Hardware Token | |
