Two-Factor Authentication (2FA) for Office 365


Office 365 Two-Factor Authentication (2FA) or Multi-Factor Authentication is the process of secure Authentication in which a user or an organizational employee have to provide two factors to gain the access to Office 365 data. Microsoft Office 365 Two-Factor Authentication starts with user submitting his traditional username and password. Once user successfully gets authenticated with the 1st step verification, configured 2FA (OTP over SMS, Push Notifications, Google Authenticator, Microsoft Authenticator etc) method prompts on for 2nd-step verification. After successfully authenticating with both of the steps a user is granted with the access to the Office 365 resources. This additional layer prevents the unauthorized person from accessing the resources even if cyber attackers get to know your credentials.


miniorange provides 15+ Multi-Factor Authentication (MFA) methods and solutions for various use cases. It allows users and organization to setup certain authentication and settings which includes password restrictions, restricting sign-in methods, as well as other security settings. miniorange also make way for authentication apps that support Time-Based One-Time Password (TOTP) Google Authenticator, Microsoft Authenticator, Authy 2-Factor authentication app and our own miniorange Authenticator app. Follow the given guide to setup Office 365 MFA.


Connect with External Source of Users


miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Azure AD, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Shibboleth, Ping, Okta, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more.



Apps supported by miniOrange



two factor authentication (2FA) miniOrange authenticator app

miniOrange
Authenticator App


two factor authentication (2FA) google authenticator app

Google
Authenticator App


two factor authentication (2FA) authy authenticator app

Authy 2-Factor
Authentication App


two factor authentication (2FA) Microsoft authenticator app

Microsoft
Authenticator App



Prerequisites

    1. Sync On-Premise Active Directory with Azure Active Directory

      NOTE: If you want to use your On-Premise Active Directory as a user store to Single Sign-On into Office 365 then follow the below steps to sync your AD and Azure AD.

    • Download the Azure AD Connect
    • Run the Azure AD installer on your domain machine and follow the setup.

    2. Verify your UPN Domain in Azure Portal

    • In the Azure portal navigate to Azure Active Directory >> Custom domain names and click on Add custom domain.
    • Enter the full domain name in the right pane that pops up and click on Add domain.
    • Office 365 Single Sign-On (SSO) Add custom domain

    • A new window will open up with TXT/MX records for the domain. You will have to add the resented entry in your domain name registrar.
    • Office 365 Single Sign-On (SSO) Add domain record

    • Click on verify once you have added the entry

Follow the Step-by-Step Guide given below for Office 365 Single Sign-On (SSO)

1. Setup a Custom Branded URL in miniOrange Admin Console

Single Sign-On into Office 365 requires a custom branded URL to be set. Access to miniOrange and connected resources will need to be through the custom branded URL in the format: https://<custom_domain>.xecurify.com/moas

  • Login to miniOrange Admin Console.
  • Click on Customization in the left menu of the dashboard.
  • In Basic Settings, set the Organization Name as the custom_domain name.
  • Click Save. Once that is set, the branded login URL would be of the format https://<custom_domain>.xecurify.com/moas/login
  • Office 365 Single Sign-On (SSO) setting up branding

2. Configure Office 365 in miniOrange

  • Login into miniOrange Admin Console.
  • Go to Apps and click on Add Applicaton button.
  • Office 365 Single Sign-On (SSO) add app

  • In Choose Application Type click on Create App button in SAML/WS-FED application type.
  • Office 365 Single Sign-On (SSO) choose app type

  • In the next step, search for Office 365. Click on Office 365 app.
  • Office 365 Single Sign-On (SSO) add Office 365 app

  • Make sure the SP Entity ID or Issuer is: urn:federation:MicrosoftOnline
  • Make sure the ACS URL is: https://login.microsoftonline.com/login.srf
  • Click on Next.
  • Office 365 Single Sign-On (sso) configuration steps

  • Configure Name ID based on the User Store you are using:
    • Using Active Directory / miniOrange brokering service: Select External IDP Attribute from the dropdown and add objectguid in the text-box that appears.
    • Office 365 Single Sign-On (sso) configuration steps
    • Using miniOrange as a User Store: Select Custom Profile Attribute and select a Custom Attribute from the drop-down.
    • Office 365 Single Sign-On (sso) configuration steps

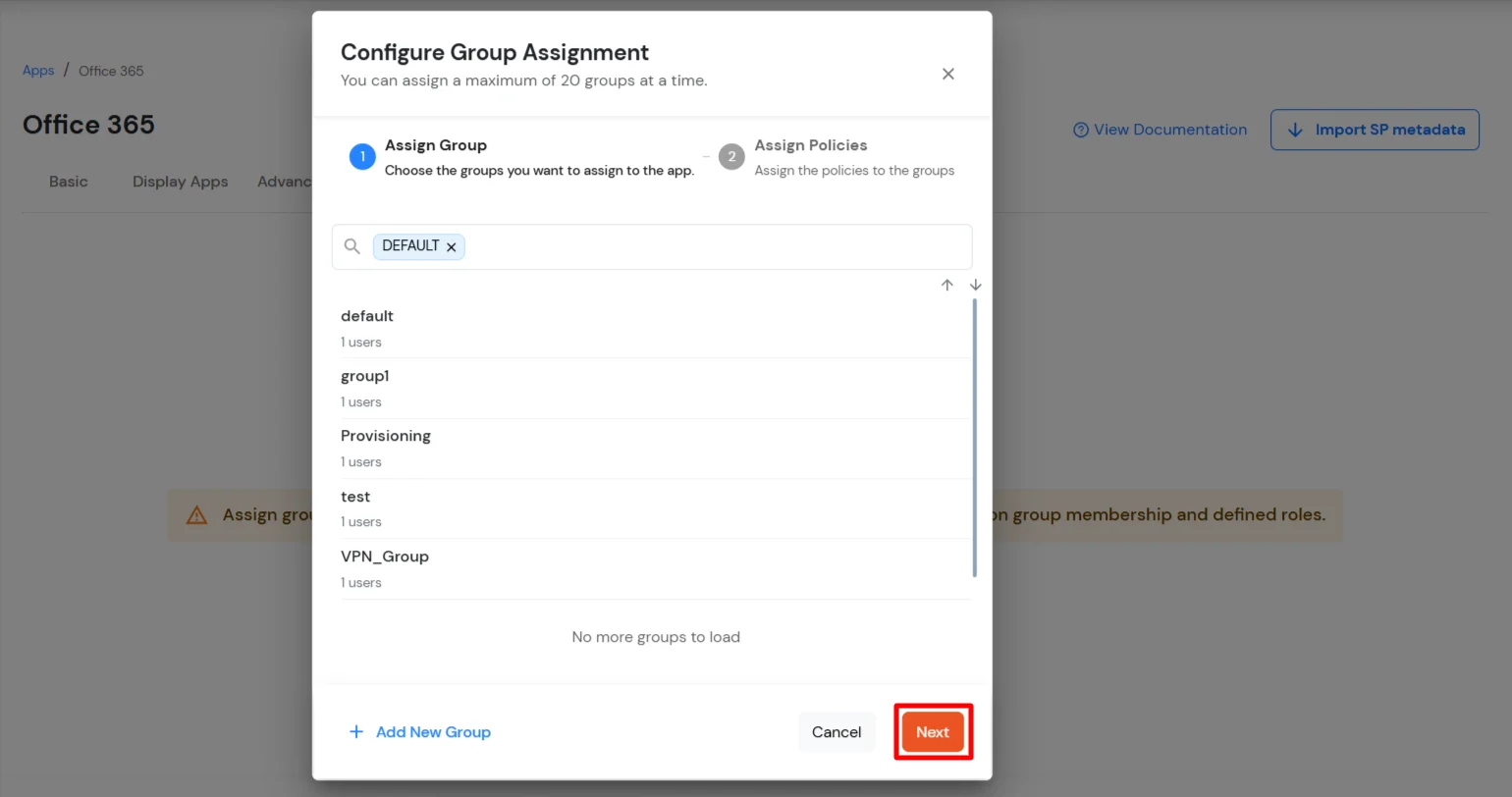

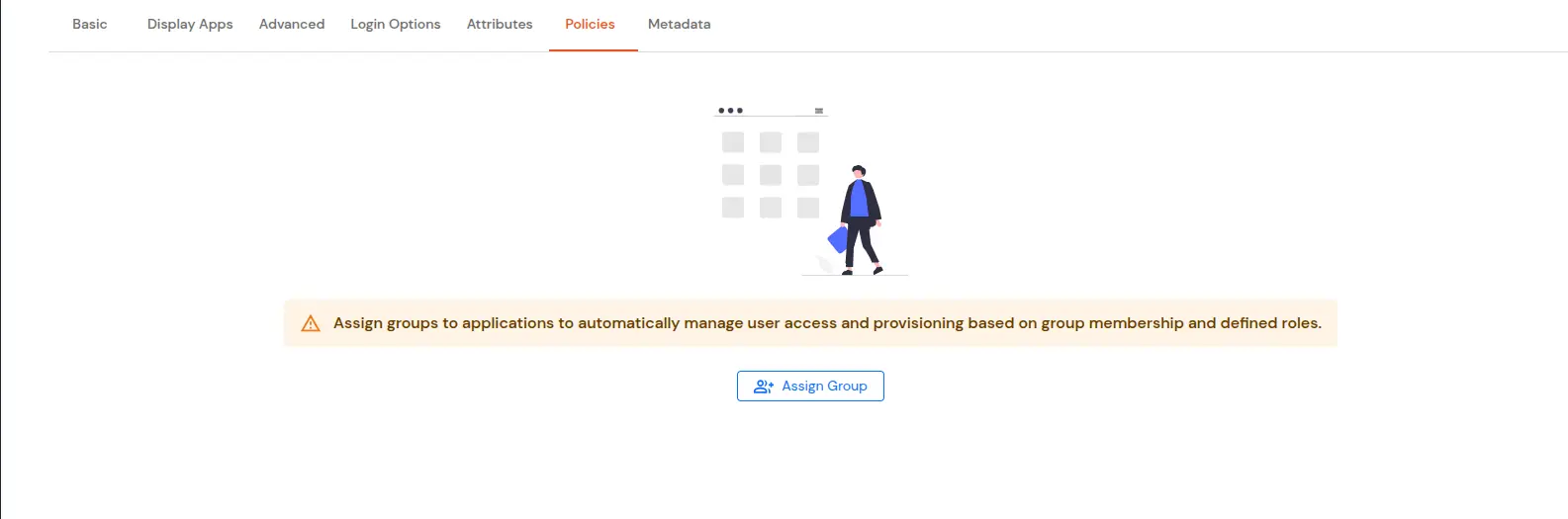

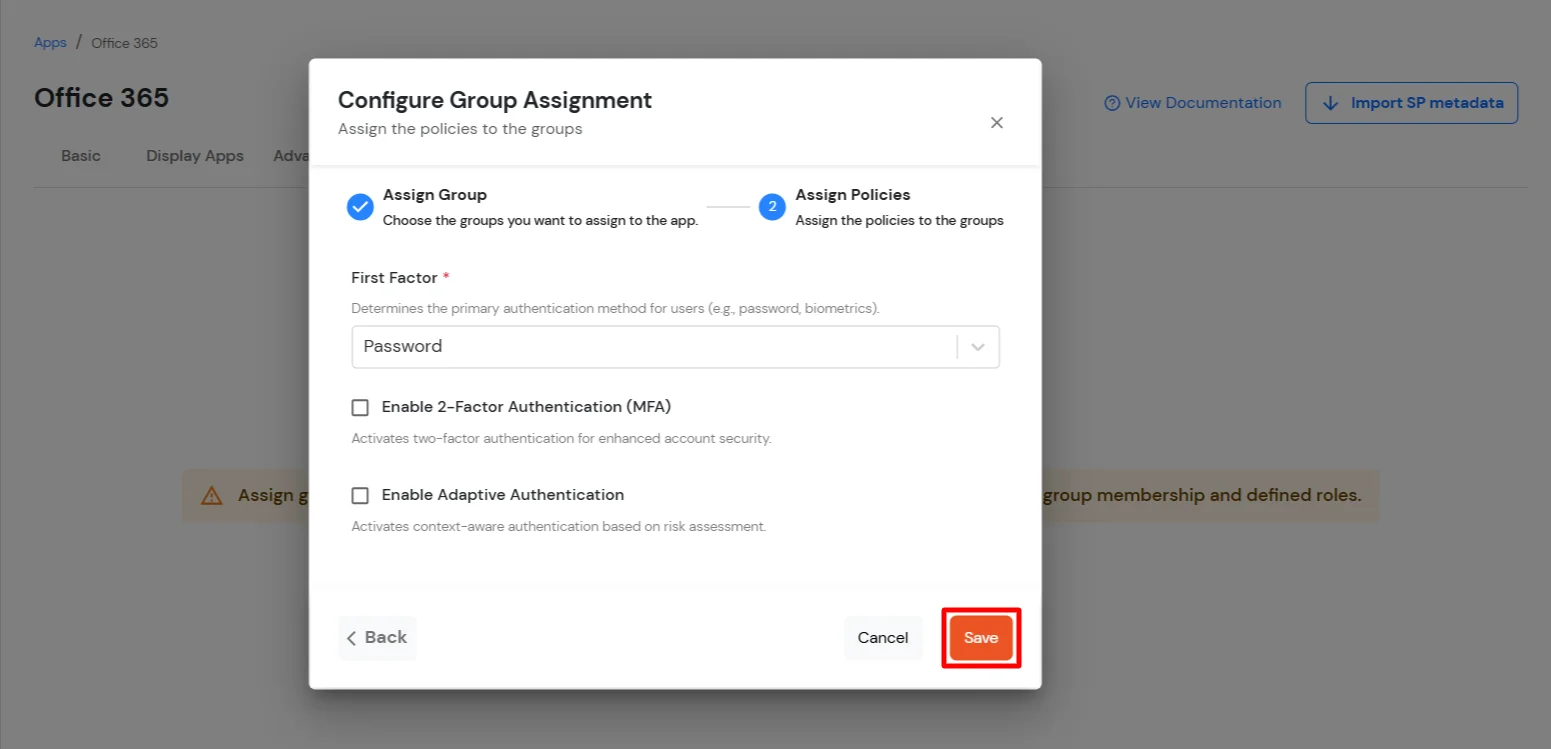

  • Set the login policy. You can choose to enable 2FA for login or have users login using a standard username-password.

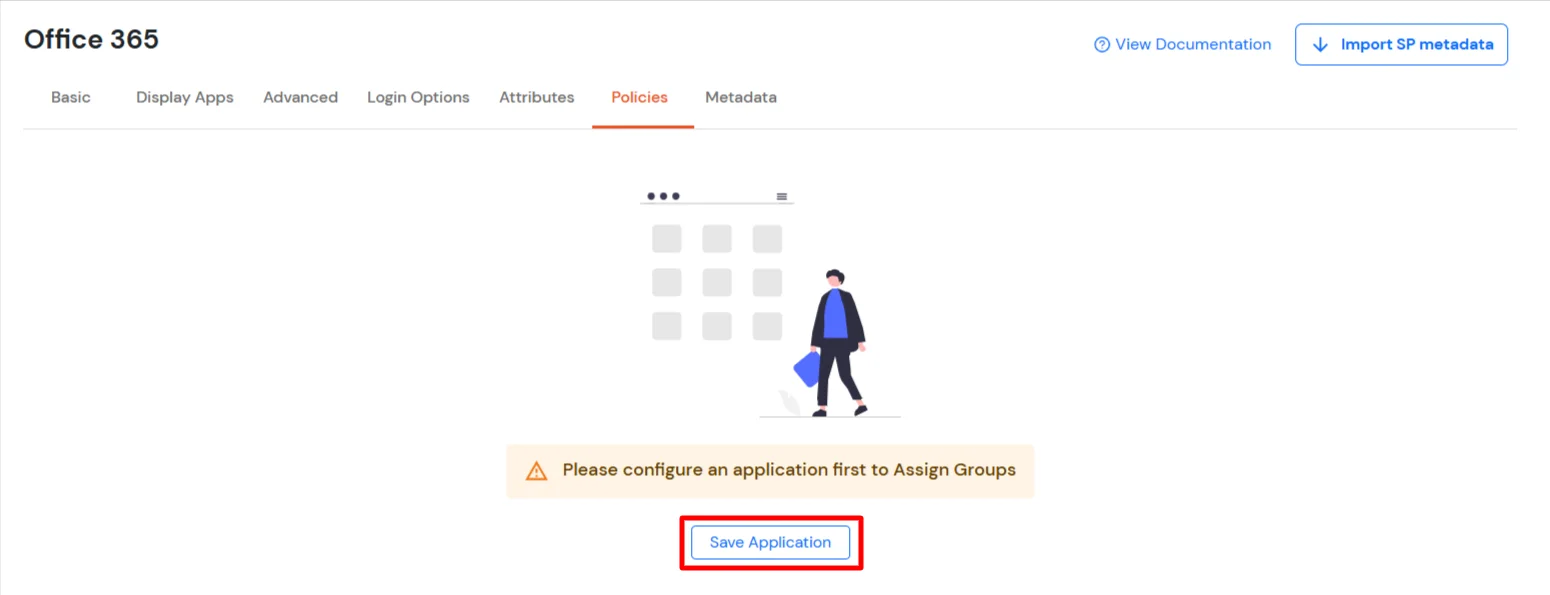

  • Click on Save to configure Office 365.
  • Office 365 Single Sign-On (sso) configuration steps

3. Configure Microsoft Online Services

  • Click on Select dropdown and choose Metadata.
  • Office 365 Single Sign-On (SSO) Select Metadata

  • Click on the Download Federate Domain Script button under "INFORMATION REQUIRED TO AUTHENTICATE VIA EXTERNAL IDPS"
  • Office 365 Single Sign-On (SSO) Download federate domain script button.

  • Enter the domain name that you want to federate and click on Download. Note: You cannot federate your default "onmicrosoft.com" domain. To federate your Office 365 tenant, you must add a custom domain to Office 365.
  • Office 365 Single Sign-On (SSO) Download Federate Domain Script

  • After downloading the script, Open PowerShell run the federate_domain script using: cd ./Downloads powershell -ExecutionPolicy ByPass -File federate_domain.ps1
  • Office 365 Single Sign-On (SSO) Run Federate Domain Script

  • Your domain is now federated. Use the commands below to check your federation settings: Connect-MsolService Get-MsolDomainFederationService
  • Office 365 Single Sign-On (SSO) Verify Federated Domain

4. Configure 2FA for Office 365

    4.1: Configure 2FA for miniOrange Admin Dashboard.

    • From your miniOrange Dashboard in the left navigation bar, select 2-Factor Authentication, click on Configure 2FA.

    • Configure Two-Factor authentication for Office 365

    • Choose any 2FA method you want to configure.
    • Let's say you want to enable OTP over SMS
    • Click on OTP over SMS
    • Multi-Factor Authentication for Office 365 otp over sms

      Two-factor authentication for Office 365 enter phone no

    • Now add your mobile number on which you want to receive the OTP.
    • Then click on Save.
    • Two-factor authentication for Office 365 save phone number

      Two-factor authentication for Office 365 otp over sms active

    • Now as shown in the above image, OTP over SMS is your Active 2FA method.
    • Enable Prompt for second factor during signin to your console.
    • Then click on Save.
    • Two-factor authentication for Office 365 enable 2fa Prompt

    • To verify the configuration login again.
    • You will be asked for Username and password then it is redirected to below page:
    • Enter the OTP received on the phone and click on verify.
    • Two-factor-authentication for Office 365 2fa otp verification

    • If you are redirected to your dashboard, you have successfully configured OTP over SMS as your 2FA method.
    • Similarly you can configure rest of the 2FA methods for miniOrange dashboard by following this guide.
    • To configure 2FA methods for end-users, you can find the guide here.

    4.2: Enable 2FA for Users of Office 365 application.

    • To enable 2FA for Users of Office 365 application. Go to Policies >> App Authentication Policy
    • Click on Edit against the configured application
    • configure Two-factor authentication for Office 365 application

    • Toggle on the Enable 2-Factor Authentication (2FAMFA) option.
    • Enable Two-factor authentication(2fa/mfa) for Microsoft Office 365

    • Click on Save.

5. Now sign in to your Microsoft Office 365 account with miniOrange IdP by either of the two steps:

    1. Using SP initiated login :-

    1. Go to Office 365 Login and click on sign-in.
    2. You will be redirected to Microsoft Online portal. Here you have to enter the UPN of the user.(It should contain the domain that is federated with miniOrange)
    3. Now you will be redirected to miniOrange IdP Sign On Page.

    4. Enter Microsoft UPN for Office 365 2FA Integration

    5. Enter your login credential and click on Login.
    6. Since we have Two-factor authentication(2FA) enabled, you will be prompted to register for it. It's a one time process.
    7. Configure your basic details.
    8. Office 365 Multi-Factor Authentication(mfa) setup user registration

    9. Configure any authentication method of your choice.
    10. Office 365 Two-factor authentication(2fa) add new security

    11. After successful registration, you will be logged in to your Office 365 account.
    12. Now we have Two-factor authentication enabled.
    13. To verify your Two-factor authentication(2FA) configuration, go to your Office 365 Domain. You will be redirected to miniOrange login console.
    14. Office 365 Two-factor authentication(2fa) verify user credentials

    15. Enter your login credentials, and click on login. It will prompt to verify yourself against the configured 2fa method.
      e.g. If you have configured OTP over SMS, after login into Office 365 it will prompt for OTP.
    16. Office 365 Two-Factor authentication(2fa) OTP Prompt

    17. Enter the OTP received in your phone, after successful 2fa verification, you will be redirected to the Office 365 dashboard.

    2. Using IdP initiated login :-

    1. Login to your miniOrange Self Service Console as an End User and click on the Office 365 icon on your Dashboard.
    2. Once you click on Office 365 you don't need to enter credentials again you will be redirected to Office 365 account.
    3. Select office 365 for 2FA security login

6. Configure Your User Directory (Optional)

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Azure AD, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Okta, Shibboleth, Ping, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more. You can configure your existing directory/user store or add users in miniOrange.



  • To add your users in miniOrange there are 2 ways:
  • 1. Create User in miniOrange

    • Click on Users >> Add User.
    • Office 365 VPN 2FA : Add user in miniOrange

    • Here, fill the user details without the password and then click on the Create User button.
    • Office 365 MFA: Add user details

    • After successful user creation a notification message "An end user is added successfully" will be displayed at the top of the dashboard.
    • Office 365 Two-Factor Authentication: Add user details

    • Click on On Boarding Status tab. Check the email, with the registered e-mail id and select action Send Activation Mail with Password Reset Link from Select Action dropdown list and then click on Apply button.
    • Office 365 2FA: Select email action

    • Now, Open your email id. Open the mail you get from miniOrange and then click on the link to set your account password.
    • On the next screen, enter the password and confirm password and then click on the Single Sign-On (SSO) reset password button.
    • Office 365 Multi-Factor Authentication: Reset user password
    • Now, you can log in into miniOrange account by entering your credentials.

    2. Bulk Upload Users in miniOrange via Uploading CSV File.

    • Navigate to Users >> User List. Click on Add User button.
    • Office 365 2FA: Add users via bulk upload

    • In Bulk User Registration Download sample csv format from our console and edit this csv file according to the instructions.
    • Office 365 Two-Factor authentication: Download sample csv file

    • To bulk upload users, choose the file make sure it is in comma separated .csv file format then click on Upload.
    • Office 365 2FA : Bulk upload user

    • After uploading the csv file successfully, you will see a success message with a link.
    • Click on that link you will see list of users to send activation mail. Select users to send activation mail and click on Send Activation Mail. An activation mail will be sent to the selected users.
  • On miniOrange dashboard left side menu, click on User Stores >> Add User Store.
  • Office 365 2FA: Configure User Store

  • Select User Store type as AD/LDAP.
  • Office 365 2FA: Select AD/LDAP as user store

    1. STORE LDAP CONFIGURATION IN MINIORANGE: Choose this option if you want to keep your configuration in miniOrange. If active directory is behind a firewall, you will need to open the firewall to allow incoming requests to your AD.
    2. STORE LDAP CONFIGURATION ON PREMISE: Choose this option if you want to keep your configuration in your premise and only allow access to AD inside premises. You will have to download and install miniOrange gateway in your premise.
    3. Office 365 Two-Factor Authentication : Select ad/ldap user store type

  • Enter LDAP Display Name and LDAP Identifier name.
  • Select Directory Type as Active Directory.
  • Enter the LDAP Server URL or IP Address against LDAP Server URL field.
  • Click on Test Connection button to verify if you have made a successful connection with your LDAP server.
  • Office 365 MFA/2FA: Configure LDAP server URL Connection

  • In Active Directory, go to the properties of user containers/OU's and search for Distinguished Name attribute.
  • Office 365 MFA: Configure user bind account domain name

  • Enter the valid Bind account Password.
  • Click on Test Bind Account Credentials button to verify your LDAP Bind credentials for LDAP connection.
  • Office 365 MFA: Check bind account credentials

  • Search Base is the location in the directory where the search for a user begins. You will get this from the same place you got your Distinguished name.
  • Office 365 2FA : Configure user search base

  • Select a suitable Search filter from the drop down menu. To use custom Search Filter select "Custom Search Filter" option and customize it accordingly.
  • Office 365 MFA/2FA : Select user search filter

  • You can also configure following options while setting up AD. Enable Activate LDAP in order to authenticate users from AD/LDAP. Click on the Save button to add user store.
  • Office 365 MFA : Activate LDAP options

    Here's the list of the attributes and what it does when we enable it. You can enable/disable accordingly.

    Attribute Description
    Activate LDAP All user authentications will be done with LDAP credentials if you Activate it
    Sync users in miniOrange Users will be created in miniOrange after authentication with LDAP
    Backup Authentication If LDAP credentials fail then user will be authenticated through miniOrange
    Allow users to change password This allows your users to change their password. It updates the new credentials in your LDAP server
    Enable administrator login On enabling this, your miniOrange Administrator login authenticates using your LDAP server
    Show IdP to users If you enable this option, this IdP will be visible to users
    Send Configured Attributes If you enable this option, then only the attributes configured below will be sent in attributes at the time of login

  • Click on Save. After this, it will show you the list of User stores. Click on Test Configuration to check whether you have enter valid details. For that, it will ask for username and password.
  • Office 365 2FA: Test AD/Ldap connection

  • On Successful connection with LDAP Server, a success message is shown.
  • Click on Test Attribute Mapping.
  • Office 365 LDAP successful connection

  • Enter a valid Username. Then, click on Test. Mapped Attributes corresponding to the user are fetched.
  • Office 365 MFA: Fetch mapped attributes for user

  • After successful Attribute Mapping Configuration, go back to the ldap configuration and enable Activate LDAP in order to authenticate users from AD/LDAP.
  • Refer our guide to setup LDAPS on windows server.

    User Import and Provisioning from AD

  • Go to Settings in the Customer Admin Account.
  • MFA/Two-Factor Authentication(2FA) for   miniOrange dashboard

  • Enable the "Enable User Auto Registration" option and click Save.
  • MFA/Two-Factor Authentication(2FA) for   Enable User Auto Registration

  • (Optional) To send a welcome email to all the end users that will be imported, enable the "Enable sending Welcome Emails after user registration" option and click Save.
  • MFA/Two-Factor Authentication(2FA) for   Enable sending Welcome Emails after user registration

  • From the Left-Side menu of the dashboard select Provisioning.
  • MFA/Two-Factor Authentication(2FA) for   User Sync/Provisioning

  • In Setup Provisioning tab select Active Directory in the Select Application Drop Down.
  • Toggle the Import Users tab, click on Save button.
  • MFA/Two-Factor Authentication(2FA) for   User Sync Active Directory Configuration

  • On the same section, switch to Import Users section.
  • Select Active Directory from the dropdown and click on the Import Users tab, to import all the users from Active Directory to miniOrange.
  • MFA/Two-Factor Authentication(2FA) for   User Sync Import Operation

  • You can view all the Users you have imports by selecting Users >> User List from Left Panel.
  • MFA/Two-Factor Authentication(2FA) for   User List

  • All the imported users will be auto registered.
  • These groups will be helpful in adding multiple 2FA policies on the applications.

miniOrange integrates with various external user sources such as directories, identity providers, and etc.

Not able to find your IdP or Need help setting it up?


Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.



7. Adaptive Authentication with Office 365

A. Restricting access to Office 365 with IP Blocking

    You can use adaptive authentication with Office 365 Single Sign-On (SSO) to improve the security and functionality of Single Sign-On. You can allow a IP Address in certain range for SSO or you can deny it based your requirements and you can also challenge the user to verify his authenticity. Adaptive authentication manages the user authentication bases on different factors such as Device ID, Location, Time of Access, IP Address and many more.

    You can configure Adaptive Authentication with IP Blocking in following way:
  • Login to Self Service Console >> Adaptive Authentication.
  • Add a Policy Name for your Adaptive Authentication Policy.
  • Office 365 Single Sign-On (SSO) Restrict Access adaptive authnetication policy

  • Select your Action for behaviour Change and Challenge Type for user from the Action for behaviour Change Section.
  • Office 365 Single Sign-On (SSO) Restrict Access adaptive authentication behaviour change


    Action for behaviour Change Options :


    Attribute Description
    Allow Allow user to authenticate and use services if Adaptive authentication condition is true.
    Challenge Challenge users with one of the three methods mentioned below for verifying user authenticity.
    Deny Deny user authentications and access to services if Adaptive authentication condition is true.

    Challenge Type Options :

    Attribute Description
    User second Factor The User needs to authenticate using the second factor he has opted or assigned for such as
  • OTP over SMS
  • PUSH Notification
  • OTP over Email
  • And 12 more methods.
  • KBA (Knowledge-based authentication) The System will ask user for 2 of 3 questions he has configured in his Self Service Console. Only after right answer to both questions user is allowed to proceed further.
    OTP over Alternate Email User will receive a OTP on the alternate email he has configured threw Self Service Conolse. Once user provides the correct OTP he is allowed to proceed further.

  • Now Enable Enable IP Restriction option from the IP RESTRICTION CONFIGURATION section to configure custom IP range.
  • Office 365 Single Sign-On (SSO) Restrict Access adaptive authentication ip blocking

  • Select the Action you want to perform if the IP address is out of the range. i.e. Allow, Challenge & Deny.
  • Specify the IP Address range for which you want above setting to reflect. You can add more than one IP Address ranges by clicking on following button +.
  • Scroll to the end and click on save.


B. Adaptive Authentication with Limiting number of devices.

    Using Adaptive Authentication you can also restrict the number of devices the end user can access the Services on. You can allow end users to access services on a fixed no. of devices. The end users will be able to access services provided by us on this fixed no. of devices.

    You can configure Adaptive Authentication with Device Restriction in following way

  • Login to Self Service Console >> Adaptive Authentication.
  • Add a Policy Name for your Adaptive Authentication Policy.
  • Select your Action for behaviour Change and Challenge Type for user from the Action for behaviour Change Section.
  • Office 365 Single Sign-On (SSO) Restrict Access adaptive authentication behaviour and challenge type


  • Scroll down to Device Configuration section and enable Allow User to Register Device option to allow users to register their devices.
  • Enter the Number of Devices which are allowed to register in field next to Number of Device Registrations Allowed
  • Choose Action if number of devices exceeded (This will override your setting for Action for Behaviour Change.)
    1. Challenge: The user needs to verify himself using any of the three methods mentioned in table in step 7.1
    2. Deny : Deny users access to the system
  • Enable option Send email alerts to Users if number of Device registrations exceeded allowed count if you want to alert the user about no of devices exceeding the limit. Save the configuration.
  • Office 365 Single Sign-On (SSO) Restrict Access adaptive authentication enable device restriction


C. Add Adaptive Authentication policy to Office 365.

  • Login to Self Service Console >> Policies.
  • Click on Edit option for predefined SAML app policy.
  • Office 365 Single Sign-On (sso) edit device restriction policy

  • Set your application name in the Application and select password as Login Method.
  • Enable Adaptive Authentication on Policy page and select the required restriction method as an option.
  • From Select Login Policy dropdown select the policy we created in last step and click on save.
  • Office 365 Single Sign-On (SSO) Restrict Access save device restriction policy

    How to add a trusted Device
    1. When End-user log in to the self service console after the policy for device restriction is on, he is provided the option to add the current device as a trusted device.

External References

Our Other Identity & Access Management Products
