Multi-factor Authentication (MFA/2FA) for Array AG SSL VPN
Array SSL VPN appliances allow enterprises to consolidate remote access for employees, partners, users, and other communities of interest on a single platform to improve operational efficiency and provide a superior end-user experience. You can enable two-factor authentication (2FA) for your Array AG SSL VPN managed active directory to increase the security level. When you enable 2FA, your users enter their username and password (first factor) as usual, and they have to enter an authentication code (the second factor) for which they can use Google Authenticator, Microsoft Authenticator, OTP over SMS/Email , Push Notification, and many more. This 2FA/MFA solution adds an additional security measure to prevent unwanted users from getting access to your Array AG SSL VPN.
miniOrange MFA/2FA authentication for Array AG SSL VPN Login
miniOrange accomplishes this by acting as a RADIUS server that accepts the username/password of the user entered as a RADIUS request and validates the user against the user store as Active Directory (AD). After the first level of authentication, miniOrange prompts the user with 2-factor authentication and either grants/revokes access based on the input by the user.
- Primary authentication initiates with the user submitting his Username and Password for Array AG SSL VPN.
- User request acts as an authentication request to RADIUS Server(miniOrange).
- miniOrange RADIUS server passes user credentials to validate against the credentials stored in AD (Active Directory) / Database.
- Once the user's first level of authentication gets validated AD sends the confirmation to RADIUS Server.
- Now miniOrange RADIUS Server asks for a 2-factor authentication challenge to the user.
- Here user submits the response/code which he receives on his hardware/phone.
- User response is checked at miniOrange’s RADIUS Server side.
- On successful 2nd factor authentication the user is granted access to login.
Connect with any External Directories
miniOrange provides user authentication from various external directories such as miniOrange Directory, Microsoft AD, Microsoft Entra ID/LDAP, AWS Cognito and many more.
Can't find your Directory? Contact us on idpsupport@xecurify.com
Get Free POC - Book a Slot
miniOrange offers free POC and help through a consultation call with our System Engineers to Setup Multi-Factor Authentication for Array AG SSL VPN in your environment with 30-day trial.
For this, you need to just send us an email at idpsupport@xecurify.com to get free POC and we'll help you setting up our solution in no time.
Get Free POC
Enable Multi Factor Authentication MFA/2FA for Array AG SSL VPN
1. Configure Array AG SSL VPN in miniOrange
- Login into miniOrange Admin Console.
- Click on Customization in the left menu of the dashboard.
- In Basic Settings, set the Organization Name as the custom_domain name.
- Click Save. Once that is set, the branded login URL would be of the format https://<custom_domain>.xecurify.com/moas/login
- Go to Apps Click on Add Application button.

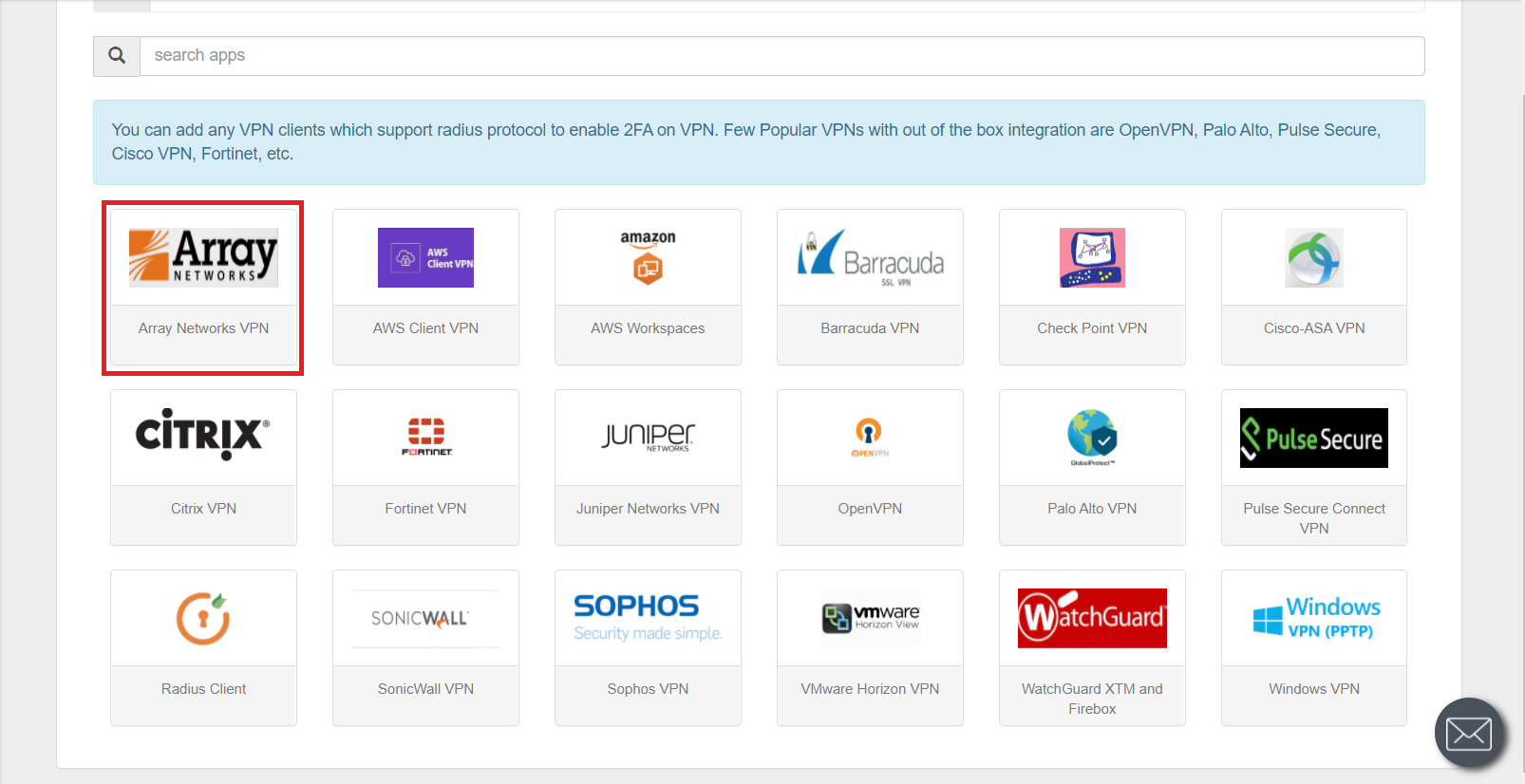

- In Choose Application, select RADIUS (VPN) from the application type dropdown.
- Click on Array AG SSL VPN application tab. If you don't find your application click on Radius Client application tab.
- Click on "Click here" to get the Radius server IPs.
- Copy and save the Radius server IP which will be required to configure your Radius client.
- Configure the below details to add Radius Client.
Client Name: |
Any name for your reference. |
Client IP: |
IP address of VPN server which will send Radius authentication request. |
Shared Secret: |
Security key. For Eg. "sharedsecret" (Keep this with you, you will need to configure same on VPN Server). |
- Click Next.
- Under the Attribute Mappings tab, enable the toggle if you want to Send Custom Attributes in response.
- To send groups in response, you can refer the below table for Vendor group attributes id.
Vendor Name |
Vendor Attribute |
Value Type |
Attribute |
Cisco ASA |
ASA-Group_policy |
User |
Groups |
Fortinet |
Fortinet-Group-Name |
User |
Groups |
Palo Alto |
PaloAlto-user-Group |
User |
Groups |
SonicWall |
Sonicwall-user-group |
User |
Groups |
Citrix |
Citrix-user-groups |
User |
Groups |
Default(Can be used if your vendor is not in the list) |
Filter-Id |
User |
Groups |
- Value Type and Attribute can be changed based on the requirement.
- Click on Next to proceed.
- Configure the following Policy details for the Radius Client.
Group Name: |
Group for which the policy will apply. |
Policy Name: |
Any Identifier that specifies policy name. |
Login Method |
Login Method for the users associated with this policy. |
Enable 2-Factor Authentication |
Enables Second Factor during Login for users associated with this policy. |
Enable Adaptive Authentication |
Enables Adaptive Authentication for Login of users associated with this policy. |
- After configuring the given above details, Click on Save button.
Note: You can follow
this guide, if you want to configure Radius MFA using MSCHAPv2 protocol.
NOTE: For On-Premise version follow the below steps before testing the connectivity.
Only For On-Premise Version
Open Firewall Ports.
- In order to receive the RADIUS request, it is necessary to open UDP traffic on ports 1812 and 1813 for the machine where On-Premise IdP is deployed.
- If the hosting machine is a Windows Machine then you can follow this document.
- If the hosting machine is a Linux Machine then you can follow this document.
NOTE: If your machine is hosted on AWS, then enable the ports from the AWS panel.
2. Configure Array AG SSL VPN
- Log in to the Array AG administrative interface. Change the mode from "Enable" to "Config".
- Navigate to the Virtual Site that you'd like to protect using the drop-down list in the upper left corner.
- Click on AAA under the "Site Configuration" menu on the left.
- On the General tab, ensure that the Enable AAA option is checked, then click the Server tab. Once on the Server tab, click on RADIUS.
- Enter a Server Name and Description for the new RADIUS server and click the Add button. Your new RADIUS server is added to the list. Double-click it to open the "Advanced RADIUS Server Configuration" page.
- On the "Advanced RADIUS Server Configuration" page, click the Add RADIUS Server link in the lower right.

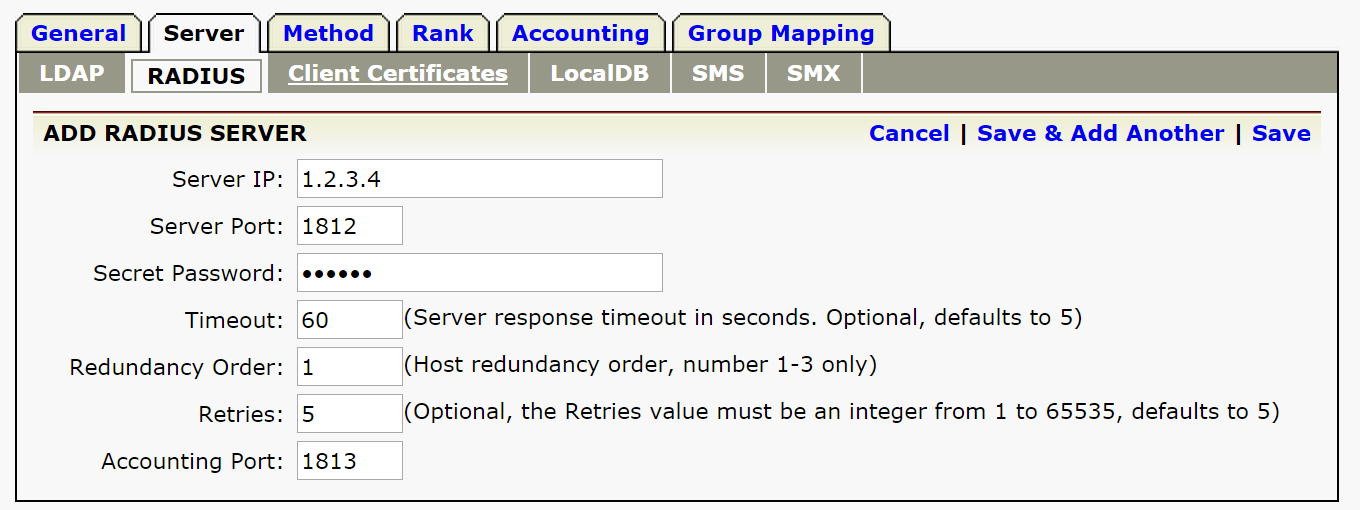

- In the Add RADIUS Server form, enter the following information
RADIUS server IP address |
For on-premise version: IP of server where IDP(miniOrange) is installed For cloud version: Use the Radius Server IPs which you got from Step1. |
Authentication Port |
Enter 1812 (or whichever port configured on your miniOrange Authentication Proxy). |
Shared secret code |
Enter the Shared secret that we used to configure RADIUS app in miniOrange IDP. In step 1 we configured the shared secret as "sharedsecret" |
Server timeout (in seconds) |
Increase the timeout to 60 seconds. |
- Click Save to save the RADIUS server settings. The new Duo RADIUS server is shown in the RADIUS SERVER CONFIGURATION list back on the "Advanced RADIUS Server Configuration" page.
3. Configure Your User Directory
miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Microsoft Entra ID, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Okta, Shibboleth, Ping, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more. You can configure your existing directory/user store or add users in miniOrange.
Note: You can follow this guide, if you want to configure Radius MFA with your users stored in Microsoft Entra ID using OAuth Password Grant.
Configure your existing directories such as Microsoft Active Directory, Microsoft Entra ID, OpenLDAP, etc.
- Click on External Directories >> Add Directory in the left menu of the dashboard.
- Select Directory type as AD/LDAP.
- STORE LDAP CONFIGURATION IN MINIORANGE: Choose this option if you want to keep your configuration in miniOrange. If active directory is behind a firewall, you will need to open the firewall to allow incoming requests to your AD.
- STORE LDAP CONFIGURATION ON PREMISE: Choose this option if you want to keep your configuration in your premise and only allow access to AD inside premises. You will have to download and install miniOrange gateway in your premise.
- Enter LDAP Display Name and LDAP Identifier name.
- Select Directory Type as Active Directory.
- Enter the LDAP Server URL or IP Address against LDAP Server URL field.
- Click on Test Connection button to verify if you have made a successful connection with your LDAP server.
- In Active Directory, go to the properties of user containers/OU's and search for Distinguished Name attribute.
- Enter the valid Bind account Password.
- Click on Test Bind Account Credentials button to verify your LDAP Bind credentials for LDAP connection.
- Search Base is the location in the directory where the search for a user begins. You will get this from the same place you got your Distinguished name.
- Select a suitable Search filter from the drop-down menu. If you use User in Single Group Filter or User in Multiple Group Filter, replace the <group-dn> in the search filter with the distinguished name of the group in which your users are present. To use custom Search Filter select "Write your Custom Filter" option and customize it accordingly.
- You can also configure following options while setting up AD. Enable Activate LDAP in order to authenticate users from AD/LDAP. Click on the Save button to add user store.
Here's the list of the attributes and what it does when we enable it. You can enable/disable accordingly.
Attribute |
Description |
Activate LDAP |
All user authentications will be done with LDAP credentials if you Activate it |
Sync users in miniOrange |
Users will be created in miniOrange after authentication with LDAP |
Fallback Authentication |
If LDAP credentials fail then user will be authenticated through miniOrange |
Allow users to change password |
This allows your users to change their password. It updates the new credentials in your LDAP server |
Enable administrator login |
On enabling this, your miniOrange Administrator login authenticates using your LDAP server |
Show IdP to users |
If you enable this option, this IdP will be visible to users |
Send Configured Attributes |
If you enable this option, then only the attributes configured below will be sent in attributes at the time of login |
- Click on Save. After this, it will show you the list of User stores. Click on Test Connection to check whether you have enter valid details. For that, it will ask for username and password.
- On Successful connection with LDAP Server, a success message is shown.
- Click on Test Attribute Mapping.
- Enter a valid Username. Then, click on Test. Mapped Attributes corresponding to the user are fetched.
- After successful Attribute Mapping Configuration, go back to the ldap configuration and enable Activate LDAP in order to authenticate users from AD/LDAP.
Refer our guide to setup LDAPS on windows server.
User Import and Provisioning from AD
Note: Below steps are used to enable one time or manual sync. To enable sync on scheduled basis, you should use LDAP gateway module. Read more and download the LDAP gateway module.
- Go to Settings >> Product Settings in the Customer Admin Account.
- Enable the "Enable User Auto Registration" option and click Save.
- (Optional) To send a welcome email to all the end users that will be imported, enable the "Enable sending Welcome Emails after user registration" option and click Save.
- From the Left-Side menu of the dashboard select Provisioning.
- In Setup Provisioning tab select Active Directory in the Select Application drop-down.
- Toggle the Import Users tab, click on Save button.
- On the same section, switch to Import Users section.
- Select Active Directory from the dropdown and click on the Import Users tab, to import all the users from Active Directory to miniOrange.
- You can view all the Users you have imports by selecting Users >> User List from Left Panel.
- All the imported users will be auto registered.
- These groups will be helpful in adding multiple 2FA policies on the applications.
Creating User Groups (Recommended)
- Select Groups >> Manage Groups from left panel.
- Click on the Create Group button on the top.
- Enter an appropriate Group Name and click on Create Group.
- In this guide we have created a Group by name VPN_Group.
- Assign various members to the group using the Assign User option associated with the group in the groups list.
- Select the Users that are required to be assigned to this group. Then Select Assign to Group in Select Action Dropdown and click on Apply button.
- These groups will be helpful in adding multiple 2FA policies on the applications.
4. Setup MFA for Array AG SSL VPN
Note: You can follow this guide, if you want to customize and enroll MFA for end users.
- Here, we will configure a policy for the User Group that we created in this step and associate it with the Array AG SSL VPN VPN Application.
- Click on Policies tab >> App Login Policy.
- Click on Add Policy tab.
- In Application section, select the RADIUS App that we configured earlier in Step 1.
- Select the required User Group in Group Name and enter the Policy name.
- In this guide, we will configure a Password Only policy for "VPN_Group", so that only the VPN_Group members can access VPN Services without a Second Factor.
- Once done with the policy settings, click on Save to Add Policy.
5. Test Array AG SSL VPN MFA
- Go to the URL that you defined for your sign-in policy.
- After you complete primary authentication, it will prompt you for 2 Factor code if you have enabled two-factor authentication in miniOrange policy.
- Enter your 2 Factor code and you should be connected to Array AG SSL VPN.
