Location Restriction for Office 365


How can Location Restriction restrict access to Office 365 to our corporate devices?

miniOrange allows you to restrict the use of your application only within a particular range or location. Users outside of that location are not allowed to access the applications.

  • Aside from IP and Device, another helpful restriction type is location based restriction. A lot of applications require there to be fine-tuned control over which applications need to be granted access based on the location of the user trying to gain access. Here, miniOrange’s Location-based restriction can easily be set up to scan a user’s access location and enable / disable access accordingly. It can be set up to an accuracy of a few kilometers, and you can have the option to grant access or deny access based on this location data.
  • The admin shortlists and configures a list of Geo-locations where they want to allow end-users to either login or deny based on the location set by the admin. When a user tries to login with adaptive authentication enabled, his location attributes such as (Latitude, Longitude, and Country Code) are verified against the Location list configured by the admin, and based on this user will be either allowed, challenged, or denied.

Connect with External Source of Users


miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Azure AD, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Shibboleth, Ping, Okta, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more.



Prerequisites

    1. Sync On-Premise Active Directory with Azure Active Directory

      NOTE: If you want to use your On-Premise Active Directory as a user store to Single Sign-On into Office 365 then follow the below steps to sync your AD and Azure AD.

    • Download the Azure AD Connect
    • Run the Azure AD installer on your domain machine and follow the setup.

    2. Verify your UPN Domain in Azure Portal

    • In the Azure portal navigate to Azure Active Directory >> Custom domain names and click on Add custom domain.
    • Enter the full domain name in the right pane that pops up and click on Add domain.
    • Office 365 Single Sign-On (SSO) Add custom domain

    • A new window will open up with TXT/MX records for the domain. You will have to add the resented entry in your domain name registrar.
    • Office 365 Single Sign-On (SSO) Add domain record

    • Click on verify once you have added the entry

Follow the Step-by-Step Guide given below to configure Location Restriction for Office 365


1. Setup a Custom Branded URL in miniOrange Admin Console

Single Sign-On into Office 365 requires a custom branded URL to be set. Access to miniOrange and connected resources will need to be through the custom branded URL in the format: https://<custom_domain>.xecurify.com/moas

  • Login to miniOrange Admin Console.
  • Click on Customization in the left menu of the dashboard.
  • In Basic Settings, set the Organization Name as the custom_domain name.
  • Click Save. Once that is set, the branded login URL would be of the format https://<custom_domain>.xecurify.com/moas/login
  • Office 365 Single Sign-On (SSO) setting up branding

2. Configure Office 365 in miniOrange

  • Login into miniOrange Admin Console.
  • Go to Apps and click on Add Application button.
  • Office 365 Single Sign-On (SSO) add app

  • In Choose Application Type click on Create App button in SAML/WS-FED application type.
  • Office 365 Single Sign-On (SSO) choose app type

  • In the next step, search for Office 365. Click on Office 365 app.
  • Office 365 Single Sign-On (SSO) add Office 365 app

  • Make sure the SP Entity ID or Issuer is: urn:federation:MicrosoftOnline
  • Make sure the ACS URL is: https://login.microsoftonline.com/login.srf
  • Click on Next.
  • Office 365 Single Sign-On (sso) configuration steps

  • Configure Name ID based on the User Store you are using:
    • Using Active Directory / miniOrange brokering service: Select External IDP Attribute from the dropdown and add objectguid in the text-box that appears.
    • Office 365 Single Sign-On (sso) configuration steps
    • Using miniOrange as a User Store: Select Custom Profile Attribute and select a Custom Attribute from the drop-down.
    • Office 365 Single Sign-On (sso) configuration steps
  • Set the login policy. You can choose to enable 2FA for login or have users login using a standard username-password.
  • Click on Save to configure Office 365.
  • Office 365 Single Sign-On (sso) configuration steps


3. Configure Microsoft Online Services

  • Click on Select dropdown and choose Metadata.
  • Office 365 Single Sign-On (SSO) Select Metadata

  • Click on the Download Federate Domain Script button under "INFORMATION REQUIRED TO AUTHENTICATE VIA EXTERNAL IDPS"
  • Office 365 Single Sign-On (SSO) Download federate domain script button.

  • Enter the domain name that you want to federate and click on Download. Note: You cannot federate your default "onmicrosoft.com" domain. To federate your Office 365 tenant, you must add a custom domain to Office 365.
  • Office 365 Single Sign-On (SSO) Download Federate Domain Script

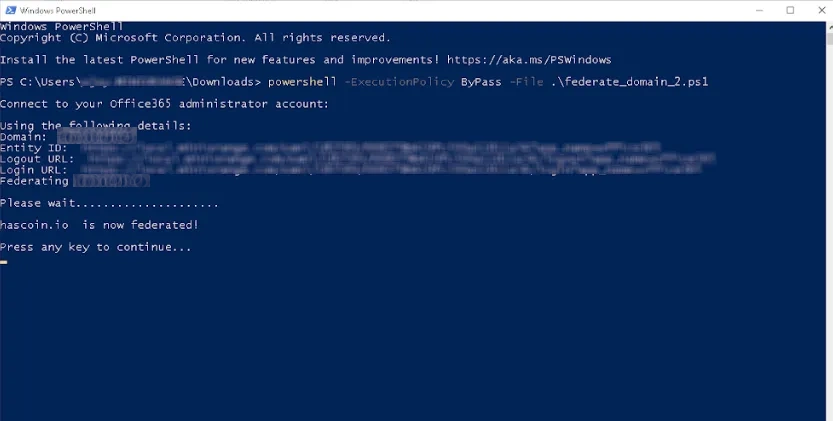

  • After downloading the script, Open PowerShell run the federate_domain script using: cd ./Downloads powershell -ExecutionPolicy ByPass -File federate_domain.ps1
  • Office 365 Single Sign-On (SSO) Run Federate Domain Script

  • Your domain is now federated. Use the commands below to check your federation settings: Connect-MsolService Get-MsolDomainFederationService
  • Office 365 Single Sign-On (SSO) Verify Federated Domain


4. Configure Location Restriction: Restricting access by Limiting the number of locations

In this restriction method, admin configures a list of locations where we want to allow end-users to either login or deny based on the condition set by the admin. When a user tries to login with adaptive authentication enabled, his Location Attributes such as (Latitude, Longitude and Country Code) are verified against the Location list configured by the admin. And based on this user will be either allowed, challenged or denied.

You can configure Adaptive Authentication with Location Restriction in following way:

  • Go to Adaptive Authentication from the left navigation bar.

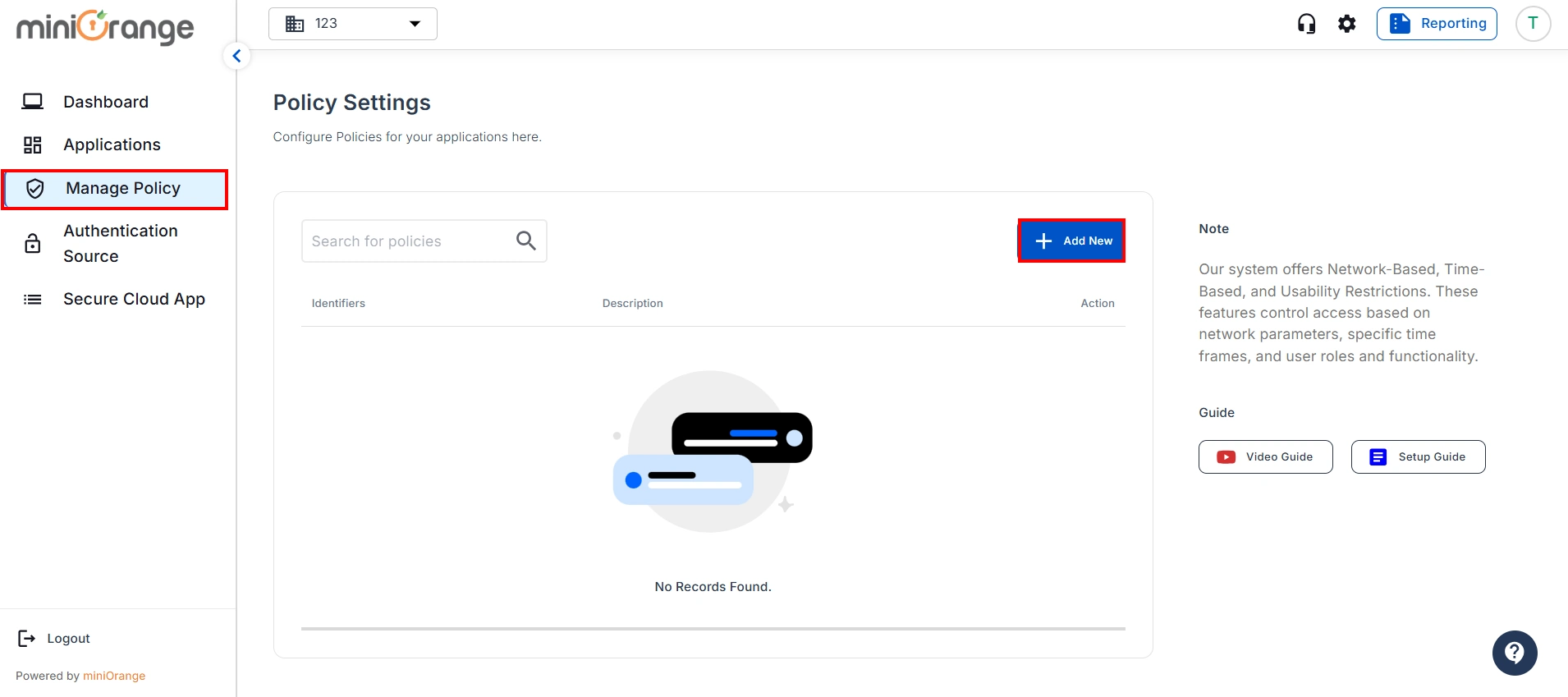

  • Click on Add Policy tab.
  • Location restriction for Office 365: Add Adaptive Authentication Policy

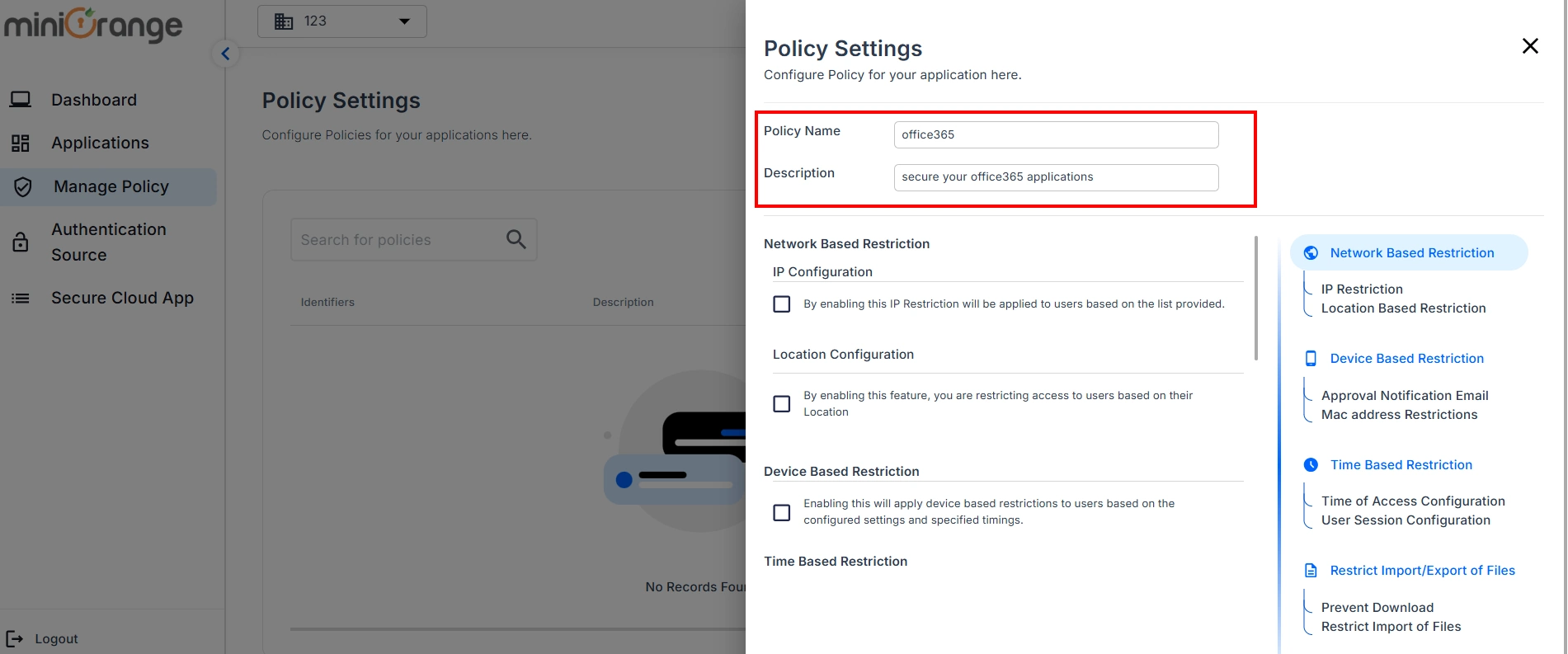

  • Add a Policy Name for your Adaptive Authentication Policy.
  • Location restriction for Office 365: Add Policy name

  • Scroll down to Location Configuration section and click on Edit.
  • Location restriction for Office 365: Add No of registered device

  • Here, you can Enable Location Registration if User Completes Challenge.

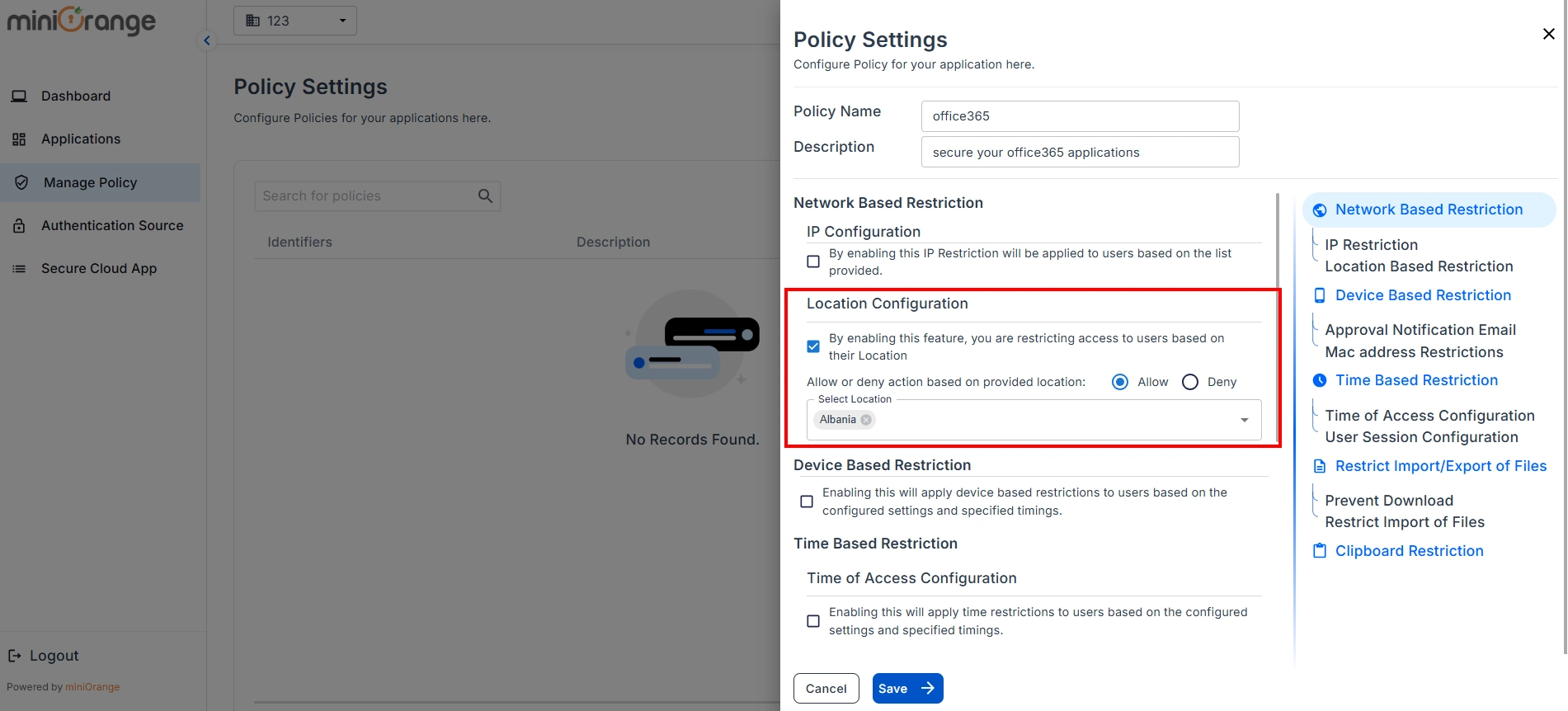

  • Under Configured Locations, click on Add Location.
  • Location restriction for Office 365: Add No of registered device

  • In the Enter Location input field, enter the Location Name and then select the correct location from the search results dropdown. Next, select your distance parameter as either KMS(KiloMeters) or Miles under Allowed Radius. For each Location you add, you can choose to either whitelist/allow or blacklist/deny it by selecting the suitable option.
  • You can click on the Add Location to add more than one location and then follow steps as mentioned above.
  • Location restriction for Office 365: Add No of registered device

  • Now, scroll down to the Action For Behaviour Change section and click on Edit. Select the action you want to perform if the IP address is out of the range. i.e. Allow, Challenge or Deny.
  • Location restriction for Office 365: Action for Behaviour Change

  • Scroll to the end and click on save.

5. Enable Restriction for Office 365

  • Go to Policies >> App Login Policy from the left navigation bar.
  • Click on Edit option against your selected app.
  • Office 365 Single Sign-On (sso) edit location restriction policy

  • Set your application name in the Application and select password as Login Method.
  • Enable Adaptive Authentication.
  • From the Select Login Policy dropdown, select the policy we created in the last step and select the required restriction method as an option.
  • Click Save.
  • Office 365 Single Sign-On (SSO) Restrict Access save location restriction policy



Need help to configure Location Restriction for Office 365?


Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.



6. Configure Your User Directory (Optional)

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Microsoft Entra ID, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Okta, Shibboleth, Ping, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more. You can configure your existing directory/user store or add users in miniOrange.



  • To add your users in miniOrange there are 2 ways:
  • 1. Create User in miniOrange

    • Click on Users >> User List >> Add User.
    • Office 365: Add user in miniOrange

    • Here, fill the user details without the password and then click on the Create User button.
    • Office 365: Add user details

    • After successful user creation a notification message "An end user is added successfully" will be displayed at the top of the dashboard.
    • Office 365: Add user details

    • Click on Onboarding Status tab. Check the email, with the registered e-mail id and select action Send Activation Mail with Password Reset Link from Select Action dropdown list and then click on Apply button.
    • Office 365: Select email action

    • Now, Open your email id. Open the mail you get from miniOrange and then click on the link to set your account password.
    • On the next screen, enter the password and confirm password and then click on the Single Sign-On (SSO) reset password button.
    • Office 365: Reset user password
    • Now, you can log in into miniOrange account by entering your credentials.

    2. Bulk Upload Users in miniOrange via Uploading CSV File.

    • Navigate to Users >> User List. Click on Add User button.
    • Office 365: Add users via bulk upload

    • In Bulk User Registration Download sample csv format from our console and edit this csv file according to the instructions.
    • Office 365: Download sample csv file

    • To bulk upload users, choose the file make sure it is in comma separated .csv file format then click on Upload.
    • Office 365: Bulk upload user

    • After uploading the csv file successfully, you will see a success message with a link.
    • Click on that link you will see list of users to send activation mail. Select users to send activation mail and click on Send Activation Mail. An activation mail will be sent to the selected users.
  • Click on External Directories >> Add Directory in the left menu of the dashboard.
  • Office 365: Configure User Store

  • Select Directory type as AD/LDAP.
  • Office 365: Select AD/LDAP as user store

    1. STORE LDAP CONFIGURATION IN MINIORANGE: Choose this option if you want to keep your configuration in miniOrange. If active directory is behind a firewall, you will need to open the firewall to allow incoming requests to your AD.
    2. STORE LDAP CONFIGURATION ON PREMISE: Choose this option if you want to keep your configuration in your premise and only allow access to AD inside premises. You will have to download and install miniOrange gateway in your premise.
    3. Office 365: Select ad/ldap user store type

  • Enter LDAP Display Name and LDAP Identifier name.
  • Select Directory Type as Active Directory.
  • Enter the LDAP Server URL or IP Address against LDAP Server URL field.
  • Click on Test Connection button to verify if you have made a successful connection with your LDAP server.
  • Office 365: Configure LDAP server URL Connection

  • In Active Directory, go to the properties of user containers/OU's and search for Distinguished Name attribute.
  • Office 365: Configure user bind account domain name

  • Enter the valid Bind account Password.
  • Click on Test Bind Account Credentials button to verify your LDAP Bind credentials for LDAP connection.
  • Office 365: Check bind account credentials

  • Search Base is the location in the directory where the search for a user begins. You will get this from the same place you got your Distinguished name.
  • Office 365: Configure user search base

  • Select a suitable Search filter from the drop-down menu. If you use User in Single Group Filter or User in Multiple Group Filter, replace the <group-dn> in the search filter with the distinguished name of the group in which your users are present. To use custom Search Filter select "Write your Custom Filter" option and customize it accordingly.
  • Office 365: Select user search filter

  • You can also configure following options while setting up AD. Enable Activate LDAP in order to authenticate users from AD/LDAP. Click on the Save button to add user store.
  • Office 365: Activate LDAP options

    Here's the list of the attributes and what it does when we enable it. You can enable/disable accordingly.

    Attribute Description
    Activate LDAP All user authentications will be done with LDAP credentials if you Activate it
    Sync users in miniOrange Users will be created in miniOrange after authentication with LDAP
    Fallback Authentication If LDAP credentials fail then user will be authenticated through miniOrange
    Allow users to change password This allows your users to change their password. It updates the new credentials in your LDAP server
    Enable administrator login On enabling this, your miniOrange Administrator login authenticates using your LDAP server
    Show IdP to users If you enable this option, this IdP will be visible to users
    Send Configured Attributes If you enable this option, then only the attributes configured below will be sent in attributes at the time of login

  • Click on Save. After this, it will show you the list of User stores. Click on Test Connection to check whether you have enter valid details. For that, it will ask for username and password.
  • Office 365: Test AD/Ldap connection

  • On Successful connection with LDAP Server, a success message is shown.
  • Click on Test Attribute Mapping.
  • Office 365 LDAP successful connection

  • Enter a valid Username. Then, click on Test. Mapped Attributes corresponding to the user are fetched.
  • Office 365: Fetch mapped attributes for user

  • After successful Attribute Mapping Configuration, go back to the ldap configuration and enable Activate LDAP in order to authenticate users from AD/LDAP.
  • Refer our guide to setup LDAPS on windows server.

User Import and Provisioning from AD

  • Go to Settings >> Product Settings in the Customer Admin Account.
  • MFA/Two-Factor Authentication(2FA) for   miniOrange dashboard

  • Enable the "Enable User Auto Registration" option and click Save.
  • MFA/Two-Factor Authentication(2FA) for   Enable User Auto Registration

  • (Optional) To send a welcome email to all the end users that will be imported, enable the "Enable sending Welcome Emails after user registration" option and click Save.
  • MFA/Two-Factor Authentication(2FA) for   Enable sending Welcome Emails after user registration

  • From the Left-Side menu of the dashboard select Provisioning.
  • MFA/Two-Factor Authentication(2FA) for   User Sync/Provisioning

  • In Setup Provisioning tab select Active Directory in the Select Application drop-down.
  • Toggle the Import Users tab, click on Save button.
  • MFA/Two-Factor Authentication(2FA) for   User Sync Active Directory Configuration

  • On the same section, switch to Import Users section.
  • Select Active Directory from the dropdown and click on the Import Users tab, to import all the users from Active Directory to miniOrange.
  • MFA/Two-Factor Authentication(2FA) for   User Sync Import Operation

  • You can view all the Users you have imports by selecting Users >> User List from Left Panel.
  • MFA/Two-Factor Authentication(2FA) for   User List

  • All the imported users will be auto registered.
  • These groups will be helpful in adding multiple 2FA policies on the applications.

miniOrange integrates with various external user sources such as directories, identity providers, and etc.

Not able to find your IdP or Need help setting it up?


Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.
