Search Results:

×

Website Toolbox Single Sign-On SSO


Single Sign-On (SSO) solution by miniOrange provides secure Single Sign-On access into Website Toolbox using a single set of login credentials. You can log into Website Toolbox using miniOrange credentials or Azure AD credentials or any of your existing identity providers. With miniOrange SSO services, along with Website Toolbox you can also login into other On-Premise and Cloud Applications using your existing Identity Providers/User Store (Azure Active Directory, Okta, Ping) credentials . Follow the given setup guide to integrate header-based SSO for your Website Toolbox account.


Connect with External Source of Users


miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, OpenLDAP, AWS etc), Identity Providers (like Microsoft Entra ID, Okta, AWS), and many more. You can configure your existing directory/user store or add users in miniOrange.



Follow the Step-by-Step Guide given below to Configure SSO in Website Toolbox

1. Configure SSO in Website Toolbox

  • Login to Website toolbox admin.
  • Go to Settings >> Single Sign on.
  • Website Toolbox Single Sign-On (SSO) login

  • From the Website Builder dropdown, select Custom OAuth.
  • Website Toolbox Single Sign-On (SSO) login

  • Copy the Redirect URI provided by Website toolbox.(You will need this in Step 2)
  • Now, navigate to miniOrange and configure the app in it.

2. Configure Website Toolbox in miniOrange

  • Login into miniOrange Admin Console.
  • Go to Apps and click on Add Application button.
  • Website Toolbox Single Sign-On (SSO)

  • In Choose Application Type click on OAUTH/OIDC application type.
  •  Single Sign-On (sso)for Rocket.Chat select OAuth/OIDC application type

  • Search for Website Toolbox in the list and select it.
  • Website Toolbox Single Sign-On (SSO)

  • Enter the Client Name of your app.
  • Copy the Redirect-URL from Step 1.
  • Adjust time validity for the tokens.
  • Then, click on Save.
  •  Single Sign-On (sso) for Website Toolbox save configuration

  • To get the Client id,Client secret, OAuth endpoints and scope, you need to edit the application which you have created in the previous steps.
  • You can edit Application by using the following steps:

  • Go to Apps.
  • Search for your app and Click on the edit in Action menu against your app.
  •  Single Sign-On (sso) for Website Toolbox edit application

  • Click on Click here to get the miniOrange endpoints.
  •  Single Sign-On (sso)for Website Toolbox edit application

  • Note down all the parameters (Client id,Client secret,OAuth endpoints and scopes). You will need this info while configuring Website Toolbox with miniOrange.
  • OAuth endpoints:


    Website Toolbox Single Sign-On (SSO)

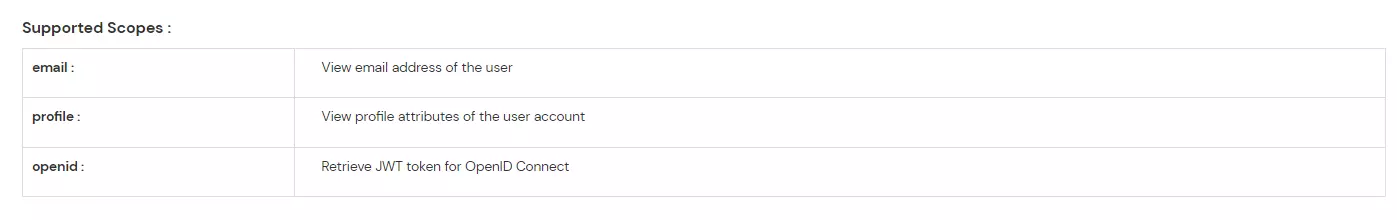

    OAuth Scopes:

    Website Toolbox Single Sign-On (SSO)

  • Navigate back to Website toolbox app.
  • Copy the required values from the above step and enter the authorization endpoint, client id, client secret, token endpoint in the respective fields.
  •  Single Sign-On (sso)for Website Toolbox edit application

  • Enter the scope as email profile.

3. Test Website Toolbox SSO Configuration

  • Go to your forum url.
  • Click on the Login button on the top to initiate the SSO.
  • Enter your credentials for authentication, once the credentials are verified you will be logged into Website toolbox
  • You can see you have successfully implemented Single Sign-On for Website Toolbox with miniOrange as your OAuth Server.

4. Configure Your User Directory (Optional)

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Microsoft Entra ID, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Okta, Shibboleth, Ping, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more. You can configure your existing directory/user store or add users in miniOrange.



  • To add your users in miniOrange there are 2 ways:
  • 1. Create User in miniOrange

    • Click on Users >> User List >> Add User.
    • Website Toolbox: Add user in miniOrange

    • Here, fill the user details without the password and then click on the Create User button.
    • Website Toolbox: Add user details

    • After successful user creation a notification message "An end user is added successfully" will be displayed at the top of the dashboard.
    • Website Toolbox: Add user details

    • Click on Onboarding Status tab. Check the email, with the registered e-mail id and select action Send Activation Mail with Password Reset Link from Select Action dropdown list and then click on Apply button.
    • Website Toolbox: Select email action

    • Now, Open your email id. Open the mail you get from miniOrange and then click on the link to set your account password.
    • On the next screen, enter the password and confirm password and then click on the Single Sign-On (SSO) reset password button.
    • Website Toolbox: Reset user password
    • Now, you can log in into miniOrange account by entering your credentials.

    2. Bulk Upload Users in miniOrange via Uploading CSV File.

    • Navigate to Users >> User List. Click on Add User button.
    • Website Toolbox: Add users via bulk upload

    • In Bulk User Registration Download sample csv format from our console and edit this csv file according to the instructions.
    • Website Toolbox: Download sample csv file

    • To bulk upload users, choose the file make sure it is in comma separated .csv file format then click on Upload.
    • Website Toolbox: Bulk upload user

    • After uploading the csv file successfully, you will see a success message with a link.
    • Click on that link you will see list of users to send activation mail. Select users to send activation mail and click on Send Activation Mail. An activation mail will be sent to the selected users.
  • Click on External Directories >> Add Directory in the left menu of the dashboard.
  • Website Toolbox : Configure AD as External Dirctory

  • Select Directory type as AD/LDAP.
  • Select Directory type as AD/LDAP

  • STORE LDAP CONFIGURATION IN MINIORANGE: Choose this option if you want to keep your configuration in miniOrange. If the active directory is behind a firewall, you will need to open the firewall to allow incoming requests to your AD.
  • STORE LDAP CONFIGURATION ON PREMISE: Choose this option if you want to keep your configuration in your premise and only allow access to AD inside premises. You will have to download and install miniOrange gateway on your premise.
  • Website Toolbox : Select ad/ldap user store type

  • Enter LDAP Display Name and LDAP Identifier name.
  • Select Directory Type as Active Directory.
  • Enter the LDAP Server URL or IP Address against the LDAP Server URL field.
  • Click on the Test Connection button to verify if you have made a successful connection with your LDAP server.
  • Website Toolbox : Configure LDAP server URL Connection

  • In Active Directory, go to the properties of user containers/OU's and search for the Distinguished Name attribute. The bind account should have minimum required read privileges in Active Directory to allow directory lookups. If the use case involves provisioning (such as creating, updating, or deleting users or groups), the account must also be granted appropriate write permissions.
  • Website Toolbox : Configure user bind account domain name

  • Enter the valid Bind account Password.
  • Click on the Test Bind Account Credentials button to verify your LDAP Bind credentials for LDAP connection.
  • Website Toolbox : Check bind account credentials

  • Search Base is the location in the directory where the search for a user begins. You will get this from the same place you got your Distinguished name.
  • Website Toolbox : Configure user search base

  • Select a suitable Search filter from the drop-down menu. If you use User in Single Group Filter or User in Multiple Group Filter, replace the <group-dn> in the search filter with the distinguished name of the group in which your users are present. To use custom Search Filter select "Write your Custom Filter" option and customize it accordingly.
  • Website Toolbox : Select user search filter

  • Click on the Next button, or go to the Authentication tab.
  • You can also configure following options while setting up AD. Enable Activate LDAP in order to authenticate users from AD/LDAP. Click on the Next button to add user store.
  • Website Toolbox : Activate LDAP options

    Here's the list of the attributes and what it does when we enable it. You can enable/disable accordingly.

    Attribute Description
    Activate LDAP All user authentications will be done with LDAP credentials if you Activate it
    Fallback Authentication If LDAP credentials fail then user will be authenticated through miniOrange
    Enable administrator login On enabling this, your miniOrange Administrator login authenticates using your LDAP server
    Show IdP to users If you enable this option, this IdP will be visible to users
    Sync users in miniOrange Users will be created in miniOrange after authentication with LDAP

  • Click on the Next button, or go to the Provisioning tab.

User Import and Provisioning from AD

  • If you want to set up provisioning, click here for detailed information. For now, we are skipping this step by clicking Skip on Provisioning.
  • Website Toolbox : Click on Skip Provisioning Button

Attributes Mapping from AD

  • By default userName, firstName, lastName, email are configured. Scroll down and click on Save Configurations. To fetch additional attributes from Active Directory, enable Send Configured Attributes. On the left side, enter the name that you wish to release to the applications. On the right side, enter the attribute name from Active Directory. E.g., if you wish to fetch company attribute from Active Directory, and send it as organization to configured applications, enter the following:

    Attribute Name sent to SP = organization
    Attribute Name from IDP = company

  • Website Toolbox : Attributes Mapping from AD

Test Connections

  • You will see a list of directories in External Directories. Go to the directory you have configured, click Select, then go to Test Connections and click on it.
  • Website Toolbox : Test AD/Ldap connection

  • Click on Test Connection to check whether you have enter valid details. For that, it will ask for username and password.
  • Website Toolbox : Enter username and password to test LDAP connection

  • On Successful connection with LDAP Server, a success message is shown.
  • Website Toolbox : Successful connection with LDAP Server

Test Attribute Mapping

  • You will see a list of directories in External Directories. Go to the directory you have configured, click Select, then go to Test Attribute Mapping and click on it.
  • Website Toolbox : In External Directories, click Select, and then Test Attribute Mapping

  • A pop-up will appear to add the username. After clicking Test, you will see the Test Attribute Mapping Result.
  • Website Toolbox : Enter username to test Attribute Mapping configuration

    Website Toolbox : Fetch mapped attributes for user

Set up AD as External Directory configuration is complete.


Note: Refer our guide to setup LDAP on windows server.

miniOrange integrates with various external user sources such as directories, identity providers, and etc.

Not able to find your IdP or Need help setting it up?


Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.



5. Adaptive Authentication with Website Toolbox

A. Restricting access to Website Toolbox with IP Blocking

    You can use adaptive authentication with Website Toolbox Single Sign-On (SSO) to improve the security and functionality of Single Sign-On. You can allow a IP Address in certain range for SSO or you can deny it based your requirements and you can also challenge the user to verify his authenticity. Adaptive authentication manages the user authentication bases on different factors such as Device ID, Location, Time of Access, IP Address and many more.

    You can configure Adaptive Authentication with IP Blocking in following way:
  • Login to Self Service Console >> Adaptive Authentication.
  • Add a Policy Name for your Adaptive Authentication Policy.
  • Website Toolbox Single Sign-On (SSO) Restrict Access adaptive authentication policy

  • Select your Action for behavior Change and Challenge Type for user from the Action for behavior Change Section.
  • Website Toolbox Single Sign-On (SSO) Restrict Access adaptive authentication behavior change


    Action for behavior Change Options :


    Attribute Description
    Allow Allow user to authenticate and use services if Adaptive authentication condition is true.
    Challenge Challenge users with one of the three methods mentioned below for verifying user authenticity.
    Deny Deny user authentications and access to services if Adaptive authentication condition is true.

    Challenge Type Options :

    Attribute Description
    User second Factor The User needs to authenticate using the second factor he has opted or assigned for such as
  • OTP over SMS
  • PUSH Notification
  • OTP over Email
  • And 12 more methods.
  • KBA (Knowledge-based authentication) The System will ask user for 2 of 3 questions he has configured in his Self Service Console. Only after right answer to both questions user is allowed to proceed further.
    OTP over Alternate Email User will receive a OTP on the alternate email he has configured threw Self Service Console. Once user provides the correct OTP he is allowed to proceed further.

  • Now Enable Enable IP Restriction option from the IP RESTRICTION CONFIGURATION section to configure custom IP range.
  • Website Toolbox Single Sign-On (SSO) Restrict Access adaptive authentication ip blocking

  • Select the Action you want to perform if the IP address is out of the range. i.e. Allow, Challenge & Deny.
  • Specify the IP Address range for which you want above setting to reflect. You can add more than one IP Address ranges by clicking on following button +.
  • Scroll to the end and click on save.

B. Adaptive Authentication with Limiting number of devices.

    Using Adaptive Authentication you can also restrict the number of devices the end user can access the Services on. You can allow end users to access services on a fixed no. of devices. The end users will be able to access services provided by us on this fixed no. of devices.

    You can configure Adaptive Authentication with Device Restriction in following way

  • Login to Self Service Console >> Adaptive Authentication.
  • Add a Policy Name for your Adaptive Authentication Policy.
  • Select your Action for behavior Change and Challenge Type for user from the Action for behavior Change Section.
  • Website Toolbox Single Sign-On (SSO) Restrict Access adaptive authentication behavior and challenge type


  • Scroll down to Device Configuration section and enable Allow User to Register Device option to allow users to register their devices.
  • Enter the Number of Devices which are allowed to register in field next to Number of Device Registrations Allowed
  • Choose Action if number of devices exceeded (This will override your setting for Action for behavior Change.)
    1. Challenge: The user needs to verify himself using any of the three methods mentioned in table in step 5.1
    2. Deny : Deny users access to the system
  • Enable option Send email alerts to Users if number of Device registrations exceeded allowed count if you want to alert the user about no of devices exceeding the limit. Save the configuration.
  • Website Toolbox Single Sign-On (SSO) Restrict Access adaptive authentication enable device restriction


C. Add Adaptive Authentication policy to Website Toolbox.

  • Login to Self Service Console >> Policies.
  • Click on Edit option for predefined app policy.
  • Website Toolbox Single Sign-On (sso) edit device restriction policy

  • Set your application name in the Application and select password as Login Method.
  • Enable Adaptive Authentication on Policy page and select the required restriction method as an option.
  • From Select Login Policy dropdown select the policy we created in last step and click on save.
  • Website Toolbox Single Sign-On (SSO) Restrict Access save device restriction policy

    D.Notification and Alert Message.

      This section handles the notifications and alerts related to Adaptive Authentication.It provides the following options :

    • Get email alerts if users login from unknown devices or locations : Admin need to enable this option to enable receiving alerts for different alert options.
      adaptive authentication Action for behavior Change Configuration

    • Option Description
      Challenge Completed and Device Registered Enabling this option allows you to send an email alert when an end-user completes a challenge and registers a device.
      Challenge Completed but Device Not Registered Enabling this option allows you to send an email alert when an end-user completes a challenge but do not registers the device.
      Challenge Failed Enabling this option allows you to send an email alert when an end-user fails to complete the challenge.


      adaptive authentication Action for behavior Change Configuration

    • Next subsection is Send email alerts which allows us to enable or disable alerts for admin and end-users. To enable alerts for admins, you can enable the “Administrators” switch button.

    • adaptive authentication Action for behavior Change Configuration

    • In case you want multiple admins accounts to receive alerts then you can enable the option for admin and then enter the admin emails separated by a ‘,’ in the input field next to Administrators email to receive alerts label. To enable alerts for the end-users, you can enable the “End Users” switch button.
    • In case you want to customize the deny message that end user receive in case his authentication denied due to adaptive policy, you can do this by entering the message inside “Deny message for Adaptive Authentication” text box.
    • adaptive authentication Action for behavior Change Configuration
    How to add a trusted Device
    1. When End-user log in to the self service console after the policy for device restriction is on, he is provided the option to add the current device as a trusted device.
