Kaltura MediaSpace Single Sign-On SSO

miniOrange provides secure access to MediaSpace for enterprises and full control over access of MediaSpace application. Single Sign-On (SSO) solution for MediaSpace is a cloud based service. With this service you need only one password for all your web & SaaS apps including MediaSpace. miniOrange provides secure access and full control to MediaSpace for enterprises and applications. With the help of the given guide you can configure MediaSpace easily.

miniOrange and MediaSpace Single Sign-On (SSO) integration supports the following features:

SP Initiated Single Sign-On (SSO)
IdP Initiated Single Sign-On (SSO)

Connect with External Source of Users

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Azure AD, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Shibboleth, Ping, Okta, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more.

Follow the Step-by-Step Guide given below for MediaSpace Single Sign-On (SSO)

1. Configure MediaSpace in miniOrange

Login into miniOrange Admin Console.
Go to Apps and click on Add Application button.

In Choose Application Type click on SAML/WS-FED application type.

MediaSpace Single Sign-On (SSO) choose app type

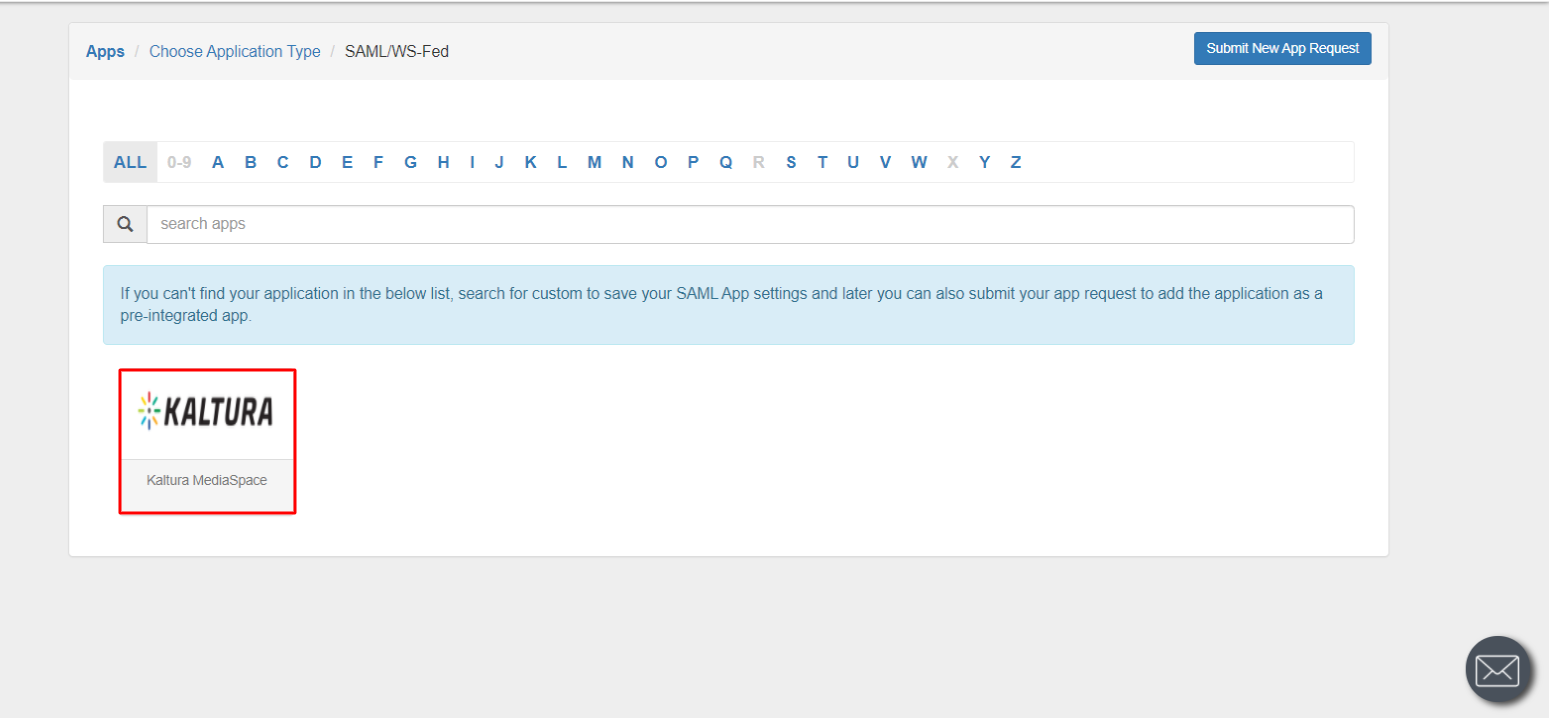

Search for MediaSpace in the list, if you don't find MediaSpace in the list then, search for custom and you can set up your application via Custom SAML App.

MediaSpace Single Sign-On (SSO) manage apps

You can import MediaSpace metadata if you have metadata URL or XML file downloaded from MediaSpace admin panel.

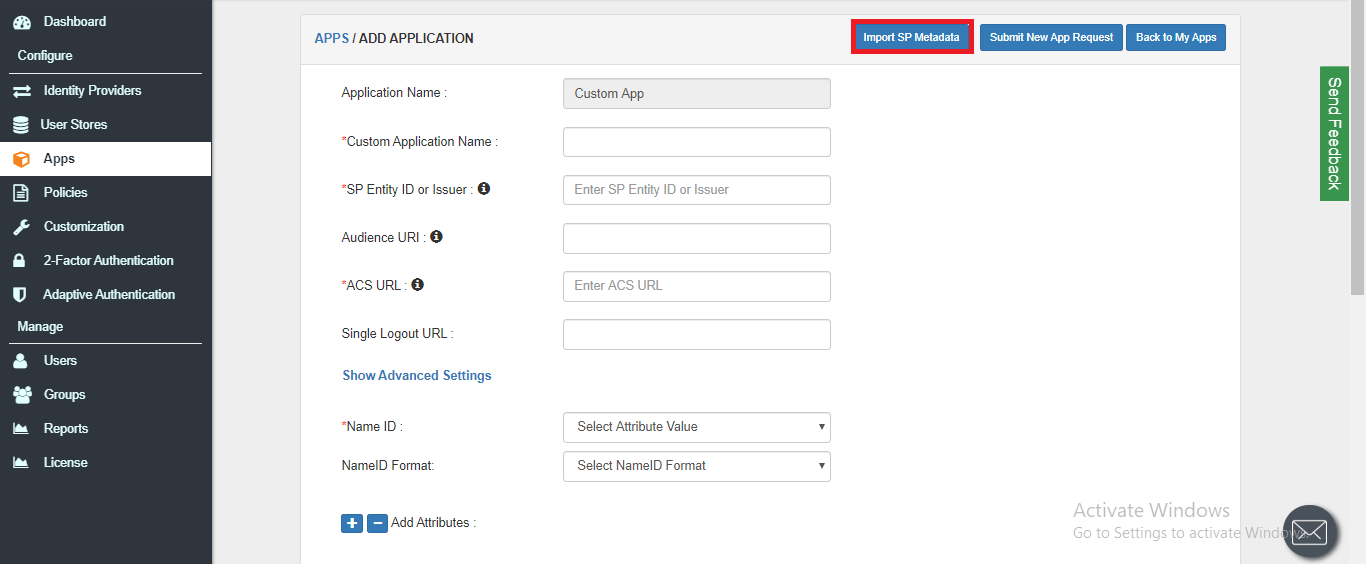

To import metadata, click on Import SP Metadata button.

MediaSpace Single Sign On SSO - import sp metadata.

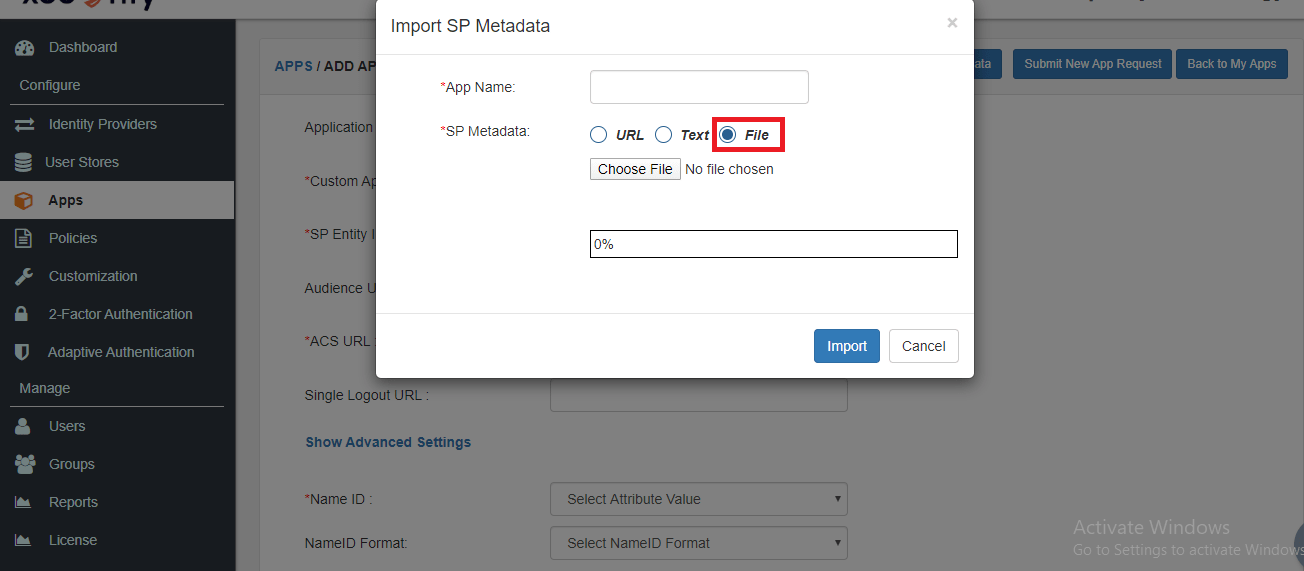

You will get a popup with following options.

MediaSpace Single Sign On SSO import XML file metadata

Select one of the three options to fetch metadata and provide details for that option. Click import to fetch metadata.
The next section on the same window is for adding policy for your app.

Select a Group Name from the dropdown – Choose Default.
Give a policy name for Custom App in Policy Name.
Select the First Factor Type for authentication like Password, Mobile, etc.
Enable Second Factor for authentication if required.
Click on Save button to add policy for Apps (Single Sign-On).

MediaSpace Single Sign On SSO add app policy.

Configure Service Provider (SP)

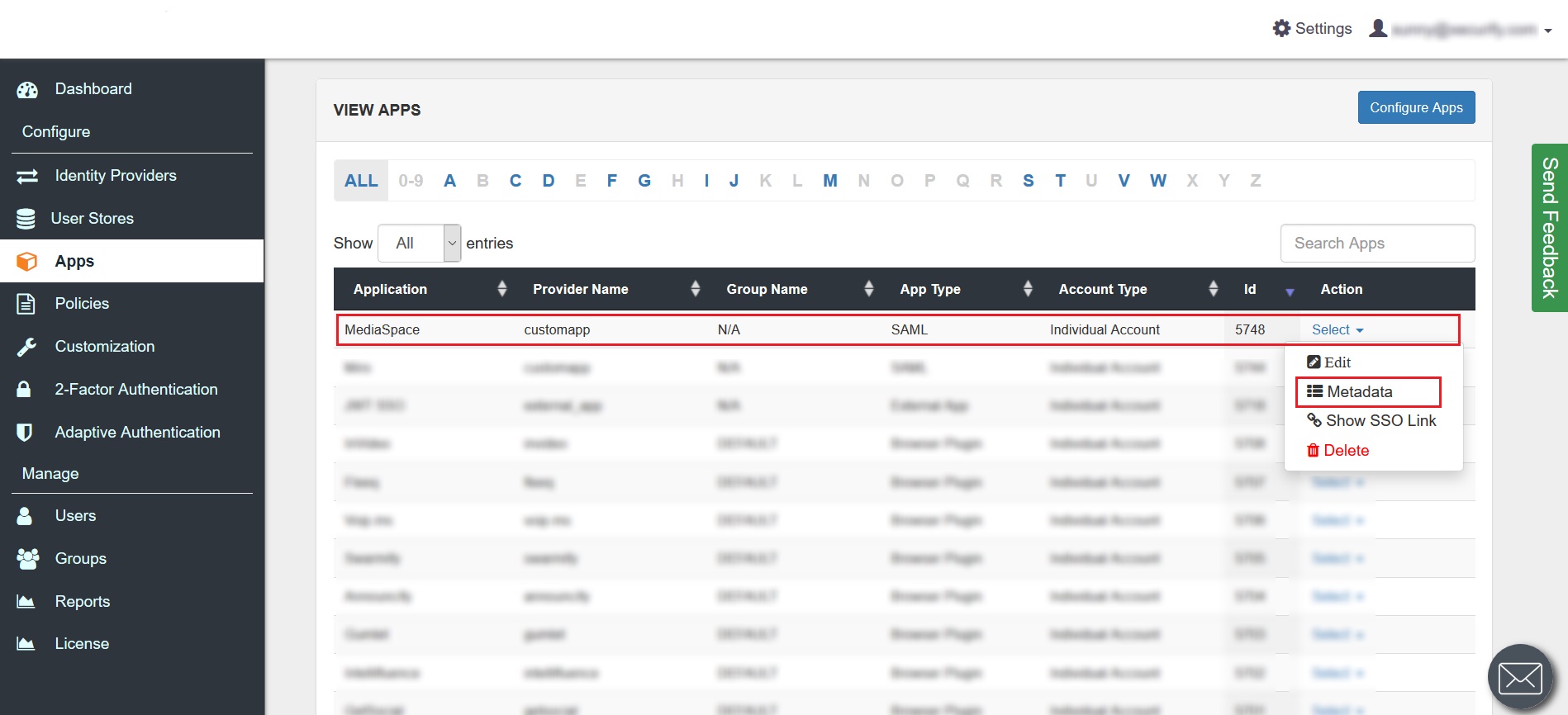

From the list of configured apps, you can locate the app you created, you can see the Metadata option present in front of the configured app.

MediaSpace Single Sign On SSO metadata option.

Click on the Metadata option, you will get a window similar to:

MediaSpace Single Sign On SSO import metadata.

If you want to make it quick and easy, click on the Download Metadata button to get XMl file.

2. Configure SSO in MediaSpace Admin Account

Login to Admin section of your Kaltura MediaSpace Video Portal. Go to SAML in Configuration Management.

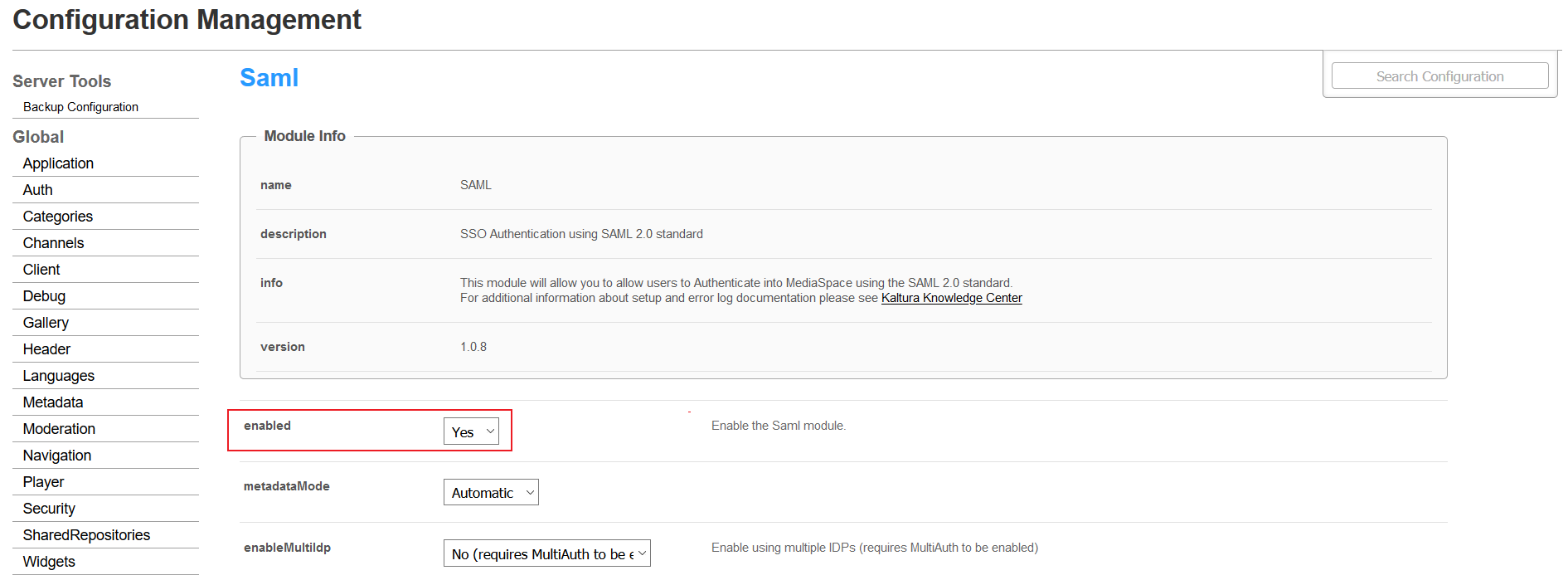

Set enabled to Yes from dropdown to enable SAML in MediaSpace.

MediaSpace Single Sign On SSO Enable SAML

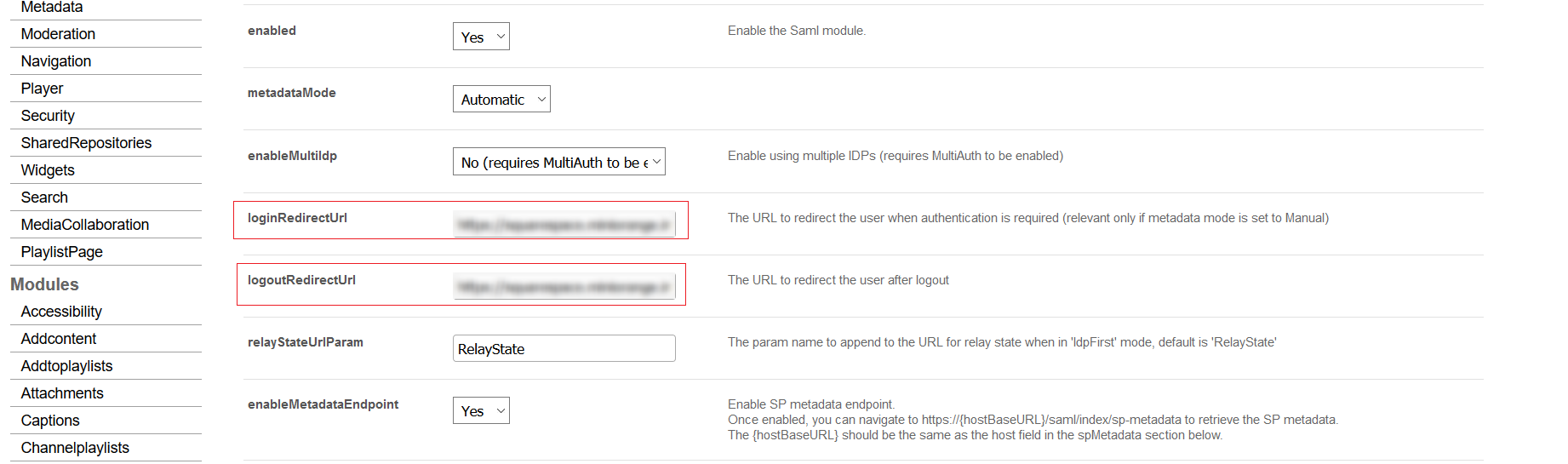

Enter SAML Login URL and SAML Logout URL provided by IdP in loginRedirectUrl and logoutRedirectUrl respectively.

MediaSpace Single Sign On SSO Create SAML Local Provider

Set enableMetadataEndpoint to Yes. This will enable generating XML metadata at https://{HostBaseURL}/saml/index/sp-metadata, where HostBaseUrl is your MediaSpace Video Portal Url.

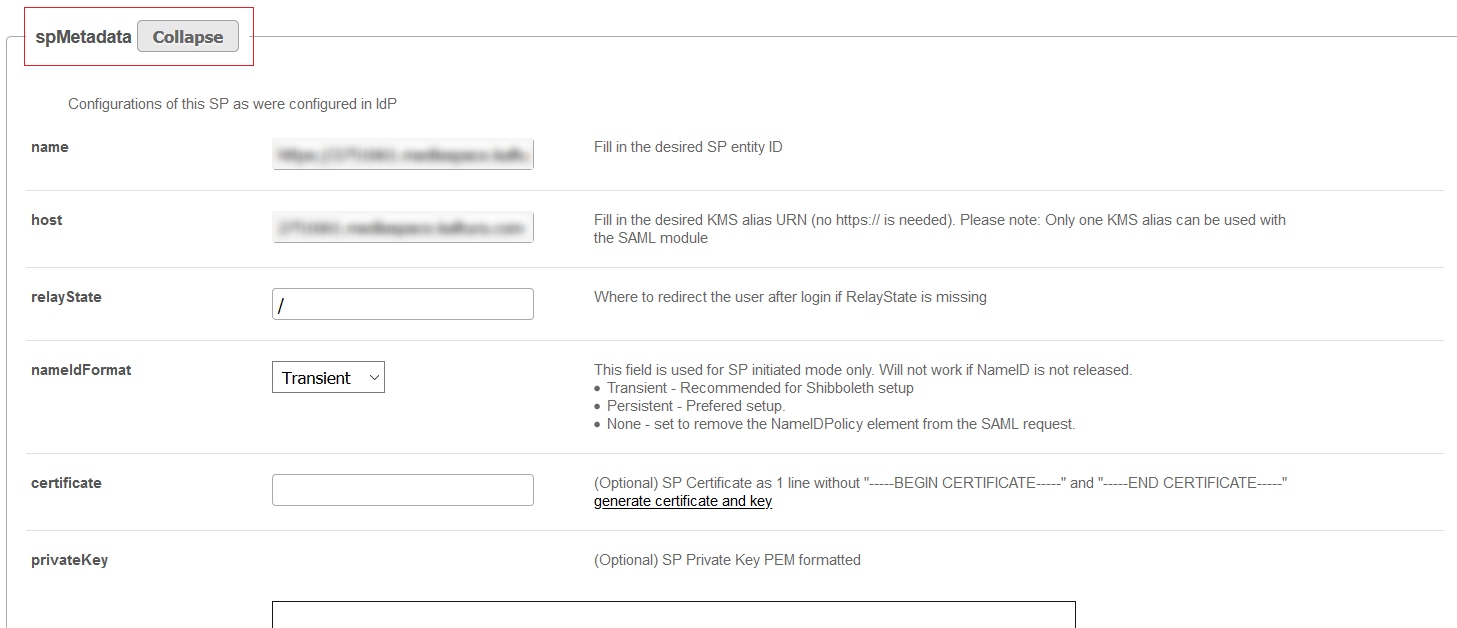

Go to SpMetadata and provide name, host, relaystate, NameID. These details will be used to create metadata from IdP.

MediaSpace Single Sign On SSO Select Default

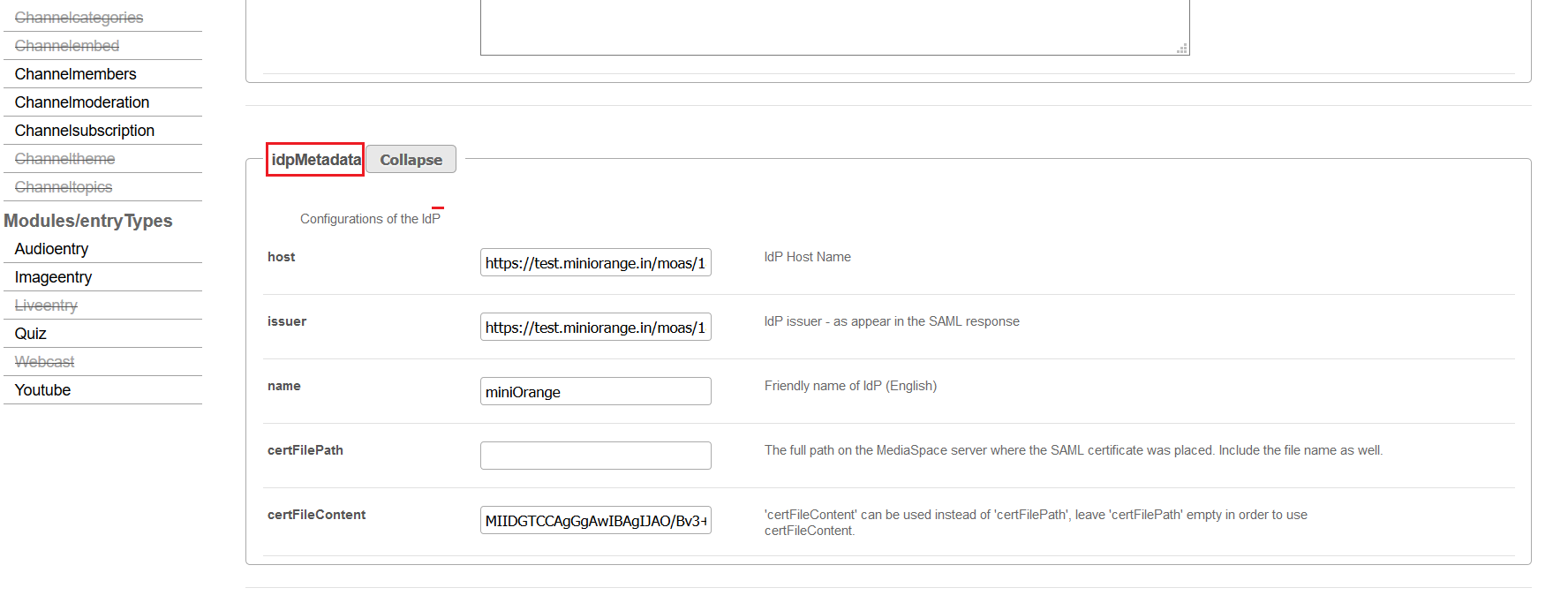

Now go to IdpMetadata and provide issuer, host, name, certificate. These details will be used to create metadata for IdP.

MediaSpace Single Sign On SSO Choose Default Settings

Now Save the Settings.

3. Test SSO Configuration

Test SSO login to your MediaSpace account with miniOrange IdP:

Using SP Initiated Login

Go to your MediaSpace URL, here you will be either asked to enter the username or click on the SSO link which will redirect you to miniOrange IdP Sign On Page.

Enter your miniOrange login credential and click on Login. You will be automatically logged in to your MediaSpace account.

Using IDP Initiated Login

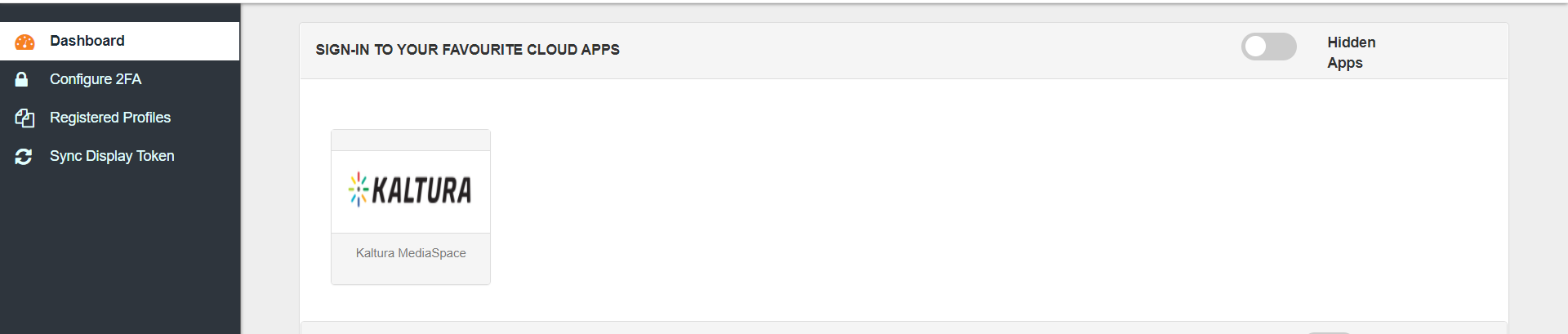

On the Dashboard, click on MediaSpace application which you have added, to verify SSO configuration.

MediaSpace Single Sign-On (SSO) verify configuration

Not able to configure or test SSO?

Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.

4. Configure Your User Directory (Optional)

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Azure AD, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Okta, Shibboleth, Ping, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more. You can configure your existing directory/user store or add users in miniOrange.

Setup miniOrange as IDP
Setup AD as User Directory
Setup External IDP

To add your users in miniOrange there are 2 ways:

1. Create User in miniOrange

2. Bulk Upload Users

1. Create User in miniOrange

Click on Users >> User List >> Add User.

MediaSpace VPN 2FA : Add user in miniOrange

Here, fill the user details without the password and then click on the Create User button.

After successful user creation a notification message "An end user is added successfully" will be displayed at the top of the dashboard.

MediaSpace Two-Factor Authentication: Add user details

Click on On Boarding Status tab. Check the email, with the registered e-mail id and select action Send Activation Mail with Password Reset Link from Select Action dropdown list and then click on Apply button.

Now, Open your email id. Open the mail you get from miniOrange and then click on the link to set your account password.
On the next screen, enter the password and confirm password and then click on the Single Sign-On (SSO) reset password button.

MediaSpace Multi-Factor Authentication: Reset user password

Now, you can log in into miniOrange account by entering your credentials.

2. Bulk Upload Users in miniOrange via Uploading CSV File.

Navigate to Users >> User List. Click on Add User button.

MediaSpace 2FA: Add users via bulk upload

In Bulk User Registration Download sample csv format from our console and edit this csv file according to the instructions.

MediaSpace Two-Factor authentication: Download sample csv file

To bulk upload users, choose the file make sure it is in comma separated .csv file format then click on Upload.

After uploading the csv file successfully, you will see a success message with a link.
Click on that link you will see list of users to send activation mail. Select users to send activation mail and click on Send Activation Mail. An activation mail will be sent to the selected users.

Click on External Directories >> Add Directory in the left menu of the dashboard.

Select Directory type as AD/LDAP.

MediaSpace 2FA: Select AD/LDAP as user store

STORE LDAP CONFIGURATION IN MINIORANGE: Choose this option if you want to keep your configuration in miniOrange. If active directory is behind a firewall, you will need to open the firewall to allow incoming requests to your AD.
STORE LDAP CONFIGURATION ON PREMISE: Choose this option if you want to keep your configuration in your premise and only allow access to AD inside premises. You will have to download and install miniOrange gateway in your premise.

MediaSpace Two-Factor Authentication : Select ad/ldap user store type

Enter LDAP Display Name and LDAP Identifier name.
Select Directory Type as Active Directory.
Enter the LDAP Server URL or IP Address against LDAP Server URL field.
Click on Test Connection button to verify if you have made a successful connection with your LDAP server.

MediaSpace MFA/2FA: Configure LDAP server URL Connection

In Active Directory, go to the properties of user containers/OU's and search for Distinguished Name attribute.

MediaSpace MFA: Configure user bind account domain name

Enter the valid Bind account Password.
Click on Test Bind Account Credentials button to verify your LDAP Bind credentials for LDAP connection.

MediaSpace MFA: Check bind account credentials

Search Base is the location in the directory where the search for a user begins. You will get this from the same place you got your Distinguished name.

MediaSpace 2FA : Configure user search base

Select a suitable Search filter from the drop down menu. To use custom Search Filter select "Write your Custom Filter" option and customize it accordingly.

MediaSpace MFA/2FA : Select user search filter

You can also configure following options while setting up AD. Enable Activate LDAP in order to authenticate users from AD/LDAP. Click on the Save button to add user store.

Here's the list of the attributes and what it does when we enable it. You can enable/disable accordingly.

Attribute	Description
Activate LDAP	All user authentications will be done with LDAP credentials if you Activate it
Sync users in miniOrange	Users will be created in miniOrange after authentication with LDAP
Fallback Authentication	If LDAP credentials fail then user will be authenticated through miniOrange
Allow users to change password	This allows your users to change their password. It updates the new credentials in your LDAP server
Enable administrator login	On enabling this, your miniOrange Administrator login authenticates using your LDAP server
Show IdP to users	If you enable this option, this IdP will be visible to users
Send Configured Attributes	If you enable this option, then only the attributes configured below will be sent in attributes at the time of login

Click on Save. After this, it will show you the list of User stores. Click on Test Connection to check whether you have enter valid details. For that, it will ask for username and password.

On Successful connection with LDAP Server, a success message is shown.
Click on Test Attribute Mapping.

Enter a valid Username. Then, click on Test. Mapped Attributes corresponding to the user are fetched.

MediaSpace MFA: Fetch mapped attributes for user

After successful Attribute Mapping Configuration, go back to the ldap configuration and enable Activate LDAP in order to authenticate users from AD/LDAP.

Refer our guide to setup LDAPS on windows server.

User Import and Provisioning from AD

Go to Settings >> Product Settings in the Customer Admin Account.

MFA/Two-Factor Authentication(2FA) for miniOrange dashboard

Enable the "Enable User Auto Registration" option and click Save.

MFA/Two-Factor Authentication(2FA) for Enable User Auto Registration

(Optional) To send a welcome email to all the end users that will be imported, enable the "Enable sending Welcome Emails after user registration" option and click Save.

MFA/Two-Factor Authentication(2FA) for Enable sending Welcome Emails after user registration

From the Left-Side menu of the dashboard select Provisioning.

MFA/Two-Factor Authentication(2FA) for User Sync/Provisioning

In Setup Provisioning tab select Active Directory in the Select Application Drop Down.
Toggle the Import Users tab, click on Save button.

MFA/Two-Factor Authentication(2FA) for User Sync Active Directory Configuration

On the same section, switch to Import Users section.
Select Active Directory from the dropdown and click on the Import Users tab, to import all the users from Active Directory to miniOrange.

MFA/Two-Factor Authentication(2FA) for User Sync Import Operation

You can view all the Users you have imports by selecting Users >> User List from Left Panel.

MFA/Two-Factor Authentication(2FA) for User List

All the imported users will be auto registered.
These groups will be helpful in adding multiple 2FA policies on the applications.

miniOrange integrates with various external user sources such as directories, identity providers, and etc.

Not able to find your IdP or Need help setting it up?

Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.

5. Adaptive Authentication with MediaSpace

A. Restricting access to MediaSpace with IP Blocking

You can use adaptive authentication with MediaSpace Single Sign-On (SSO) to improve the security and functionality of Single Sign-On. You can allow a IP Address in certain range for SSO or you can deny it based your requirements and you can also challenge the user to verify his authenticity. Adaptive authentication manages the user authentication bases on different factors such as Device ID, Location, Time of Access, IP Address and many more.

You can configure Adaptive Authentication with IP Blocking in following way:

Login to Self Service Console >> Adaptive Authentication.
Add a Policy Name for your Adaptive Authentication Policy.

MediaSpace Single Sign-On (SSO) Restrict Access adaptive authnetication policy

Select your Action for behaviour Change and Challenge Type for user from the Action for behaviour Change Section.

MediaSpace Single Sign-On (SSO) Restrict Access adaptive authentication behaviour change

Action for behaviour Change Options :

Attribute	Description
Allow	Allow user to authenticate and use services if Adaptive authentication condition is true.
Challenge	Challenge users with one of the three methods mentioned below for verifying user authenticity.
Deny	Deny user authentications and access to services if Adaptive authentication condition is true.

Challenge Type Options :

Attribute	Description
User second Factor	The User needs to authenticate using the second factor he has opted or assigned for such as OTP over SMS PUSH Notification OTP over Email And 12 more methods.
KBA (Knowledge-based authentication)	The System will ask user for 2 of 3 questions he has configured in his Self Service Console. Only after right answer to both questions user is allowed to proceed further.
OTP over Alternate Email	User will receive a OTP on the alternate email he has configured threw Self Service Console. Once user provides the correct OTP he is allowed to proceed further.

Now Enable Enable IP Restriction option from the IP RESTRICTION CONFIGURATION section to configure custom IP range.

MediaSpace Single Sign-On (SSO) Restrict Access adaptive authentication ip blocking

Select the Action you want to perform if the IP address is out of the range. i.e. Allow, Challenge & Deny.
Specify the IP Address range for which you want above setting to reflect. You can add more than one IP Address ranges by clicking on following button +.
Scroll to the end and click on save.

B. Adaptive Authentication with Limiting number of devices.

Using Adaptive Authentication you can also restrict the number of devices the end user can access the Services on. You can allow end users to access services on a fixed no. of devices. The end users will be able to access services provided by us on this fixed no. of devices.

You can configure Adaptive Authentication with Device Restriction in following way

Login to Self Service Console >> Adaptive Authentication.
Add a Policy Name for your Adaptive Authentication Policy.
Select your Action for behaviour Change and Challenge Type for user from the Action for behaviour Change Section.

MediaSpace Single Sign-On (SSO) Restrict Access adaptive authentication behaviour and challenge type

Scroll down to Device Configuration section and enable Allow User to Register Device option to allow users to register their devices.
Enter the Number of Devices which are allowed to register in field next to Number of Device Registrations Allowed
Choose Action if number of devices exceeded (This will override your setting for Action for Behaviour Change.)

Challenge: The user needs to verify himself using any of the three methods mentioned in table in step 5.1
Deny : Deny users access to the system

Enable option Send email alerts to Users if number of Device registrations exceeded allowed count if you want to alert the user about no of devices exceeding the limit. Save the configuration.

MediaSpace Single Sign-On (SSO) Restrict Access adaptive authentication enable device restriction

C. Add Adaptive Authentication policy to MediaSpace.

Login to Self Service Console >> Policies.
Click on Edit option for predefined app policy.

MediaSpace Single Sign-On (sso) edit device restriction policy

Set your application name in the Application and select password as Login Method.
Enable Adaptive Authentication on Policy page and select the required restriction method as an option.
From Select Login Policy dropdown select the policy we created in last step and click on save.

MediaSpace Single Sign-On (SSO) Restrict Access save device restriction policy

D.Notification and Alert Message.

This section handles the notifications and alerts related to Adaptive Authentication.It provides the following options :

Get email alerts if users login from unknown devices or locations : Admin need to enable this option to enable receiving alerts for different alert options.

Option	Description
Challenge Completed and Device Registered	Enabling this option allows you to send an email alert when an end-user completes a challenge and registers a device.
Challenge Completed but Device Not Registered	Enabling this option allows you to send an email alert when an end-user completes a challenge but do not registers the device.
Challenge Failed	Enabling this option allows you to send an email alert when an end-user fails to complete the challenge.

adaptive authentication Action for Behaviour Change Configuration

Next subsection is Send email alerts which allows us to enable or disable alerts for admin and end-users. To enable alerts for admins, you can enable the “Administrators” switch button.

In case you want multiple admins accounts to receive alerts then you can enable the option for admin and then enter the admin emails separated by a ‘,’ in the input field next to Administrators email to receive alerts label. To enable alerts for the end-users, you can enable the “End Users” switch button.
In case you want to customize the deny message that end user receive in case his authentication denied due to adaptive policy, you can do this by entering the message inside “Deny message for Adaptive Authentication” textbox.

How to add a trusted Device

When End-user log in to the self service console after the policy for device restriction is on, he is provided the option to add the current device as a trusted device.

Contents
