Follow the Step-by-Step Guide given below for Yardi Single Sign On (SSO)

Step 1: Configure Yardi in miniOrange

• Click here to log in to your miniOrange Admin Dashboard.
• Go to Apps >> Manage Apps . Click Configure Apps button.

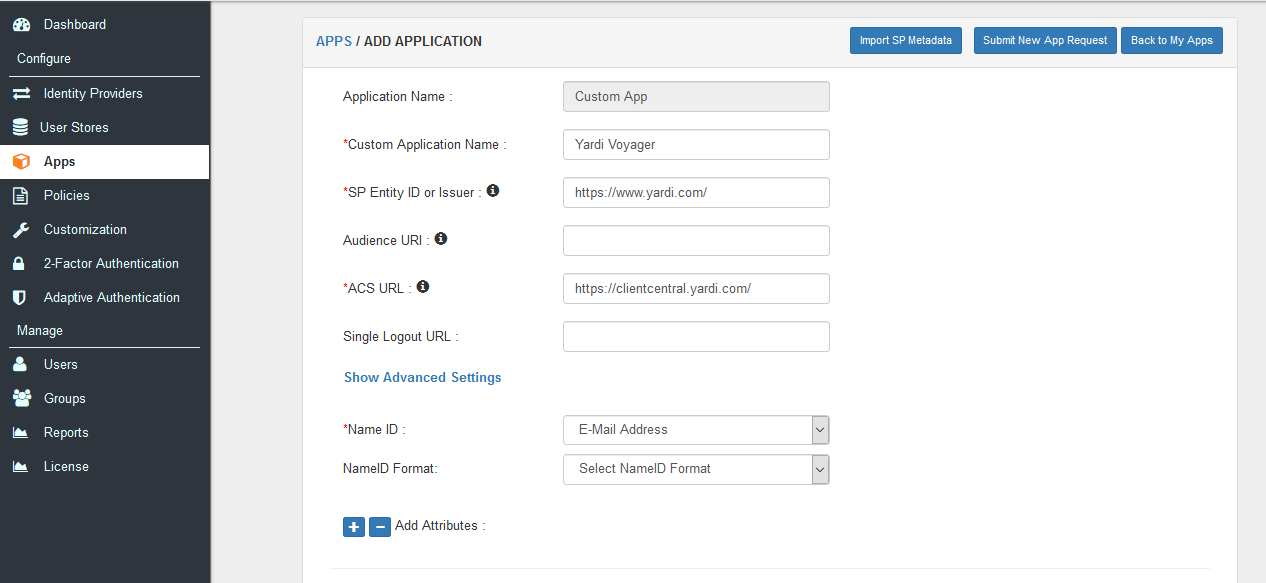

• Click on SAML tab. Select Custom App. Put the name Yardi Voyager and click Add App button.



• Make sure the SP Entity ID is https://www.yardi.com/
• Make sure the ACS URL is in the format: https://clientcentral.yardi.com/.
• Select the Email ID from the Name ID dropdown.
• Leave the Attributes section empty.

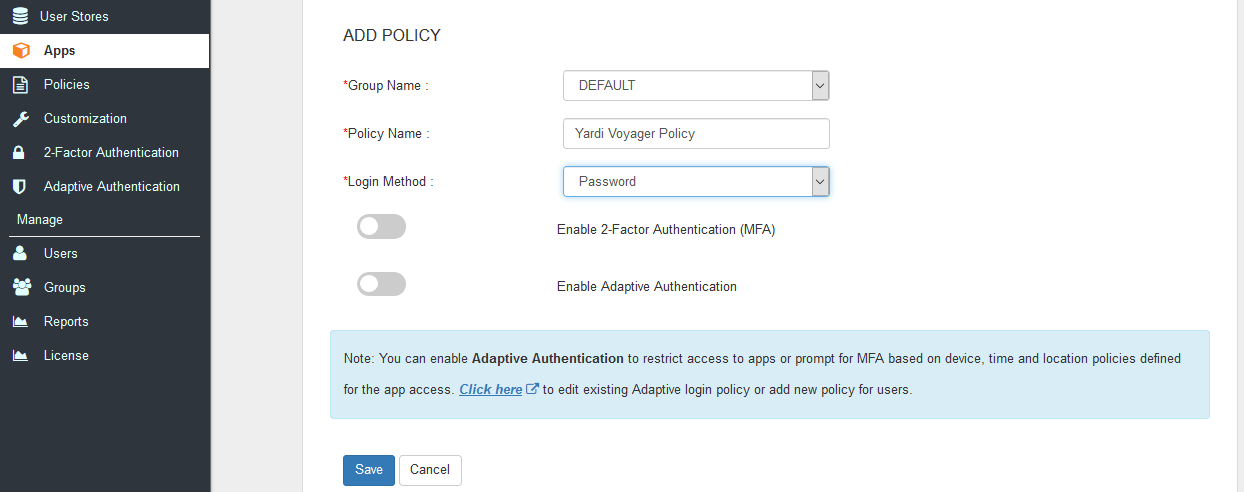

• Go to the Add Policy and select DEFAULT from the Group Name dropdown
• Now enter the Yardi Voyager Policy in the Policy Name field
• Select PASSWORD from the First Factor Type dropdown
• Click on Save to configure Yardi Voyager.



• Click on Download Metadata link to download the metadata which will be required later. Click on Link to see the IDP initiated SSO link for Yardi Voyager



• Hit on the Download Metadata XML button to download the metadata.xml file.

Step 2: Choose Your User Directory

2.1: Setup AD as User Directory

1. Login to miniOrange dashboard from the Admin Console.
2. From the left side menu, click on User Stores >> Add User Store.



3. Select User Store type as AD/LDAP.



1. STORE LDAP CONFIGURATION IN MINIORANGE: Choose this option if you want to keep your configuration in miniOrange. If active directory is behind a firewall, you will need to open the firewall to allow incoming requests to your AD.
2. STORE LDAP CONFIGURATION ON PREMISE: Choose this option if you want to keep your configuration in your premise and only allow access to AD inside premises. You will have to download and install miniOrange gateway in your premise.




4. Enter LDAP Display Name and LDAP Identifier name.
5. Select Directory Type as Active Directory.
6. Enter the LDAP Server URL or IP Address against LDAP Server URL field.
7. Click on Test Connection button to verify if you have made a successful connection with your LDAP server.



8. In Active Directory, go to the properties of user containers/OU's and search for Distinguished Name attribute.



9. Enter the valid Bind account Password.
10. Click on Test Bind Account Credentials button to verify your LDAP Bind credentials for LDAP connection.



11. Search Base is the location in the directory where the search for a user begins. You will get this from the same place you got your Distinguished name.



12. Select a suitable Search filter from the drop-down menu. If you use User in Single Group Filter or User in Multiple Group Filter, replace the <group-dn> in the search filter with the distinguished name of the group in which your users are present. To use custom Search Filter select "Write your Custom Filter" option and customize it accordingly.



13. You can also configure following options while setting up AD. Enable Activate LDAP in order to authenticate users from AD/LDAP. Click on the Save button to add user store.




Here's the list of the attributes and what it does when we enable it. You can enable/disable accordingly.

Attribute	Description
Activate LDAP	All user authentications will be done with LDAP credentials if you Activate it
Sync users in miniOrange	Users will be created in miniOrange after authentication with LDAP
Backup Authentication	If LDAP credentials fail then user will be authenticated through miniOrange
Allow users to change password	This allows your users to change their password. It updates the new credentials in your LDAP server
Enable administrator login	On enabling this, your miniOrange Administrator login authenticates using your LDAP server
Show IdP to users	If you enable this option, this IdP will be visible to users
Send Configured Attributes	If you enable this option, then only the attributes configured below will be sent in attributes at the time of login



14. Click on Save. After this, it will show you the list of User stores. Click on Test Configuration to check whether you have enter valid details. For that, it will ask for username and password.



15. On Successful connection with LDAP Server, a success message is shown.
16. Click on Test Attribute Mapping.



17. Enter a valid Username. Then, click on Test. Mapped Attributes corresponding to the user are fetched.



18. After successful Attribute Mapping Configuration, go back to the ldap configuration and enable Activate LDAP in order to authenticate users from AD/LDAP.

Refer our guide to setup LDAPS on windows server.

2.2: Setup miniOrange as a User Store

1. Log in to miniOrange Admin Console.
2. There are 3 ways to setup miniOrange as an Identity Source

2.2.1 Create User in miniOrange

2.2.2 Bulk Upload Users

2.2.3 Self User Registration

2.2.1 Create User in miniOrange

• Click on Users >> Add User.



• Here, fill the user details without the password and then click on the Create User button.



• After successful user creation a notification message "An end user is added successfully" will be displayed at the top of the dashboard.



• Click on Onboarding Status tab. Check the email, with the registered e-mail id and select action Send Activation Mail with Password Reset Link from Select Action dropdown list and then click on Apply button.



• Now, Open your email id. Open the mail you get from miniOrange and then click on the link to set your account password.
• On the next screen, enter the password and confirm password and then click on the Single Sign-On (SSO) reset password button.



• Now, you can log in into miniOrange account by entering your credentials.

2.2.2 Bulk Upload Users in miniOrange via Uploading CSV File.

• Navigate to Users >> User List. Click on Add User button.



• In Bulk User Registration Download sample csv format from our console and edit this csv file according to the instructions.



• To bulk upload users, choose the file make sure it is in comma separated .csv file format then click on Upload.



• After uploading the csv file successfully, you will see a success message with a link.
• Click on that link you will see list of users to send activation mail. Select users to send activation mail and click on Send Activation Mail. An activation mail will be sent to the selected users.

2.2.3 Self User Registration

• miniOrange self user registration allows end users to register themselves using customized registration form. miniOrange admin users can customize the registration form by adding more custom fields according to their choice. Follow the miniOrange guide to customize user self registration page.

Step 3: Enabling and using SAML with your account

• Contact the Yardi Voyager 7 Support team and request that they enable SAML 2.0 for your account.
• Update the endpoints in App as per the metadata recieved from Yardi

  Id:	Get this from the Metadata of App.
  Login URL:	Get this from the Metadata of App.
  Signing Certificate:	Get this from the Metadata of App.
  IDP Metadata:	Get this from the Metadata of App.

Step 4: Update the endpoints in App as per the metadata recieved from Yardi

• Below is an example of the values to be picked from the metadata file.



  SP Entity ID or Issuer:	As per metadata received from Yardi
  ACS URL:	As per metadata received from Yardi
