Cisco Firepower Management Center Single Sign-On SSO


Cisco Firepower Management Center is the all-in-one community platform for creators and brands which brings together engaging discussions, members, live streams, chat, events, and memberships all in one place. Single Sign-On (SSO) solution by miniOrange provides secure Single Sign-On access into Cisco Firepower Management Center using a single set of login credentials. You can log into Cisco Firepower Management Center using miniOrange credentials or Azure AD credentials or any of your existing identity providers. With miniOrange SSO services, along with Cisco Firepower Management Center you can also login into other On-Premise and Cloud Applications using your existing Identity Providers/User Store (Azure Active Directory, Okta, Ping) credentials. Follow the given setup guide to integrate SAML SSO for your Cisco Firepower Management Center account.

miniOrange and Cisco Firepower Management Center Single Sign-On (SSO) integration supports the following features:


  • SP Initiated Single Sign-On (SSO)
  • IdP Initiated Single Sign-On (SSO)

Connect with External Source of Users


miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Azure AD, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Shibboleth, Ping, Okta, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more.



Follow the Step-by-Step Guide given below for Cisco Firepower Management Center Single Sign-On (SSO)

1. Configure Cisco Firepower Management Center in miniOrange

  • Login into miniOrange Admin Console.
  • Go to Apps and click on Add Application button.
  • Cisco Firepower Management Center Single Sign-On (SSO) add app

  • In Choose Application, select SAML/WS-FED from the application type dropdown.
  • Cisco Firepower Management Center Single Sign-On (SSO) choose app type

  • Search for Cisco Firepower Management Center in the list, if you don't find Cisco Firepower Management Center in the list then, search for custom and you can set up your application in Custom SAML App.
  • Cisco Firepower Management Center Single Sign-On (SSO) manage apps

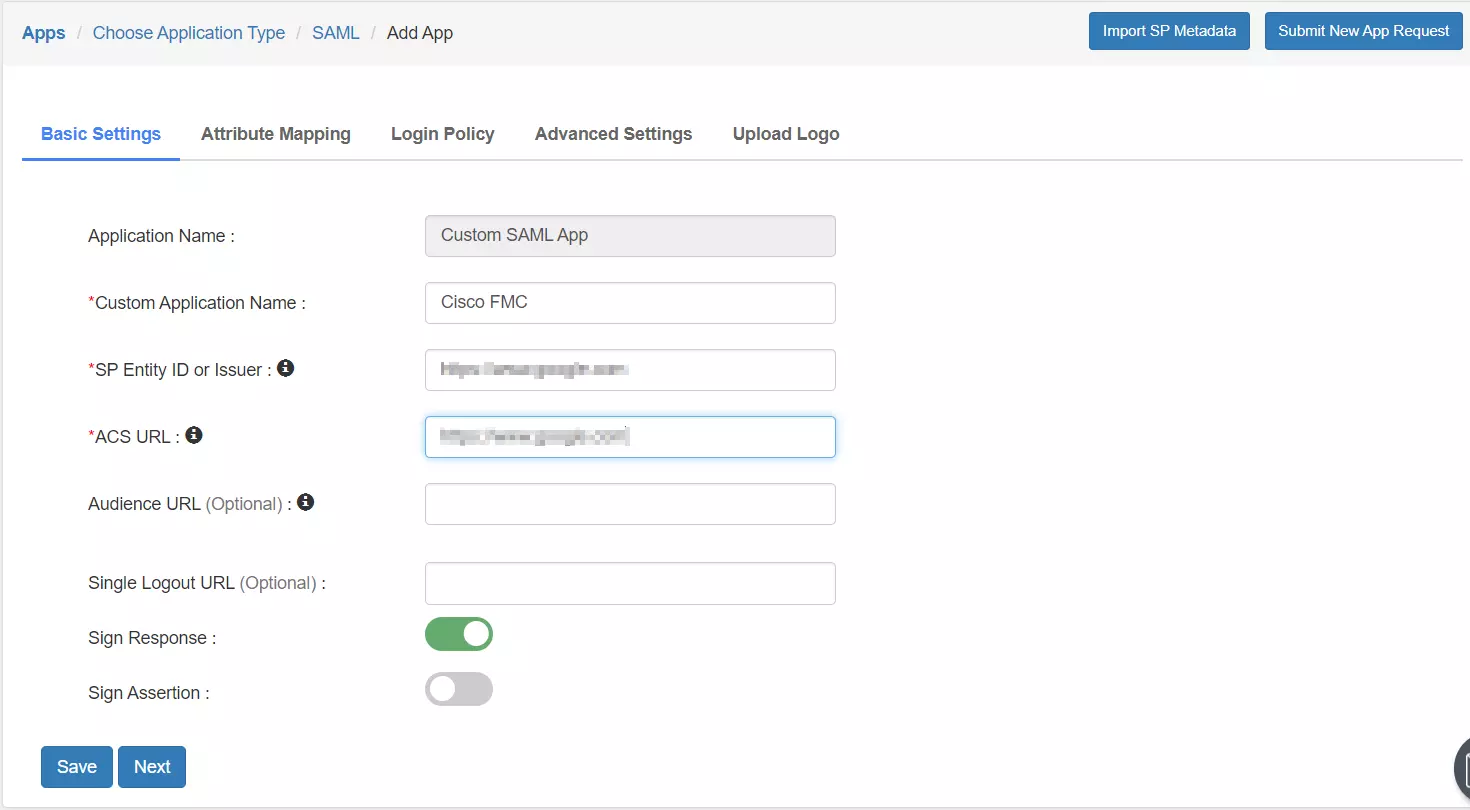

  • Enter the following values in the respective fields.

  • SP Entity ID or Issuer: https://<fmc URL>/saml/metadata
    ACS URL: https://<fmc URL>/saml/acs
    NameID format: Unspecified

    Cisco Firepower Management Center SAML Single Sign-On (sso) data

  • Click Next, now in the Attribute Mapping add and configure the attributes.
  • Cisco Firepower Management Center SAML Single Sign-On (sso) metadata link

  • Click on Save.

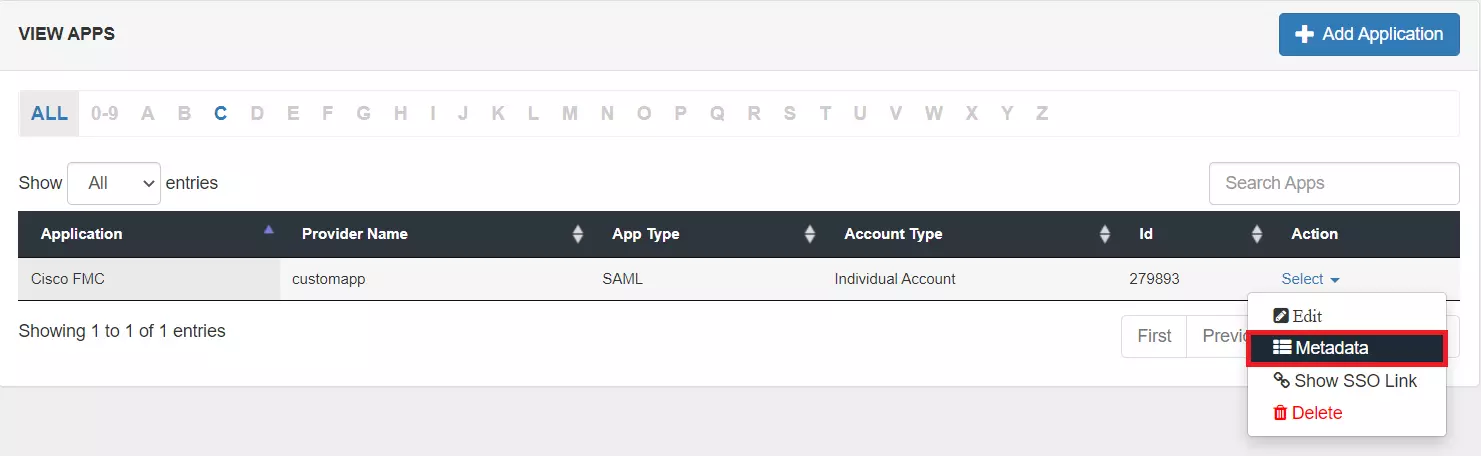

  • Your application is saved successfully. Now click on the Select button against your newly created application. Go to Metadata.
  • Cisco Firepower Management Center SAML Single Sign-On (sso) Select Metadata

  • On the Metadata page, click on Show Metadata Details and choose either of the two Metadata options :
    • If you want to use miniOrange as User-Store i.e., your user identities will be stored in miniOrange then download the metadata file under the heading 'INFORMATION REQUIRED TO SET MINIORANGE AS IDP'.
    • If you want to authenticate your users via any external Identity Provider like Active Directory, Okta, OneLogin, Google, Apple ID, etc then download the Metadata file under the heading 'INFORMATION REQUIRED TO AUTHENTICATE VIA EXTERNAL IDPS'.
    • Cisco Firepower Management Center SAML Single Sign-On (sso) View IdP metadata

    • Then click on Download Metadata.
    • Cisco Firepower Management Center SAML Single Sign-On (sso) Download Metadata


2. Configure SSO in Cisco Firepower Management Center Admin Account

  • Login to the FMC with Admin privileges. Navigate to System >Users.
  • Cisco Firepower Management Center SAML Single Sign-On (sso) Users section

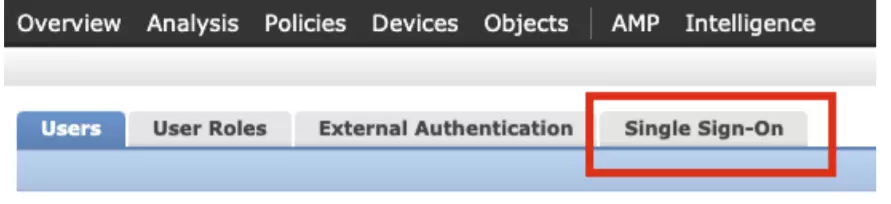

  • Click on Single Sign-On, as shown in this image.
  • Cisco Firepower Management Center SAML Single Sign-On (sso)

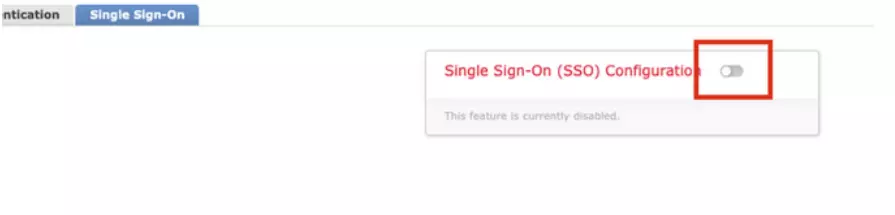

  • Enable the Single Sign-On option (Disabled by default).
  • Cisco Firepower Management Center SAML Enable Single Sign-On (sso)

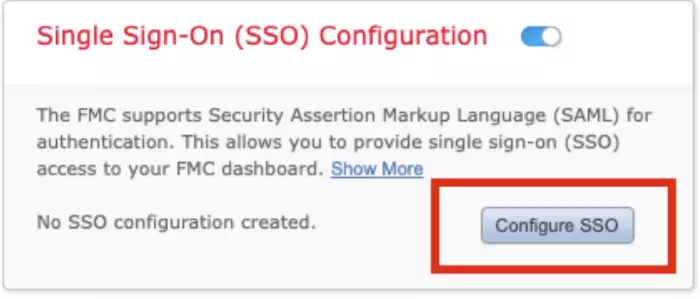

  • Click on Configure SSO to begin SSO configuration on FMC.
  • Cisco Firepower Management Center SAML Single Sign-On (sso) Configuration

  • Select the FMC SAML Provider. Click Next.

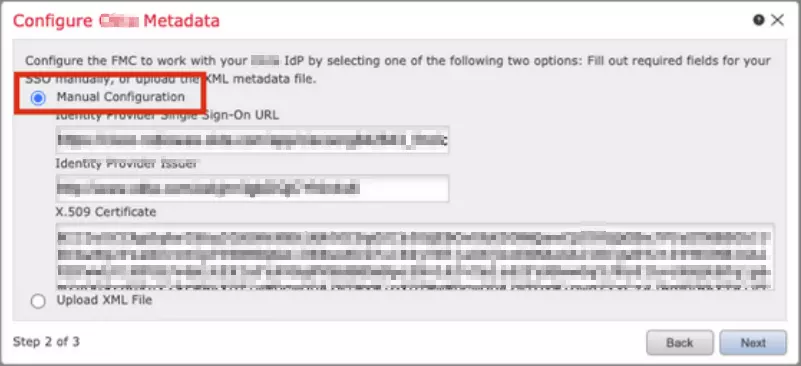

  • You can choose Manual Configuration and enter the iDP data manually. Click Next
  • Cisco Firepower Management Center SAML Single Sign-On (sso) configure metadata

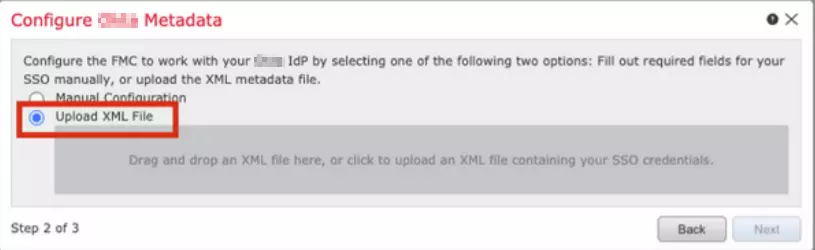

  • You can also choose Upload XML file and upload the XML file retrieved in this step of configuration.
  • Cisco Firepower Management Center SAML Single Sign-On (sso) upload xml

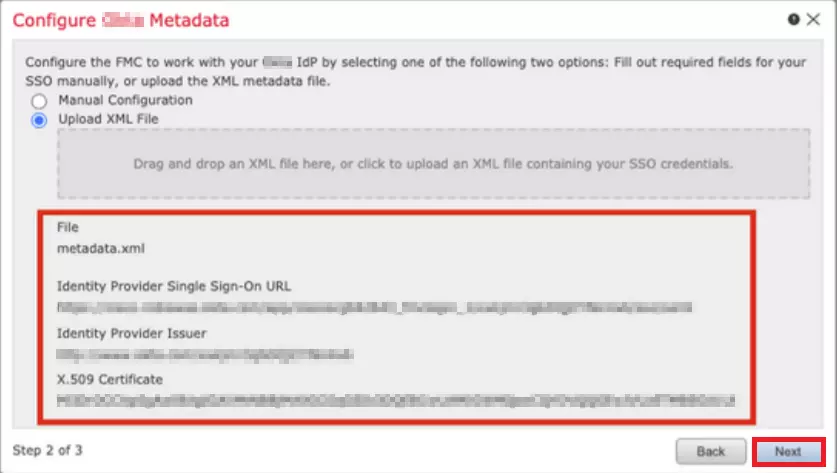

  • Once the file is uploaded, the FMC displays the metadata. Click Next, as shown in this image.
  • Cisco Firepower Management Center SAML Single Sign-On (sso) save configuration

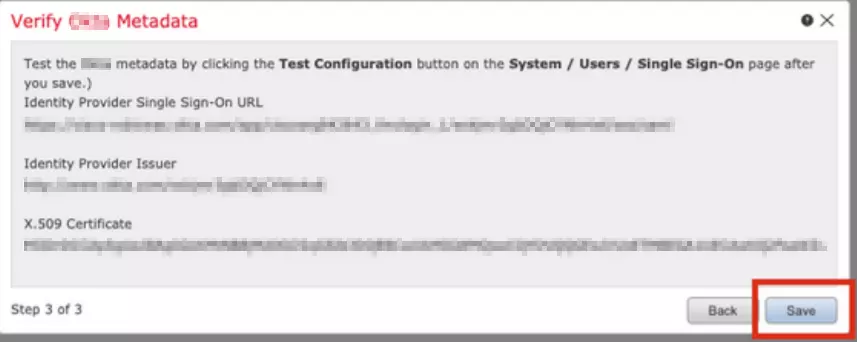

  • Verify the metadata. Click Save, as shown in this image.
  • Cisco Firepower Management Center SAML Single Sign-On (sso) verify metadata

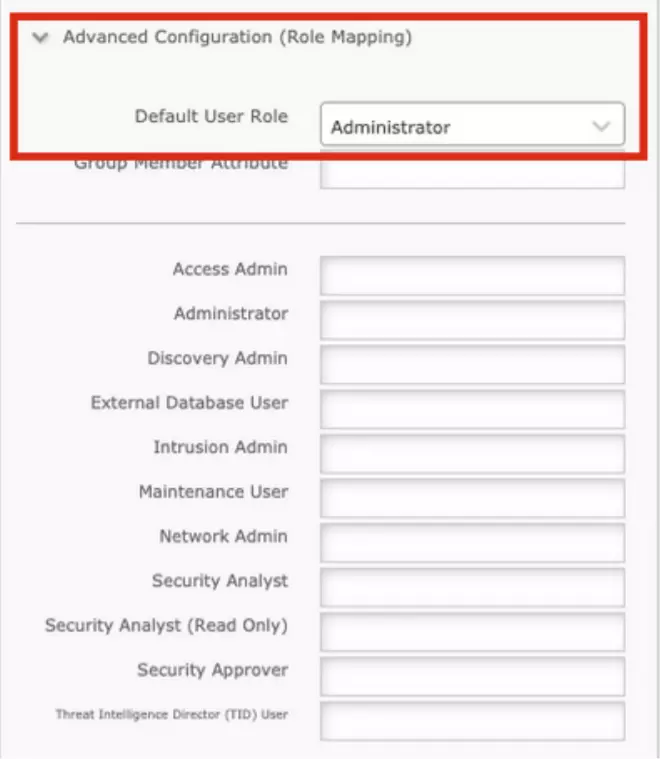

  • Configure the Role Mapping/Default User Role under Advanced Configuration.
  • Cisco Firepower Management Center SAML Single Sign-On (sso) role mapping

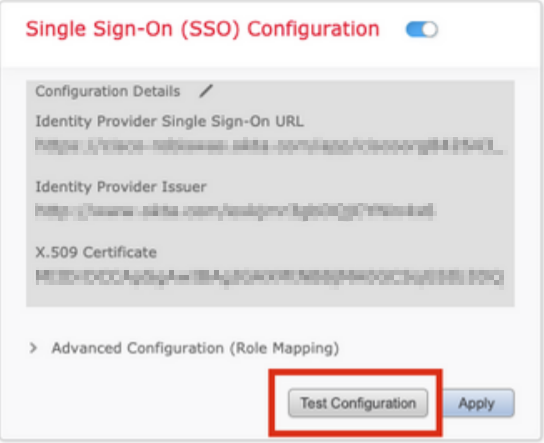

  • In order to test the Configuration, click on Test Configuration, as shown in this image.
  • Cisco Firepower Management Center SAML Single Sign-On (sso) test configuration

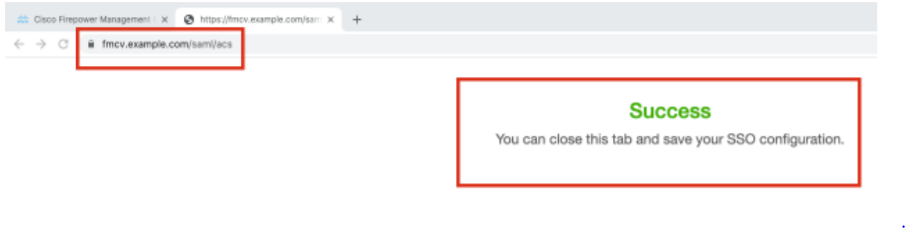

  • If the test is a success, you should see the page shown in this image, on a new tab on the browser.
  • Cisco Firepower Management Center SAML Single Sign-On (sso) success configuration

  • Click on Apply to save the configuration.

3. Test SSO Configuration

Test SSO login to your Cisco Firepower Management Center account with miniOrange IdP:

    Using SP Initiated Login

    • Go to your Cisco Firepower Management Center URL, here you will be either asked to enter the username or click on the SSO link which will redirect you to miniOrange IdP Sign On Page.
    • Cisco Firepower Management Center Single Sign-On (SSO) login

    • Enter your miniOrange login credential and click on Login. You will be automatically logged in to your Cisco Firepower Management Center account.

    Using IDP Initiated Login

    • Login to miniOrange IdP using your credentials.
    • Cisco Firepower Management Center Single Sign-On (SSO)

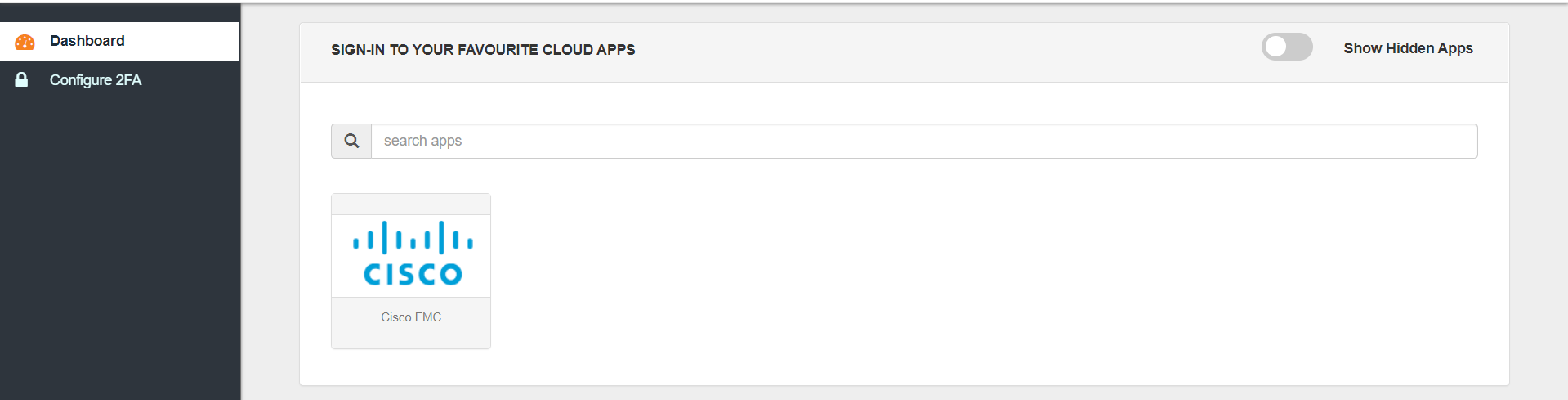

    • On the Dashboard, click on Cisco Firepower Management Center application which you have added, to verify SSO configuration.
    • Cisco Firepower Management Center Single Sign-On (SSO) verify configuration


    Not able to configure or test SSO?


    Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.



4. Configure Your User Directory (Optional)

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Microsoft Entra ID, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Okta, Shibboleth, Ping, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more. You can configure your existing directory/user store or add users in miniOrange.



  • To add your users in miniOrange there are 2 ways:
  • 1. Create User in miniOrange

    • Click on Users >> User List >> Add User.
    • Cisco Firepower Management Center: Add user in miniOrange

    • Here, fill the user details without the password and then click on the Create User button.
    • Cisco Firepower Management Center: Add user details

    • After successful user creation a notification message "An end user is added successfully" will be displayed at the top of the dashboard.
    • Cisco Firepower Management Center: Add user details

    • Click on Onboarding Status tab. Check the email, with the registered e-mail id and select action Send Activation Mail with Password Reset Link from Select Action dropdown list and then click on Apply button.
    • Cisco Firepower Management Center: Select email action

    • Now, Open your email id. Open the mail you get from miniOrange and then click on the link to set your account password.
    • On the next screen, enter the password and confirm password and then click on the Single Sign-On (SSO) reset password button.
    • Cisco Firepower Management Center: Reset user password
    • Now, you can log in into miniOrange account by entering your credentials.

    2. Bulk Upload Users in miniOrange via Uploading CSV File.

    • Navigate to Users >> User List. Click on Add User button.
    • Cisco Firepower Management Center: Add users via bulk upload

    • In Bulk User Registration Download sample csv format from our console and edit this csv file according to the instructions.
    • Cisco Firepower Management Center: Download sample csv file

    • To bulk upload users, choose the file make sure it is in comma separated .csv file format then click on Upload.
    • Cisco Firepower Management Center: Bulk upload user

    • After uploading the csv file successfully, you will see a success message with a link.
    • Click on that link you will see list of users to send activation mail. Select users to send activation mail and click on Send Activation Mail. An activation mail will be sent to the selected users.
  • Click on External Directories >> Add Directory in the left menu of the dashboard.
  • Cisco Firepower Management Center: Configure User Store

  • Select Directory type as AD/LDAP.
  • Cisco Firepower Management Center: Select AD/LDAP as user store

    1. STORE LDAP CONFIGURATION IN MINIORANGE: Choose this option if you want to keep your configuration in miniOrange. If active directory is behind a firewall, you will need to open the firewall to allow incoming requests to your AD.
    2. STORE LDAP CONFIGURATION ON PREMISE: Choose this option if you want to keep your configuration in your premise and only allow access to AD inside premises. You will have to download and install miniOrange gateway in your premise.
    3. Cisco Firepower Management Center: Select ad/ldap user store type

  • Enter LDAP Display Name and LDAP Identifier name.
  • Select Directory Type as Active Directory.
  • Enter the LDAP Server URL or IP Address against LDAP Server URL field.
  • Click on Test Connection button to verify if you have made a successful connection with your LDAP server.
  • Cisco Firepower Management Center: Configure LDAP server URL Connection

  • In Active Directory, go to the properties of user containers/OU's and search for Distinguished Name attribute.
  • Cisco Firepower Management Center: Configure user bind account domain name

  • Enter the valid Bind account Password.
  • Click on Test Bind Account Credentials button to verify your LDAP Bind credentials for LDAP connection.
  • Cisco Firepower Management Center: Check bind account credentials

  • Search Base is the location in the directory where the search for a user begins. You will get this from the same place you got your Distinguished name.
  • Cisco Firepower Management Center: Configure user search base

  • Select a suitable Search filter from the drop-down menu. If you use User in Single Group Filter or User in Multiple Group Filter, replace the <group-dn> in the search filter with the distinguished name of the group in which your users are present. To use custom Search Filter select "Write your Custom Filter" option and customize it accordingly.
  • Cisco Firepower Management Center: Select user search filter

  • You can also configure following options while setting up AD. Enable Activate LDAP in order to authenticate users from AD/LDAP. Click on the Save button to add user store.
  • Cisco Firepower Management Center: Activate LDAP options

    Here's the list of the attributes and what it does when we enable it. You can enable/disable accordingly.

    Attribute Description
    Activate LDAP All user authentications will be done with LDAP credentials if you Activate it
    Sync users in miniOrange Users will be created in miniOrange after authentication with LDAP
    Fallback Authentication If LDAP credentials fail then user will be authenticated through miniOrange
    Allow users to change password This allows your users to change their password. It updates the new credentials in your LDAP server
    Enable administrator login On enabling this, your miniOrange Administrator login authenticates using your LDAP server
    Show IdP to users If you enable this option, this IdP will be visible to users
    Send Configured Attributes If you enable this option, then only the attributes configured below will be sent in attributes at the time of login

  • Click on Save. After this, it will show you the list of User stores. Click on Test Connection to check whether you have enter valid details. For that, it will ask for username and password.
  • Cisco Firepower Management Center: Test AD/Ldap connection

  • On Successful connection with LDAP Server, a success message is shown.
  • Click on Test Attribute Mapping.
  • Cisco Firepower Management Center LDAP successful connection

  • Enter a valid Username. Then, click on Test. Mapped Attributes corresponding to the user are fetched.
  • Cisco Firepower Management Center: Fetch mapped attributes for user

  • After successful Attribute Mapping Configuration, go back to the ldap configuration and enable Activate LDAP in order to authenticate users from AD/LDAP.
  • Refer our guide to setup LDAPS on windows server.

User Import and Provisioning from AD

  • Go to Settings >> Product Settings in the Customer Admin Account.
  • MFA/Two-Factor Authentication(2FA) for   miniOrange dashboard

  • Enable the "Enable User Auto Registration" option and click Save.
  • MFA/Two-Factor Authentication(2FA) for   Enable User Auto Registration

  • (Optional) To send a welcome email to all the end users that will be imported, enable the "Enable sending Welcome Emails after user registration" option and click Save.
  • MFA/Two-Factor Authentication(2FA) for   Enable sending Welcome Emails after user registration

  • From the Left-Side menu of the dashboard select Provisioning.
  • MFA/Two-Factor Authentication(2FA) for   User Sync/Provisioning

  • In Setup Provisioning tab select Active Directory in the Select Application drop-down.
  • Toggle the Import Users tab, click on Save button.
  • MFA/Two-Factor Authentication(2FA) for   User Sync Active Directory Configuration

  • On the same section, switch to Import Users section.
  • Select Active Directory from the dropdown and click on the Import Users tab, to import all the users from Active Directory to miniOrange.
  • MFA/Two-Factor Authentication(2FA) for   User Sync Import Operation

  • You can view all the Users you have imports by selecting Users >> User List from Left Panel.
  • MFA/Two-Factor Authentication(2FA) for   User List

  • All the imported users will be auto registered.
  • These groups will be helpful in adding multiple 2FA policies on the applications.

miniOrange integrates with various external user sources such as directories, identity providers, and etc.

Not able to find your IdP or Need help setting it up?


Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.




5. Adaptive Authentication with Cisco Firepower Management Center

A. Restricting access to Cisco Firepower Management Center with IP Blocking

    You can use adaptive authentication with Cisco Firepower Management Center Single Sign-On (SSO) to improve the security and functionality of Single Sign-On. You can allow a IP Address in certain range for SSO or you can deny it based your requirements and you can also challenge the user to verify his authenticity. Adaptive authentication manages the user authentication bases on different factors such as Device ID, Location, Time of Access, IP Address and many more.

    You can configure Adaptive Authentication with IP Blocking in following way:
  • Login to Self Service Console >> Adaptive Authentication.
  • Add a Policy Name for your Adaptive Authentication Policy.
  • Cisco Firepower Management Center Single Sign-On (SSO) Restrict Access adaptive authentication policy

  • Select your Action for behavior Change and Challenge Type for user from the Action for behavior Change Section.
  • Cisco Firepower Management Center Single Sign-On (SSO) Restrict Access adaptive authentication behavior change


    Action for behavior Change Options :


    Attribute Description
    Allow Allow user to authenticate and use services if Adaptive authentication condition is true.
    Challenge Challenge users with one of the three methods mentioned below for verifying user authenticity.
    Deny Deny user authentications and access to services if Adaptive authentication condition is true.

    Challenge Type Options :

    Attribute Description
    User second Factor The User needs to authenticate using the second factor he has opted or assigned for such as
  • OTP over SMS
  • PUSH Notification
  • OTP over Email
  • And 12 more methods.
  • KBA (Knowledge-based authentication) The System will ask user for 2 of 3 questions he has configured in his Self Service Console. Only after right answer to both questions user is allowed to proceed further.
    OTP over Alternate Email User will receive a OTP on the alternate email he has configured threw Self Service Console. Once user provides the correct OTP he is allowed to proceed further.

  • Now Enable Enable IP Restriction option from the IP RESTRICTION CONFIGURATION section to configure custom IP range.
  • Cisco Firepower Management Center Single Sign-On (SSO) Restrict Access adaptive authentication ip blocking

  • Select the Action you want to perform if the IP address is out of the range. i.e. Allow, Challenge & Deny.
  • Specify the IP Address range for which you want above setting to reflect. You can add more than one IP Address ranges by clicking on following button +.
  • Scroll to the end and click on save.

B. Adaptive Authentication with Limiting number of devices.

    Using Adaptive Authentication you can also restrict the number of devices the end user can access the Services on. You can allow end users to access services on a fixed no. of devices. The end users will be able to access services provided by us on this fixed no. of devices.

    You can configure Adaptive Authentication with Device Restriction in following way

  • Login to Self Service Console >> Adaptive Authentication.
  • Add a Policy Name for your Adaptive Authentication Policy.
  • Select your Action for behavior Change and Challenge Type for user from the Action for behavior Change Section.
  • Cisco Firepower Management Center Single Sign-On (SSO) Restrict Access adaptive authentication behavior and challenge type


  • Scroll down to Device Configuration section and enable Allow User to Register Device option to allow users to register their devices.
  • Enter the Number of Devices which are allowed to register in field next to Number of Device Registrations Allowed
  • Choose Action if number of devices exceeded (This will override your setting for Action for behavior Change.)
    1. Challenge: The user needs to verify himself using any of the three methods mentioned in table in step 5.1
    2. Deny : Deny users access to the system
  • Enable option Send email alerts to Users if number of Device registrations exceeded allowed count if you want to alert the user about no of devices exceeding the limit. Save the configuration.
  • Cisco Firepower Management Center Single Sign-On (SSO) Restrict Access adaptive authentication enable device restriction


C. Add Adaptive Authentication policy to Cisco Firepower Management Center.

  • Login to Self Service Console >> Policies.
  • Click on Edit option for predefined app policy.
  • Cisco Firepower Management Center Single Sign-On (sso) edit device restriction policy

  • Set your application name in the Application and select password as Login Method.
  • Enable Adaptive Authentication on Policy page and select the required restriction method as an option.
  • From Select Login Policy dropdown select the policy we created in last step and click on save.
  • Cisco Firepower Management Center Single Sign-On (SSO) Restrict Access save device restriction policy

    D.Notification and Alert Message.

      This section handles the notifications and alerts related to Adaptive Authentication.It provides the following options :

    • Get email alerts if users login from unknown devices or locations : Admin need to enable this option to enable receiving alerts for different alert options.
      adaptive authentication Action for behavior Change Configuration

    • Option Description
      Challenge Completed and Device Registered Enabling this option allows you to send an email alert when an end-user completes a challenge and registers a device.
      Challenge Completed but Device Not Registered Enabling this option allows you to send an email alert when an end-user completes a challenge but do not registers the device.
      Challenge Failed Enabling this option allows you to send an email alert when an end-user fails to complete the challenge.


      adaptive authentication Action for behavior Change Configuration

    • Next subsection is Send email alerts which allows us to enable or disable alerts for admin and end-users. To enable alerts for admins, you can enable the “Administrators” switch button.

    • adaptive authentication Action for behavior Change Configuration

    • In case you want multiple admins accounts to receive alerts then you can enable the option for admin and then enter the admin emails separated by a ‘,’ in the input field next to Administrators email to receive alerts label. To enable alerts for the end-users, you can enable the “End Users” switch button.
    • In case you want to customize the deny message that end user receive in case his authentication denied due to adaptive policy, you can do this by entering the message inside “Deny message for Adaptive Authentication” text box.
    • adaptive authentication Action for behavior Change Configuration
    How to add a trusted Device
    1. When End-user log in to the self service console after the policy for device restriction is on, he is provided the option to add the current device as a trusted device.

External References

Want To Schedule A Demo?

Request a Demo




Our Other Identity & Access Management Products
